Essentra plc- 接线端子

埃森特拉集团（Essentra plc）是一家全球领先的基本工业零部件供应商，总部位于英国牛津郡基德灵顿。公司前身可追溯至20世纪60年代的Moss Plastics，后经多次战略并购与剥离，于2013年正式更名为Essentra。公司运营两大事业部：零部件事业部（Essentra Components）和包装事业部，其中零部件事业部负责注塑、浸塑及金属零部件的制造与销售。Essentra Components专注于中小型基本零部件，产品广泛服务于电子、汽车、医疗和工业制造等关键行业。在电子元器件领域，公司提供丰富的产品系列，包括PCB硬件（支撑柱、间隔柱、板卡导轨等）、线缆管理产品（扎带、线夹、螺旋缠绕管）、防护帽塞、紧固件以及电磁干扰/射频干扰（EMI/RFI）屏蔽件。此外，公司还供应用于电子电路电磁干扰抑制的铁氧体磁芯和磁环，确保信号完整性。Essentra的产品对于电子设备与机柜的防护、连接及装配至关重要，且符合RoHS、REACH等环保与安全标准。作为小型基本零部件的利基市场领导者，Essentra拥有覆盖欧洲、美洲和亚洲的全球制造及分销网络，具备强大的供应链能力。公司已在伦敦证券交易所上市（股票代码：ESNT），零部件事业部通过高效电子商务平台和准时化交付服务，为全球成千上万的客户提供支持。展望未来，Essentra持续加大创新投入，开发微型化IoT元器件和可持续材料产品，以适应电子产业发展的新需求。

接线端子 - 型号列表

共 32 个型号

制造商零件编号	库存	价格	标准包装数量	长度	材料（通用）	固定类型	安装类型	板间高度	支撑孔直径	支撑面板厚度	安装高度（最大）	螺纹/螺钉/孔尺寸	安装面板厚度	系列	输出配置

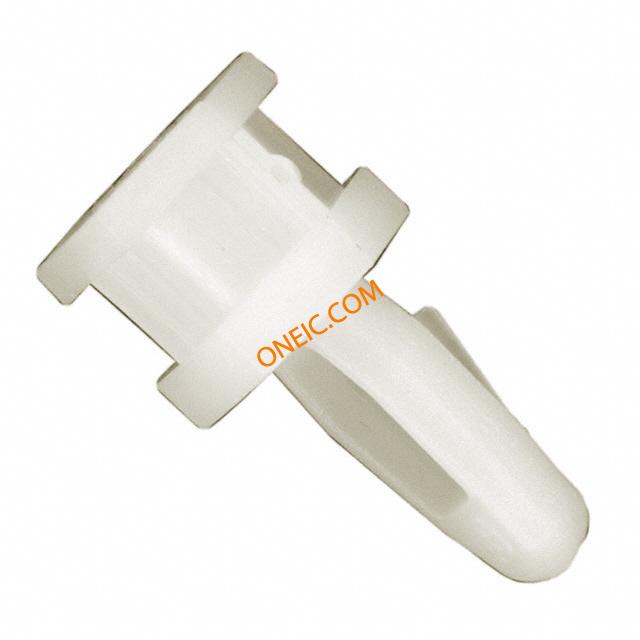

TCBS-4-01 CBS SCREW-MOUNT NYLON 1/4" Essentra Components	1765	1: ¥1.3124	1,000	0.650" (16.51mm)	Nylon	Snap Lock	Screw Mount	0.250" (6.35mm) 1/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	0.250" (6.35mm) 1/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	TCBS	Screw Mount
TCBS-6-01 CBS SCREW-MOUNT NYLON 3/8" Essentra Components	1385	1: ¥1.3328	1,000	0.775" (19.69mm)	Nylon	Snap Lock	Screw Mount	0.375" (9.53mm) 3/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-8-01 CBS SCREW-MOUNT NYLON 1/2" Essentra Components	2091	1: ¥1.3532	1,000	0.900" (22.86mm)	Nylon	Snap Lock	Screw Mount	0.500" (12.70mm) 1/2"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-10-01 TCBS SUPPORT 5/8" Essentra Components	1000	1: ¥1.4348	1,000	1.025" (26.04mm)	Nylon	Snap Lock	Screw Mount	0.625" (15.88mm) 5/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-12-01 CBS SCREW-MOUNT NYLON 3/4" Essentra Components	400	1: ¥1.5028	1,000	1.150" (29.21mm)	Nylon	Snap Lock	Screw Mount	0.750" (19.05mm) 3/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-14-01 CBS SCREW-MOUNT NYLON 7/8" Essentra Components	10	1000: ¥1.4076	1,000	1.275" (32.39mm)	Nylon	Snap Lock	Screw Mount	0.875" (22.23mm) 7/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	0.875" (22.23mm) 7/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	TCBS	Screw Mount
TCBS-16-01 CBS SCREW-MOUNT NYLON 1" Essentra Components	2590	1: ¥5.372	1,000	1.400" (35.56mm)	Nylon	Snap Lock	Screw Mount	1.000" (25.40mm) 1"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	1.000" (25.40mm) 1"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	TCBS	Screw Mount
TCBS-18-01 CBS SCREW-MOUNT NYLON 1 1/8" Essentra Components	1841	1: ¥6.80	1,000	1.525" (38.74mm)	Nylon	Snap Lock	Screw Mount	1.125" (28.58mm) 1 1/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-4-19 CBS SCREW-MOUNT FR NYLON 1/4" Essentra Components	2000	1: ¥1.6252	1,000	0.650" (16.51mm)	Nylon	Snap Lock	Screw Mount	0.250" (6.35mm) 1/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	0.250" (6.35mm) 1/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	TCBS	Screw Mount
TCBS-20-01 CBS SCREW-MOUNT NYLON 1 1/4" Essentra Components	3900	1: ¥5.644	1,000	1.650" (41.91mm)	Nylon	Snap Lock	Screw Mount	1.250" (31.75mm) 1 1/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	1.250" (31.75mm) 1 1/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	TCBS	Screw Mount
TCBS-6-19 CBS SCREW-MOUNT FR NYLON 3/8" Essentra Components	1000	1: ¥1.6524	1,000	0.775" (19.69mm)	Nylon	Snap Lock	Screw Mount	0.375" (9.53mm) 3/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-22.5-01 CBS SCREW-MOUNT NYLON 1 13/32" Essentra Components	3060	1: ¥5.712	1,000	1.806" (45.87mm)	Nylon	Snap Lock	Screw Mount	1.406" (35.71mm) 1 13/32"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-8-19 CBS SCREW-MOUNT FR NYLON 1/2" Essentra Components	3769	1: ¥5.78	1,000	0.900" (22.86mm)	Nylon	Snap Lock	Screw Mount	0.500" (12.70mm) 1/2"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-10-19 CBS SCREW-MOUNT FR NYLON 5/8" Essentra Components	10	1000: ¥1.6456	1,000	1.025" (26.04mm)	Nylon	Snap Lock	Screw Mount	0.625" (15.88mm) 5/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	0.625" (15.88mm) 5/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	TCBS	Screw Mount
TCBS-12-19 CBS SCREW-MOUNT FR NYLON 3/4" Essentra Components	650	1: ¥1.8632	1,000	1.150" (29.21mm)	Nylon	Snap Lock	Screw Mount	0.750" (19.05mm) 3/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-14-19 CBS SCREW-MOUNT FR NYLON 7/8" Essentra Components	10	1000: ¥1.8292	1,000	1.275" (32.39mm)	Nylon	Snap Lock	Screw Mount	0.875" (22.23mm) 7/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-16-19 CBS SCREW-MOUNT FR NYLON 1" Essentra Components	10	1000: ¥1.8836	1,000	1.400" (35.56mm)	Nylon	Snap Lock	Screw Mount	1.000" (25.40mm) 1"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-18-19 CBS SCREW-MOUNT FR NYLON 1 1/8" Essentra Components	10	1000: ¥1.9312	1,000	1.525" (38.74mm)	Nylon	Snap Lock	Screw Mount	1.125" (28.58mm) 1 1/8"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-20-19 CBS SCREW-MOUNT FR NYLON 1 1/4" Essentra Components	3900	1: ¥7.276	1,000	1.650" (41.91mm)	Nylon	Snap Lock	Screw Mount	1.250" (31.75mm) 1 1/4"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-
TCBS-22.5-19 CBS SCREW-MOUNT FR NYL 1 13/32" Essentra Components	10	1000: ¥1.9992	1,000	1.806" (45.87mm)	Nylon	Snap Lock	Screw Mount	1.406" (35.71mm) 1 13/32"	0.156" (3.96mm) 5/32"	0.062" (1.57mm) 1/16"	-	-	-	-	-

第 1 / 2 页
