TDK Electronics AG- 电源连接器

TDK Electronics AG，前身为爱普科斯（EPCOS AG），是全球领先的电子元件、模块和系统制造商，总部位于德国慕尼黑。公司最初于1989年由西门子和松下合资成立，后独立为EPCOS AG，并于2008年被日本TDK株式会社收购。如今，EPCOS作为TDK Electronics AG的产品品牌，专注于电容器、电感器和声表面波（SAW）滤波器等无源电子元件。公司提供超过40,000种产品，包括铝电解电容器、薄膜电容器、多层陶瓷电容器（MLCC）、铁氧体与电感器，以及用于频率控制和滤波的SAW组件。这些元件广泛应用于汽车电子、工业电子、信息与通信技术以及消费电子等关键领域。TDK Electronics AG以先进的陶瓷技术闻名，在小型化、可靠性和环境耐受性方面提供了高性能解决方案。公司拥有全球制造和销售网络，生产基地遍布欧洲、亚洲和美洲。作为世界最大电子元件制造商之一的TDK集团成员，EPCOS品牌受益于强大的研发资源和广泛的应用覆盖。其元件被广泛用于动力总成系统、高级驾驶辅助系统（ADAS）、可再生能源逆变器和5G基站，成为一级汽车与工业原始设备制造商的首选供应商。凭借在创新和品质方面的深厚积淀，TDK Electronics AG通过材料科学和制造精度的进步，持续塑造无源元件的未来。

MODELS

电源连接器 - 型号列表共 21 个型号

制造商零件编号	价格/库存	Mounting Type	Termination Style	Filter Type	Depth	Dimensions	Height	Length	Maximum Current Rating	Maximum Operating Temperature	Maximum Voltage Rating	Minimum Operating Temperature	Operating Frequency	Voltage Rating	Mounting Style	Filtered	Current Rating	RoHS	Capacitance	Inductance Min	Filter Terminals	SVHC	Operating Temperature Max	Weight (kg)	Tariff No.	Product	Fused	Series	Switch Function	Width	Operating Temperature Range	Leakage Current Max	Current	Fuse Drawer	Voltage	Standard Package	Type	Other Names	rohs	Connector Type	Inductance

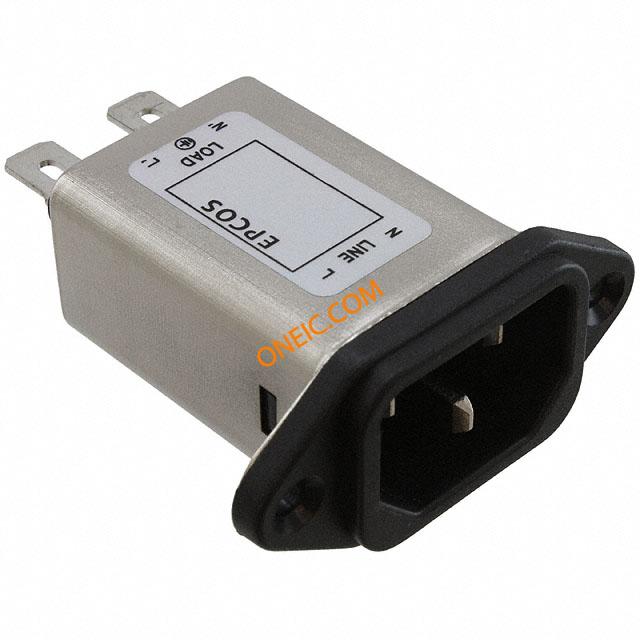

3 B84771C0003A000 MODULE POWER ENTRY 3A EPCOS Inc	询价	Panel Mount, Screw Hole	Quick Connect	General Purpose	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	3A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	3 A	RoHS Compliant	:0.1µF	:2.5mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	3A	Fuse Not Required	250V	60	IEC 320-C14 (Male Pins)	495-4510	Compliant	-	-

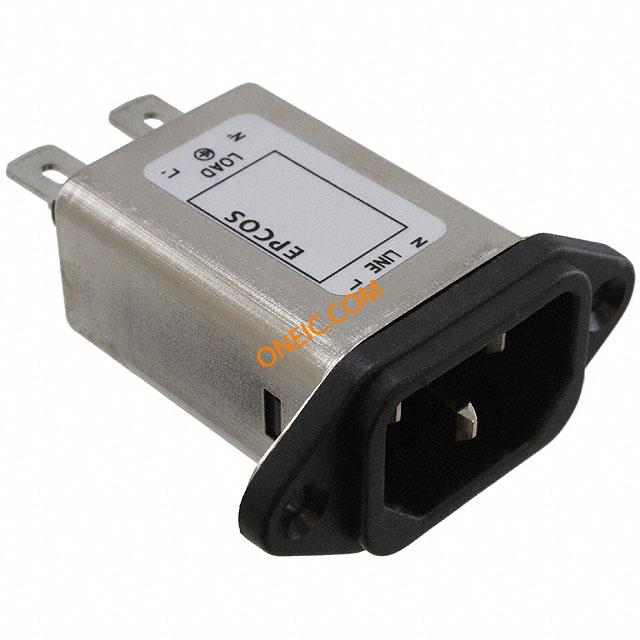

3 B84771A0003A000 MODULE POWER ENTRY 3A W/BLEEDER EPCOS Inc	询价	Panel Mount, Screw Hole	Quick Connect	General Purpose	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	3A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	3 A	RoHS Compliant	:0.1µF	:2.5mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	3A	Fuse Not Required	250V	60	IEC 320-C14 (Male Pins)	495-4512	Compliant	-	-

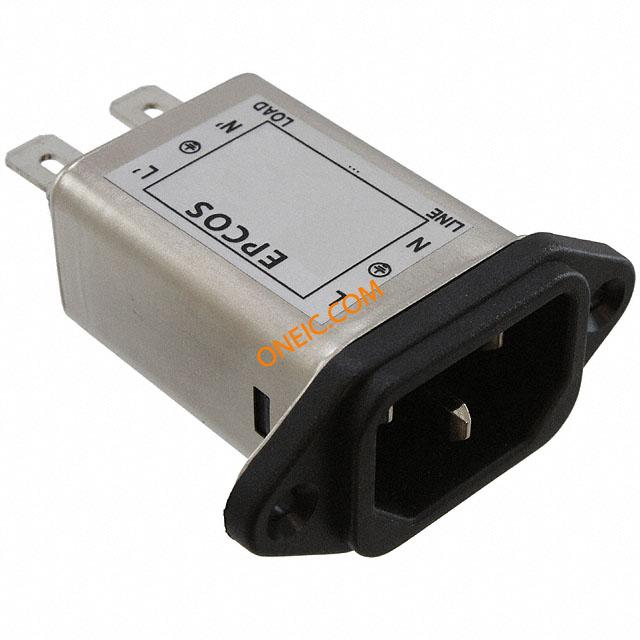

3 B84771A0015A000 MODULE POWER ENTRY 15A W/BLEEDER EPCOS Inc	询价	Panel Mount, Screw Hole	Quick Connect	General Purpose	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	15A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	15 A	RoHS Compliant	:0.1µF	:0.09mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03693	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	15A	Fuse Not Required	250V	60	IEC 320-C14 (Male Pins)	495-4511	Compliant	-	-

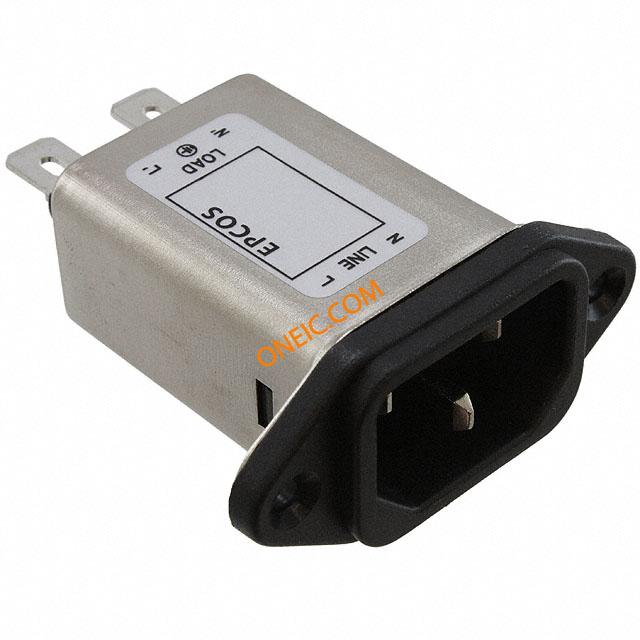

3 B84771M0010A000 MODULE POWER ENTRY 10A EPCOS Inc	询价	Panel Mount, Screw Hole	Quick Connect	Medical	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	10A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	10 A	RoHS Compliant	:0.1µF	:0.24mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	-	10A	Fuse Not Required	250V	60	IEC 320-C14 (Male Pins)	495-4507	Compliant	-	-

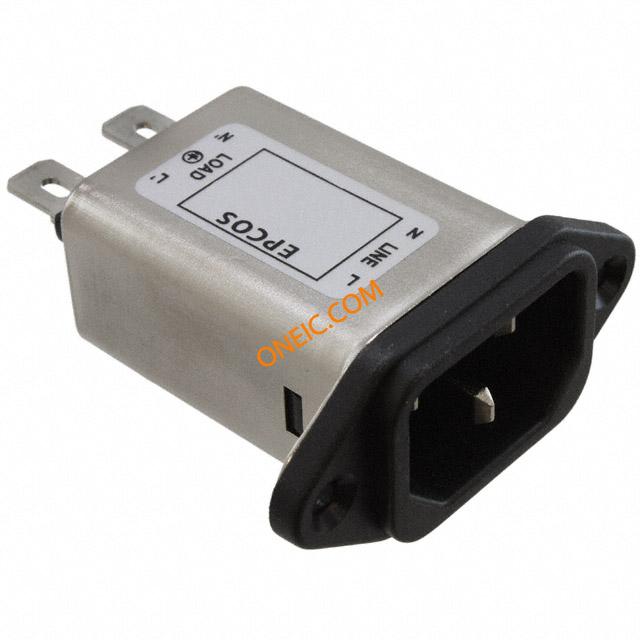

3 B84771M0008A000 MODULE POWER ENTRY 8A EPCOS Inc	询价	Panel Mount, Screw Hole	Quick Connect	Medical	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	8A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	8 A	RoHS Compliant	:0.1µF	:0.45mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	-	8A	Fuse Not Required	250V	60	IEC 320-C14 (Male Pins)	495-4508	Compliant	-	-

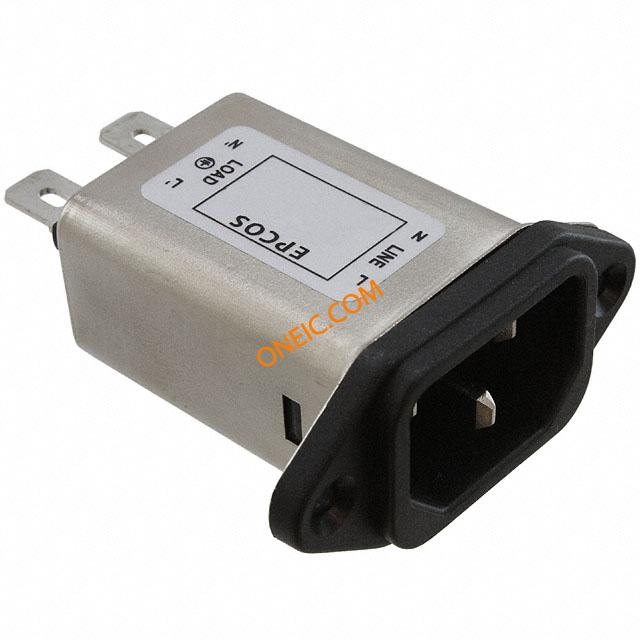

3 B84771M0006A000 MODULE POWER ENTRY 6A EPCOS Inc	询价	Panel Mount, Screw Hole	Quick Connect	Medical	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	6A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	6 A	RoHS Compliant	:0.1µF	:0.84mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	-	6A	Fuse Not Required	250V	60	IEC 320-C14 (Male Pins)	495-4509	Compliant	-	-

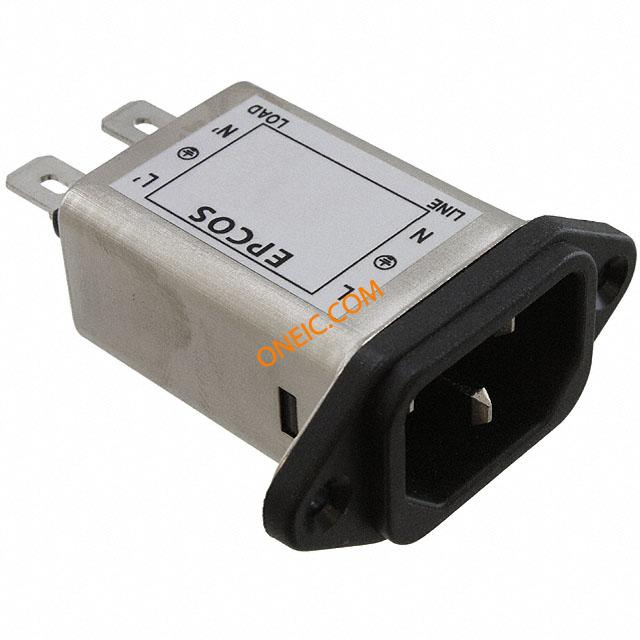

3 B84771M0015A000 MODULE POWER ENTRY 15A EPCOS Inc	询价	Panel Mount, Screw Hole	Quick Connect	Medical	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	15A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	15 A	RoHS Compliant	:0.1µF	:0.09mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03693	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	-	15A	Fuse Not Required	250V	60	IEC 320-C14 (Male Pins)	495-4505	Compliant	-	-

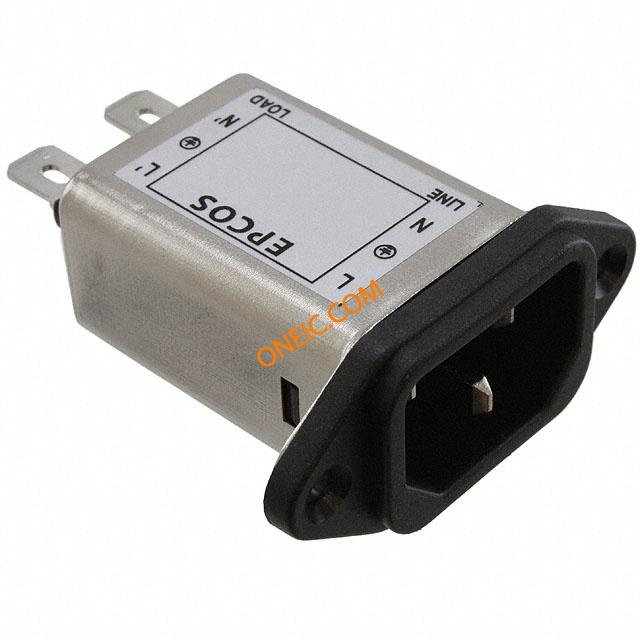

3 B84771M0012A000 MODULE POWER ENTRY 12A EPCOS Inc	询价	Panel Mount, Screw Hole	Quick Connect	Medical	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	12A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	12 A	RoHS Compliant	:0.1µF	:0.14mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03693	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	-	12A	Fuse Not Required	250V	60	IEC 320-C14 (Male Pins)	495-4506	Compliant	-	-

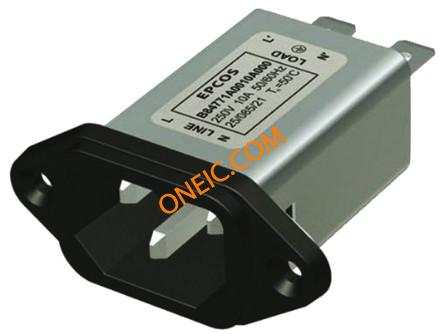

2 B84771C0015A000 IEC 2 Line Filter 15A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	15A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	15 A	RoHS Compliant	:0.1µF	:0.09mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03693	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
2 B84771A0001A000 IEC 2 Line Filter 1A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	1A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	1 A	RoHS Compliant	:0.1µF	:12mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
2 B84771A0006A000 IEC 2 Line Filter 6A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	6A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	6 A	RoHS Compliant	:0.1µF	:0.84mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
2 B84771C0010A000 IEC 2 Line Filter 10A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	10A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	10 A	RoHS Compliant	:0.1µF	:0.24mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
2 B84771M0001A000 IEC Medical Line Filter 1A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	1A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	1 A	RoHS Compliant	:0.1µF	:12mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	-	-	-	-	-	-	-	-	-	-
2 B84771A0008A000 IEC 2 Line Filter 8A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	8A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	8 A	RoHS Compliant	:0.1µF	:0.45mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
2 B84771A0010A000 IEC 2 Line Filter 10A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	10A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	10 A	RoHS Compliant	:0.1µF	:0.24mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
2 B84771C0006A000 IEC 2 Line Filter 6A 250V Epcos	询价	Panel Mount	Tab	IEC Inlet Filters	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	6A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	6 A	RoHS Compliant	:0.1µF	:0.84mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	-	-	-	-	-	-	:173µA	-	-	-	-	-	-	-	IEC-C14	1.68 mH
2 B84771C0001A000 IEC 2 Line Filter 1A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	1A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	1 A	RoHS Compliant	:0.1µF	:12mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
2 B84771M0003A000 IEC Medical Line Filter 3A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	3A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	3 A	RoHS Compliant	:0.1µF	:2.5mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	-	-	-	-	-	-	-	-	-	-
2 B84771C0012A000 IEC 2 Line Filter 12A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	12A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	12 A	RoHS Compliant	:0.1µF	:0.14mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03693	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
2 B84771C0008A000 IEC 2 Line Filter 8A 250V Epcos	询价	Panel Mount	Tab	:IEC, Mains	43.5mm	50 x 43.5 x 22.5mm	22.5mm	50mm	8A	+85°C	250 V ac/dc	-25°C	50 → 60Hz	250 V	Flange	Yes	8 A	RoHS Compliant	:0.1µF	:0.45mH	:Quick Connect	:No SVHC (20-Jun-2013)	:50°C	0.03393	85363010	Inlets	No	B84771	Not Switched	22.5 mm	- 25 C to + 85 C	:173µA	-	-	-	-	-	-	-	-	-
