EDAC公司成立于1966年，总部位于加拿大安大略省马卡姆，是全球领先的互连解决方案设计与制造商。公司最初在卡缘连接器和机架面板连接器行业建立了世界领导地位，许多经典设计至今仍被广泛使用。经过数十年的发展，EDAC已将产品线扩展至全球最广泛的互连产品系列之一。核心产品包括卡缘连接器、机架与面板连接器、D-sub连接器、模块化插孔、USB连接器、防水连接器以及定制化线束组件。EDAC服务于电信、医疗、工业自动化、航空航天和商业电子等多个行业。公司在全球设有设计和客户服务中心，在中国拥有生产设施，并在加拿大、美国、英国、台湾和香港设有客户物流中心。EDAC以卓越的工程技术、高可靠性产品和满足严格行业标准的定制互连方案而著称。凭借超过50年的行业经验，EDAC坚持以质量、创新和全面的全球支持巩固其市场地位。

保险丝座 - 型号列表

共 33 个型号

制造商零件编号	库存	价格	工厂包装数量	RoHS	额定电压	接触电阻	最大额定电流	触头材料	第一连接器极性	系列	制造商全称	连接方式	横截面形状	线规或范围 - AWG	材料阻燃等级	测试电压	极数	绝缘电阻	保护电压（VP）（2416）	间距	安装类型	连接器类型	接触镀层	壳体材料	端接排数	连接器 - 电缆	连接器颜色	极性	基础产品编号	工作温度	长度	电缆直径	导线线规	线规 - 端部	外管直径（最大）	附件类型	适用产品/相关产品
2 570-290-731P40 570 Series Male 20 to 16 AWG Crimp Tin Finished Contact Crimp contact, 10 A, PU=40 ST, 570-290-731P40, Edac EDAC 570 系列插入式触点（插头）, 使用于防水连接器 Fuse Holder 20-16 AWG MALE CONTACT PIN BRASS EDAC	840	40: ¥0.937	48	RoHS Compliant	300	10 mOhm	10 A	Brass	Male	570	EDAC	Wire-Wire	0.50...1.30 mm²	20...16 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	16	20	3.1	插入式触点（插头）	防水连接器
2 570-290-711P40 570 Series Male 22 to 20 AWG Crimp Tin Finished Contact Crimp contact, 10 A, PU=40 ST, 570-290-711P40, Edac EDAC 570 系列插入式触点（插头）, 使用于防水连接器 Fuse Holder 22-20 AWG MALE CONTACT PIN BRASS EDAC	320	40: ¥0.886	64	RoHS Compliant	300	10 mOhm	10 A	Brass	Male	570	EDAC	Wire-Wire	0.3...0.50 mm²	22...20 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	20	22	2.7	插入式触点（插头）	防水连接器

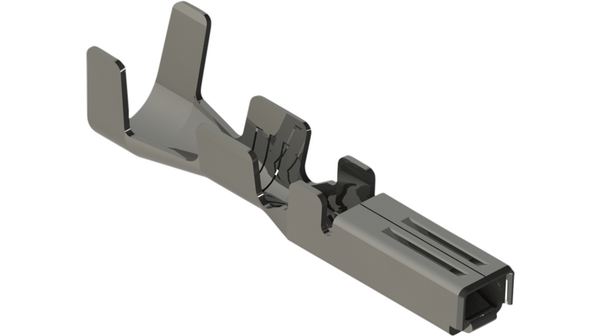

2 570-290-741P40 570 Series Female 20 to 16 Crimp Tin Finished Contact Crimp contact, 10 A, PU=40 ST, 570-290-741P40, Edac EDAC 570 系列包容式触点（插座）, 使用于防水连接器 Fuse Holder 20-16 AWG FEMALE CONTACT SOCKET BRASS EDAC	880	40: ¥1.408	48	RoHS Compliant	300	10 mOhm	10 A	Brass	Female	570	EDAC	Wire-Wire	0.50...1.30 mm²	20...16 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	16	20	3.1	包容式触点（插座）	防水连接器
2 570-290-721P40 570 Series Female 22 to 20 AWG Crimp Tin Finished Contact Crimp contact, 10 A, PU=40 ST, 570-290-721P40, Edac EDAC 570 系列包容式触点（插座）, 使用于防水连接器 Fuse Holder 22-20 AWG FEMALE CONTACT SOCKET BRASS EDAC	280	40: ¥1.239	64	RoHS Compliant	300	10 mOhm	10 A	Brass	Female	570	EDAC	Wire-Wire	0.3...0.50 mm²	22...20 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	20	22	2.7	包容式触点（插座）	防水连接器
2 570-290-751P40 CONNECTORS MODULAR Crimp contact, 10 A, PU=40 ST, 570-290-751P40, Edac EDAC 570 系列插入式触点（插头）, 使用于防水连接器 Fuse Holder 14 AWG MALE CONTACT PIN BRASS EDAC Inc.	400	40: ¥1.065	48	RoHS Compliant	300	10 mOhm	10 A	Brass	Male	570	EDAC	Wire-Wire	2.00...2.00 mm²	14...14 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	14	14	3.1	插入式触点（插头）	防水连接器
2 570-290-761P40 CONNECTORS MODULAR Crimp contact, 10 A, PU=40 ST, 570-290-761P40, Edac EDAC 570 系列包容式触点（插座）, 使用于防水连接器 Fuse Holder 14AWG FEMALE CONTACT SOCKET BRASS EDAC Inc.	3360	40: ¥1.408	48	RoHS Compliant	300	10 mOhm	10 A	Brass	Female	570	EDAC	Wire-Wire	2.00...2.00 mm²	14...14 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	14	14	3.1	包容式触点（插座）	防水连接器

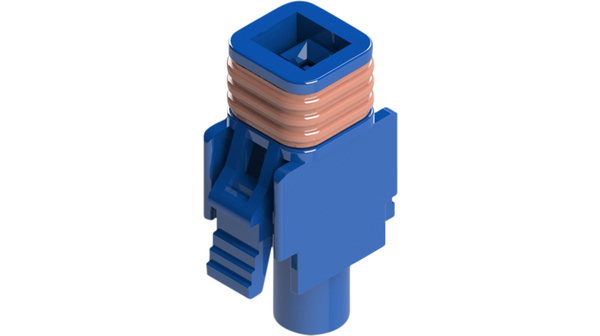

2 572-001-000-400 Socket housing Pitch5.8 mm Poles 1, 572-001-000-400, Edac EDAC 线对线连接器插座母, 1P, 电缆安装安装, 压接端接, 10A 300 V, -40 → +105 °C Fuse Holder 1 PIN RECEPTACLE BLUE EDAC	498	1: ¥9.18	500	RoHS Compliant	300	10 mOhm	10 A	黄铜，磷青铜	Female	572	EDAC	Wire-Wire	0.3...2 mm²	22...14 AWG	UL 94 V-0	1700	1	1000 MOhm	IP 67	5.8	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插座	blue	1P	572	-40...+105 °C	26	1.7...3.1 mm	-	-	-	-	-

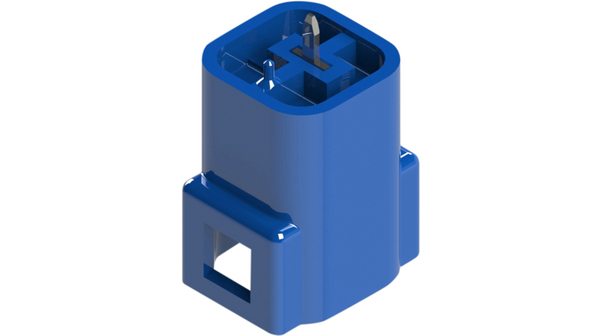

2 572-001-420-301 PCB header Pitch5.8 mm Poles 1, 572-001-420-301, Edac EDAC 紧凑型电源连接器插头公, 1P, 印刷电路板安装安装, 焊接端接, 10A 300 V, -40 → +105 °C Fuse Holder BOARD MTG 1 PIN PLUG BLUE EDAC	500	1: ¥8.50	500	RoHS Compliant	300	10 mOhm	10 A	黄铜	Male	572	EDAC	Wire-Board	-	-	UL 94 V-0	1700	1	1000 MOhm	IP 67	5.8	印刷电路板安装	THT	锡	Polybutylene terephthalate (PBT)	焊接	插头	blue	1P	572	-40...+105 °C	-	-	-	-	-	-	-

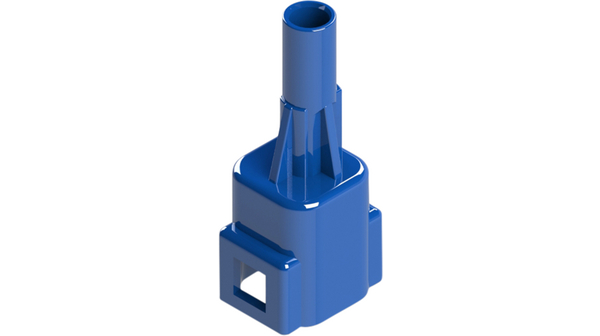

2 572-001-000-300 Plug housing Pitch5.8 mm Poles 1, 572-001-000-300, Edac EDAC 线对线连接器插头公, 1P, 电缆安装安装, 压接端接, 10A 300 V, -40 → +105 °C Fuse Holder W TO W 1 PIN PLUG BLUE EDAC	500	1: ¥2.6384	500	RoHS Compliant	300	10 mOhm	10 A	黄铜，磷青铜	Male	572	EDAC	Wire-Wire	0.3...2 mm²	22...14 AWG	UL 94 V-0	1700	1	1000 MOhm	IP 67	5.8	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插头	blue	1P	572	-40...+105 °C	36	1.7...3.1 mm	-	-	-	-	-
2 560-005-000-411 Socket housing Pitch2.5 mm Poles 5, 560-005-000-411, Edac EDAC 线对线连接器插座母, 5P, 电缆安装安装, 压接端接, 3A 250 V, -40 → +105 °C Fuse Holder 5 PIN RECEPT FML BLUE FOR 1.30-1.70 EDAC	395	1: ¥6.256	500	RoHS Compliant	250	15 mOhm	3 A	磷铜	Female	560	EDAC	Wire-Wire	0.08...0.52 mm²	28...20 AWG	UL 94 V-0	1000	5	1000 MOhm	IP 67	2.5	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插座	blue	5P	560	-40...+105 °C	15	1.3...1.7 mm	-	-	-	-	-

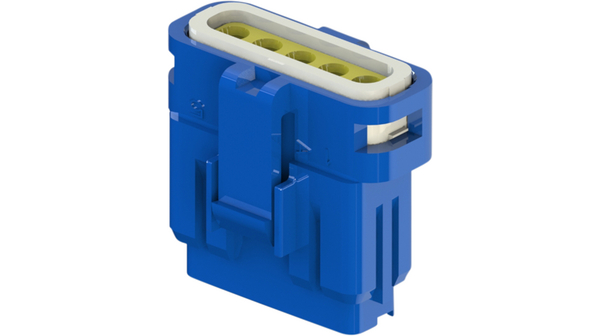

2 560-005-000-410 Socket housing Pitch2.5 mm Poles 5, 560-005-000-410, Edac EDAC 线对线连接器插座母, 5P, 电缆安装安装, 压接端接, 3A 250 V, -40 → +105 °C Fuse Holder 5 PIN RECEPT FML BLUE FOR 1.00-1.30 EDAC	500	1: ¥8.16	500	RoHS Compliant	250	15 mOhm	3 A	磷铜	Female	560	EDAC	Wire-Wire	0.08...0.52 mm²	28...20 AWG	UL 94 V-0	1000	5	1000 MOhm	IP 67	2.5	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插座	blue	5P	560	-40...+105 °C	15	1.0...1.3 mm	-	-	-	-	-

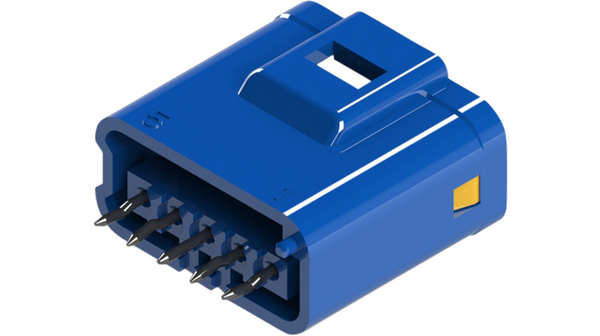

2 560-005-420-301 PCB header Pitch2.5 mm Poles 5, 560-005-420-301, Edac EDAC 紧凑型电源连接器插头公, 5P, 印刷电路板安装安装, 焊接端接, 3A 250 V, -40 → +105 °C Fuse Holder BOARD MTG 5 PIN PLUG BLUE EDAC	500	1: ¥11.492	500	RoHS Compliant	250	15 mOhm	3 A	黄铜	Male	560	EDAC	Wire-Board	-	-	UL 94 V-0	1000	5	1000 MOhm	IP 67	2.5	印刷电路板安装	THT	锡	Polybutylene terephthalate (PBT)	焊接	插头	blue	5P	560	-40...+105 °C	-	-	-	-	-	-	-

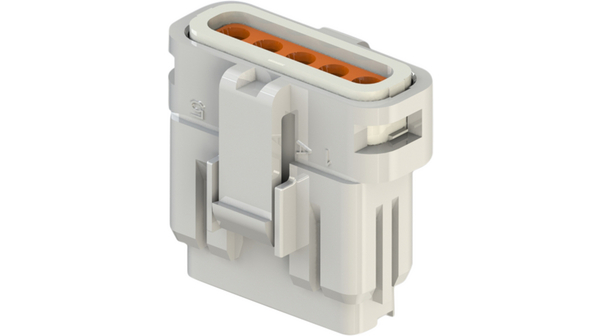

2 560-005-000-211 Socket housing Pitch2.5 mm Poles 5, 560-005-000-211, Edac EDAC 线对线连接器插座母, 5P, 电缆安装安装, 压接端接, 3A 250 V, -40 → +105 °C Fuse Holder 5 PIN RECEPT FML WHITE FOR 1.30-1.70 EDAC	500	1: ¥4.76	500	RoHS Compliant	250	15 mOhm	3 A	磷铜	Female	560	EDAC	Wire-Wire	0.08...0.52 mm²	28...20 AWG	UL 94 V-0	1000	5	1000 MOhm	IP 67	2.5	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插座	white	5P	560	-40...+105 °C	15	1.3...1.7 mm	-	-	-	-	-

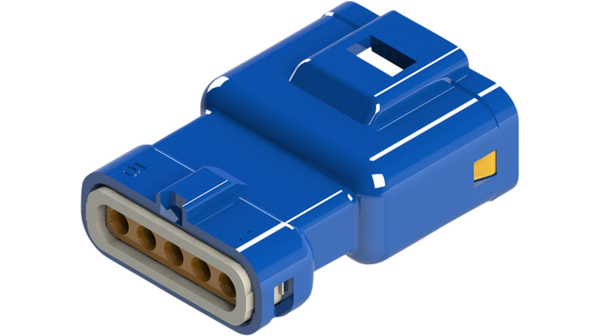

2 560-005-000-311 Plug housing Pitch2.5 mm Poles 5, 560-005-000-311, Edac EDAC 线对线连接器插头公, 5P, 电缆安装安装, 压接端接, 3A 250 V, -40 → +105 °C Fuse Holder W TO W MALE 5P PLUG BLUE FOR 1.30-1.70 EDAC	500	1: ¥8.636	500	RoHS Compliant	250	15 mOhm	3 A	磷铜	Male	560	EDAC	Wire-Wire	0.08...0.52 mm²	28...20 AWG	UL 94 V-0	1000	5	1000 MOhm	IP 67	2.5	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插头	blue	5P	560	-40...+105 °C	23.5	1.3...1.7 mm	-	-	-	-	-
2 560-005-000-310 Plug housing Pitch2.5 mm Poles 5, 560-005-000-310, Edac EDAC 线对线连接器插头公, 5P, 电缆安装安装, 压接端接, 3A 250 V, -40 → +105 °C Fuse Holder W TO W MALE 5P PLUG BLUE FOR 1.00-1.30 EDAC	490	1: ¥11.152	500	RoHS Compliant	250	15 mOhm	3 A	磷铜	Male	560	EDAC	Wire-Wire	0.08...0.52 mm²	28...20 AWG	UL 94 V-0	1000	5	1000 MOhm	IP 67	2.5	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插头	blue	5P	560	-40...+105 °C	23.5	1.0...1.3 mm	-	-	-	-	-

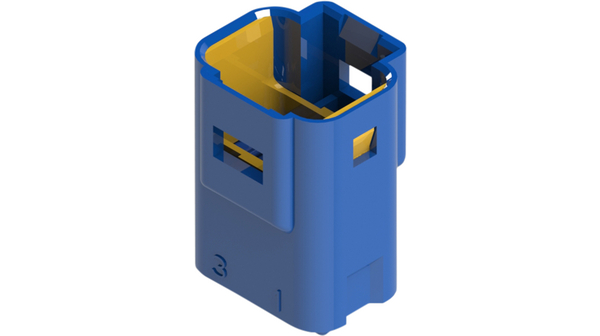

2 560-003-420-301 PCB header Pitch2.5 mm Poles 3, 560-003-420-301, Edac EDAC 紧凑型电源连接器插头公, 3P, 印刷电路板安装安装, 焊接端接, 3A 250 V, -40 → +105 °C Fuse Holder BOARD MTG 3 PIN PLUG BLUE EDAC	488	1: ¥21.6734	500	RoHS Compliant	250	15 mOhm	3 A	黄铜	Male	560	EDAC	Wire-Board	-	-	UL 94 V-0	1000	3	1000 MOhm	IP 67	2.5	印刷电路板安装	THT	锡	Polybutylene terephthalate (PBT)	焊接	插头	blue	3P	560	-40...+105 °C	-	-	-	-	-	-	-

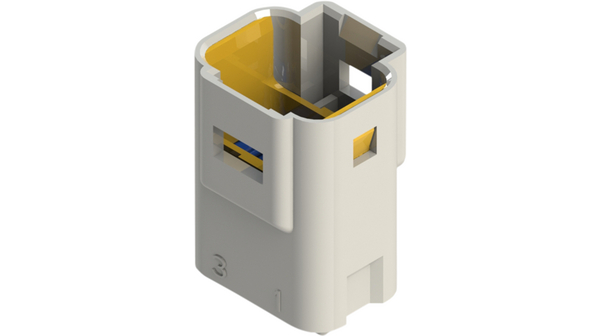

2 560-003-420-101 PCB header Pitch2.5 mm Poles 3, 560-003-420-101, Edac EDAC 紧凑型电源连接器插头公, 3P, 印刷电路板安装安装, 焊接端接, 3A 250 V, -40 → +105 °C Fuse Holder BOARD MTG 3 PIN PLUG WHITE EDAC	500	1: ¥9.248	500	RoHS Compliant	250	15 mOhm	3 A	黄铜	Male	560	EDAC	Wire-Board	-	-	UL 94 V-0	1000	3	1000 MOhm	IP 67	2.5	印刷电路板安装	THT	锡	Polybutylene terephthalate (PBT)	焊接	插头	white	3P	560	-40...+105 °C	-	-	-	-	-	-	-

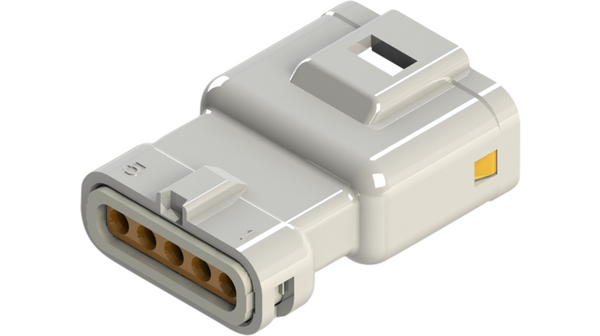

2 560-005-000-111 Plug housing Pitch2.5 mm Poles 5, 560-005-000-111, Edac EDAC 线对线连接器插头公, 5P, 电缆安装安装, 压接端接, 3A 250 V, -40 → +105 °C Fuse Holder W TO W MALE 5P PLUG WHITE FOR 1.30-1.70 EDAC	490	1: ¥8.636	500	RoHS Compliant	250	15 mOhm	3 A	磷铜	Male	560	EDAC	Wire-Wire	0.08...0.52 mm²	28...20 AWG	UL 94 V-0	1000	5	1000 MOhm	IP 67	2.5	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插头	white	5P	560	-40...+105 °C	23.5	1.3...1.7 mm	-	-	-	-	-

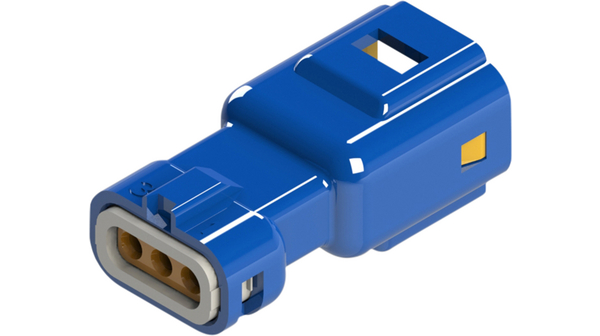

2 560-003-000-311 Plug housing Pitch2.5 mm Poles 3, 560-003-000-311, Edac EDAC 线对线连接器插头公, 3P, 电缆安装安装, 压接端接, 3A 250 V, -40 → +105 °C Fuse Holder W TO W MALE 3P PLUG BLUE FOR 1.30-1.70 EDAC	500	1: ¥7.888	500	RoHS Compliant	250	15 mOhm	3 A	磷铜	Male	560	EDAC	Wire-Wire	0.08...0.52 mm²	28...20 AWG	UL 94 V-0	1000	3	1000 MOhm	IP 67	2.5	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插头	blue	3P	560	-40...+105 °C	23.5	1.3...1.7 mm	-	-	-	-	-
2 560-003-000-310 Plug housing Pitch2.5 mm Poles 3, 560-003-000-310, Edac EDAC 线对线连接器插头公, 3P, 电缆安装安装, 压接端接, 3A 250 V, -40 → +105 °C Fuse Holder W TO W MALE 3P PLUG BLUE FOR 1.00-1.30 EDAC	469	1: ¥10.064	500	RoHS Compliant	250	15 mOhm	3 A	磷铜	Male	560	EDAC	Wire-Wire	0.08...0.52 mm²	28...20 AWG	UL 94 V-0	1000	3	1000 MOhm	IP 67	2.5	电缆安装	Crimp Termination	锡	Polybutylene terephthalate (PBT)	压接	插头	blue	3P	560	-40...+105 °C	23.5	1.0...1.3 mm	-	-	-	-	-
