Dialight plc- 光学元件

Dialight plc 是一家总部位于英国的全球领先高规格LED照明技术公司。公司专注于为工业、商业、危险区域、交通和公共基础设施等领域提供创新可靠的照明解决方案。Dialight 不断在光输出、能效和可靠性上取得突破，树立了LED照明的行业标杆。其广泛的产品线涵盖分立式通孔LED、MicroLED表面贴装LED、Prism精密透镜指示灯、OptoPipe光导管、面板安装LED指示灯、LED替换灯泡及透镜盖等。这些产品全面满足从微型板级元件到坚固工业灯具的各种视觉指示与照明需求。Dialight 的固态照明产品大幅降低维护成本，提升安全性，更加环保，并有助于减少二氧化碳排放。公司凭借全球基础设施建设、电网升级及严格环保法规等长期趋势，占据了独特的市场优势。Dialight 在全球设有机构，主要运营中心在美国，并在美国、英国、丹麦、德国和墨西哥拥有办事处。作为工业LED照明领域的翘楚，Dialight 以经久耐用、高能效的技术解决关键照明难题，享誉全球。

光学元件 - 型号列表

共 179 个型号

制造商零件编号	库存	价格	产品类别	RoHS	长度	类型	宽度	高度	颜色	直径	适用产品/相关产品	工厂包装数量	样式	形状	视角	标准包装数量	包装方式	安装类型	LED数量	光学模式	商标名	透镜样式/尺寸	其他名称	产品	零件号别名	灯类型	底座类型	系列	灯/放大镜类型	安装样式	样式/尺寸	附件类型
021-5710-2937-804 Complete Assemblies for Panel Mount Indicator Lamps LIGHT SHIELD PANEL INDICATOR LIGHT SHIELD PANEL IND Light Shield Panel Indicator LIGHTSHIELDPANELIND. Dialight	10	1: ¥242.692	Complete Assemblies for Panel Mount Indicator Lamps	No	-	-	-	-	-	-	-	-	-	-	-	1	Bulk	-	-	-	-	-	-	PMI Base and Lens Cap Complete Assembly	2157102937804	Incandescent	Miniature Bayonet	*	T-3 1/4	-	-	-
2 OP005 LED Lighting Lenses 20MM F"FORM SERIES OPTC -5 DG LED Lighting Lenses 20MM F'FORM SERIES OPTC -5 DG SPOTLENS Dialight	1740	1: ¥8.9624	LED Lighting Lenses	RoHS Compliant	19.7 mm	Lenses	19.7 mm	12.5 mm	Clear	19.7 mm	Luxeon I	480	Transparent	Round	10 deg	-	Bulk	-	-	-	Lumileds Luxeon	-	-	-	-	-	-	-	-	-	-	-
OHS-35WH LED Lighting Lenses with Holder OPTIC HLDR LUXEON 3/5 WHITE OPTIC HOLDER LUXEON STAR 3/5 WHT Holder White Holder For LEDs Dialight	103	500: ¥1.7408	LED Lighting Lenses with Holder	RoHS Compliant	21.6 mm	Lens Holders	21.6 mm	12.9 mm	White	21.6 mm	Luxeon Star 3 / 5	1000	-	-	-	1,000	-	Snap-In	1	-	-	-	-	-	-	-	-	-	-	-	-	-
2 OP520 LED Lighting Lenses 20MM F"FORM SERIES OPTC 5X20 LED Lighting Lenses 20MM F'FORM SERIES OPTC 5X20 OVALLENS Dialight	1696	1: ¥13.60	LED Lighting Lenses	RoHS Compliant	19.7 mm	Lenses	19.7 mm	12.5 mm	Clear	19.7 mm	Luxeon I	480	Transparent	Round	10 deg, 40 deg	-	Bulk	-	-	-	Lumileds Luxeon	-	-	-	-	-	-	-	-	-	-	-
2 OP025 LED Lighting Lenses 20MM F"FORM SERIES OPTC -25 DG LED Lighting Lenses 20MM F'FORM SERIES OPTC -25 DG WIDELENS Dialight	1670	1: ¥13.60	LED Lighting Lenses	RoHS Compliant	19.7 mm	Lenses	19.7 mm	12.5 mm	Clear	19.7 mm	Luxeon I	480	Transparent	Round	50 deg	-	Bulk	-	-	-	Lumileds Luxeon	-	-	-	-	-	-	-	-	-	-	-
2 OP015 LED Lighting Lenses 20MM F"FORM SERIES OPTC -15 DG LED Lighting Lenses 20MM F'FORM SERIES OPTC -15 DG MEDIUMLENS Dialight	2467	1: ¥13.60	LED Lighting Lenses	RoHS Compliant	19.7 mm	Lenses	19.7 mm	12.5 mm	Clear	19.7 mm	Luxeon I	480	Transparent	Round	30 deg	-	Bulk	-	-	-	Lumileds Luxeon	-	-	-	-	-	-	-	-	-	-	-
OPTL-3-MSL LED Lighting Lenses TRI SPOT MICRO SUB-LENS HL16 TRIPLE MICRO SUB-LENS Dialight	10	390: ¥10.132	LED Lighting Lenses	RoHS Compliant	50 mm	Lenses	50 mm	20.1 mm	Clear	50 mm	Triple Spot Optics	700	Transparent	Round	-	35	-	Snap-In	1	Medium	-	Round with Domed Top,50mm	OPTL3MSL	-	-	-	-	-	-	-	-	-
OPC11SDIF LED Lighting Lenses Frost Spot Base 7deg Lens - LUXEON Rebel Dialight	174	1: ¥14.756	LED Lighting Lenses	RoHS Compliant	22 mm	Lenses	22 mm	11 mm	Clear	22 mm	Luxeon Rebel	-	Transparent	Round	14 deg	-	Tray	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

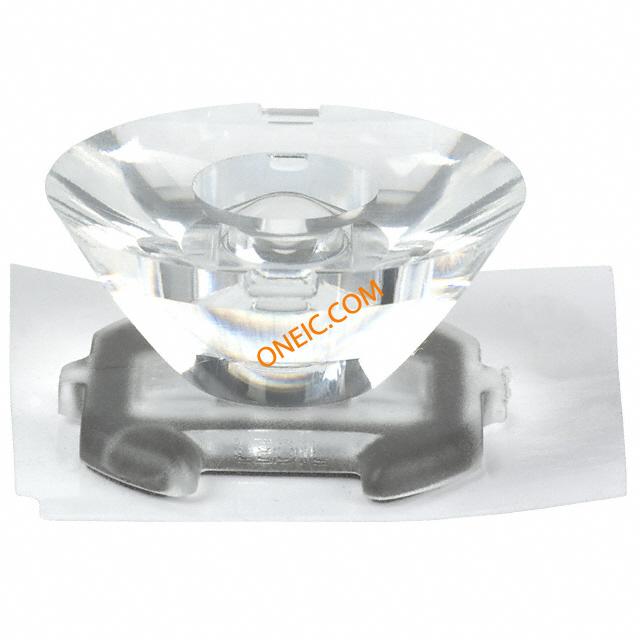

OPK2-1-003 LED Lighting Lenses SPOT BASE MODULE 3DG K2 SPOT BASE MODULE L2 3DEG LUXEON Dialight	1609	1: ¥22.644	LED Lighting Lenses	RoHS Compliant	26 mm	Lenses	26 mm	13.3 mm	Clear	26 mm	Luxeon I, III, V, K2 LED	640	Transparent	Round	6 deg	80	-	Adhesive	1	Spot	-	Round with Flat Top, 26mm	-	-	-	-	-	-	-	-	-	-
OPAA-1-WSL LED Lighting Lenses WIDE SUB LENS 12 DEGREE K2 Dialight	966	1: ¥8.16	LED Lighting Lenses	RoHS Compliant	26 mm	Lenses	26 mm	13.7 mm	Clear	26 mm	Luxeon I, III, V, K2 LED	2000	Transparent	Round	36 deg	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

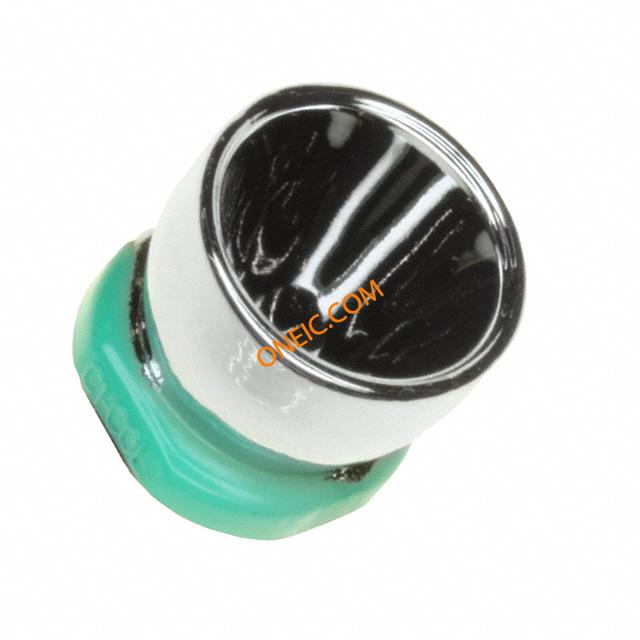

OPC1-1-COL-SP LED Lighting Reflectors Lens to Luxeon Rebel Clear 7 Degrees LENS 11MM SERIES SPOT 7DEG Dialight	10	2910: ¥5.3312	LED Lighting Reflectors	RoHS Compliant	11.5 mm	Reflectors	-	-	-	-	Luxeon Rebel	-	-	Round	14 deg	4,000	Bulk	Adhesive	-	Spot	-	-	-	-	-	-	-	-	-	Adhesive	Round, 11.5mm	-
OHK-2WH LED Lighting Lenses with Holder OPTIC HLDR-K2-WH OPTIC HOLDER FOR LUXEON K2 WHITE Dialight	10	2250: ¥1.6252	LED Lighting Lenses with Holder	RoHS Compliant	21.6 mm	Lens Holders	21.6 mm	13.9 mm	White	21.6 mm	Luxeon K2	1000	-	-	-	1,000	-	Snap-In	1	-	-	-	-	-	-	-	-	-	-	-	-	-
OHG-DBK LED Lighting Lenses with Holder OPTIC HLDR-GOLDEN DRAGON-WHT LENS HOLDER GOLDEN DRAGON BLACK Holder For Osram Golden Dragon 20mm Lensesblack Dialight	3012	1: ¥5.848	LED Lighting Lenses with Holder	RoHS Compliant	21.6 mm	Lens Holders	21.6 mm	12.5 mm	-	21.6 mm	Dragon LED series	1000	-	-	-	1,000	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	LED - Lens Holder
OPC11WIDE LED Lighting Lenses Wide Base, 20deg Lens - LUXEON Rebel Dialight	3145	1: ¥14.756	LED Lighting Lenses	RoHS Compliant	22 mm	Lenses	22 mm	11 mm	Clear	22 mm	Luxeon Rebel	-	Transparent	Round	40 deg	-	Tray	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OP-FL LED Lighting Lenses FLARE OPTIC LUX LEDS 10X80 DEG FLARE LENS FOR LUXEON 10 X 80DEG Dialight	10	1380: ¥10.812	LED Lighting Lenses	RoHS Compliant	25 mm	Lenses	23 mm	15.85 mm	Clear	-	Luxeon LED	1824	Transparent	Rectangular	20 deg, 160 deg	48	-	Snap-In	1	Flare	-	-	OPFL	-	-	-	-	-	-	-	-	-

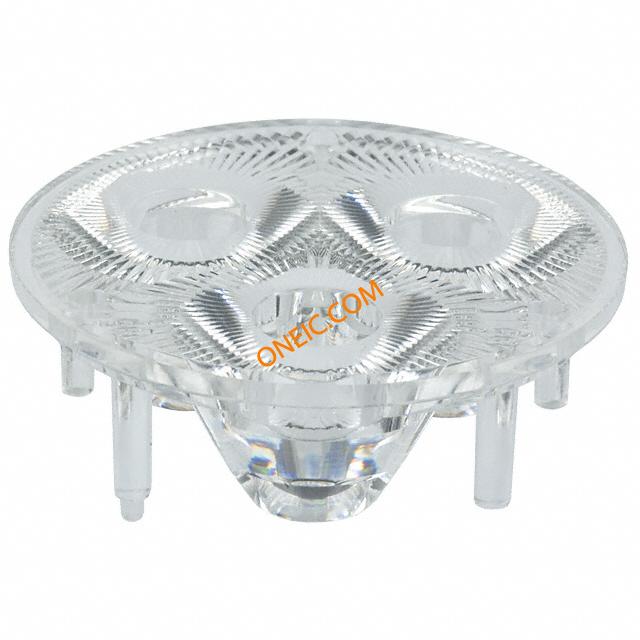

OPIO-3-011 LED Lighting Lenses TRIPLE SPOT BASE MODULE NICHIA SPOT BASE MODULE 11DEG TRIPLE Dialight	10	1450: ¥15.912	LED Lighting Lenses	RoHS Compliant	50 mm	Lenses	50 mm	18.6 mm	Clear	50 mm	Nichia LED	385	Transparent	Round	22 deg	35	-	Adhesive	1	Spot	-	Round with Flat Top, 50mm	-	-	-	-	-	-	-	-	-	-
OHK-2BK LED Lighting Lenses with Holder OPTIC HLDR-K2-BLK OPTIC HOLDER FOR LUXEON K2 BLACK Holderdurable Polycarbonate Holder Dialight	10	1: ¥3.808	LED Lighting Lenses with Holder	RoHS Compliant	21.6 mm	Lens Holders	21.6 mm	13.9 mm	Black	21.6 mm	Luxeon K2	1000	-	-	-	1,000	-	Snap-In	1	-	-	-	-	-	-	-	-	-	-	-	-	-
OPAA-3-MSL LED Lighting Lenses TRI SPOT MICRO SUB-LENS HL16 Dialight	10	390: ¥10.132	LED Lighting Lenses	RoHS Compliant	50 mm	Lenses	50 mm	20.1 mm	Clear	50 mm	-	700	Transparent	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OPC11SPOT LED Lighting Lenses Spot Base, 5deg Lens - LUXEON Rebel Dialight	1257	1: ¥14.756	LED Lighting Lenses	RoHS Compliant	22 mm	Lenses	22 mm	11 mm	Clear	22 mm	Luxeon Rebel	-	Transparent	Round	10 deg	-	Tray	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
OPAA-3-WSL LED Lighting Lenses TRI SPOT WIDE SUB-LENS HL16 Dialight	10	440: ¥11.628	LED Lighting Lenses	RoHS Compliant	50 mm	Lenses	50 mm	20.1 mm	Clear	50 mm	-	700	Transparent	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
