CUI Inc.- 音源与调谐器

CUI公司由詹姆斯·麦肯齐在美国俄勒冈州比弗顿创立，最初是与日本电子公司的合资企业。公司总部位于俄勒冈州波特兰大都会区，已发展为全球知名的电子元器件供应商。CUI专注于电力电子、互连产品、运动控制和音频组件的研发与分销。其产品线丰富，包括VOF系列AC-DC电源、PBO系列DC-DC转换器、扬声器、麦克风等音频器件以及各类连接器。凭借在亚洲建立的长期合作关系，CUI构建了灵活且响应迅速的商业模式，让全球客户受益。公司在瑞典、中国和日本设有设计和销售支持机构，以贴近区域市场。2008年，CUI收购了Waytronx公司（场外代码：WYNX.OB），加速了新技术的商业化与创新。如今，CUI Inc.是纳斯达克上市公司CUI Global, Inc.（代码：CUI）的子公司。CUI以高效能、紧凑型电源设计见长，产品服务于工业、物联网、医疗和消费电子等领域。经过20余年的发展，CUI已成为电力与互连解决方案领域值得信赖的品牌，持续助力客户提升能效与环境绩效。

音源与调谐器 - 型号列表

共 104 个型号

制造商零件编号	库存	价格	阻抗	最大功率	额定功率	形状	端接方式	锥体材料	尺寸/外形	磁铁材料	类型	频率范围	标准包装数量	声压级 (SPL)	高度	系列	零件状态	效率 - dBA	失真额定值（如THD）	效率类型	测试效率	自谐振频率	包装方式	端口位置	安装高度（最大）	技术	制造商全称	基础产品编号	额定等级	防护等级	工作温度	RoHS	功率（瓦）	阻抗（最大）（Zzt）	尺寸	其他规格	其他名称

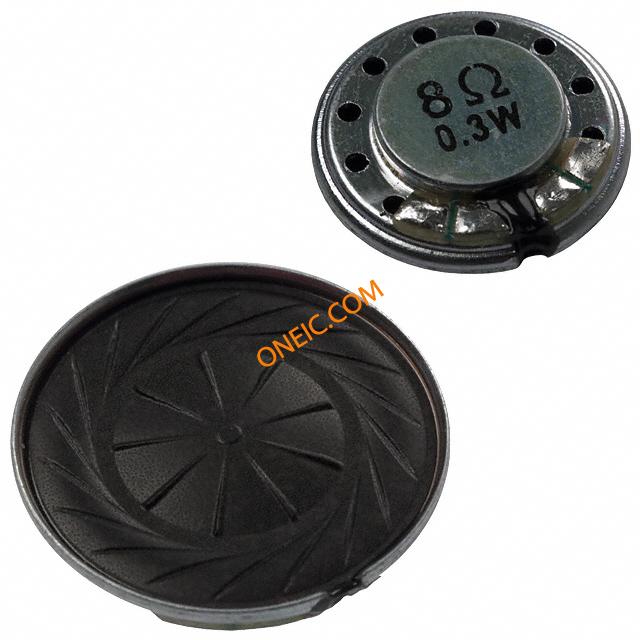

2 CDMG15008-03A SPEAKER 8 OHM .3W 15MM ROUND CDMG Series 15 mm Round 2.55 mm Deep Mylar Nd-Fe-B 300 mW 8 Ohm 900 Hz Speaker CUI Inc	4306	1: ¥16.40	8 Ohm	0.5W	0.3W	Round	Solder Pads	PET	15.00mm Dia	Nd-Fe-B	Magnetic	900Hz ~ 20kHz	1,000	92dB	3.00mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 CDMG13008L-02 SPEAKER 8 OHM .2W 13MM ROUND CDMG Series 13 mm Round 2 mm Deep Mylar Nd-Fe-B 200 mW 8 Ohm 1.05 kHz Speaker CUI Inc	840	1: ¥19.516	8 Ohm	0.4W	0.2W	Round	Solder Pads	PET	13.00mm Dia	Nd-Fe-B	Magnetic	1.05kHz ~ 20kHz	1,000	86dB	2.30mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CVS-1508 SPEAKER 8 OHM .3W ROUND SPEAKER 8 OHM .3W 15MM ROUND CVS Series 15 mm Round 7.5 mm Deep Mylar 300 mW 8 Ohm 1.7 kHz PCB Mount Speaker CUI Inc	15336	70: ¥9.792	8 Ohm	0.5W	0.3W	Round	Solder Pins/Posts	PET	15.00mm Dia	Nd-Fe-B	Magnetic	1.36kHz ~ 2.04kHz	1,000	87dB	7.50mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CVS-2308 SPEAKER 8 OHM .1W ROUND 23 mm, Round Frame, 0.1 W, 8 Ohm, Neodymium Magnet, Mylar Cone, Low Profile Speaker CUI Inc	806	1: ¥19.448	8 Ohm	0.15W	0.1W	Round	PC Pins	PET	23.00mm Dia	Nd-Fe-B	Mounted Speaker	1.2kHz ~ 1.8kHz	1,000	88dB	15.00mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CVS-1708 SPEAKER 8 OHM .2W ROUND SPEAKER 8 OHM .2W 17MM ROUND CVS Series 8 OHM .2W 17MM Round Speaker CUI Inc	4506	1: ¥19.72	8 Ohm	0.5W	0.2W	Round	PC Pins	PET	17.00mm Dia	Nd-Fe-B	Magnetic	1.2kHz ~ 1.8kHz	1,000	87dB	8.00mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CVS-3108 SPEAKER 8 OHM .1W ROUND 31.8 mm, Round Frame, 0.1 W, 8 Ohm, Neodymium Magnet, Mylar Cone, Low Profile Speaker CUI Inc	10	1: ¥13.8523	8 Ohm	0.2W	0.1W	Round	PC Pins	PET	31.80mm Dia	Nd-Fe-B	Mounted Speaker	1.05kHz ~ 1.45kHz	1,000	95dB	20.50mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CLS0201MP SPEAKER 8OHMS .1W 20MM PC MNT CUI Inc	3867	1: ¥19.584	8 Ohm	0.2W	0.1W	Round	PC Pins	PET	20.00mm Dia	Nd-Fe-B	Magnetic	800Hz ~ 5kHz	1,000	116dB	4.40mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CLS0201MA-L152 SPEAKER 8OHMS .5W 20MM 6" LEADS CUI Inc	2386	1: ¥43.2227	8 Ohm	1W	0.5W	Round	Wire Leads	PET	20.00mm Dia	Nd-Fe-B	Magnetic	600Hz ~ 900Hz	1,000	86dB	4.10mm	CLS	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	0.5W	8 Ohm	20.00mm Dia	86dB	-

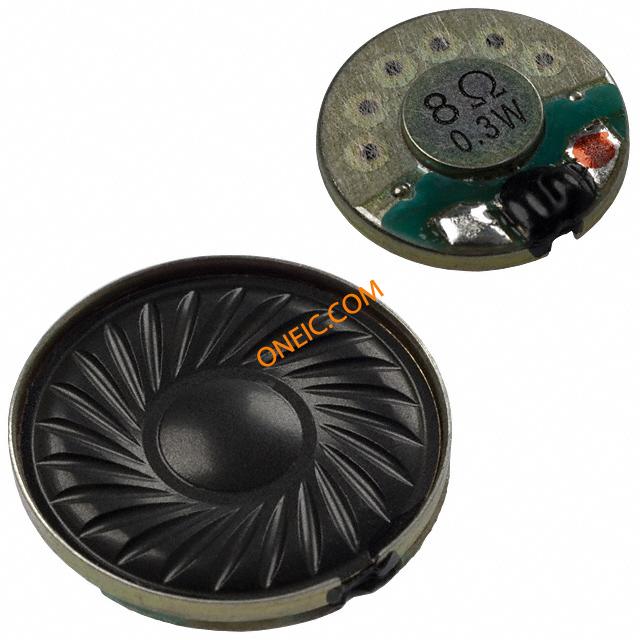

2 CDMG16008-03 SPEAKER 8 OHM .3W 16MM ROUND CDMG Series 16 mm Round 2.55 mm Deep Mylar Nd-Fe-B 300 mW 8 Ohm 600 Hz Speaker CUI Inc	1151	1: ¥17.068	8 Ohm	0.5W	0.3W	Round	Solder Pads	PET	16.00mm Dia	Nd-Fe-B	Magnetic	600Hz ~ 20kHz	1,000	82dB	2.75mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 CDMG15008-03 SPEAKER 8 OHM .3W 15MM ROUND CUI Inc	-		8 Ohm	0.5W	0.3W	Round	Solder Pads	PET	15.00mm Dia	Nd-Fe-B	Magnetic	900Hz ~ 20kHz	100	91dB	3.00mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	KDMG15008-03
GF0668B SPEAKER 8 OHM 3W 66MM SQUARE GF Series 8 Ohm 94dB 3W 66mm Square Speaker CUI Inc	10	3000: ¥28.90	8 Ohm	5W	3W	Square	Solder Pads	Paper	66.00mm L x 66.00mm W	Ferrite	Magnetic	-	1,000	94dB	29.00mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Lead free / RoHS Compliant	-	-	-	-	-
CLS0301MA SPEAKER 8OHMS .2W 30MM SLDR PAD CUI Inc	10	1000: ¥15.7352	8 Ohm	0.2W	0.1W	Round	Solder Pads	PET	1.181" Dia (30.00mm)	Nd-Fe-B	Low Profile	-	1,000	80dB	0.118" (3.00mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Lead free / RoHS Compliant	-	-	-	-	-
CLS0501M SPEAKER 8OHMS .2W 50MM SLDR EYE CUI Inc	1000	1: ¥36.108	8 Ohm	0.4W	0.2W	Round	Solder Pads	PET	50.00mm Dia	Nd-Fe-B	Low Profile	-	1,000	80dB	9.00mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Lead free / RoHS Compliant	-	-	-	-	-
CMS-18132-18SP SPEAKER 8OHM 1W TOP PORT 95DB Same Sky (Formerly CUI Devices)	-		8 Ohms	1.2 W	1 W	Rectangular	Solder Pads	Polyetheretherketone (PEEK)	0.709" L x 0.512" W (18.00mm x 13.00mm)	Nd-Fe-B	General Purpose	400 Hz ~ 10 kHz	-	-	-	CMS	Active	95.00	10% Max @ 1kHz, 1W	Sound Pressure Level (SPL)	1W/100mm	500Hz	Tray	Top	0.098" (2.50mm)	Magnetic	Same Sky (Formerly CUI Devices)	CMS-18132	-	-	-20°C ~ 60°C	-	-	-	-	-	-
CMS-305-158SP-67 SPEAKER 8OHM 1.5W TOP PORT 90DB Same Sky (Formerly CUI Devices)	-		8 Ohms	2 W	1.5 W	Round	Solder Pads	Polyethylenimine (PEI)	1.181" Dia (30.00mm)	Nd-Fe-B	General Purpose	440 Hz ~ 10 kHz	-	-	-	CMS	Active	90.00	5% Max @ 1.5kHz, 1W, 100mm	Sound Pressure Level (SPL)	100mW/100mm	550Hz	Tray	Top	0.224" (5.70mm)	Magnetic	Same Sky (Formerly CUI Devices)	CMS-305	-	IP67 - Dust Tight, Waterproof	-30°C ~ 70°C	-	-	-	-	-	-
CES-39209-28PM SPEAKER 8OHM 2W TOP PORT 88DB Same Sky (Formerly CUI Devices)	-		8 Ohms	2.5 W	2 W	Rectangular	Wire Leads with Connector	Cloth	1.732" L x 0.787" W (44.00mm x 20.00mm)	Nd-Fe-B	General Purpose, Enclosure Included	960 Hz ~ 20 kHz	-	-	-	CES	Active	88.00	10% Max @ 2kHz, 100mW, 100mm	Sound Pressure Level (SPL)	100mW/100mm	1.2kHz	Tray	Top	0.366" (9.30mm)	Magnetic	Same Sky (Formerly CUI Devices)	CES-39209	-	-	-20°C ~ 60°C	-	-	-	-	-	-
CES-231210-18PM SPEAKER 8OHM 1W TOP PORT 88DB Same Sky (Formerly CUI Devices)	-		8 Ohms	1.5 W	1 W	Rectangular	Wire Leads with Connector	Polyetheretherketone (PEEK)	1.181" L x 0.512" W (30.00mm x 13.00mm)	Nd-Fe-B	General Purpose, Enclosure Included	680 Hz ~ 20 kHz	-	-	-	CES	Active	88.00	10% Max @ 1kHz, 1W	Sound Pressure Level (SPL)	1W/100mm	850Hz	Tray	Top	0.433" (11.00mm)	Magnetic	Same Sky (Formerly CUI Devices)	CES-231210	-	-	-20°C ~ 60°C	-	-	-	-	-	-
CES-271911-158PM SPEAKER 8OHM 1.5W TOP PORT 95DB Same Sky (Formerly CUI Devices)	-		8 Ohms	1.7 W	1.5 W	Rectangular	Wire Leads with Connector	Foam	1.067" L x 0.756" W (27.10mm x 19.20mm)	Nd-Fe-B	General Purpose, Enclosure Included	600 Hz ~ 5 kHz	-	-	-	CES	Active	95.00	10% Max @ 1kHz, 1.5W, 100mm	Sound Pressure Level (SPL)	1.5W/100mm	750Hz	Tray	Top	0.510" (12.95mm)	Magnetic	Same Sky (Formerly CUI Devices)	CES-271911	-	-	-20°C ~ 60°C	-	-	-	-	-	-
CES-302611-158PM-67 SPEAKER 8OHM 1.5W TOP PORT 95DB Same Sky (Formerly CUI Devices)	-		8 Ohms	1.8 W	1.5 W	Rectangular	Wire Leads with Connector	Polyurethane (PU), Polyethylenimine (PEI)	1.181" L x 0.984" W (30.00mm x 25.00mm)	Nd-Fe-B	General Purpose, Enclosure Included	720 Hz ~ 15 kHz	-	-	-	CES	Active	95.00	10% Max @ 1kHz, 1.5W, 100mm	Sound Pressure Level (SPL)	1.5W/100mm	900Hz	Tray	Top	0.429" (10.90mm)	Magnetic	Same Sky (Formerly CUI Devices)	CES-302611	-	IP67 - Dust Tight, Waterproof	-20°C ~ 60°C	-	-	-	-	-	-
CES-303206-240L40-67 SPEAKER 4OHM 2W TOP PORT 101DB Same Sky (Formerly CUI Devices)	-		4 Ohms	2.5 W	2 W	Rectangular	Wire Leads with Connector	Polyethylene Naphthalate (PEN)	1.181" L x 0.787" W (30.00mm x 20.00mm)	Nd-Fe-B	General Purpose, Enclosure Included	1.28 kHz ~ 20 kHz	-	-	-	CES	Active	101.00	10% Max @ 2kHz, 2W, 100mm	Sound Pressure Level (SPL)	2W/100mm	1.6kHz	Tray	Top	0.240" (6.10mm)	Magnetic	Same Sky (Formerly CUI Devices)	CES-303206	-	IP67 - Dust Tight, Waterproof	-30°C ~ 70°C	-	-	-	-	-	-
