CUI Inc.- 模块化电缆
03
模块化电缆 - 型号列表
共 6 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | 声压级 (SPL) | 端接方式 | 尺寸/外形 | 阻抗 | 最大功率 | 额定功率 | 频率范围 | 形状 | 高度 | 锥体材料 | 磁铁材料 | 类型 | 频率 | 输入类型 | 电压范围 | 工作模式 | 额定电压 | 输出电流 | 驱动电路 | 包装方式 | 安装类型 | 可清洗 | 技术 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

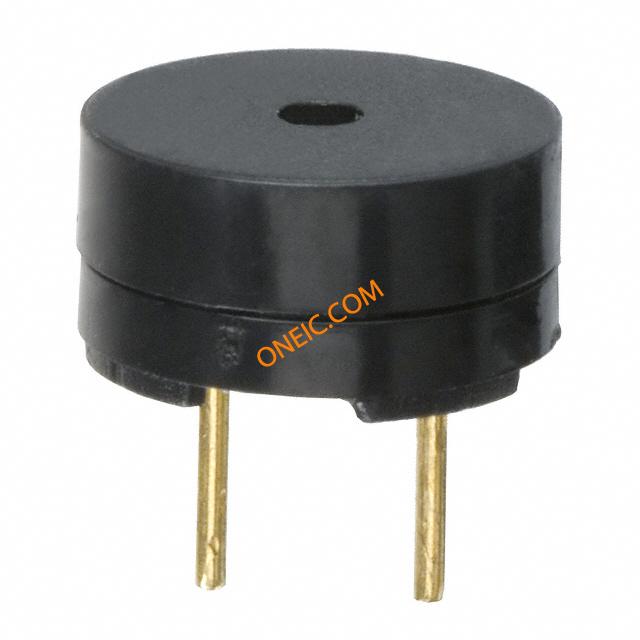

 BUZZER MAGNETIC 9.0MM 4-6V RAD BUZZER MAGNETIC 5V 9MM RADIAL CST Series 5 V 2.73 kHz 85 dB Through Hole Magnetic Sound Transducer CUI Inc | 1400 | 1: ¥5.508 | 700 | 85dB @ 5V, 10cm | PC Pins | Circular - 9.00mm Dia x 5.00mm H | - | - | - | - | - | - | - | - | - | 2.73kHz | zero-peak Signal | 4 ~ 6V | Continuous | 5Vo-p | 80mA | Transducer, Externally Driven | Tray | Through Hole | No | Magnetic | -20°C ~ 70°C |
 SPEAKER 8 OHM .25W ROUND SPEAKER 8 OHM .25W 15MM ROUND CDM Series 15 mm Round 3.5 mm Deep Mylar Nd-Fe-B 250 mW 8 Ohm 900 Hz Speaker CUI Inc | 1094 | 1: ¥29.58 | 1,000 | 87dB | Solder Pads | 15.00mm Dia | 8 Ohm | 0.5W | 0.25W | 720Hz ~ 20kHz | Round | 5.10mm | PET | Nd-Fe-B | Magnetic | - | - | - | - | - | - | - | - | - | - | - | - |

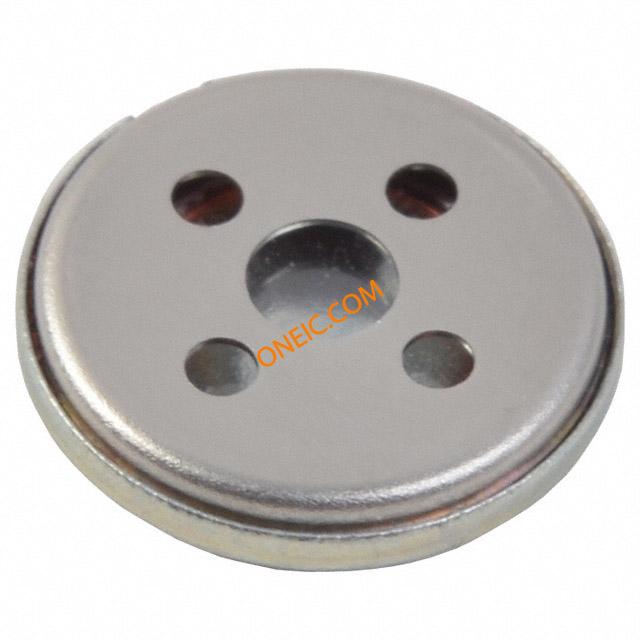

 | 1000 | 1: ¥10.268 | 1,000 | 86dB | Solder Pads | 10.00mm Dia | 8 Ohm | 0.5W | 0.3W | 960Hz ~ 20kHz | Round | 2.90mm | PET | Nd-Fe-B | Magnetic | - | - | - | - | - | - | - | - | - | - | - | - |

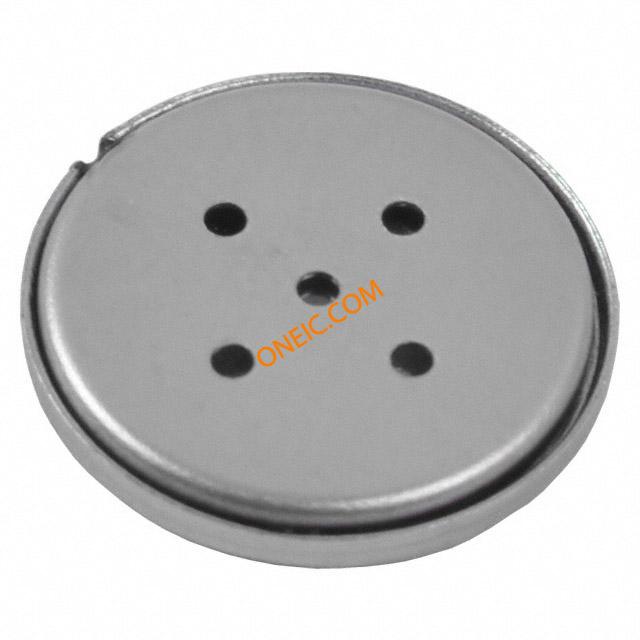

 SPEAKER 8 OHM .5W ROUND SPEAKER 8 OHM .5W 12MM ROUND CDM Series 12 mm Round 3 mm Deep Mylar Nd-Fe-B 500 mW 8 Ohm 1 kHz Speaker CUI Inc | 1357 | 55: ¥13.60 | 1,000 | 90dB | Solder Pads | 12.00mm Dia | 8 Ohm | 0.6W | 0.5W | 800Hz ~ 20kHz | Round | 3.00mm | PET | Nd-Fe-B | Magnetic | - | - | - | - | - | - | - | - | - | - | - | - |

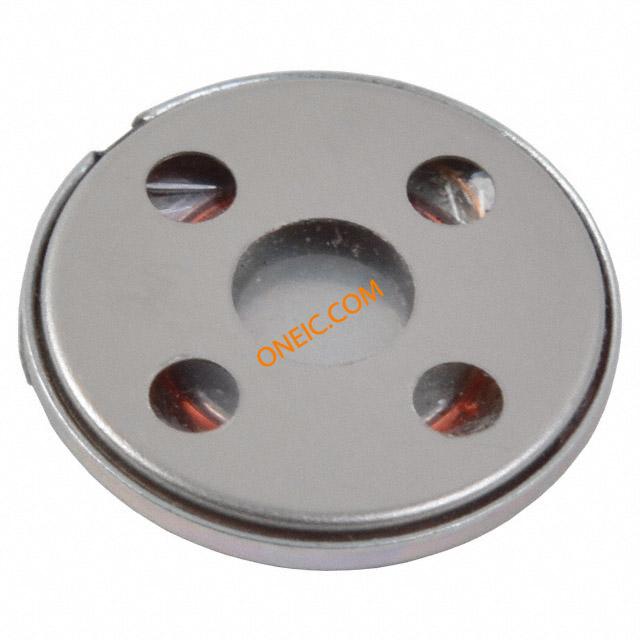

 SPEAKER 8 OHM .2W ROUND SPEAKER 8 OHM .2W 13MM ROUND CDM Series 13 mm Round 2.9 mm Deep Mylar Nd-Fe-B 200 mW 8 Ohm 1.1 kHz Speaker CUI Inc | 197 | 1: ¥17.00 | 1,000 | 87dB | Solder Pads | 13.00mm Dia | 8 Ohm | 0.5W | 0.2W | 880Hz ~ 20kHz | Round | 2.90mm | PET | Nd-Fe-B | Magnetic | - | - | - | - | - | - | - | - | - | - | - | - |

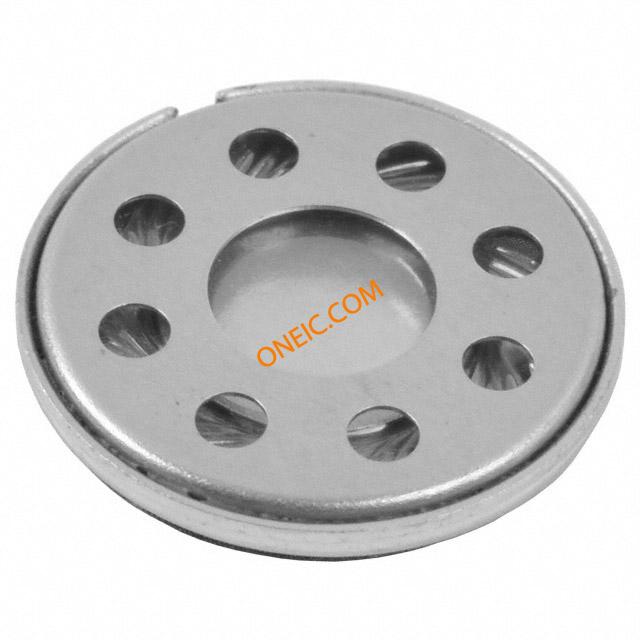

 SPEAKER 8 OHM .4W ROUND SPEAKER 8 OHM .4W 16MM ROUND CDM Series 16 mm Round 3.2 mm Deep Mylar Nd-Fe-B 400 mW 8 Ohm 800 Hz Speaker CUI Inc | 1003 | 1: ¥19.04 | 1,000 | 93dB | Solder Pads | 16.00mm Dia | 8 Ohm | 0.6W | 0.4W | 640Hz ~ 20kHz | Round | 3.20mm | PET | Nd-Fe-B | Magnetic | - | - | - | - | - | - | - | - | - | - | - | - |
第 1 / 1 页
1
