CUI Inc.- 通用IC

CUI公司由詹姆斯·麦肯齐在美国俄勒冈州比弗顿创立，最初是与日本电子公司的合资企业。公司总部位于俄勒冈州波特兰大都会区，已发展为全球知名的电子元器件供应商。CUI专注于电力电子、互连产品、运动控制和音频组件的研发与分销。其产品线丰富，包括VOF系列AC-DC电源、PBO系列DC-DC转换器、扬声器、麦克风等音频器件以及各类连接器。凭借在亚洲建立的长期合作关系，CUI构建了灵活且响应迅速的商业模式，让全球客户受益。公司在瑞典、中国和日本设有设计和销售支持机构，以贴近区域市场。2008年，CUI收购了Waytronx公司（场外代码：WYNX.OB），加速了新技术的商业化与创新。如今，CUI Inc.是纳斯达克上市公司CUI Global, Inc.（代码：CUI）的子公司。CUI以高效能、紧凑型电源设计见长，产品服务于工业、物联网、医疗和消费电子等领域。经过20余年的发展，CUI已成为电力与互连解决方案领域值得信赖的品牌，持续助力客户提升能效与环境绩效。

通用IC - 型号列表

共 15 个型号

制造商零件编号	库存	价格	频率	输入类型	电压范围	工作模式	额定电压	输出电流	驱动电路	声压级 (SPL)	包装方式	端接方式	安装类型	尺寸/外形	技术	工作温度	标准包装数量	RoHS	可清洗	其他名称	电容 @ 频率	系列	零件状态	认证机构	端口位置	安装高度（最大）	持续时间	制造商全称	额定等级	防护等级	供电电压	最大额定电流	尺寸	其他规格	基础产品编号

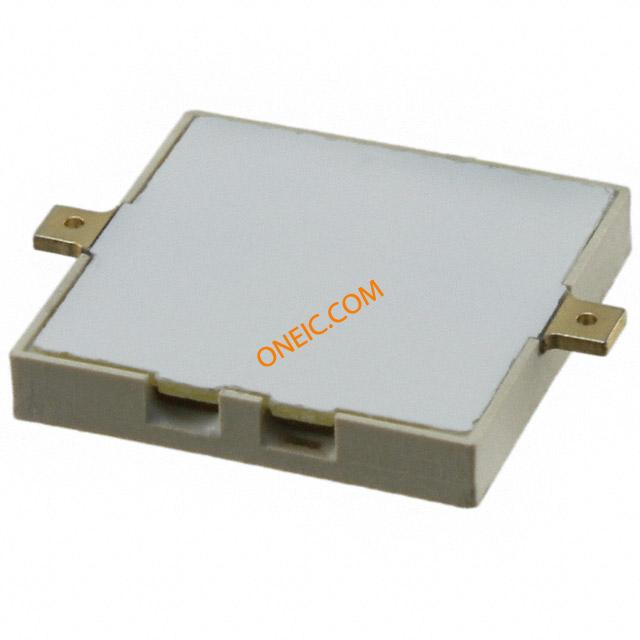

3 CMT-1604-SMT BUZZER PIEZO 3V 16MM SMD CUI Inc	4000	1000: ¥8.6176	4kHz	peak-peak Signal	25V (Max)	Continuous	3Vp-p	5mA	Transducer, Externally Driven	81dB @ 3V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Square - 16.00mm L x 16.00mm W x 2.60mm H	Piezo	-40°C ~ 120°C	1,000	Lead free / RoHS Compliant	No	102-2204-6	20000pF @ 1kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-

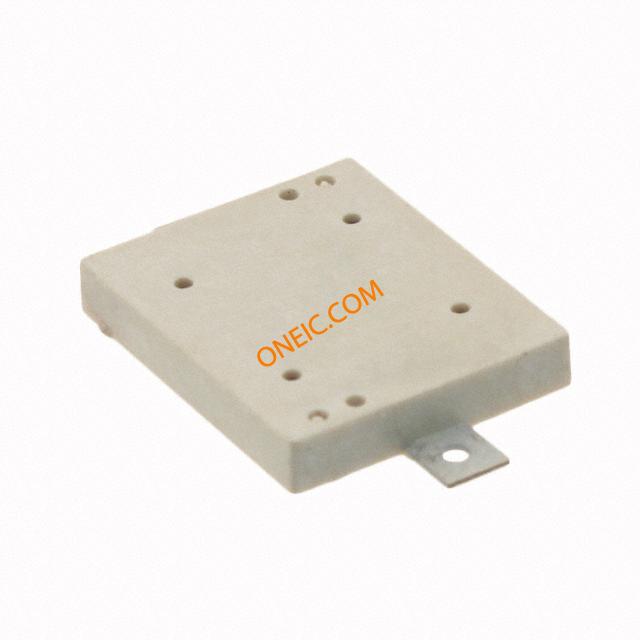

3 CMT-1102-SMT BUZZER PIEZO 5V 11MM SMD CUI Inc	12000	2000: ¥9.724	4.1kHz	peak-peak Signal	25V (Max)	Continuous	5Vp-p	4.5mA	Transducer, Externally Driven	73dB @ 5V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Rectangular - 11.00mm L x 9.00mm W x 2.00mm H	Piezo	-40°C ~ 80°C	2,000	Lead free / RoHS Compliant	No	102-1264-6	12000pF @ 1kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-

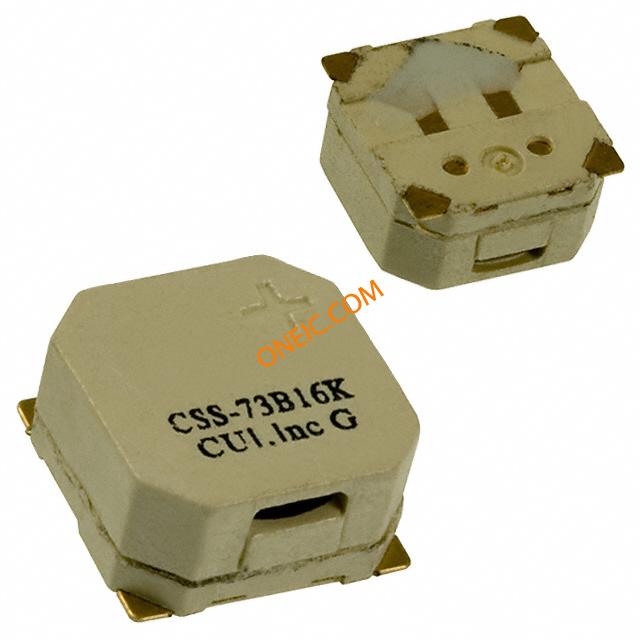

3 CSS-73B16K-SMT BUZZER MAGNETIC 3.6V 8.5MM SMD CSS Series 3.6V 8.5MM SMD BUZZER MAGNETIC CUI Inc	1953	1: ¥20.264	2.73kHz	zero-peak Signal	2.5 ~ 4.5V	Continuous	3.6Vo-p	100mA	Transducer, Externally Driven	87dB @ 3.6V, 10cm	Cut Tape (CT)	Solder Pads	Surface Mount	Square - 8.50mm L x 8.50mm W x 4.30mm H	Magnetic	-30°C ~ 70°C	1	Lead free / RoHS Compliant	No	102-1197-6	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

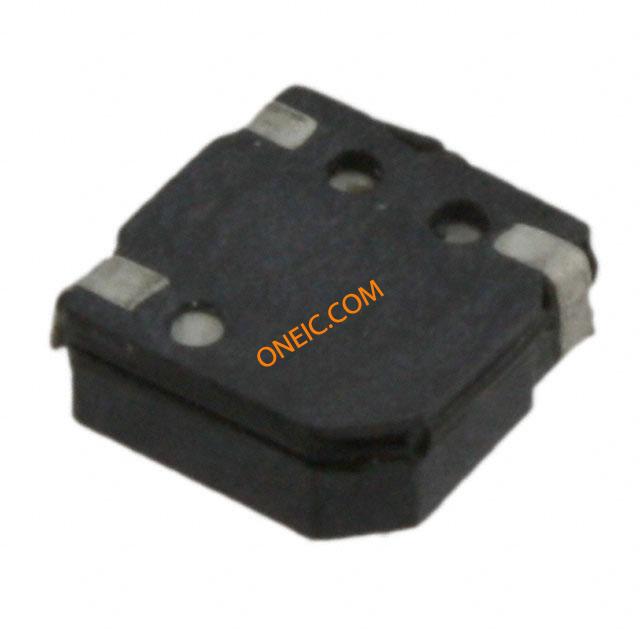

3 CSS-0575A-SMT BUZZER MAGNETIC 3V 5MM SMD CUI Inc	7500	2500: ¥9.9705	4kHz	zero-peak Signal	2 ~ 4V	Continuous	3Vo-p	110mA	Transducer, Externally Driven	75dB @ 3V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Square - 5.00mm L x 5.00mm W x 2.40mm H	Magnetic	-30°C ~ 70°C	2,500	Lead free / RoHS Compliant	No	102-2201-6	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

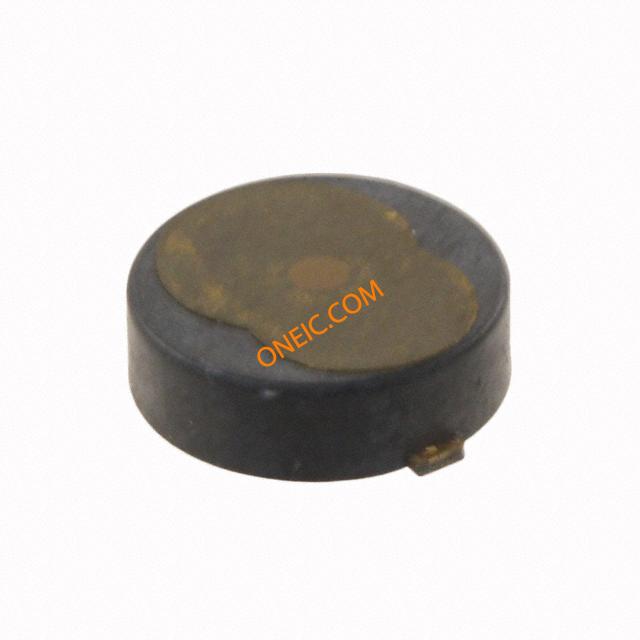

3 CMT-1075-SMT BUZZER PIEZO 5V 10MM SMD CUI Inc	3200	800: ¥12.2808	5.2kHz	peak-peak Signal	25V (Max)	Continuous	5Vp-p	5mA	Transducer, Externally Driven	75dB @ 5V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Circular - 10.00mm Dia x 3.60mm H	Piezo	-20°C ~ 70°C	800	Lead free / RoHS Compliant	Yes	102-2194-6	11000pF @ 100Hz	-	-	-	-	-	-	-	-	-	-	-	-	-	-

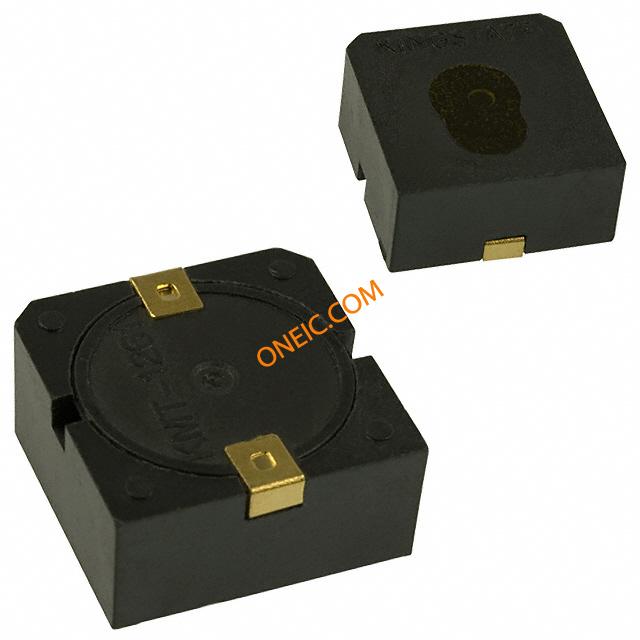

4 CMT-1261-SMT BUZZER PIEZO 10V 16.9MM SMD CUI Inc	775	70: ¥9.792	5kHz	peak-peak Signal	20V (Max)	Continuous	10Vp-p	10mA	Transducer, Externally Driven	88dB @ 10V, 10cm	Tube	Solder Pads	Surface Mount	Square - 16.90mm L x 16.90mm W x 8.30mm H	Piezo	-30°C ~ 70°C	500	Lead free / RoHS Compliant	Yes	-	15000pF @ 1kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-

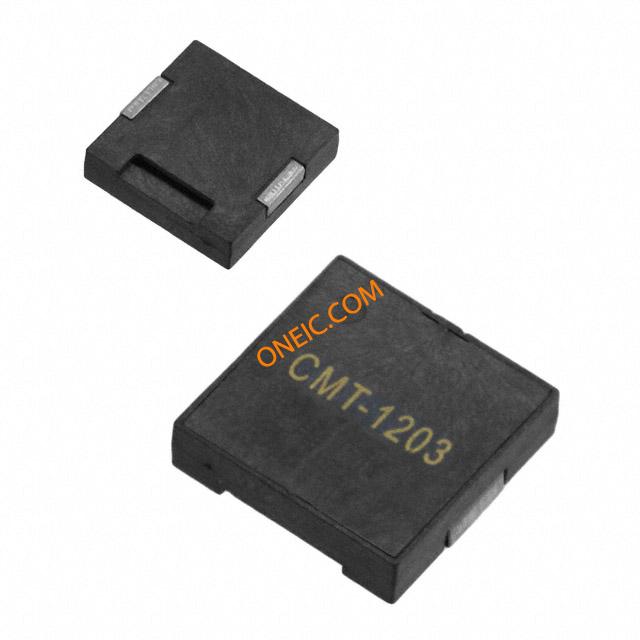

3 CMT-1203-SMT BUZZER PIEZO 5V 12MM SMD CUI Inc	1456	1: ¥16.728	4kHz	peak-peak Signal	25V (Max)	Continuous	5Vp-p	5mA	Transducer, Externally Driven	81dB @ 5V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Square - 12.00mm L x 12.00mm W x 3.30mm H	Piezo	-40°C ~ 120°C	1,000	Lead free / RoHS Compliant	No	102-2197-6	16000pF @ 120Hz	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 CMT-1203-SMT-TR BUZZER PIEZO 5V 12MM SMD CUI Inc	302	302: ¥5.78	4kHz	peak-peak Signal	25V (Max)	Continuous	5Vp-p	5mA	Transducer, Externally Driven	81dB @ 5V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Square - 12.00mm L x 12.00mm W x 3.30mm H	Piezo	-40°C ~ 120°C	1,000	Lead free / RoHS Compliant	No	102-2197-6	16000pF @ 120Hz	-	-	-	-	-	-	-	-	-	-	-	-	-	-

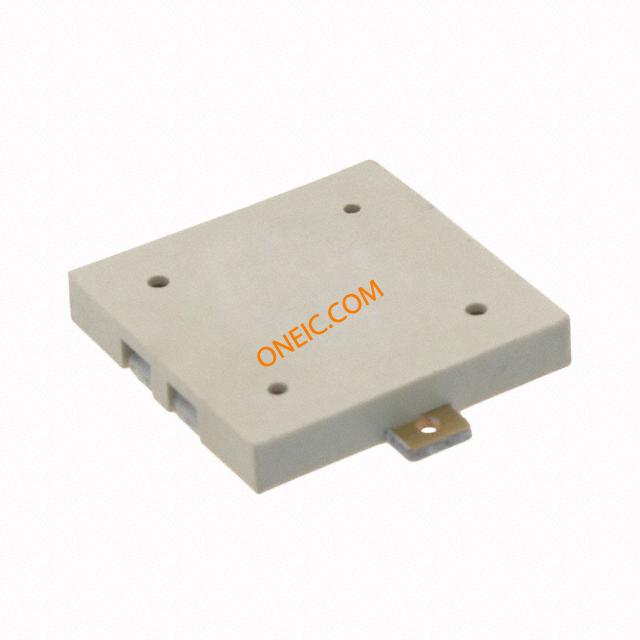

3 CMT-1603-SMT-TR BUZZER PIEZO 3V 16MM SMD CUI Inc	688	1: ¥16.2617	4kHz	peak-peak Signal	25V (Max)	Continuous	3Vp-p	3mA	Transducer, Externally Driven	70dB @ 3V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Square - 16.00mm L x 16.00mm W x 2.80mm H	Piezo	-30°C ~ 70°C	1,000	Lead free / RoHS Compliant	No	102-1193-6	14000pF @ 1kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 CMT-1604-SMT-TR BUZZER PIEZO 3V 16MM SMD CUI Inc	1275	1: ¥17.816	4kHz	peak-peak Signal	25V (Max)	Continuous	3Vp-p	5mA	Transducer, Externally Driven	81dB @ 3V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Square - 16.00mm L x 16.00mm W x 2.60mm H	Piezo	-40°C ~ 120°C	1,000	Lead free / RoHS Compliant	No	102-2204-6	20000pF @ 1kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 CMT-1102-SMT-TR BUZZER PIEZO 5V 11MM SMD CUI Inc	1380	5: ¥30.9673	4.1kHz	peak-peak Signal	25V (Max)	Continuous	5Vp-p	4.5mA	Transducer, Externally Driven	73dB @ 5V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Rectangular - 11.00mm L x 9.00mm W x 2.00mm H	Piezo	-40°C ~ 80°C	2,000	Lead free / RoHS Compliant	No	102-1264-6	12000pF @ 1kHz	CMT	-	-	-	-	-	-	-	-	25V (Max)	4.5mA	Rectangular - 11.00mm L x 9.00mm W x 2.00mm H	73dB @ 5V, 10cm	-
3 CMT-1303-SMT-TR BUZZER PIEZO 5V 12.8MM SMD buzzer, 12.8 mm square, 2.5 mm deep, P, 25 V, SMT, no driving circuit CUI Inc	37000	1000: ¥9.7519	4.1kHz	peak-peak Signal	25V (Max)	Continuous	5Vp-p	5mA	Transducer, Externally Driven	70dB @ 5V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Square - 12.80mm L x 12.80mm W x 2.70mm H	Piezo	-20°C ~ 70°C	1,000	Lead free / RoHS Compliant	No	102-1195-6	16000pF @ 1kHz	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 CMT-1075-SMT-TR BUZZER PIEZO 5V 10MM SMD BUZZER AUDIO PIEZO 25VP-P SMD CUI Inc	800	78: ¥15.64	5.2kHz	peak-peak Signal	25V (Max)	Continuous	5Vp-p	5mA	Transducer, Externally Driven	75dB @ 5V, 10cm	Tape & Reel (TR)	Solder Pads	Surface Mount	Circular - 10.00mm Dia x 3.60mm H	Piezo	-20°C ~ 70°C	800	Lead free / RoHS Compliant	Yes	102-2194-6	11000pF @ 100Hz	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CMT-85853-97-SMT-TR BUZZER MAGNETIC 3.6V 0.3X0.3 SMD Same Sky (Formerly CUI Devices)	-		2.73kHz	Zero-Peak Signal	3 ~ 5V	-	3.6 V	80mA	Transducer, Externally Driven	90dB @ 3.6V, 5cm	Tape & Reel (TR)	Solder Pads	Surface Mount	0.335" L x 0.335" W (8.50mm x 8.50mm)	Magnetic	-40°C ~ 85°C	-	-	-	-	-	-	Active	-	Side	0.118" (3.00mm)	-	Same Sky (Formerly CUI Devices)	-	-	-	-	-	-	-
CPI-1375IC-80T BUZZER PIEZO 12V 13.8MM TH Same Sky (Formerly CUI Devices)	-		4kHz	DC	3.5 ~ 16V	Single Tone	12 V	7mA	Indicator, Internally Driven	88dB @ 12V, 10cm	Box	PC Pins	Through Hole	0.543" Dia (13.80mm)	Piezo	-30°C ~ 70°C	-	-	-	-	-	CPI	Active	-	Top	0.315" (8.00mm)	-	Same Sky (Formerly CUI Devices)	Washable	-	-	-	-	-	CPI-13
