Custom Sensors & Technologies (CST)- 按钮开关

Custom Sensors & Technologies（CST）现隶属于森萨塔科技（Sensata Technologies），是全球传感、控制和功率开关解决方案的领先企业。CST总部设在美国加利福尼亚州穆尔帕克，以快达（Crydom）品牌设计和制造固态继电器。快达拥有丰富的产品组合，包括面板安装型、DIN导轨安装型、PCB安装型和冰球式固态继电器，主要系列有EL、CN、DR、PMP和NOVA22等。此外，公司还提供固态接触器、功率模块以及为客户定制设计的继电器解决方案。凭借四十多年的丰富经验，快达被公认为世界领先的固态继电器品牌，在开关技术创新方面处于行业前沿。其产品广泛应用于工业自动化、暖通空调、医疗设备和交通运输等领域。大多数快达继电器具备UL、CSA、VDE和TUV认证，确保符合全球安全标准。公司集设计、开发、制造于一体，能够快速响应客户需求并保证稳定品质。快达持续投入研发，拥有多项专利和先进的电路保护技术，如独家的ContactWise技术。通过与森萨塔整合，CST利用全球资源为客户提供卓越的固态开关解决方案。

按钮开关 - 型号列表

共 8 个型号

制造商零件编号	库存	价格	标准包装数量	电路	输出类型	负载电流	负载电压	最小输入电压	包装方式	安装类型	封装形式	端接样式	继电器类型	系列	海关税号	重量	供电电压	最小供电电压	RoHS	最大额定电流	安装样式	产品子类型	交货时间	子类别	输出端	RAM控制器	类型	卡标准	其他名称	产品类别	SVHC	认证机构	开关模式	漏电流	隔离电压	输出电压（最大）	输出电压（最小/固定）	平均整流电流 Io	额定交流电压（相间）	深度	宽度	长度	端子类型	典型触点布局	控制/显示类型	工作温度	工厂包装数量	电源电压（最大）	驱动电压（最大Rds On，最小Rds On）	触点形式	制造商全称	机械寿命	其他规格
5 20LPCV2425 Solid State Relays - Industrial Mount Lin.Prop.Contr. 300 Vac/25A 4-20mA CONTROLLER LOAD .10-25A 4-20MA Controller; 0.10 to 25 A; 20 to 300 VAC; 2500 V (RMS); 250 Apk (Max.); 2.21 in. Linear Proportional Load Controller 7-Pin Controller;0.10to25A;20to300VAC;2500V(RMS);250Apk(Max.);2.21in. Linear Proportional Controller Control Range: 4-20 mA Load Current: 25 Amps Line Voltage: 20-300 VAC Crydom	13	1: ¥1,996.82	5	SPST-NO (1 Form A)	AC, Linear Controlled	25A	20 ~ 300 V	4 ~ 20mA	Bulk	Chassis Mount or Panel Mount	Module	Screw	Relay	LPCV	-	-	20-300 VAC	20 VAC to 300 VAC	RoHS Compliant	25 A	Panel	Industrial Mount	56 Days	Power Misc	SCR	4-20 mA	Controllers	Linear Proportional Controller	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
5 10LPCV2440 Solid State Relays - Industrial Mount Lin.Prop.Contr. 300 Vac/40A 0-10Vdc CONTROLLER LOAD .10-40A 0-10VDC Controller; 0.10 to 40 A; 0 to 10 VDC; 20 to 300 VAC; 2500 V (RMS); 0.5 (Min.) Controller;0.10to40A;0to10VDC;20to300VAC;2500V(RMS);0.5(Min.) Linear Proportional Controller Control Range: 0-10 VDC Load Current: 40 Amps Line Voltage: 20-300 VAC Crydom	11	1: ¥2,825.876	5	SPST-NO (1 Form A)	AC, Linear Controlled	40A	20 ~ 300 V	0 ~ 10VDC	Bulk	Chassis Mount or Panel Mount	Module	Screw	Relay	LPCV	-	-	0 VDC to 10 VDC	20 VAC to 300 VAC	RoHS Compliant	40 A	Panel	Industrial Mount	56 Days	Power Misc	SCR	0-10 VDC	Controllers	Linear Proportional Controller	10LPCV2440-ND	Solid State Relays - Industrial Mount	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1	-	-	-	-	-	-
8 3RHP2440D24 Solid State Relays - Industrial Mount 40A/240VAC 22-27VDC INPUT RELAY CONTACTOR 3PH 40A 240VAC Electromechanical Relay 40A 24VDC 240VAC 2KOhm DIN Rail SSR, PANEL MOUNT, 240VAC, 27VDC, 40A CONTR. HYBRID 240V 40A DC CONTACTOR;3-PHASERHP,40A/240VAC,22-27VDCINPUT;PANELMOUNT Power Contactors Coil Voltage: 22-27 VDC Contact Configuration: 3A 3PST-NO Current: 40 Amps Mounting: Panel Mount Operating Function: Three Phase Crydom	10	1: ¥702.372	1	3PST (3 Form A)	AC	40A	208 ~ 240 V	22 ~ 27VDC	Bulk	Chassis Mount or Panel Mount	Module	Quick Connect	Contactor	-	00000000	0	22 VDC to 27 VDC	240 VAC	RoHS Compliant	40 A	Panel	Industrial Mount	-	-	-	-	-	-	CC1682	Solid State Relays - Industrial Mount	:No SVHC (20-Jun-2013)	:CE	:DC Switch	:0.06mA	:4kV	:240V	:208V	:40A	:240Vrms	:107.16mm	:63.63mm	:91.06mm	:Panel Mount	:-	:DC	+ 75 C	-	:27VDC	25VDC	3 Form A (3PST-NO)	RHPSeries	Obsolete	-

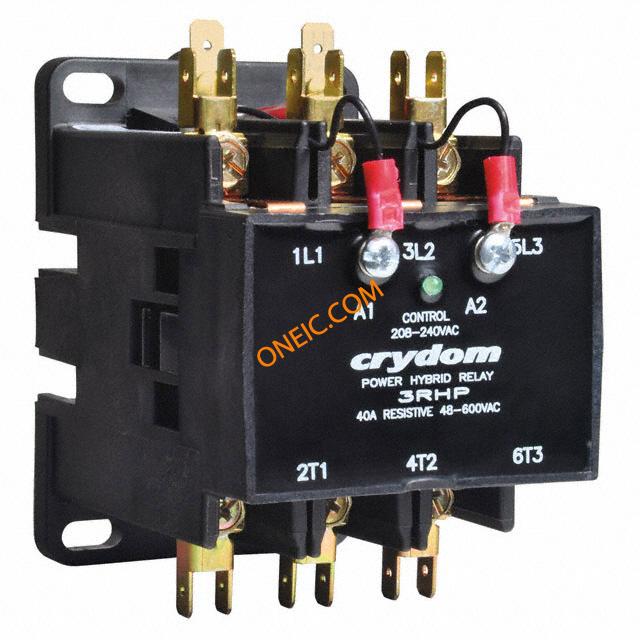

3 3RHP2440D12 RELAY CONTACTOR 3PH 40A 240VAC Electromechanical Relay 40A 12VDC 240VAC 1KOhm DIN Rail Hybrid Solid State Contactor Power Contactors Coil Voltage: 10-15 VDC Contact Configuration: 3A 3PST-NO Current: 40 Amps Mounting: Panel Mount Operating Function: Three Phase Crydom Co.	10	1: ¥1,129.208	1	3PST (3 Form A)	AC	40A	208 ~ 240 V	10 ~ 15VDC	Bulk	Chassis Mount or Panel Mount	Module	Screw Terminal, .250" QC	Contactor	:RHP	00000000	0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 3RHP6050E RELAY CONTACTOR 3PH 50A 600VAC Hybrid Solid State Contactor Power Contactors Coil Voltage: 20-26 VAC Contact Configuration: 3A 3PST-NO Current: 50 Amps Mounting: Panel Mount Operating Function: Three Phase Crydom Co.	10	1: ¥1,303.22	1	3PST (3 Form A)	AC	50A	48 ~ 600 V	20 ~ 26VAC	Bulk	Chassis Mount or Panel Mount	Module	Screw Terminal, .250" QC	Contactor	:RHP	00000000	0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 3RHP6050F RELAY CONTACTOR 3PH 50A 600VAC Hybrid Solid State Contactor CONTR. HYBRID 600V 50A AC Power Contactors Coil Voltage: 100-130 VAC Contact Configuration: 3A 3PST-NO Current: 50 Amps Mounting: Panel Mount Operating Function: Three Phase Crydom Co.	24	1: ¥14,686.2524	1	3PST (3 Form A)	AC	50A	48 ~ 600 V	100 ~ 130VAC	Bulk	Chassis Mount or Panel Mount	Module	Screw Terminal, .250" QC	Contactor	:RHP	00000000	0	:100V AC to 130V AC	:100VAC	-	-	-	-	-	-	-	-	-	-	-	-	:No SVHC (20-Jun-2013)	:CE	:AC Switch	:0.06mA	:4kV	:600V	:48V	:50A	:600Vrms	:105.98mm	:63.63mm	:91.06mm	:1/4" Quick Connect	:(Not Applicable)	:AC	:65°C	-	-	-	-	-	-	:130VAC
3 3RHP2450D24 RELAY CONTACTOR 3PH 50A 240VAC Hybrid Solid State Contactor Power Contactors Coil Voltage: 22-27 VDC Contact Configuration: 3A 3PST-NO Current: 50 Amps Mounting: Panel Mount Operating Function: Three Phase Crydom Co.	10	1: ¥1,341.504	1	3PST (3 Form A)	AC	50A	208 ~ 240 V	22 ~ 27VDC	Bulk	Chassis Mount or Panel Mount	Module	Screw Terminal, .250" QC	Contactor	:RHP	00000000	0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 3RHP2840E RELAY CONTACT 3PST 40A 280VAC Hybrid Solid State Contactor Power Contactors Coil Voltage: 20-26 VAC Contact Configuration: 3A 3PST-NO Current: 40 Amps Mounting: Panel Mount Operating Function: Three Phase Crydom Co.	10	1: ¥1,119.212	1	3PST (3 Form A)	AC	40A	24 ~ 280 V	20 ~ 26VAC	Bulk	Chassis Mount or Panel Mount	Module	Screw Terminal, .250" QC	Contactor	:RHP	00000000	0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
