Crouzet Automatismes- 温度调节器

Crouzet（高诺斯）是隶属于Sensata Technologies集团旗下Custom Sensors & Technologies的知名法国自动化控制元件制造商，于1921年在法国瓦朗斯创立。公司深耕电子、机电与磁性技术，提供覆盖检测、监控、执行、处理与通信等全系列自动化功能的完备产品组合。核心产品线包括Millenium 3小型可编程逻辑控制器（微型PLC）、直流微电机及减速电机、位置传感器、压力传感器、固态继电器、气动逻辑元件和限位开关等。Crouzet服务于航空航天、轨道交通、医疗、食品加工及工业自动化等众多行业，尤其擅长为原始设备制造商和设备制造商提供定制化解决方案。公司在美国、德国、英国、荷兰等多国设有分公司，构建了全球销售与技术支持网络。凭借百余年创新积淀，Crouzet每年将约7%的营业收入投入研发，以保持技术前沿地位。公司严格实施ISO 14001环境管理体系和OHSAS 18001职业健康安全管理体系，全面遵守RoHS与REACH法规，并在2008年荣获法国质量绩效大奖。

温度调节器 - 型号列表

共 24 个型号

制造商零件编号	库存	价格	供电电压	尺寸	输出类型	温度范围	工作温度	显示类型	输出数量	深度	密封等级	输出及类型	灯颜色	标准包装数量	RoHS	系列	安装类型	输入类型	类型	产品特性	控制器类型	输入数量	其他名称	标准	额定电压	高度	长度	主要材料	控制方式	适用产品/相关产品	产品	精度	厚度	安装样式	功能	可用温度范围	峰值脉冲功率	端接方式	触点形式	尺寸/外形	制造商全称	25°C电阻（欧姆）	包装方式	封装形式	引线长度	附件类型
89422508 Controllers TEMPERATURE CNTRL CONTROL TEMP RELAY OUT DIGITAL Temperature Controllers With Heating / Cooling Function Controller; 100 to 240 VAC @ 50/60 Hz; gt100 Megohms; 0 to degC; 100 mm; 56 mm Crouzet	10	1: ¥3,437.468	100 VAC to 240 VAC	100 mm x 48 mm x 48 mm	Relay	Selectable, Varies By Input Type	-	7-Segment, 3 Digit	1	-	-	-	-	1	RoHS Compliant	CTH 46	Panel	Digital	Temperature Controller	Heating or Heating/cooling control	On/Off or Proportional (PID)	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 89750153 Industrial Temperature Sensors TEMP PRB SUBMERS 10C +150C TEMP PROBE SUBMERS -10C +150C Temp Sensor Analog Sensor,Remote/SubmersibleProbe;24VDC;-10to150degC;forMillenium Crouzet	10	1: ¥1,052.028	24 VDC	-	-	- 10 C to + 150 C	-10to+150°C	-	-	-	-	-	-	1	RoHS Compliant	AS	-	-	-	-	-	-	89750153-ND	IP65ProtectionCasing	24VDC±10%	98mm	67mm	Level	-	-	Temperature Sensors	- 0.2 C to + 1.2 C	67mm	SMD/SMT	Temperature Sensing	-10to+60°C	-	-	-	-	-	-	-	-	-	-
89421112 Controllers TEMP CNTRL 24A CTD43 S 1D CONTROL TEMP TRANS OUT DIGITAL Temperature Controllers With Heating / Cooling Function Crouzet	10	1: ¥2,542.18	100 VAC to 240 VAC	100 mm x 48 mm x 48 mm	Transistor	Selectable, Varies By Input Type	-	7-Segment, 3 Digit	1	-	-	-	-	1	RoHS Compliant	CTD 43	Panel	Digital	Temperature Controller	Heating or Heating/cooling control	Proportional (PID)	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89421102 Controllers TEMP CNTRL 24A CTD43 R 1D CONTROL TEMP RELAY OUT DIGITAL Temperature Controllers With Heating / Cooling Function Crouzet	10	1: ¥3,595.908	24 V	100 mm x 48 mm x 48 mm	Relay	Selectable, Varies By Input Type	-	7-Segment, 3 Digit	1	-	-	-	-	1	RoHS Compliant	CTD 43	Panel	Digital	Temperature Controller	Heating or Heating/cooling control	Proportional (PID)	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89420087 Controllers CT48A 230VAC TYPE K 0C TO 1200C CONTROL TEMP RELAY OUT 0-1200C Analog Temperature Control Controller, Temperature; 230 to 240 VAC; 0 to degC; 102 mm; 68 mm; Relay Crouzet	10	1: ¥1,649.612	230 VAC to 240 VAC	102 mm x 48 mm x 48 mm	Relay	0 ~ 1000°C	0 to +55 °C	Scale	-	-	IP20, IP41	-	-	1	RoHS Compliant	CT48A	Panel	Analog	Temperature Controller	8-Pin Plug In Mounting	On/Off or Proportional (PD)	-	-	VDE, IEC Approved	230 to 240 VAC	68 mm	102 mm	Controller	ON/OFF	Thermocouple	-	-	-	-	-	-	2 VA	8-Pin Socket	SPDT	48mmL×48mmH×102mmD	CT48A Series	-	-	-	-	-
2 89420067 Controllers CT48A 230VAC TYPE J 0C TO 450C CONTROL TEMP RELAY OUT 0-450C Analog Temperature Control Controller; 230 to 240 VAC @ 50/60 Hz; 0 to degC; 102 mm; 68 mm; 48 mm Crouzet	10	1: ¥1,110.848	230 VAC to 240 VAC	102 mm x 48 mm x 48 mm	Relay	0 ~ 450°C	-	Scale	-	-	-	-	-	1	RoHS Compliant	CT48A	Panel	Analog	Temperature Controller	8-Pin Plug In Mounting	On/Off or Proportional (PD)	-	-	-	-	-	-	-	ON/OFF	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

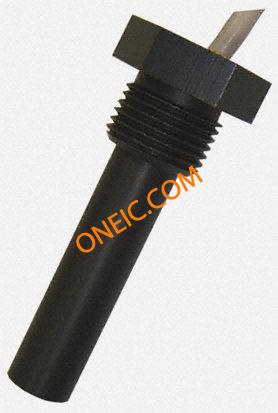

2 89750174 M3 TEMP PROBE CTN2-W-3000-1 Crouzet Probe For Use With Millenium III Series Crouzet USA	10	1: ¥629.476	-	-	-	-	-25°C ~ 85°C	-	-	-	-	-	-	1	Not Applicable	*	Threaded	-	-	-	-	-	89750174-ND	-	-	-	-	-	-	Millenium III Series	-	-	-	-	-	-	-	-	-	-	-	10k	*	Cylindrical Probe, Plastic	118" (3m)	Probe
89750181 M3 SONDE CTN - 1PCS = 100 PCS NTCProbe,Batchof100,forMillenium3 Crouzet Automation	10	1: ¥4,034.10	-	-	-	-	-	-	-	-	-	-	-	1	Lead free / RoHS Compliant	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

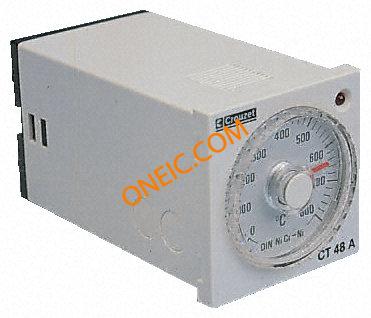

89 420 067 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 230V ac, 1 Output Crouzet	48	1: ¥1,200.4516	230 Vac	48 x 48 (1/16 DIN)mm	-	-	+55°C	-	-	99mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 422 102 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 24V ac/dc, 1 Output Crouzet	23	1: ¥2,489.65	24 Vac /dc	48 x 48 (1/16 DIN)mm	Relay	0 → +800 (type J thermocouple), 0 → +800 (type L thermocouple), 0 → +999 (type K thermocouple), 0 → +999 (type N thermocouple), -199 → +500 (RTD - PT100), -199 → +999 (RTD - PT100) °C	+50°C	LED, Single Line	1	100mm	IP 54	Relay	Red/Green	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 420 207 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 230V ac, 1 Output Crouzet	44	1: ¥1,333.5616	230 Vac	48 x 48 (1/16 DIN)mm	-	-	+55°C	-	-	99mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

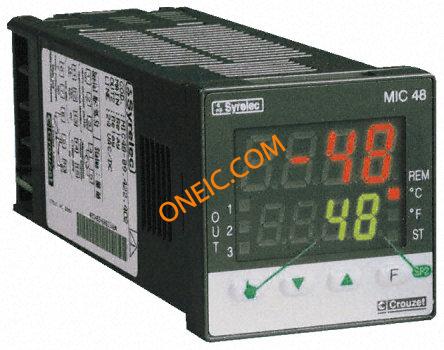

89 422 018 PID Temperature Controller Crouzet	15	1: ¥3,762.2768	100 / 240 Vac	48 x 48 (1/16 DIN)mm	Logic	0 → +1400 (type N thermocouple), 0 → +1760 (type R thermocouple), 0 → +1760 (type S thermocouple), 0 → +400 (type J thermocouple), 0 → +400 (type K thermocouple), 0 → +400 (type L thermocouple), -199.9 → +400 (RTD - PT100), -200 → +800 (RTD - PT100) °C	+50°C	LED, Multi Line	1	122mm	IP 54	Logic	Red/Green	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 422 118 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 100, 240V ac, 1 Output Crouzet	23	1: ¥1,717.00	100 / 240 Vac	48 x 48 (1/16 DIN)mm	Logic	0 → +800 (type J thermocouple), 0 → +800 (type L thermocouple), 0 → +999 (type K thermocouple), 0 → +999 (type N thermocouple), -199 → +500 (RTD - PT100), -199 → +999 (RTD - PT100) °C	+50°C	LED, Single Line	1	100mm	IP 54	Logic	Red/Green	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 421 108 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 100, 240V ac, 1 Output Crouzet	28	1: ¥2,044.964	100 / 240 Vac	48 x 48 (1/16 DIN)mm	Relay	0 → +800 (type J thermocouple), 0 → +800 (type L thermocouple), 0 → +999 (type K thermocouple), 0 → +999 (type N thermocouple), -199 → +500 (RTD - PT100), -199 → +999 (RTD - PT100) °C	+50°C	LED, Single Line	1	100mm	IP 54	Relay	Red	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

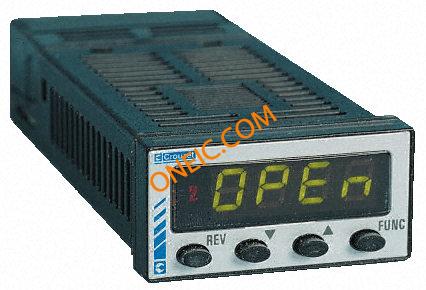

89 422 708 PID Temperature Controller Crouzet	28	1: ¥2,058.4688	100 / 240 Vac	48 x 24 (1/32 DIN)mm	Relay	-100 → +1370 (type K thermocouple - input), -100 → +1400 (type N thermocouple - input), -100 → +900 (type L thermocouple - input), -100 → +999.9 (type J thermocouple - input), -199.9 →+400 (type T thermocouple - input), -199.9 → +850 (PT100 -	+50°C	Single Line	1	102mm	IP 65	Relay	Green	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 422 508 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 100, 240V ac, 2 Output Crouzet	27	1: ¥2,169.20	100 V ac, 240 V ac	48 x 48 (1/16 DIN)mm	Relay	-	+50°C	-	2	100mm	-	Relay	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 421 102 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 24V ac/dc, 1 Output Crouzet	28	1: ¥2,044.964	24 Vac /dc	48 x 48 (1/16 DIN)mm	Relay	0 → +800 (type J thermocouple), 0 → +800 (type L thermocouple), 0 → +999 (type K thermocouple), 0 → +999 (type N thermocouple), -199 → +500 (RTD - PT100), -199 → +999 (RTD - PT100) °C	+50°C	LED, Single Line	1	100mm	IP 54	Relay	Red	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 422 108 PID Temperature Controller, 48 x 48 (1/16 DIN)mm, 100, 240V ac, 1 Output Crouzet	24	1: ¥2,400.91	100 / 240 Vac	48 x 48 (1/16 DIN)mm	Relay	0 → +800 (type J thermocouple), 0 → +800 (type L thermocouple), 0 → +999 (type K thermocouple), 0 → +999 (type N thermocouple), -199 → +500 (RTD - PT100), -199 → +999 (RTD - PT100) °C	+50°C	LED, Single Line	1	100mm	IP 54	Relay	Red/Green	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 422 712 PID Temperature Controller Crouzet	27	1: ¥2,101.6556	24 Vac /dc	48 x 24 (1/32 DIN)mm	Logic	-100 → +1370 (type K thermocouple - input), -100 → +1400 (type N thermocouple - input), -100 → +900 (type L thermocouple - input), -100 → +999.9 (type J thermocouple - input), -199.9 →+400 (type T thermocouple - input), -199.9 → +850 (PT100 -	+50°C	Single Line	1	102mm	IP 65	Logic	Green	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
89 422 718 PID Temperature Controller Crouzet	27	1: ¥1,449.42	100 / 240 Vac	48 x 24 (1/32 DIN)mm	Logic	-100 → +1370 (type K thermocouple - input), -100 → +1400 (type N thermocouple - input), -100 → +900 (type L thermocouple - input), -100 → +999.9 (type J thermocouple - input), -199.9 →+400 (type T thermocouple - input), -199.9 → +850 (PT100 -	+50°C	Single Line	1	102mm	IP 65	Logic	Green	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
