Cornell Dubilier Electronics, Inc.- 金属化聚酯薄膜电容器

康奈尔杜比利尔电子公司（Cornell Dubilier Electronics）创立于1909年，总部位于美国南卡罗来纳州利伯蒂，是一家拥有百年历史的专业电容制造商。公司自成立以来始终专注于电容器的研发与生产，核心产品线涵盖铝电解电容器、云母电容器、电机运转电容器以及交流和直流塑料薄膜电容器。这些电容器广泛应用于焊接设备、不间断电源（UPS）、电机驱动、航空电子、军事电子和医疗激光等高可靠性领域。CDE在全球拥有超过33,000家客户，为众多世界领先的工业与特种电子系统提供关键元器件。公司凭借在极端温度、高电压和严苛运行环境下稳定的产品性能而享有盛誉，并提供强大的工程支持和快速定制化服务。作为电容器行业的标杆企业，康奈尔杜比利尔以深厚的技术积淀和严格的质量管控，在全球高端电容市场占据重要地位，持续推动着电容器技术的创新与发展。

金属化聚酯薄膜电容器 - 型号列表

共 815 个型号

制造商零件编号	库存	价格	容差	电容	介电材料	欧盟RoHS	电压	包装方式	安装类型	工作温度	RoHS	额定电压	深度	高度	端接方式	封装形式	总长度	标准包装数量	尺寸/外形	安装高度（最大）	应用	端接样式	引脚间距	高度（最大）	引脚直径	柱间距	其他名称	产品	产品类别	结构	宽度	抗辐射加固	直径	安装样式	小外径	失效率	温度系数	海关税号	量程（°/s）	输入电容值	重量	刀片材料	系列	尺寸	SVHC	高频纹波电流	ESR（等效串联电阻）	产品特性	额定寿命	工厂包装数量	类型	交货时间	子类别	适用产品/相关产品	损耗角正切（DF）	产品子类型	商标名	引脚样式
FCN1913C224J-E4 Cap Film 0.22uF 16V PEN 5% (4.8 X 3.3 X 2.4mm) SMD 105°C T/R CAP FILM 0.22UF 16VDC 1913 Cornell Dubilier Electronics	-		5%	0.22uF	PEN	Compliant	16VDC	Tape and Reel	Surface Mount	-55°C ~ 105°C	Lead free / RoHS Compliant	16V	3.3	2.4	Solder Pads	1913	4.8	2,000	0.189" L x 0.130" W (4.80mm x 3.30mm)	0.102" (2.60mm)	General Purpose	-	-	-	-	-	338-2781-6	-	-	Flat	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
FCN1913E103K Cap Film 0.01uF 250V PEN 10% (4.8 X 3.3 X 1.4mm) SMD 85°C CAP FILM 10000PF 250VDC 1913 Cornell Dubilier Electronics	10	1: ¥1.9047	10%	0.01uF	PEN	Compliant	250VDC	Bulk	Surface Mount	-40°C ~ 85°C	Lead free / RoHS Compliant	250V	3.3	1.4	Solder Pads	1913	4.8	700	0.189" L x 0.130" W (4.80mm x 3.30mm)	0.063" (1.60mm)	General Purpose	-	-	-	-	-	-	-	-	Flat	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
SFA44S2K203B Cap Film 2uF 440VAC PP 10% (54.864 X 33.274 X 51.562mm) Bracket Mount Metal Can 70°C CAP FILM 2UF 440VAC QC TERM Cornell Dubilier Electronics	10	17: ¥79.0228	10%	2uF	PP	Not Compliant	440VAC	Bulk	Bracket Mount	-40°C ~ 70°C	Contains lead / RoHS non-compliant	440V	33.274	51.562	Quick Connect, Disconnect	Radial, Can - QC Terminals	54.864	17	2.160" L x 1.310" W (54.86mm x 33.27mm), Lip	2.150" (54.61mm)	Power Factor Correction (PFC)	Dual Tab Connector	0.810" (20.57mm)	-	-	-	-	-	-	Metal Can	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Motor Run and Power Supply	-	-	-	-	-	-	-
FCA1206C224M-H1 Cap Film 0.22uF 16V 20% (3.2 X 1.6 X 0.8mm) SMD 85°C CAP FILM 0.22UF 16VDC 1206 Film Capacitors 0.22uF 16Volts Cornell Dubilier Electronics	6579	1: ¥5.576	20%	0.22uF	Acrylic, Metallized	Compliant	16VDC	Tape & Reel (TR)	Surface Mount	-40°C ~ 85°C	Lead free / RoHS Compliant	12V	1.6	0.8	Solder Pads	1206	3.2	3,000	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.039" (1.00mm)	General Purpose	SMD/SMT	-	-	-	-	338-2774-1	Acrylic Surface Mount Film Capacitors	Film Capacitors	Flat	1.6 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	3000	Acrylic Stacked Metallized Film Capacitors	-	-	-	0.015	SMD	-	-
184473J250RBA-F Cap Film 0.047uF 250V PET 5% (10.5 X 4 X 9mm) Radial 7.5mm 125°C T/R CAP FILM 0.047UF 250VDC RADIAL Film Capacitors 0.047uF 250Volts Capacitor;FILM/M Cornell Dubilier Electronics	1500	1: ¥3.944	5%	0.047uF	PET	Compliant	250VDC\|160VAC	Tape and Reel	Through Hole	-55°C ~ 125°C	Lead free / RoHS Compliant	160V	4(Max)	9(Max)	PC Pins	Radial	10.5(Max)	1,500	0.413" L x 0.157" W (10.50mm x 4.00mm)	0.354" (9.00mm)	General Purpose	Radial	0.295" (7.50mm)	9(Max)	0.6	7.5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	1500	-	-	-	-	-	-	-	-
SCD205K122A3L28-F Cap Film 2uF 1200V PP 10% (56.52 X 46.4 X 50.2mm) Screw Mount Cornell Dubilier Electronics	10	1: ¥118.864	10%	2uF	PP	Compliant	1200VDC\|580VAC	-	Screw Mount	-	-	-	46.4(Max) mm	50.2(Max) mm	-	-	56.52(Max) mm	-	-	-	-	Lug Terminal	Not Required mm	Not Required mm	-	-	-	-	-	-	-	No	Not Required mm	Screw	Not Required mm	Not Required	PP	-	-	-	-	-	-	56.52 X 46.4 X 50.2	-	-	-	-	-	-	IGBT Snubber	-	-	-	-	-	-	-
2 160333J250C Cap Film 0.033uF 250V PET 5% (13 X 4 X 9.5mm) Radial 10mm 125°C CAP FILM 0.033UF 250VDC RADIAL Cornell Dubilier Electronics	1275	11: ¥6.256	5%	0.033uF	PET	Not Compliant	250VDC\|160VAC	Bulk	Through Hole	-55°C ~ 125°C	Contains lead / RoHS non-compliant	160V	4(Max)	9.5(Max)	PC Pins	Radial	13(Max)	1,000	0.512" L x 0.157" W (13.00mm x 4.00mm)	0.374" (9.50mm)	General Purpose	Radial	0.394" (10.00mm)	9.5(Max)	0.8	10	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	112 Days	Capacitor Plastic Film	160333J250C-F	-	-	-	-
3 SFA66S4K288B Cap Film 4uF 660VAC PP 10% (54.864 X 33.274 X 73.152mm) Bracket Mount Metal Can 70°C CAP FILM 4UF 660VAC QC TERM Cornell Dubilier Electronics	10	13: ¥100.3884	10%	4uF	PP	Not Compliant	660VAC	Bulk	Bracket Mount	-40°C ~ 70°C	Contains lead / RoHS non-compliant	660V	33.274	73.152	Quick Connect, Disconnect	Radial, Can - QC Terminals	54.864	13	2.160" L x 1.310" W (54.86mm x 33.27mm), Lip	3.000" (76.20mm)	Power Factor Correction (PFC)	Dual Tab Connector	0.810" (20.57mm)	-	-	-	-	-	-	Metal Can	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Motor Run and Power Supply	-	-	-	-	-	-	-
168104K100H Cap Film 0.1uF 100V PET 10% (7.2 X 2.5 X 6.5mm) Radial 5mm 125°C Bulk Cap 0.1uF 100VDC/63VAC PLYE 10% 7.2 X 2.5 X 6.5mm RDL 5mm Bulk Cornell Dubilier Electronics	-		10%	0.1uF	PET	Not Compliant	100VDC\|63VAC	Bulk	Through Hole	125	-	-	2.5(Max)	6.5(Max)	-	-	7.2(Max)	-	-	-	-	Radial	-	6.5(Max)	0.5	5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	112 Days	Capacitor Plastic Film	168104K100H-F	-	-	-	-
FCA1206C474M Cap 0.47uF 16VDC 20% 3.2 X 1.6 SMD CAP FILM 0.47UF 16VDC 1206 Film Capacitors 0.47uF 16Volts Cornell Dubilier Electronics	24	1: ¥2.754	20%	0.47uF	Acrylic, Metallized	Compliant	16VDC	Bulk	Surface Mount	-40°C ~ 85°C	Lead free / RoHS Compliant	12V	-	-	Solder Pads	1206	-	100	0.126" L x 0.063" W (3.20mm x 1.60mm)	0.063" (1.60mm)	General Purpose	-	-	-	-	-	-	-	Film Capacitors	Flat	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	100	-	-	-	-	-	-	-	-
185104J63RAB-F Cap Film 0.1uF 63V PET 5% (7.2 X 2.5 X 6.5mm) Radial 5mm 125°C T/R CAP FILM 0.1UF 63VDC RADIAL Film Capacitors 0.1uF 63Volts Capacitor;FILM/M Cornell Dubilier Electronics	1976	1: ¥102.00	5%	0.1uF	PET	Compliant	63VDC\|40VAC	Tape and Reel	Through Hole	-55°C ~ 125°C	Lead free / RoHS Compliant	40V	2.5(Max)	6.5(Max)	PC Pins	Radial	7.2(Max)	2,500	0.283" L x 0.098" W (7.20mm x 2.50mm)	0.256" (6.50mm)	General Purpose	Radial	0.197" (5.00mm)	6.5(Max)	0.5	5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2500	-	-	-	-	-	-	-	-
2 SCRN241R Cap Paper 1uF 1500V 10% (54.864 X 33.274 X 73.152mm) Metal Oval Can 65°C CAP FILM 1UF 1.5KVAC SCREW Cornell Dubilier Electronics	18	1: ¥395.76	10%	1uF	Paper, Metallized	Not Compliant	1500VDC	Bulk	Chassis Mount, Requires Holder/Bracket	-40°C ~ 65°C	Contains lead / RoHS non-compliant	1500Vpk (1.5kV)	33.274	73.152	Screw Terminals	Radial, Can - Screw Terminals	54.864	5	2.160" L x 1.310" W (54.86mm x 33.27mm), Lip	2.940" (74.68mm)	High Frequency, Switching	Screw Terminal	0.810" (20.57mm)	-	-	-	-	-	-	Metal Oval Can	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	112 Days	Capacitor Paper	SCRN241R-F	-	-	-	-
185103K100RAA-F Cap Film 0.01uF 100V PET 10% (7.2 X 2.5 X 6.5mm) Radial 5mm 125°C T/R CAP FILM 10000PF 100VDC RADIAL Film Capacitors 0.01uF 100Volts Capacitor;FILM/M Cornell Dubilier Electronics	10	3600: ¥1.6184	10%	0.01uF	PET	Compliant	100VDC\|63VAC	Tape and Reel	Through Hole	-55°C ~ 125°C	Lead free / RoHS Compliant	63V	2.5(Max)	6.5(Max)	PC Pins	Radial	7.2(Max)	2,500	0.283" L x 0.098" W (7.20mm x 2.50mm)	0.256" (6.50mm)	General Purpose	Radial	0.197" (5.00mm)	6.5(Max)	0.5	5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	2500	-	-	-	-	-	-	-	-
4 BLC160J901B4C Cap Film 16uF 900V PP 5% (41.5 X 24 X 44mm) 10.2mm 0.0039 Ohm 85°C CAP FILM 16UF 900VDC RADIAL Film Capacitors 16uF 900 Volts DC LINK CAPACITOR Cap Film 16uF 900V PP 5% (41.5 X 24 X 44mm) 10.2mm 0.0039 Ohm 85C CAP, FILM, PP, 16UF, 900V, RAD CAPACITOR FILM, 16UF, 900V, 5%, RADIAL Capacitor;PolyproMetallized;Cap16uF;Tol5%;Vol-Rtg900VDC;Radial;DCLink Cornell Dubilier Electronics	50	1: ¥53.788	5%	16uF	PP	Compliant	900VDC	Bulk	Through Hole	-45°C ~ 85°C	Lead free / RoHS Compliant	230V	24 mm	44 mm	PC Pins	Radial - 4 Leads	41.5 mm	57	1.634" L x 0.945" W (41.50mm x 24.00mm)	1.732" (44.00mm)	DC Link, DC Filtering	PC Pin	1.476" (37.50mm)	44 mm	1.2	10.2	338-3386	DC Link Capacitors	Film Capacitors	-	24 mm	No	Not Required mm	Through Hole	1.2 mm	Not Required	PP	85322500	:CORNELL DUBILIER - BLC Series	:-	0.1	PolypropyleneMetallized	BLC	41.5 X 24 X 44	:No SVHC (20-Jun-2013)	26A	3.9 mOhm	DCLink	:5000 hours @ 85°C	-	-	-	-	-	-	-	-	-
4 BLC200J901B4D Cap Film 20uF 900V PP 5% (41.5 X 30 X 45mm) 20.3mm 0.0031 Ohm 85°C CAP FILM 20UF 900VDC RADIAL Film Capacitors 20uF 900 Volts DC LINK CAPACITOR Cap Film 20uF 900V PP 5% (41.5 X 30 X 45mm) 20.3mm 0.0031 Ohm 85C CAP, FILM, PP, 20UF, 900V, RAD CAPACITOR FILM, 20UF, 900V, 5%, RADIAL Capacitor;PolyproMetallized;Cap20uF;Tol5%;Vol-Rtg900VDC;Radial;DCLink Cornell Dubilier Electronics	10	1: ¥205.77	±5%	20µF	Polypropylene (PP), Metallized	Compliant	900VDC	Bulk	Through Hole	-45°C ~ 85°C	Lead free / RoHS Compliant	230V	30 mm	45 mm	PC Pins	Radial - 4 Leads	41.5 mm	53	1.634" L x 1.181" W (41.50mm x 30.00mm)	1.772" (45.00mm)	DC Link, DC Filtering	Radial	1.476" (37.50mm)	45 mm	-	-	338-3385	DC Link Capacitors	Film Capacitors	-	30 mm	No	Not Required mm	Through Hole	1.2 mm	Not Required	PP	85322500	:CORNELL DUBILIER - BLC Series	:-	0.1	PolypropyleneMetallized	BLC	41.5 X 30 X 45	:No SVHC (20-Jun-2013)	30A	3.1 mOhm	DCLink	:5000 hours @ 85°C	-	-	-	-	-	-	-	-	-
4 BLC150J701B4A Cap Film 15uF 700V PP 5% (41.5 X 20 X 40mm) 10.2mm 0.0052 Ohm 85°C CAP FILM 15UF 700VDC RADIAL Film Capacitors 15uF 700 Volts DC LINK CAPACITOR Cap Film 15uF 700V PP 5% (41.5 X 20 X 40mm) 10.2mm 0.0052 Ohm 85C CAP, FILM, PP, 15UF, 700V, RAD CAPACITOR FILM, 15UF, 700V, 5%, RADIAL Capacitor;PolyproMetallized;Cap15uF;Tol5%;Vol-Rtg700VDC;Radial;DCLink Cornell Dubilier Electronics	49	1: ¥104.72	5%	15uF	PP	Compliant	700VDC	Bulk	Through Hole	-45°C ~ 85°C	Lead free / RoHS Compliant	230V	20 mm	40 mm	PC Pins	Radial - 4 Leads	41.5 mm	50	1.634" L x 0.787" W (41.50mm x 20.00mm)	1.575" (40.00mm)	DC Link, DC Filtering	PC Pin	1.476" (37.50mm)	40 mm	1.2	10.2	338-3393	DC Link Capacitors	Film Capacitors	-	20 mm	No	Not Required mm	Through Hole	1.2 mm	Not Required	PP	85322500	:CORNELL DUBILIER - BLC Series	:-	0.1	PolypropyleneMetallized	BLC	41.5 X 20 X 40	:No SVHC (20-Jun-2013)	21A	5.2 mOhm	DCLink	:5000 hours @ 85°C	-	-	-	-	-	-	-	-	-
4 BLC300J901B4E Cap Film 30uF 900V PP 5% (57.5 X 30 X 45mm) 20.3mm 0.0043 Ohm 85°C CAP FILM 30UF 900VDC RADIAL Film Capacitors 30uF 900 Volts DC LINK CAPACITOR Cap Film 30uF 900V PP 5% (57.5 X 30 X 45mm) 20.3mm 0.0043 Ohm 85C CAP, FILM, PP, 30UF, 900V, RAD CAPACITOR FILM, 30UF, 900V, 5%, RADIAL Capacitor;PolyproMetallized;Cap30uF;Tol5%;Vol-Rtg900VDC;Radial;DCLink Cornell Dubilier Electronics	25	1: ¥88.40	5%	30uF	PP	Compliant	900VDC	Bulk	Through Hole	-45°C ~ 85°C	Lead free / RoHS Compliant	230V	30 mm	45 mm	PC Pins	Radial - 4 Leads	57.5 mm	37	2.264" L x 1.181" W (57.50mm x 30.00mm)	1.772" (45.00mm)	DC Link, DC Filtering	PC Pin	2.067" (52.50mm)	45 mm	1.2	20.3	338-3390	DC Link Capacitors	Film Capacitors	-	30 mm	No	Not Required mm	Through Hole	1.2 mm	Not Required	PP	85322500	:CORNELL DUBILIER - BLC Series	:-	0.1	PolypropyleneMetallized	BLC	57.5 X 30 X 45	:No SVHC (20-Jun-2013)	29A	4.3 mOhm	DCLink	:5000 hours @ 85°C	-	-	-	-	-	-	-	-	-

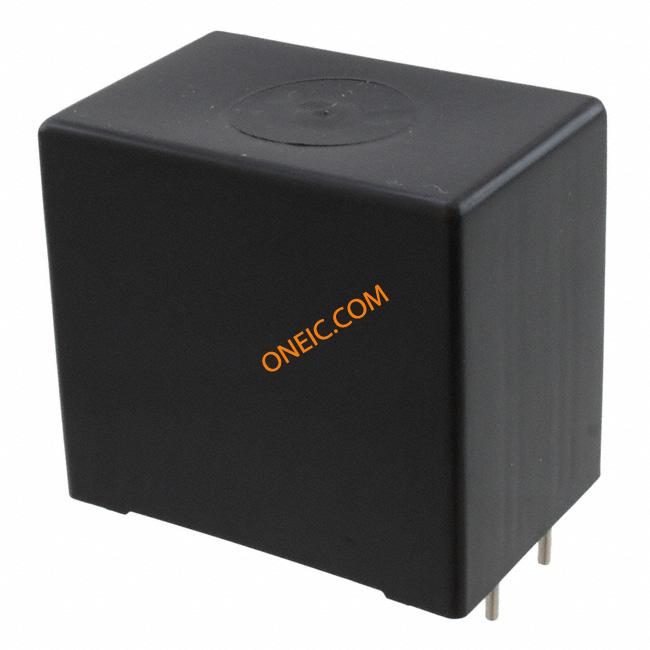

4 BLC200J701B4B Cap Film 20uF 700V PP 5% (41.5 X 28 X 37mm) 10.2mm 0.0039 Ohm 85°C CAP FILM 20UF 700VDC RADIAL Film Capacitors 20uF 700 Volts DC LINK CAPACITOR Cap Film 20uF 700V PP 5% (41.5 X 28 X 37mm) 10.2mm 0.0039 Ohm 85C CAP, FILM, PP, 20UF, 700V, RAD CAPACITOR FILM, 20UF, 700V, 5%, RADIAL Capacitor;PolyproMetallized;Cap20uF;Tol5%;Vol-Rtg700VDC;Radial;DCLink Cornell Dubilier Electronics	28	1: ¥75.888	5%	20uF	PP	Compliant	700VDC	Bulk	Through Hole	-45°C ~ 85°C	Lead free / RoHS Compliant	230V	28 mm	37 mm	PC Pins	Radial - 4 Leads	41.5 mm	45	1.634" L x 1.102" W (41.50mm x 28.00mm)	1.457" (37.00mm)	DC Link, DC Filtering	PC Pin	1.476" (37.50mm)	37 mm	1.2	10.2	338-3384	DC Link Capacitors	Film Capacitors	-	28 mm	No	Not Required mm	Through Hole	1.2 mm	Not Required	PP	85322500	:CORNELL DUBILIER - BLC Series	:-	0.1	PolypropyleneMetallized	BLC	-	:No SVHC (20-Jun-2013)	25A	3.9 mOhm	DCLink	:5000 hours @ 85°C	-	-	-	-	-	-	-	-	-

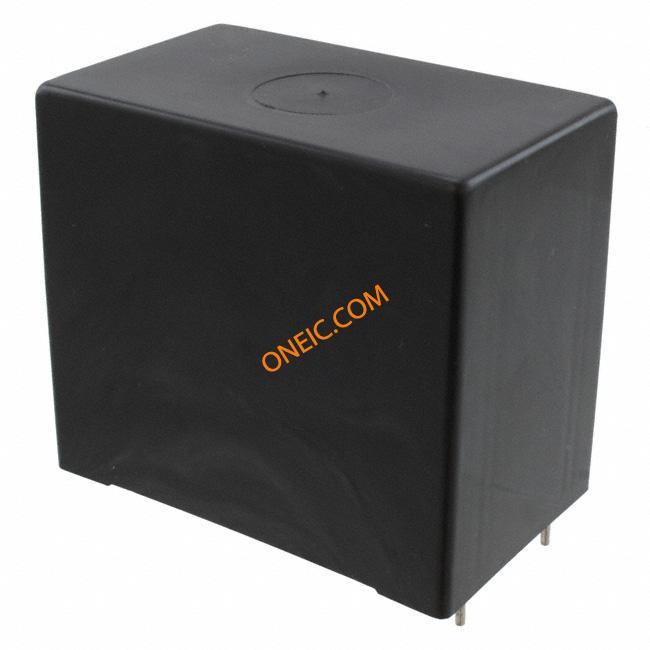

4 BLC400J901B4F Cap Film 40uF 900V PP 5% (57.5 X 35 X 50mm) 20.3mm 0.0032 Ohm 85°C CAP FILM 40UF 900VDC RADIAL Film Capacitors 40uF 900 Volts DC LINK CAPACITOR Cap Film 40uF 900V PP 5% (57.5 X 35 X 50mm) 20.3mm 0.0032 Ohm 85C CAP, FILM, PP, 40UF, 900V, RAD CAPACITOR FILM, 40UF, 900V, 5%, RADIAL Capacitor;PolyproMetallized;Cap40uF;Tol5%;Vol-Rtg900VDC;Radial;DCLink Cornell Dubilier Electronics	27	3: ¥155.448	5%	40uF	PP	Compliant	900VDC	Bulk	Through Hole	-45°C ~ 85°C	Lead free / RoHS Compliant	230V	35 mm	50 mm	PC Pins	Radial - 4 Leads	57.5 mm	32	2.264" L x 1.378" W (57.50mm x 35.00mm)	1.969" (50.00mm)	DC Link, DC Filtering	PC Pin	2.067" (52.50mm)	50 mm	1.2	20.3	338-3394	DC Link Capacitors	Film Capacitors	-	35 mm	No	Not Required mm	Through Hole	1.2 mm	Not Required	PP	85322500	:CORNELL DUBILIER - BLC Series	:-	0.1	PolypropyleneMetallized	BLC	57.5 X 35 X 50	:No SVHC (20-Jun-2013)	35A	3.2 mOhm	DCLink	:5000 hours @ 85°C	-	-	-	-	-	-	-	-	-
3 715P10256JD3 Film Capacitors 600Volts 1000pF ORANGE DROP CAPACITOR PP FILM, 1000PF, 600V, 5%, RADIAL Capacitor;PolyproFilm;Cap0.001uF;Tol5%;Vol-Rtg600VDC;Radial;HockeyCrimped Cornell Dubilier Electronics	286	1: ¥27.676	5 %	1000 pF	Polypropylene (PP)	-	-	Bulk	-	- 55 C to + 85 C	RoHS Compliant	600 V	-	-	Radial	1.25 mm	-	-	-	-	-	Radial	9.5 mm	-	-	-	-	Polypropylene Film Capacitors	-	-	-	-	-	-	-	-	-	85322200	:VISHAY - ORANGE DROP 715P Series	:-	0.00136	PolypropyleneFilm	715P	-	-	-	-	-	-	-	-	-	-	-	-	-	Orange Drop	HockeyCrimped
