Citizen Watch Co., Ltd.- 晶体

自1930年成立以来，西铁城（CITIZEN）就一直秉承多元文化的理念，坚持不懈地追求卓越、致力创新。作为世界公民(citizen)之一，西铁城有责任利用我们的工艺推动世界文化的积极发展和持续演变，我们视之为己任，并将坚定不移地迎接未来一切机遇与挑战。作为一家专业的综合型腕表厂商，西铁城的制表流程全面囊括了从单一元件制造到腕表最后组装的各道工序。我们采用工匠般的手法制造腕表，不断拓展技术疆界，并利用我们的丰富经验探索新的可能性。回顾84年的历史，我们屡创先河。我们率先研发了电波技术和卫星对时技术，以及具有革命性意义的光动能技术。早在1976年，西铁城就在业界率先研制出了这项创新科技。利用任何可见光源转化成的电能，这项非凡创新的技术彻底改变了腕表的驱动方式。光动能腕表无需频繁更换电池，尤其方便了那些无法及时获取电池的地区。这使得每个国家的公民都能够无拘无束地体验佩戴、使用西铁城腕表的乐趣，留下令人难忘的时光记忆。

晶体 - 型号列表

共 1,090 个型号

制造商零件编号	库存	价格	频率	负载电容	尺寸/外形	包装方式	RoHS	封装形式	工作温度	类型	频率稳定度	ESR（等效串联电阻）	产品类别	工厂包装数量	安装样式	端接样式	系列	标准包装数量	工作模式	频率容差	高度	安装类型	容差	机械寿命	其他名称

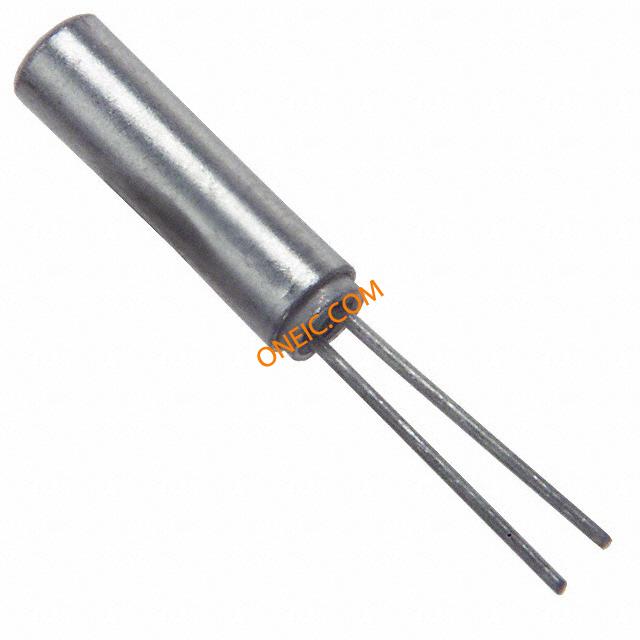

CFS145-32.768KDZFB Crystals 32.768 KHz 12.5pF CRYSTAL 32.768KHZ 12.5PF THRU Citizen	7478	1: ¥9.52	32.768kHz	12.5pF	0.055" Dia x 0.197" L (1.40mm x 5.00mm)	Bulk	Lead free / RoHS Compliant	Cylindrical Can, Radial	-20°C ~ 70°C	kHz Crystal (Tuning Fork)	-	40 kOhm	-	-	-	-	-	1,000	Fundamental	±20ppm	0.201" (5.10mm)	Through Hole	-	-	-
HC49US-21.47727MABJ-UB Crystals 21.4772MHz 18pF Citizen	551	1: ¥4.182	21.4772 MHz	18 pF	4.65 mm W x 11.5 mm L x 3.5 mm H	Bulk	RoHS Compliant	HC-49/US	- 20 C to + 70 C	AT-Cut Crystal Unit Metal Can Type	50 PPM	50 Ohms	Crystals	1000	Through Hole	Radial	HC49US	-	-	-	-	-	30 PPM	-	-
3 HC49US-21.47727MABJB Crystals 21.4772MHz 18pF CRYSTAL 21.47727MHZ 18PF THRU Citizen	1000	1000: ¥1.7136	21.4772 MHz	16 pF	4.65 mm W x 11.5 mm L x 3.5 mm H	Bulk	No	HC-49/US	- 20 C to + 70 C	MHz Range Crystal Units	50 PPM	50 Ohm	Crystals	1000	Through Hole	Radial	HC49US	1,000	Fundamental	±30ppm	0.138" (3.50mm)	Through Hole	30 PPM	End of Life: Scheduled for obsolescence and will be discontinued by the manufacturer.	-
HCM49-18.432MABJTR Crystals 18.432MHz 18pF Citizen	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CM309S-18.432MABJTR Crystals 18.432MHz 18pF Citizen	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CS5032H-14.7456MEEQ-UT Crystals 14.7456MHz 10pF 5x3.2 CERAMIC SMD Citizen	-		14.7456 MHz	10 pF	3.2 mm W x 5 mm L x 1 mm H	-	No	5 mm x 3.2 mm	-	-	-	-	Crystals	1000	SMD/SMT	SMD/SMT	CS5032H	-	-	-	-	-	-	Obsolete	-
CSA309-16.384MABJB Crystals 16.384MHz Citizen	-		16.384 MHz	18 pF	3 mm Dia. x 8.8 mm L	Bulk	No	-	- 20 C to + 70 C	AT-Cut Crystal Units	50 PPM	-	Crystals	1000	Through Hole	Radial	CSA309	-	-	-	-	-	30 PPM	Obsolete	-
3 HC49US-4.194304MABJB Crystals 4.194304MHz 18pF CRYSTAL 4.194304MHZ 18PF THRU Citizen	1686	1: ¥4.284	4.194304MHz	18pF	0.453" L x 0.183" W (11.50mm x 4.65mm)	Bulk	Lead free / RoHS Compliant	HC49/US	-10°C ~ 60°C	MHz Crystal	±50ppm	150 Ohm	-	-	-	-	-	1,000	Fundamental	±30ppm	0.138" (3.50mm)	Through Hole	-	-	-
HCM49-32.768MABJTR Crystals 32.768MHz 18pF Citizen	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 HC49US-18.432MABJB Crystals 18.432MHz 18pF CRYSTAL 18.432MHZ 18PF THRU Citizen	1156	1: ¥4.284	18.432MHz	18pF	0.453" L x 0.183" W (11.50mm x 4.65mm)	Bulk	Lead free / RoHS Compliant	HC49/US	-10°C ~ 60°C	MHz Crystal	±50ppm	50 Ohm	-	-	-	-	-	1,000	Fundamental	±30ppm	0.138" (3.50mm)	Through Hole	-	-	-
CM309S-10.000MABJTR Crystals 10MHz 18pF Citizen	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CM309S-10.240MABJTR Crystals 10.24MHz 18pF Citizen	-		-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CS5032H-24.576MEEQ-UT Crystals 24.576MHz 10pF 5x3.2 CERAMIC SMD Citizen	-		24.576 MHz	10 pF	3.2 mm W x 5 mm L x 1 mm H	Reel	No	5 mm x 3.2 mm	-	-	-	-	Crystals	1000	SMD/SMT	SMD/SMT	CS5032H	-	-	-	-	-	-	Obsolete	-
6 CM309S-64.000MABJTR Crystals 64MHz 18pF CRYSTAL 64MHZ 18PF SMD Citizen	-		64MHz	18pF	0.488" L x 0.173" W (12.40mm x 4.40mm)	Tape & Reel (TR)	-	4-SOJ, 9.40mm pitch	-10°C ~ 60°C	MHz Crystal	±50ppm	80 Ohm	-	-	-	-	-	1,000	3rd Overtone	±30ppm	0.146" (3.70mm)	Surface Mount	-	-	-
CSA310-3.6864MABJB Crystals 3.6864MHz Citizen	-		3.6864 MHz	16 pF	3 mm Dia. x 10.3 mm L	Bulk	No	-	- 20 C to + 70 C	Cylinders	50 PPM	-	Crystals	1000	Through Hole	Radial	CSA310	-	-	-	-	-	30 PPM	Obsolete	-
3 CSA310 4.000MABJ-UB クリスタル 4MHz CYLINDER CRYSTAL CRYSTAL 4MHZ 18PF THRU Citizen	-		4MHz	18pF	0.118" Dia x 0.406" L (3.00mm x 10.30mm)	Bulk	-	Cylindrical Can, Radial	-10°C ~ 60°C	MHz Crystal	±50ppm	150 Ohm	-	-	-	-	-	1,000	Fundamental	±30ppm	0.413" (10.50mm)	Through Hole	-	-	-
HC49US-18.000MABJ-UB Crystals 18MHz 18pF Citizen Finetech Miyota	842	1: ¥3.944	18 MHz	18 pF	4.65 mm W x 11.5 mm L x 3.5 mm H	Bulk	RoHS Compliant	HC-49/US	- 20 C to + 70 C	AT-Cut Crystal Unit Metal Can Type	50 PPM	50 Ohms	Crystals	1000	Through Hole	Radial	HC49US	-	-	-	-	-	30 PPM	-	-
3 CMR309T-11.0592MABJ-UT Crystals 11.0592MHz REFLOWABLE SMD CRYSTAL 11.0592MHZ 18PF SMD Citizen Finetech Miyota	-		11.0592MHz	18pF	0.118" Dia x 0.346" L (3.00mm x 8.80mm)	Tape & Reel (TR)	Lead free / RoHS Compliant	Cylindrical Can, Radial	-10°C ~ 60°C	MHz Crystal	±50ppm	50 Ohm	-	-	-	-	-	1,000	Fundamental	±30ppm	0.122" (3.10mm)	Surface Mount	-	-	300-8352-1
CM309S-20.000MABJ-UT Crystals 20MHz 18pF PLASTIC SMD Citizen Finetech Miyota	10	1: ¥8.568	20 MHz	18 pF	4.3 mm W x 12.4 mm L x 3.6 mm H	Reel	RoHS Compliant	12.4 mm x 4.3 mm	- 40 C to + 85 C	AT-Cut Crystal Unit SMD-Plastic Package	50 PPM	50 Ohms	Crystals	1000	SMD/SMT	SMD/SMT	CM309S	-	-	-	-	-	30 PPM	-	-
HC49US-17.734475MABJ-UB Crystals 17.734475MHz 18pF Citizen Finetech Miyota	1000	1: ¥3.944	17.734475 MHz	18 pF	4.65 mm W x 11.5 mm L x 3.5 mm H	Bulk	RoHS Compliant	HC-49/US	- 20 C to + 70 C	-	50 PPM	-	Crystals	1000	Through Hole	Radial	HC49US	-	-	-	-	-	30 PPM	-	-
