RFI和EMI屏蔽材料
Bourns, Inc.- RFI和EMI屏蔽材料
RFI和EMI屏蔽材料 - 型号列表
共 305 个型号| 制造商零件编号 | 库存 | 价格 | 标准包装数量 | RoHS | 阻抗 | 安装类型 | 工作温度 | 深度 | 高度 | 类型 | 欧盟RoHS | 总长度 | 包装方式 | 封装形式 | 尺寸/外形 | 产品 | 产品类别 | 容差 | 滤波器类型 | 测试频率 | 最大额定电流 | 阻抗 @ 频率 | 宽度 | 高度（最大） | 端接样式 | 直流电阻（DCR） | 初始电阻（最小） | 磁芯材料 | 工厂包装数量 | 系列 | 其他名称 | 元件数量 | 最小输入电压 | 端接方式 | 海关税号 | 额定直流电流 | 直流电阻（DCR）（最大） | 重量 | 安装特性 | ESD保护 | 滤波器阶数 | 衰减值 | 通道数量 | 通道电阻（欧姆） | 值 | 技术 | 应用 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electromechanical Filter 100Ohm EMI Filter RC-Circuit 25VAC/25VDC PC Pins Thru-Hole RC NETWORK 10 OHM 200PF 20-DIP bourns | 10 | 2000: ¥8.1151 | Rail / Tube | Contains lead / RoHS non-compliant | 100 Ohm | Through Hole | 10 to 85 °C | 8.64 | 4.57 | RC-Circuit | Compliant | 24.51 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 25VAC|25VDC | PC Pins | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Ind Chip Bead 1KOhm 25% 100MHz Ferrite 80mA 0402 T/R Ferrite Beads Multi-Layer Chip Bead 1KOhm 25% 100MHz 80mA 0402 T/R BEAD FERRITE 1000 OHM 80MA 1005 EMI Filter Beads, Chips & Arrays 1000 Ohm 25% High Impedance bourns | 10 | 10000: ¥0.2142 | Tape & Reel | Lead free / RoHS Compliant | 1 KOhm | Surface Mount | - 55 C to + 125 C | 0.6 | 0.6 mm | Chip Bead | Compliant | 1.1 | Tape and Reel | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 80 mA | 1 kOhm @ 100MHz | 0.5 mm | 0.024" (0.60mm) | SMD/SMT | 1.2 Ohm Max | 1.2 Ohm | Ferrite | - | MU | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind Chip Bead 240Ohm 25% 100MHz Ferrite 100mA 0402 T/R Ferrite Beads Multi-Layer 240Ohm 25% 100MHz 100mA 600mOhm DCR 0402 T/R BEAD FERRITE 240 OHM 100MA 1005 EMI Filter Beads, Chips & Arrays 240 Ohm 25% High Impedance bourns | 10 | 10000: ¥0.2142 | Tape & Reel | Lead free / RoHS Compliant | 240 Ohm | Surface Mount | - 55 C to + 125 C | 0.6 | 0.6 mm | Chip Bead | Compliant | 1.1 | Tape and Reel | 0402 | 0.039" L x 0.020" W (1.00mm x 0.50mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 100 mA | 240 Ohm @ 100MHz | 0.5 mm | 0.024" (0.60mm) | SMD/SMT | 600 mOhm Max | 600 mOhm | Ferrite | - | MU | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 MAGNETICS - FERRITE CHIP BEAD BEAD FERRITE 600 OHM 100MA 2012 EMI Filter Beads, Chips & Arrays 600 Ohm 25% High Impedance bourns | 10 | 4000: ¥0.0993 | 4,000 | RoHS Compliant | 600 Ohms | Surface Mount | - 55 C to + 125 C | - | - | - | - | - | Tape & Reel (TR) | 0805 (2012 Metric) | 0.079" L x 0.047" W (2.00mm x 1.20mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 100mA | 600 Ohm @ 100MHz | 1.2 mm | 0.043" (1.10mm) | SMD/SMT | - | - | - | - | MU | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

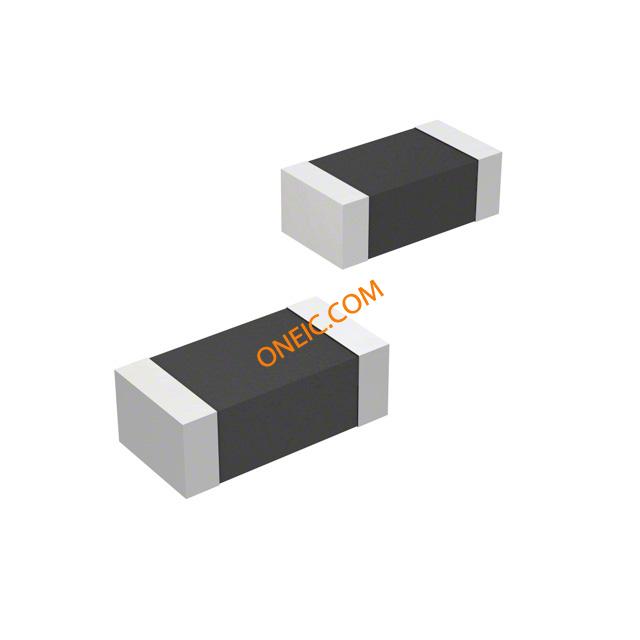

 Ind Chip Bead 30Ohm 25% 100MHz Ferrite 500mA 1206 T/R Ferrite Beads Multi-Layer 30Ohm 25% 100MHz 500mA 200mOhm DCR 1206 T/R BEAD FERRITE 30 OHM 500MA 3216 EMI Filter Beads, Chips & Arrays 30 Ohm 25% High Impedance bourns | 16 | 5: ¥0.5631 | Tape & Reel | Lead free / RoHS Compliant | 30 Ohm | Surface Mount | - 55 C to + 125 C | 1.8 mm | 1.3 mm | Chip Bead | Compliant | 3.4 | Tape and Reel | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 500 mA | 30 Ohm @ 100MHz | 1.6 mm | 0.051" (1.30mm) | SMD/SMT | 200 mOhm Max | 200 mOhm | Ferrite | - | MU | MU3261-300YCT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Ind High Current Chip Bead 30Ohm 25% 100MHz Ferrite 1A 0603 T/R Ferrite Beads High Current Chip 30Ohm 25% 100MHz 1A 60mOhm DCR 0603 T/R BEAD FERRITE 30 OHM 3.0A 1608 EMI Filter Beads, Chips & Arrays Impedance 30ohms IDC 1.0 bourns | 12000 | 4000: ¥0.1992 | Tape & Reel | Lead free / RoHS Compliant | 30 Ohm | Surface Mount | - 55 C to + 125 C | 1 | 1 mm | High Current Chip Bead | Compliant | 1.8 | Tape and Reel | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 1 A | 30 Ohm @ 100MHz | 0.8 mm | 0.039" (1.00mm) | SMD/SMT | 60 mOhm Max | 60 mOhm | Ferrite | 4000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Electromechanical Filter 27Ohm EMI Filter 25VAC/25VDC Gull Wing SMD RES NET MULT OHM SIP bourns | 10 | 1500: ¥8.4748 | Tape & Reel | Lead free / RoHS Compliant | 27 Ohm | Surface Mount | 10 to 85 °C | 10.34 | 2.78 | RC-Circuit | Not Compliant | 12.95 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 25VAC|25VDC | Gull Wing | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind High Current Chip Bead 7Ohm 25% 100MHz Ferrite 3A 0805 T/R BEAD FERRITE 7 OHM 3A EMI Filter Beads, Chips & Arrays Impedance 7ohms IDC 3.0 FERRITE BEAD, 7OHM, 25%, 3A, 0805, FULL REEL FERRITE BEAD, 7OHM, 25%, 3A, 0805 bourns | 83 | 4000: ¥0.1817 | Tape & Reel | Lead free / RoHS Compliant | 7 Ohm | Surface Mount | - 55 C to + 125 C | 1.4 mm | 1.1 mm | High Current Chip Bead | - | - | Tape & Reel (TR) | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 3 A | 7 Ohm @ 100MHz | 1.2 mm | 0.043" (1.10mm) | SMD/SMT | 30 mOhm Max | 30 mOhm | Ferrite | 4000 | :MH | MH2029-070YCT | - | - | - | 85049011 | :3A | :0.03ohm | 0 | :SMD | - | - | - | - | - | - | - | - |

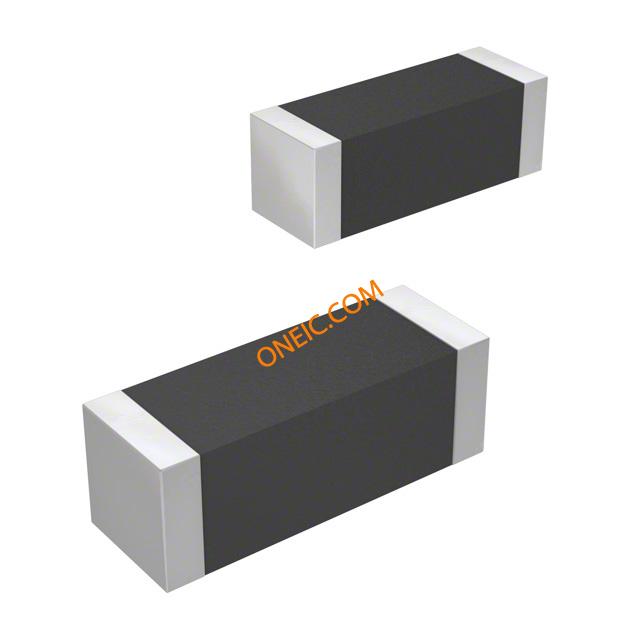

 Ind High Current Chip Bead 75Ohm 25% 100MHz Ferrite 3A 1806 T/R Ferrite Beads High Current Chip 75Ohm 25% 100MHz 3A 25mOhm DCR 1806 T/R BEAD FERRITE 75 OHM 3A 4516 EMI Filter Beads, Chips & Arrays Impedance 75ohms IDC 3.0 bourns | 10 | 1: ¥0.748 | Tape & Reel | Lead free / RoHS Compliant | 75 Ohm | Surface Mount | - 55 C to + 125 C | 1.8 | 1.8 mm | High Current Chip Bead | Compliant | 4.7 | Tape and Reel | 1806 | 0.177" L x 0.063" W (4.50mm x 1.60mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 3 A | 75 Ohm @ 100MHz | 1.6 mm | 0.071" (1.80mm) | SMD/SMT | 25 mOhm Max | 25 mOhm | Ferrite | 2000 | MH | MH4516-750YCT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind Chip Bead 120Ohm 25% 100MHz Ferrite 200mA 0603 T/R Ferrite Beads Multi-Layer 120Ohm 25% 100MHz 200mA 300mOhm DCR 0603 T/R BEAD FERRITE 120 OHM 200MA 1608 EMI Filter Beads, Chips & Arrays 120ohms 200mA Impedance@100MHz bourns | 10 | 4000: ¥0.0993 | Tape & Reel | Lead free / RoHS Compliant | 120 Ohm | Surface Mount | - 55 C to + 125 C | 1 | 1 mm | Chip Bead | Compliant | 1.8 | Tape and Reel | 0603 | 0.063" L x 0.031" W (1.60mm x 0.80mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 200 mA | 120 Ohm @ 100MHz | 0.8 mm | 0.039" (1.00mm) | SMD/SMT | 300 mOhm Max | 300 mOhm | Ferrite | 4000 | - | MG1608-121YCT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind Chip Bead 120Ohm 25% 100MHz Ferrite 300mA 0805 T/R Ferrite Beads Multi-Layer Chip Bead 120Ohm 25% 100MHz 300mA 0805 T/R BEAD FERRITE 120 OHM 300MA 0805 EMI Filter Beads, Chips & Arrays 120ohms 300mA Impedance@100MHz bourns | 1776 | 5: ¥0.2727 | Tape & Reel | Lead free / RoHS Compliant | 120 Ohm | Surface Mount | - 55 C to + 125 C | 1.4 mm | 1.1 mm | Chip Bead | Compliant | 2.2 | Tape and Reel | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 300 mA | 120 Ohm @ 100MHz | 1.2 mm | 0.043" (1.10mm) | SMD/SMT | 250 mOhm Max | 250 mOhm | Ferrite | 4000 | - | MG2029-121YCT | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

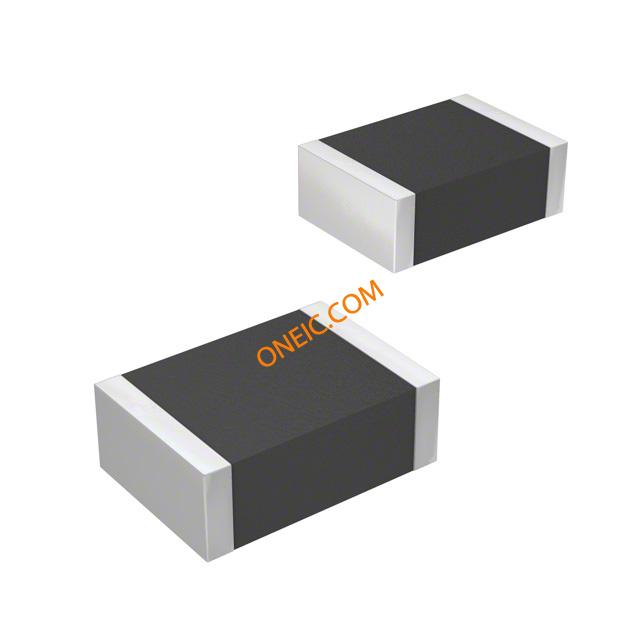

 Ind High Current Chip Bead 130Ohm 25% 100MHz Ferrite 3A 1812 T/R Ferrite Beads High Current Chip Bead 130Ohm 25% 100MHz 3A 1812 T/R BEAD FERRITE 130 OHM 3A 4532 EMI Filter Beads, Chips & Arrays Impedance 130ohms IDC 3.0 bourns | 68 | 1: ¥3.654 | Tape & Reel | Lead free / RoHS Compliant | 130 Ohm | Surface Mount | - 55 C to + 125 C | 3.4 mm | 1.7 mm | High Current Chip Bead | Compliant | 4.7 | Tape and Reel | 1812 | 0.177" L x 0.126" W (4.50mm x 3.20mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 3 A | 130 Ohm @ 100MHz | 3.2 mm | 0.067" (1.70mm) | SMD/SMT | 40 mOhm Max | 40 mOhm | Ferrite | 1000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Electromechanical Filter 25Ohm EMI Filter RC-Circuit 25VAC/25VDC Gull Wing SMD RC NETWORK 25 OHM 50PF SMD bourns | 1234 | 1: ¥20.944 | Tape & Reel | Lead free / RoHS Compliant | 25 Ohm | Surface Mount | 10 to 85 °C | 10.34 | 0.114" (2.90mm) | RC-Circuit | Compliant | 12.95 | Tape & Reel (TR) | 20-SOIC (0.295", 7.50mm Width) | 0.510" L x 0.295" W (12.95mm x 7.50mm) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | 4420P-601-250/500LCT | - | 25VAC|25VDC | Gull Wing | - | - | - | - | - | No | 1st | 3dB @ 84MHz | 8 | 25 | R = 25 Ohms, C = 50pF | RC (T-Type) | General Purpose |
 Ind Chip Bead Array 50Ohm 25% 100MHz Ferrite 200mA 1206 T/R Ferrite Beads Chip Array 50Ohm 25% 100MHz 200mA 200mOhm DCR 1206 T/R BEAD FERRITE ARRAY 50 OHM 3216 EMI Filter Beads, Chips & Arrays 50ohms @ 100MHz 200mA IDC bourns | 10 | 300000: ¥0.4352 | Tape & Reel | Lead free / RoHS Compliant | 50 Ohm | Surface Mount | - 55 C to + 125 C | 1.8 mm | 0.9 mm | Chip Bead Array | Compliant | 3.4 | Tape and Reel | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Ferrite Chip Bead Arrays | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - 4 Line Array | 100 MHz | 200 mA | 50 Ohm @ 100MHz | 1.6 mm | 0.035" (0.90mm) | SMD/SMT | 200 mOhm Max | 200 mOhm | Ferrite | 3000 | - | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind Chip Bead Array 60Ohm 25% 100MHz Ferrite 200mA 1206 T/R Ferrite Beads Chip Array 60Ohm 25% 100MHz 200mA 120mOhm DCR 1206 T/R BEAD FERRITE ARRAY 60 OHM 3216 EMI Filter Beads, Chips & Arrays 60ohms @ 100MHz 200mA IDC bourns | 10 | 300000: ¥0.4352 | Tape & Reel | Lead free / RoHS Compliant | 60 Ohm | Surface Mount | - 55 C to + 125 C | 1.8 mm | 0.9 mm | Chip Bead Array | Compliant | 3.4 | Tape and Reel | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Ferrite Chip Bead Arrays | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - 4 Line Array | 100 MHz | 200 mA | 60 Ohm @ 100MHz | 1.6 mm | 0.035" (0.90mm) | SMD/SMT | 120 mOhm Max | 120 mOhm | Ferrite | 3000 | - | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind Chip Bead Array 60Ohm 25% 100MHz Ferrite 200mA 1206 T/R Ferrite Beads Chip Array 60Ohm 25% 100MHz 200mA 120mOhm DCR 1206 T/R BEAD FERRITE ARRAY 60 OHM 3216 EMI Filter Beads, Chips & Arrays 60ohms @ 100MHz 200mA IDC bourns | 10 | 3000: ¥0.459 | Tape & Reel | Lead free / RoHS Compliant | 60 Ohm | Surface Mount | - 55 C to + 125 C | 1.8 mm | 0.9 mm | Chip Bead Array | Compliant | 3.4 | Tape and Reel | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Ferrite Chip Bead Arrays | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - 4 Line Array | 100 MHz | 200 mA | 60 Ohm @ 100MHz | 1.6 mm | 0.035" (0.90mm) | SMD/SMT | 120 mOhm Max | 120 mOhm | Ferrite | 3000 | - | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind Chip Bead Array 600Ohm 25% 100MHz Ferrite 100mA 1206 T/R Ferrite Beads Chip Array 600Ohm 25% 100MHz 100mA 500mOhm DCR 1206 T/R BEAD FERRITE ARRAY 600 OHM 3216 EMI Filter Beads, Chips & Arrays 600ohms @ 100MHz 100mA IDC bourns | 10 | 300000: ¥0.4352 | Tape & Reel | Lead free / RoHS Compliant | 600 Ohm | Surface Mount | - 55 C to + 125 C | 1.8 mm | 0.9 mm | Chip Bead Array | Compliant | 3.4 | Tape and Reel | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Ferrite Chip Bead Arrays | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - 4 Line Array | 100 MHz | 100 mA | 600 Ohm @ 100MHz | 1.6 mm | 0.035" (0.90mm) | SMD/SMT | 500 mOhm Max | 500 mOhm | Ferrite | 3000 | - | - | 8 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind Chip Bead 40Ohm 25% 100MHz Ferrite 300mA 0805 T/R Ferrite Beads Multi-Layer 40Ohm 25% 100MHz 300mA 200mOhm DCR 0805 T/R BEAD FERRITE 40 OHM 300MA EMI Filter Beads, Chips & Arrays 40ohms 300mA Impedance@100MHz bourns | 16 | 20: ¥0.2415 | Tape & Reel | Lead free / RoHS Compliant | 40 Ohm | Surface Mount | - 55 C to + 125 C | 1.4 mm | 1.1 mm | Chip Bead | Compliant | 2.2 | Tape and Reel | 0805 | 0.079" L x 0.047" W (2.00mm x 1.20mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 300 mA | 40 Ohm @ 100MHz | 1.2 mm | 0.043" (1.10mm) | SMD/SMT | 200 mOhm Max | 200 mOhm | Ferrite | 4000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Ind High Current Chip Bead 150Ohm 25% 100MHz Ferrite 2A 1206 T/R Ferrite Beads High Current Chip 150Ohm 25% 100MHz 2A 100mOhm DCR 1206 T/R BEAD FERRITE 150 OHM 2A 3216 EMI Filter Beads, Chips & Arrays 150uH 25% HIGH CURRENT bourns | 10 | 1: ¥0.68 | Tape & Reel | Lead free / RoHS Compliant | 150 Ohm | Surface Mount | - 55 C to + 125 C | 1.8 mm | 1.3 mm | High Current Chip Bead | Compliant | 3.4 | Tape and Reel | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 2 A | 150 Ohm @ 100MHz | 1.6 mm | 0.051" (1.30mm) | SMD/SMT | 100 mOhm Max | 100 mOhm | Ferrite | 3000 | MH | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Ind High Current Chip Bead 31Ohm 25% 100MHz Ferrite 3A 1206 T/R Ferrite Beads High Current Chip 31Ohm 25% 100MHz 3A 40mOhm DCR 1206 T/R BEAD FERRITE 31 OHM 3.0A 3216 EMI Filter Beads, Chips & Arrays Impedance 31ohms IDC 3.0 bourns | 10 | 1: ¥0.68 | Tape & Reel | Lead free / RoHS Compliant | 31 Ohm | Surface Mount | - 55 C to + 125 C | 1.8 mm | 1.3 mm | High Current Chip Bead | Compliant | 3.4 | Tape and Reel | 1206 | 0.126" L x 0.063" W (3.20mm x 1.60mm) | Ferrite Chip Beads | EMI Filter Beads, Chips & Arrays | 25 % | Differential Mode - Single | 100 MHz | 3 A | 31 Ohm @ 100MHz | 1.6 mm | 0.051" (1.30mm) | SMD/SMT | 40 mOhm Max | 40 mOhm | Ferrite | 3000 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
