Bourns, Inc. 是一家全球领先的电子元件制造商，由 Marlan 和 Rosemary Bourns 于 1947 年创立，总部位于美国加利福尼亚州河滨市。公司专注于设计、制造各类被动元件、电路保护器件和传感器，服务于汽车、工业、通信、消费电子和医疗等行业。产品组合包括微调电位器、精密电位器、直线运动电位器和旋转刻度盘，广泛应用于工业和消费类设备。在电路保护领域，Bourns 提供晶闸管浪涌保护器、气体放电管、可恢复保险丝、电信保险丝及 ESD 保护器件等。电感元件产品线涵盖变压器、线圈和扼流圈，用于电源管理和信号处理。电阻类产品包括片式电阻、片式电阻阵列及特殊电阻，如电流检测电阻和大功率电阻。此外，公司还生产开关、编码器、面板控制、模块化接触件及网络接口设备，支持电信基础设施。近年新增产品线有微电子模块、功率半导体和定制化集成无源解决方案。Bourns 在电位器和电路保护领域拥有深厚的技术积累和市场份额，是全球被动元件市场的重要参与者。凭借全球化的制造基地和销售网络，Bourns 以高可靠性产品著称，尤其在汽车和工业应用中占据稳固地位。

FPGA开发板 - 型号列表

共 26 个型号

制造商零件编号	库存	价格	标准包装数量	容差	包装方式	安装类型	尺寸/外形	功率（瓦）	电阻值（欧姆）	调节方式	工作温度	产品	产品类别	RoHS	电阻	额定功率	锥度	端接样式	系列	类型	工厂包装数量	技术	欧盟RoHS	深度	高度	总长度	其他名称	电阻公差	屏蔽	封装形式	磁芯材质	安装高度（最大）	工作频率	初始电阻（最小）	长度	端子样式	安装孔直径	功能	圈数	类型属性	海关税号	额定电压	直流电阻（DCR）（最大）	重量	联数	温度系数
PTA4543-2015CPB103 Res Carbon Film POT 10K Ohm 20% 1/4W (60 X 9 X 24.5mm) Pin Thru-Hole Res Carbon Film POT 10K Ohm 20% 0.25W(1/4W) (60 X 9 X 24.5mm) Pin Thru-Hole POT SLIDE 10K OHM .25W 45MM Slide Potentiometers 10K LINEAR bourns	100	100: ¥9.28	Bulk	20 %	Tray	Through Hole	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	10k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/4 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	24.5	60	PTA45432015CPB103	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

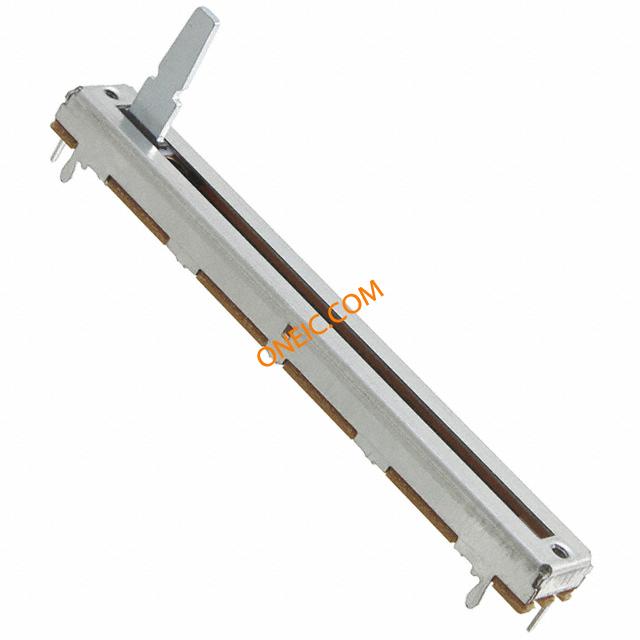

PTA6044-2015CPA223 Res Carbon Film POT 22K Ohm 20% 3/50W (75 X 9 X 25mm) Pin Thru-Hole Res Carbon Film POT 22K Ohm 20% 0.06W (75 X 9 X 24.5mm) Pin Thru-Hole POT SLIDE 22K OHM .06W 60MM Slide Potentiometers 22K AUDIO bourns	10	1000: ¥4.59	Bulk	20 %	Tray	Through Hole	Rectangular - 2.953" L x 0.354" W x 0.256" H (75.00mm x 9.00mm x 6.50mm)	0.06W	22k	Top, Standard, 60mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	22 KOhm	3/50 W	Audio	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	24.5	75	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

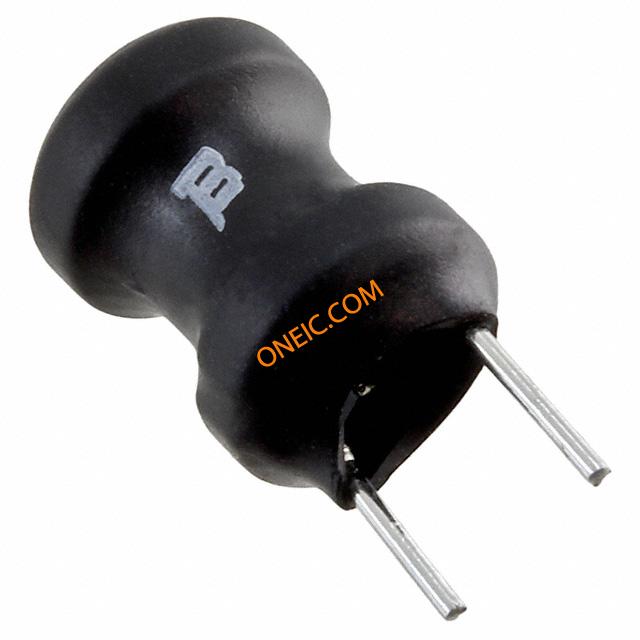

PT12122SL MAGNETICS-FIXED INDUCTOR-LEAD FREE MAGNETICS-FIXED INDUCTOR-LEAD INDUCTOR RADIAL bourns	10	200: ¥3.6938	200	±10%	Bulk	Through Hole	0.400" Dia (10.15mm)	-	-	-	-20°C ~ 80°C	-	-	-	-	-	-	-	-	Wirewound	-	-	-	-	-	-	-	-	Unshielded	Radial	Ferrite	0.500" (12.70mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 PTA2043-2015DPB103 Res Carbon Film POT 10K Ohm 20% 1/10W (35 X 9 X 24.5mm) Pin Thru-Hole Res Carbon Film POT 10K Ohm 20% 0.1W(1/10W) (35 X 9 X 24.5mm) Pin Thru-Hole POT SLIDE 10K OHM .1W 20MM Slide potentiometer linear taper 10K 20% Slide Potentiometers 10K LINEAR Slidepotentiometerlineartaper10K20% Bourns PTA 系列 10kΩ ±20% 线性电位器 , 0.1W, 通孔 bourns	256	1: ¥7.888	Bulk	20 %	Tray	Through Hole	Rectangular - 1.378" L x 0.354" W x 0.256" H (35.00mm x 9.00mm x 6.50mm)	0.1W, 1/10W	10k	Top, Standard, 20mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/10 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9mm	5.5mm	35	-	10000Ω	-	-	-	-	1	10kΩ	35mm	针	1.2mm	Y	1	Linear	-	-	-	-	-	-
PTA4543-2015CPB102 Res Carbon Film POT 1K Ohm 20% 1/4W (60 X 9 X 24.5mm) Pin Thru-Hole Res Carbon Film POT 1K Ohm 20% 0.25W(1/4W) (60 X 9 X 24.5mm) Pin Thru-Hole POT SLIDE 1K OHM .25W 45MM Slide Potentiometers 1K LINEAR bourns	10	1000: ¥3.2531	Bulk	20 %	Tray	Through Hole	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	1k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	1 KOhm	1/4 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	24.5	60	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4544-2010CIB103 Res Carbon Film POT 10K Ohm 20% 1/8W (60 X 9 X 20mm) Pin Thru-Hole Res Carbon Film POT 10K Ohm 20% 0.125W(1/8W) (60 X 9 X 19.5mm) Pin Thru-Hole POT SLIDE 10K OHM .125W 45MM Slide Potentiometers 10K LINEAR bourns	390	1: ¥10.472	Bulk	20 %	Tray	Through Hole	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.125W, 1/8W	10k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/8 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	19.5	60	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4553-2210DPB103 Res Carbon Film POT 10K Ohm 20% 1/4W Screw Panel Mount Res Carbon Film POT 10K Ohm 20% 0.25W(1/4W) (75 X 9 X 19.5mm) Pin Panel Mount/Through Hole POT SLIDE 10K OHM .25W 45MM Slide Potentiometers 10K LINEAR bourns	10	1000: ¥4.59	Bulk	20 %	Tray	Panel Mount	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	10k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/4 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	19.5	75	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA6044-2015DPB103 Res Carbon Film POT 10K Ohm 20% 1/8W (75 X 9 X 25mm) Pin Thru-Hole Res Carbon Film POT 10K Ohm 20% 0.125W(1/8W) (75 X 9 X 24.5mm) Pin Thru-Hole POT SLIDE 10K OHM .125W 60MM Slide Potentiometers 10K LINEAR bourns	10	1000: ¥4.59	Bulk	20 %	Tray	Through Hole	Rectangular - 2.953" L x 0.354" W x 0.256" H (75.00mm x 9.00mm x 6.50mm)	0.125W, 1/8W	10k	Top, Standard, 60mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/8 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	24.5	75	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4553-2215CPB103 Res Carbon Film POT 10K Ohm 20% 1/4W Screw Panel Mount Res Carbon Film POT 10K Ohm 20% 0.25W(1/4W) (75 X 9 X 24.5mm) Pin Panel Mount/Through Hole POT SLIDE 10K OHM .25W 45MM Slide Potentiometers 10K LINEAR bourns	313	1: ¥11.628	Bulk	20 %	Tray	Panel Mount	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	10k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/4 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	24.5	75	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4543-2015CPA103 Res Carbon Film POT 10K Ohm 20% 1/8W (60 X 9 X 24.5mm) Pin Thru-Hole Res Carbon Film POT 10K Ohm 20% 0.125W(1/8W) (60 X 9 X 24.5mm) Pin Thru-Hole POT SLIDE 10K OHM .125W 45MM Slide Potentiometers 10K OHMS AUDIO TAPER bourns	10	1000: ¥3.2531	Bulk	20 %	Tray	Through Hole	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.125W, 1/8W	10k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/8 W	Audio	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	24.5	60	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA2044-2015CPD103 PANEL CONTROL - SLIDE CARBON POT SLIDE 10K OHM .025W 20MM bourns	10	1000: ¥3.4211	100	±20%	Tray	Through Hole	Rectangular - 1.378" L x 0.354" W x 0.256" H (35.00mm x 9.00mm x 6.50mm)	0.025W, 1/40W	10k	Top, Standard, 20mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4543-2010CIB102 Res Carbon Film POT 1K Ohm 20% 1/4W (60 X 9 X 19.5mm) Pin Thru-Hole Res Carbon Film POT 1K Ohm 20% 0.25W(1/4W) (60 X 9 X 19.5mm) Pin Thru-Hole POT SLIDE 1K OHM .25W 45MM Slide Potentiometers 1K LINEAR bourns	10	1000: ¥3.2531	Bulk	20 %	Tray	Through Hole	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	1k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	1 KOhm	1/4 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	19.5	60	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4543-2010CIB103 Res Carbon Film POT 10K Ohm 20% 1/4W (60 X 9 X 19.5mm) Pin Thru-Hole Res Carbon Film POT 10K Ohm 20% 0.25W(1/4W) (60 X 9 X 19.5mm) Pin Thru-Hole POT SLIDE 10K OHM .25W 45MM Slide Potentiometers 10K LINEAR bourns	10	1000: ¥5.7888	Bulk	20 %	Tray	Through Hole	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	10k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/4 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	19.5	60	PTA45432010CIB103	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4553-2215DPB502 Slide Potentiometers 15MM SHAFT CEN DET 45MM STRK SNG LIN POT SLIDE 5K OHM .25W 45MM Bourns	10	1000: ¥10.1866	100	±20%	Tray	Through Hole	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	5k	Top, Standard, 45mm	- 10 C to + 50 C	Slide Potentiometers	Slide Potentiometers	RoHS Compliant	5 kOhms	250 mW (1/4 W)	Linear	Solder Lug	PTA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA6044-2015DPB502 Slide Potentiometers 15MM SHAFT NO DET 60MM STRK DUAL LIN POT SLIDE 5K OHM .125W 60MM Bourns	10	460: ¥8.092	100	±20%	Tray	Through Hole	Rectangular - 2.953" L x 0.354" W x 0.256" H (75.00mm x 9.00mm x 6.50mm)	0.125W, 1/8W	5k	Top, Standard, 60mm	- 10 C to + 50 C	Slide Potentiometers	Slide Potentiometers	RoHS Compliant	5 kOhms	125 mW (1/8 W)	Linear	Solder Lug	PTA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4553-2210DPB104 Slide Potentiometers 10MM SHAFT CEN DET 45MM STRK SNG LIN POT SLIDE 100K OHM .25W 45MM Bourns	10	460: ¥8.092	100	±20%	Tray	Through Hole	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	100k	Top, Standard, 45mm	- 10 C to + 50 C	Slide Potentiometers	Slide Potentiometers	RoHS Compliant	100 kOhms	250 mW (1/4 W)	Linear	Solder Lug	PTA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA4553-2215CIB103 Res Carbon Film POT 10K Ohm 20% 1/4W Screw Panel Mount Res Carbon Film POT 10K Ohm 20% 0.25W(1/4W) (75 X 9 X 24.5mm) Pin Panel Mount/Through Hole POT SLIDE 10K OHM .25W 45MM Slide Potentiometers 10K LINEAR bourns	10	1000: ¥4.59	Bulk	20 %	Tray	Panel Mount	Rectangular - 2.362" L x 0.354" W x 0.256" H (60.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	10k	Top, Standard, 45mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/4 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	24.5	75	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PTA3043-2010CIB103 Res Carbon Film POT 10K Ohm 20% 1/5W (45 X 9 X 19.5mm) Pin Thru-Hole Res Carbon Film POT 10K Ohm 20% 0.2W(1/5W) (45 X 9 X 19.5mm) Pin Thru-Hole POT SLIDE 10K OHM .2W 30MM Slide Potentiometers 10K LINEAR bourns	40	1: ¥16.1805	Bulk	20 %	Tray	Through Hole	Rectangular - 1.772" L x 0.354" W x 0.256" H (45.00mm x 9.00mm x 6.50mm)	0.2W, 1/5W	10k	Top, Standard, 30mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/5 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	19.5	45	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 PTA6043-2010CIB103 Res Carbon Film POT 10K Ohm 20% 1/4W (75 X 9 X 19.5mm) Pin Thru-Hole POT SLIDE 10K OHM .25W 60MM Slide Potentiometers 60MM TRVL 10K POTENTIOMETER SLIDE, 10KOHM, 250mW, ±20% bourns	900	1: ¥18.224	Bulk	20 %	Tray	Through Hole	Rectangular - 2.953" L x 0.354" W x 0.256" H (75.00mm x 9.00mm x 6.50mm)	0.25W, 1/4W	10k	Top, Standard, 60mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	10 KOhm	1/4 W	:Linear	Pin	PTA	Potentiometer	100	Carbon Film	-	-	-	-	-	:± 20%	-	-	-	-	-	-	-	-	-	-	-	-	85334010	:200V	:10kohm	0	:1	:-
PTA2043-2010CIB254 Res Carbon Film POT 250K Ohm 20% 1/10W (35 X 9 X 19.5mm) Pin Thru-Hole Res Carbon Film POT 250K Ohm 20% 0.1W(1/10W) (35 X 9 X 19.5mm) Pin Thru-Hole POT SLIDE 250K OHM .1W 20MM Slide Potentiometers 250K LINEAR bourns	1001	1: ¥7.888	Bulk	20 %	Tray	Through Hole	Rectangular - 1.378" L x 0.354" W x 0.256" H (35.00mm x 9.00mm x 6.50mm)	0.1W, 1/10W	250k	Top, Standard, 20mm	-10 to 50 °C	Slide Potentiometers	Slide Potentiometers	Lead free / RoHS Compliant	250 KOhm	1/10 W	Linear	Pin	PTA	Potentiometer	100	Carbon Film	Compliant	9	19.5	35	PTA20432010CIB254	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
