B&K Precision Corporation- 电源模块
03
电源模块 - 型号列表
共 60 个型号| 制造商零件编号 | 库存 | 价格 | 供电电压 | 输出数量 | 最小输入电压 | 显示类型 | 重量 | 类型 | 标准包装数量 | 输出电流 | 尺寸/外形 | 纹波 | 电压线性调整率 | 电压负载调整率 | 产品特性 | 其他名称 | 负载电流调节 | 产品类别 | 输出电流/通道 | 电缆类型 | 精度 - 电压表；电流表 | RoHS | 额定电压 | 线路电流调节 | 字符数 | 功率（瓦） | 输出电压3 | 零件号别名 | 制造商全称 | 输出端 | 额定输出功率 | 安装样式 | 主要材料 | 配置 | 操作方式 | 标准包装规格 | 保护特性 | 供电类型 | 平均正向功率 | 电池供电电压 | 宽度 | 高度 | 长度 | 安装类型 | 系列 | 包含附件 | 产品子类型 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 | 10 | 1: ¥2,373.20 | For B&K Precision products requiring AC input, please consult the accompanying User Manual before plugging the unit into mains power. Most products are configured for US mains/110VAC input but have a selectable input for 220VAC input. In some cases this may require a fuse change. | 1 | 0 VDC to 30 VDC | 2 Analog | 8 lbs | DC Power Supplies | - | - | - | - | - | - | - | - | - | Bench Top Power Supplies | 1 A | Detachable Power Cord Included | - | RoHS Compliant By Exemption | 120 VAC, 220 VAC, 230 VAC, 240 VAC Selectable | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | 10 | 1: ¥2,250.80 | For B&K Precision products requiring AC input, please consult the accompanying User Manual before plugging the unit into mains power. Most products are configured for US mains/110VAC input but have a selectable input for 220VAC input. In some cases this may require a fuse change. | 1 | 0 VDC to 30 VDC | 2 Analog | 8 lbs | DC Power Supplies | - | - | - | - | - | - | - | - | - | Bench Top Power Supplies | 1 A | Detachable Power Cord Included | - | RoHS Compliant By Exemption | 120 VAC, 220 VAC, 230 VAC, 240 VAC Selectable | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | - | For B&K Precision products requiring AC input, please consult the accompanying User Manual before plugging the unit into mains power. Most products are configured for US mains/110VAC input but have a selectable input for 220VAC input. In some cases this may require a fuse change. | 1 | 0 V to 18 V | - | - | - | - | - | - | - | - | - | - | - | - | Bench Top Power Supplies | 5 A | North American Power Cord Included | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Bench Top Power Supplies 3 OUTPUT DIGITAL DGTL DISCHARGE TUBE PWR SUPPLY DigitalDischargeTubePowerSupply B&K Precision | 10 | 1: ¥5,644.00 | 115VAC | 3 | 0 ~ 20VDC, 0 ~ 80VDC, 0 ~ 500VDC | Digital | 13 lbs (5.9kg) | Bench (AC to DC) | 1 | 5A, 10mA, 10mA | 8.504" L x 10.157" W x 4.252" H (216.00mm x 258.00mm x 108.00mm) | 50mV rms | 2.5V | 2.5V | - | BK1511 | 160mA | Bench Top Power Supplies | 10 mA | North American Power Cord Included | 1% + 1 digit | RoHS Compliant By Exemption | 115 VAC | - | 3 (2) | - | 0 VDC to 500 VDC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Bench Top Power Supplies 0-12V 5A DUAL ANALOG ANALOG DISPLAY PWR SUPPLY ANALOGDISPLAYPOWERSUPPLY12VAC/5A,1-12VDC/5A B&K Precision | 10 | 1: ¥1,734.00 | 115VAC | 2 | 0 ~ 12VDC, 12VAC | Analog (2) | 6.9 lbs (3.1kg) | Bench (AC to DC) | 1 | 5A | 7.008" L x 7.244" W x 4.331" H (178.00mm x 184.00mm x 110.00mm) | 500mV p-p | 100mV | 800mV | - | BK1503 | 80mA | Bench Top Power Supplies | 5 A | North American Power Cord Included | 2.5% of Full Scale | RoHS Compliant By Exemption | 115 VAC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
 | - | 120VAC | 1 | 0 ~ 16VDC | Analog (2) | 20 lbs (9.1kg) | Bench (AC to DC) | 1 | 0 ~ 10A | 15.000" L x 10.500" W x 5.700" H (381.00mm x 266.70mm x 144.78mm) | 1mV rms | 0.2% + 2mV | 0.04% + 2mV | Constant Current and Constant Voltage Indicators | BK1746A | 0.4% + 5mA | - | - | - | 0.025 | - | - | 0.4% + 5mA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 Bench Top Power Supplies 0-150 VAC 3A POWER SUPPLY LEAKAGE TESTER AC Power Supply PowerSupply,150V,3A B&K Precision | 10 | 1: ¥3,937.20 | 120VAC | 1 | 0 ~ 150VAC | Analog | 22 lbs (10kg) | Bench (AC to AC) Isolation | 1 | 0 ~ 3A | 12.000" L x 5.700" W x 10.500" H (304.80mm x 144.78mm x 266.70mm) | - | - | - | Solder Iron Outlet and Control | BK1655A | - | Bench Top Power Supplies | 3 A | North American Power Cord Included | - | RoHS Compliant By Exemption | 120 VAC | - | - | - | - | EXD | 16xxA | 150VAC@3A | 450W | Panel | AC-AC | Enclosed | Switching | - | - | - | - | - | - | - | - | - | - | - | - | - |
 Bench Top Power Supplies 0-35VDC 10A PWR SUP PWR SUPPLY 0-35V 0-10A ANALOG PowerSupply,0-35VDC,0-10A B&K Precision | 10 | 1: ¥4,658.00 | 120VAC | 1 | 0 ~ 35VDC | Analog | 27 lbs (12.2kg) | Bench (AC to DC) | 1 | 0 ~ 10A | 15.000" L x 10.500" W x 5.700" H (381.00mm x 266.70mm x 144.78mm) | 1mV rms | 0.2% + 2mV | 0.04% + 2mV | Dual Display(s) | Q2550846 | 0.4% + 5mA | Bench Top Power Supplies | 10 A | Detachable Power Cord Included | 0.025 | RoHS Compliant By Exemption | 120 VAC, 220 VAC, 230 VAC, 240 VAC Selectable | 0.4% + 5mA | - | - | - | EXD | 174xA | 35VDC@10A | 560W | Panel | AC-DC | Enclosed | - | 1 | - | - | - | - | - | - | - | - | - | - | - | - |

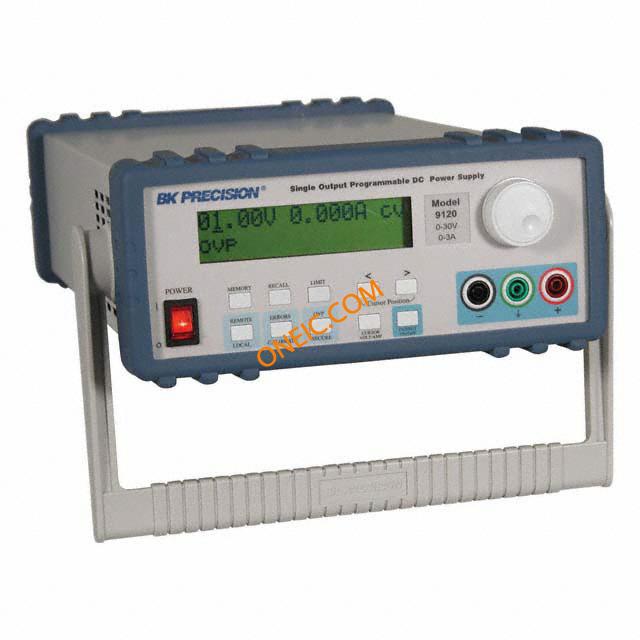

 Bench Top Power Supplies 0-30V 0-3A DC SINGLE OUTPUT PROGRAMMABLE POWER SUPPLY 0-30V 0-3A PROGRAM B&K Precision | - | 110VAC, 220VAC | 1 | 0 ~ 30VDC | Digital | 13 lbs (5.9kg) | Bench (AC to DC) | 1 | 0 ~ 3A | 15.000" L x 8.270" W x 3.150" H (381.00mm x 210.06mm x 80.01mm) | 5mV p-p | 0.01% + 3mV | 0.01% + 3mV | Programmable | BK9120 | 0.01% + 250µA | - | - | - | 0.05% + 5mV | - | - | 0.01% + 250µA | - | 100W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Bench Top Power Supplies DUAL VOLT BATT ELIM DL-VOLT HI-CURRENT BATT ELIMINAT Dual-VoltageHigh-CurrentBatteryEliminator,1.5V B&K Precision | 10 | 1: ¥714.00 | 115VAC | 1 | 1.5 ~ 3VDC | No Display | 1.9 lbs (861.8g) | Bench (AC to DC) | 1 | 3A | 3.150" L x 5.551" W x 2.677" H (80.00mm x 141.00mm x 68.00mm) | - | - | - | Switching | BK1501 | 180mA | Bench Top Power Supplies | 3 A | North American Power Cord Included | - | RoHS Compliant By Exemption | 115 VAC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

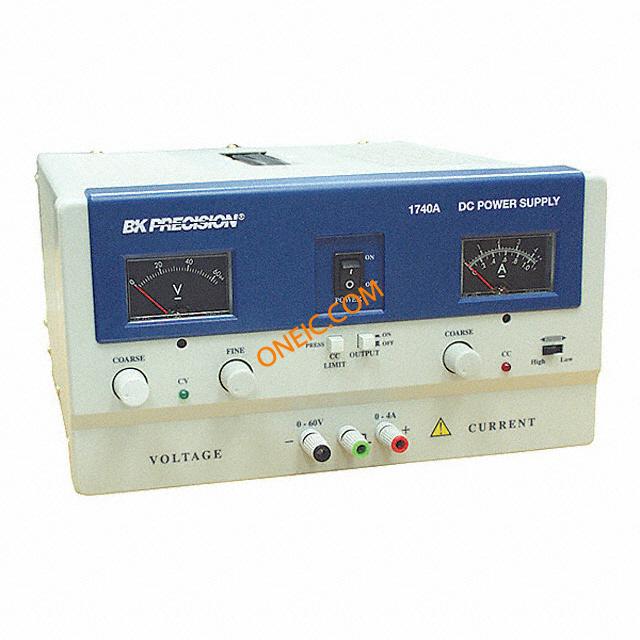

 | - | 120VAC | 1 | 0 ~ 60VDC | Analog (2) | 23 lbs (10.4kg) | Bench (AC to DC) | 1 | 0 ~ 4A | 15.000" L x 10.500" W x 5.700" H (381.00mm x 266.70mm x 144.78mm) | 1mV rms | 0.2% + 2mV | 0.04% + 2mV | Constant Current and Constant Voltage Indicators | BK1740A | 0.4% + 5mA | - | - | - | 0.025 | - | - | 0.4% + 5mA | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |

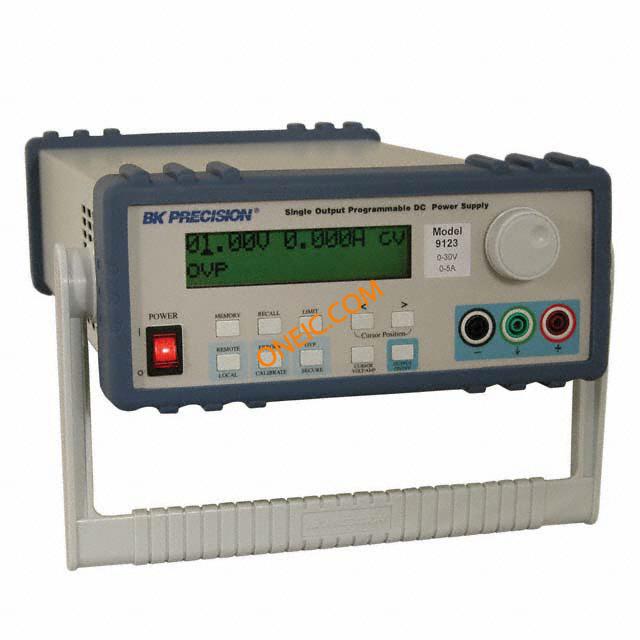

 Bench Top Power Supplies 0-30V 0-5A DC SINGLE OUTPUT PROGRAMMABLE PWR SUP SNG OUTPUT PROG 30V 5A B&K Precision | - | 110VAC, 220VAC | 1 | 0 ~ 30VDC | Digital | 13 lbs (5.9kg) | Bench (AC to DC) | 1 | 0 ~ 5A | 15.000" L x 8.270" W x 3.150" H (381.00mm x 210.06mm x 80.01mm) | 5mV p-p | 0.01% + 3mV | 0.01% + 3mV | Programmable | BK9123 | 0.01% + 250µA | - | - | - | 0.05% + 5mV | - | - | 0.01% + 250µA | - | 100W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 | - | 110VAC, 220VAC | 1 | 0 ~ 30VDC | LED | 11 lbs (5kg) | Bench (AC to DC) | 1 | 0 ~ 3A | 10.600" L x 8.100" W x 4.500" H (269.24mm x 205.74mm x 114.30mm) | 1mV rms | 0.02% + 5mV | 0.02% + 5mV | Programmable | BK1786A | - | - | - | - | - | - | - | - | 3 (2) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Bench Top Power Supplies Power Supply/Battery POWER SUPPLY/BATTERY ELIMINATOR PowerSupply/BatteryEliminator3.3/4.5/6/7.5/9/12V,1A B&K Precision | 10 | 1: ¥258.40 | 120VAC | 1 | 3.3 ~ 12VDC | No Display | 1.500 lbs | Bench (AC to DC) | 1 | 1A | - | 100mV p-p | 60mV | 300mV | Switching | BK1513 | 300mA | Bench Top Power Supplies | 1 A | North American Power Cord Included | - | RoHS Compliant By Exemption | 120 VAC | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |

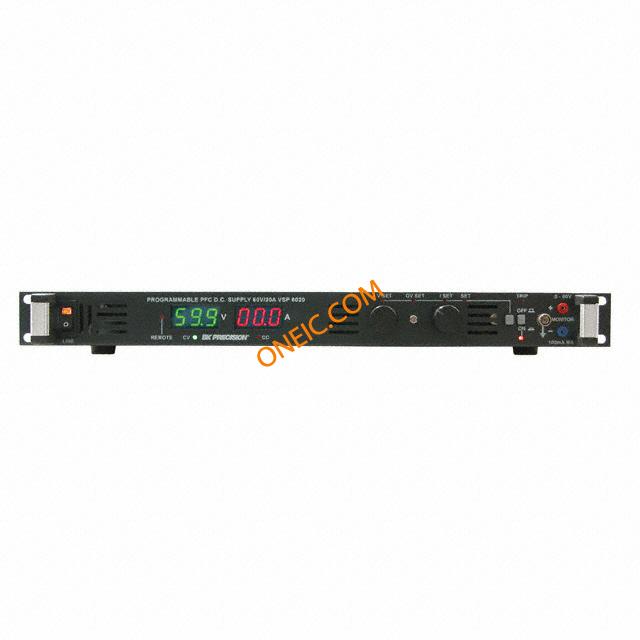

 Bench Top Power Supplies 60V 20A HIGH POWER SWITCHING WITH RS232 POWER SPLY SWITCH 60V 20A RS232 B&K Precision | - | 95 ~ 264VAC | 1 | 0 ~ 60VDC | LED | 14 lbs (6.4kg) | Rack Mount (AC to DC) | 1 | 0 ~ 20A | 18.000" L x 19.000" W x 1.750" H (457.20mm x 482.60mm x 44.45mm) | 10mV rms | 0.001 | 0.001 | Programmable, RS232 Port, Switching | - | 0.001 | - | - | - | 0.2% + 3 digits | - | - | 0.001 | 3 (2) | 1200W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |

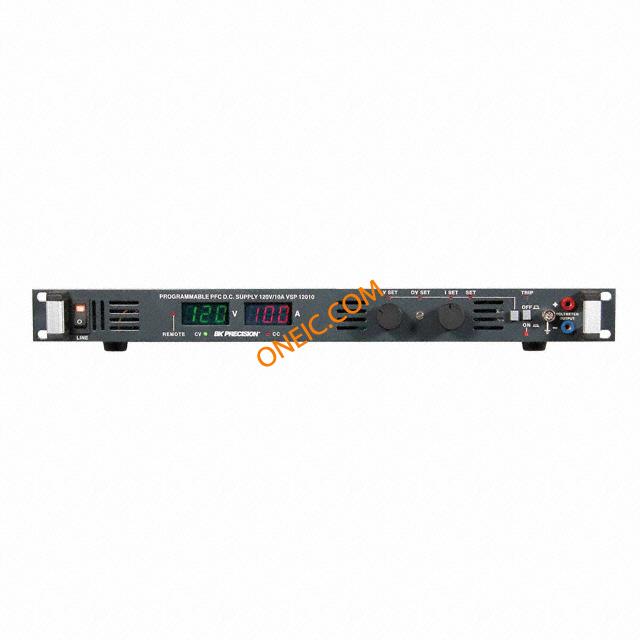

 Bench Top Power Supplies 120V 10A HIGH POWER SWITCHING WITH RS232 POWER SPLY SWITCH 120V 10A RS232 B&K Precision | - | 95 ~ 264VAC | 1 | 0 ~ 120VAC | LED | 14 lbs (6.4kg) | Rack Mount (AC to DC) | 1 | 0 ~ 10A | 18.000" L x 19.000" W x 1.750" H (457.20mm x 482.60mm x 44.45mm) | 20mV rms | 0.001 | 0.001 | Programmable, RS232 Port, Switching | - | 0.001 | - | - | - | 0.2% + 3 digits | - | - | 0.001 | 3 (2) | 1200W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Bench Top Power Supplies COMPACT 0-12V 500MA HEAVY DUTY DC BATTERY ELIMINATOR HeavyDutyDCBatteryEliminator,1.5V,3V,4.5V,6V, B&K Precision | 231 | 1: ¥6.95 | 115VAC | 1 | 1.5 ~ 12VDC | No Display | 2.4 lbs (1.1kg) | Bench (AC to DC) | 1 | 500mA | 5.510" L x 4.330" W x 3.270" H (139.95mm x 109.98mm x 83.06mm) | 200mV p-p | 300mV | 120mV | Switching | BK1502 | 180mA | Bench Top Power Supplies | 500 mA | North American Power Cord Included | - | RoHS Compliant By Exemption | 115 VAC | - | - | - | 4.5 V | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Bench Top Power Supplies 120V 10A HIGH POWER SWITCHING WITH GPIB POWER SPLY SWITCH 120V 10A GPIB B&K Precision | - | 95 ~ 264VAC | 1 | 0 ~ 120VAC | LED | 14 lbs (6.4kg) | Rack Mount (AC to DC) | 1 | 0 ~ 10A | 18.000" L x 19.000" W x 1.750" H (457.20mm x 482.60mm x 44.45mm) | 20mV rms | 0.001 | 0.001 | GPIB Port, Programmable, Switching | - | 0.001 | - | - | - | 0.2% + 3 digits | - | - | 0.001 | 3 (2) | 1200W | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |

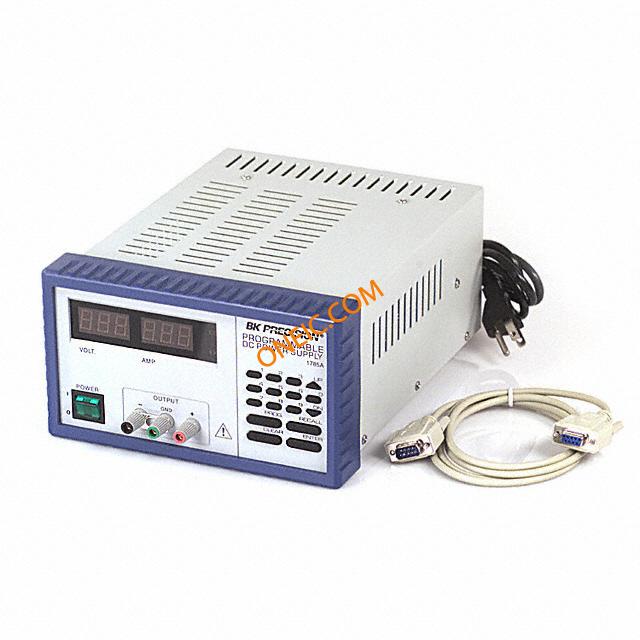

 | - | 110VAC, 220VAC | 1 | 0 ~ 18VDC | LED | 11 lbs (5kg) | Bench (AC to DC) | 1 | 0 ~ 5A | 10.600" L x 8.100" W x 4.500" H (269.24mm x 205.74mm x 114.30mm) | 1mV rms | 0.02% + 5mV | 0.02% + 5mV | Programmable, RS232 Port | BK1785A | - | - | - | - | - | - | - | - | 3 (2) | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
 Bench Top Power Supplies PS 0-24VDC 0.5A POWER SUPPLY TRIPLE OUTPUT AC/DC Power Supply Triple-OUT 0V to 24V/0V to 24V/5V 0.5A/0.5A/4A TRIPLEOUTPUTDCPOWERSUPPLY Triple Output Analog Power Supply 0-24 VDC 0-.5 A B&K Precision | 10 | 1: ¥3,189.20 | 108 ~ 132VAC | 3 | 0 ~ 24VDC, 0 ~ 24VDC, 5VDC | Analog | 11 lbs (5kg) | Bench (AC to DC) | 1 | 0 ~ 0.5A, 0 ~ 0.5A, 4A | 10.975" L x 11.750" W x 5.500" H (278.77mm x 298.45mm x 139.70mm) | 1mV rms | 0.01% + 3mV | 0.01% + 3mV | Tracking | BK1651A | 0.2% + 3µA | Bench Top Power Supplies | 500 mA | North American Power Cord Included | 2.5% of Full Scale | RoHS Compliant By Exemption | 120 VAC, 220 VAC | 0.2% + 6mA | 2 | - | 5 VDC | EXD | BK Precision | - | - | - | - | - | - | - | Short Circuit Protection, Over Voltage Protection, Reverse Polarity Protection, Overload Protection | Analog | 165W | 108 to 132V ac | 11.75in | 10.97in | 5.5in | Surface Mount | 1600 | 3 x Hook-Up Cables, Power Cord, Spare Fuse & Instruction Manual | Dc Power Supply | 0°C |
第 1 / 3 页
