AVX Corporation- 集成无源元件

AVX公司是全球公认的被动电子元件和互连解决方案设计、制造和供应领域的领导者。公司成立于1972年，总部位于美国南卡罗来纳州喷泉客栈，1990年成为京瓷株式会社的子公司。AVX的产品组合极为广泛，涵盖陶瓷电容、钽电容、薄膜电容，以及压敏电阻、磁珠、电感、滤波器、电路保护器件和各种连接器。重点产品系列包括TAJ和TPS系列钽电容、TransGuard多层压敏电阻，以及全面的MLCC片式多层陶瓷电容系列。公司服务于汽车、工业、医疗、消费电子和通信等多个市场领域。凭借遍布全球四大洲十七个国家的制造基地，AVX能够提供全球供应链支持和本地化的工程服务。其电容器和元件以高可靠性和在严苛应用中的卓越性能而著称。AVX持续投入尖端研究和材料科学，以帮助客户降低总成本并提升系统性能。作为京瓷集团成员，AVX充分利用先进陶瓷和电子技术的协同效应来保持竞争优势。作为全球顶尖的被动元件供应商之一，AVX依靠创新和以客户为中心的战略占据了强有力的市场地位。

MODELS

集成无源元件 - 型号列表共 61 个型号

制造商零件编号	价格/库存	Packaging	Height - Seated (Max)	Voltage - Rated	Size / Dimension	Adjustment Type	Standard Package	Mounting Type	Capacitance Range	Features	rohs	Other Names	调节类型	电容范围	系列	高度 - 安装（最大值）	电压 - 额定	大小/尺寸	Capacitance Value	Product Length	EU RoHS	Maximum Operating Temperature	Product Depth	Mounting	Temperature Coefficient	Material	Product Height	Construction	Voltage	Minimum Quality Factor	Tolerance

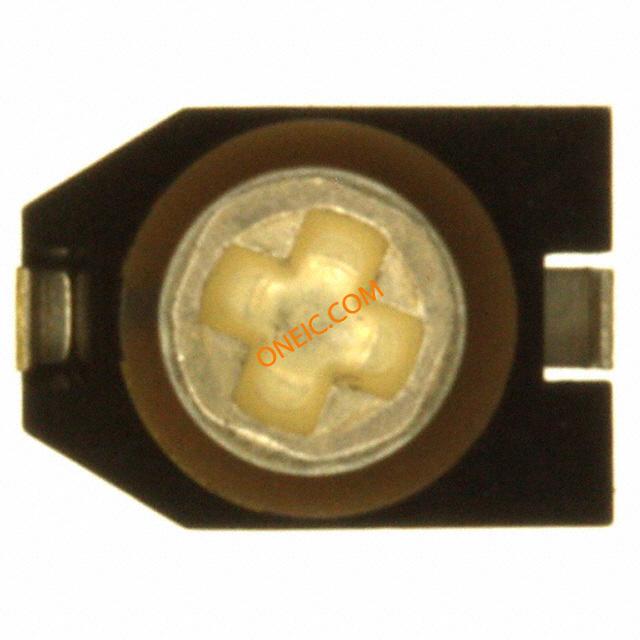

4 CTZ3E-40C-W1-PF Trimmer / Variable Capacitors 40PF TRIMMER CAPACITOR AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	4.5 ~ 40pF	Low Profile	Lead free / RoHS Compliant	478-4703-6	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-10A-X1-PF Trimmer / Variable Capacitors 2.5/10pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	2.5 ~ 10pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3E-05C-W1-PF Trimmer / Variable Capacitors 2/5pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	1.5 ~ 5pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-10B-W1-PF Trimmer / Variable Capacitors 1.5/10pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	1.5 ~ 10pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-10A-W1-PF Trimmer / Variable Capacitors 2.5/10pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	2.5 ~ 10pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 CTZ3E-50C-W1-PF Trimmer / Variable Capacitors 50PF TRIMMER CAPACITOR AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	4.5 ~ 50pF	Low Profile	Lead free / RoHS Compliant	478-4704-6	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3E-10C-W1-PF Trimmer / Variable Capacitors 3/10pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	1.5 ~ 10pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-05C-W1-PF Trimmer / Variable Capacitors 2/5pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	1.5 ~ 5pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

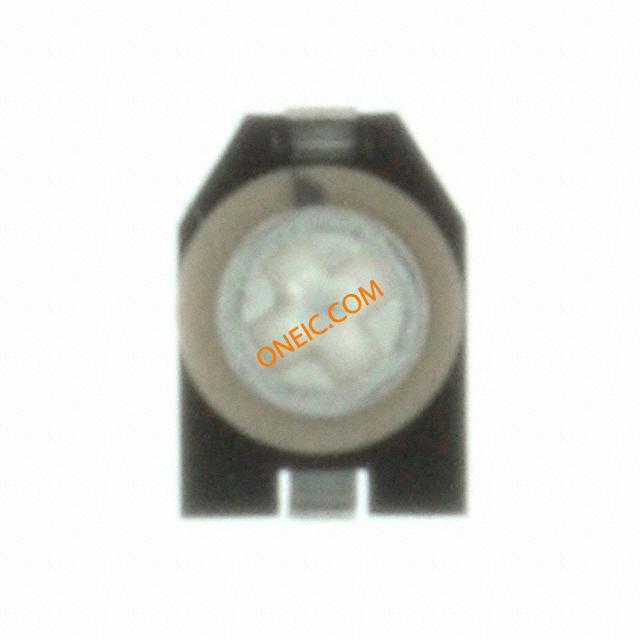

5 CTZ3E-03A-W1-PF Trimmer / Variable Capacitors 1.0 -3.0PF 25V NP0+/-500 AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	1 ~ 3pF	Low Profile	Lead free / RoHS Compliant	478-4699-6	Top Adjustment	1 ~ 3pF	CTZ, Kyocera	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-20C-W1-PF Trimmer / Variable Capacitors 4.5 -7.5PF 25V N750+/-500 AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	4.5 ~ 20pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3E-10A-W1-PF Trimmer / Variable Capacitors 10PF TRIMMER CAPACITOR AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	2.5 ~ 10pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-05A-W1-PF Trimmer / Variable Capacitors 1.5/5pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	1.5 ~ 5pF	Low Profile	-	-	Top Adjustment	1.5 ~ 5pF	CTZ, Kyocera	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-05A-W5-PF Trimmer / Variable Capacitors 1.5/5pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	2,000	Surface Mount	1.5 ~ 5pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-50C-X1-PF Trimmer / Variable Capacitors 4.5/50pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	4.5 ~ 50pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-20C-X1-PF Trimmer / Variable Capacitors 4.5/20pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	4.5 ~ 20pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

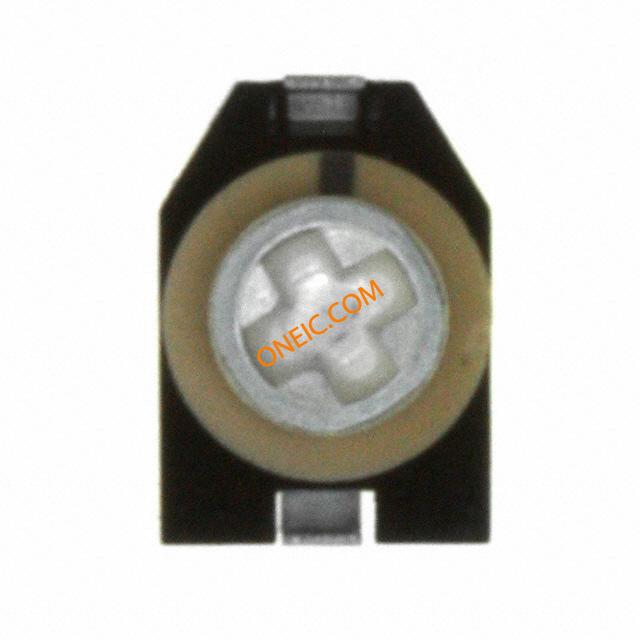

5 CTZ3E-05A-W1-PF Trimmer / Variable Capacitors 5PF TRIMMER CAPACITOR AVX	询价	Tape and Reel	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	1.5 ~ 5pF	Low Profile	Lead free / RoHS Compliant	478-4700-6	-	-	-	-	-	-	1.5/5pF	3.2	Compliant	85	4.5	Surface Mount	NPO±500	Ceramic	1.8(Max)	Top Adj	25VDC	300@1MHz	0% to 100%
CTZ3S-40C-X1-PF Trimmer / Variable Capacitors 4.5/40pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	4.5 ~ 40pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3S-40C-W1-PF Trimmer / Variable Capacitors 4.5/40pF 25VDC AVX	询价	Tape and Reel	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	4.5 ~ 40pF	Low Profile	Lead free / RoHS Compliant	-	-	-	-	-	-	-	4.5/40pF	3.2	Compliant	85	4.5	Surface Mount	N750±500	Ceramic	1.8(Max)	Top Adj	25VDC	300@1MHz	0% to 100%
CTZ3S-30C-W1-PF Trimmer / Variable Capacitors 4.5/30pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	4.5 ~ 30pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
CTZ3E-10A-X1-PF Trimmer / Variable Capacitors 2.5/10pF 25VDC AVX	询价	Tape & Reel (TR)	0.071" (1.80mm)	25V	Rectangular - 0.177" L x 0.126" W (4.50mm x 3.20mm)	Top Adjustment	1,000	Surface Mount	2.5 ~ 10pF	Low Profile	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

第 1 / 4 页
