AVX Corporation- 其他卡边缘连接器

AVX公司是全球公认的被动电子元件和互连解决方案设计、制造和供应领域的领导者。公司成立于1972年，总部位于美国南卡罗来纳州喷泉客栈，1990年成为京瓷株式会社的子公司。AVX的产品组合极为广泛，涵盖陶瓷电容、钽电容、薄膜电容，以及压敏电阻、磁珠、电感、滤波器、电路保护器件和各种连接器。重点产品系列包括TAJ和TPS系列钽电容、TransGuard多层压敏电阻，以及全面的MLCC片式多层陶瓷电容系列。公司服务于汽车、工业、医疗、消费电子和通信等多个市场领域。凭借遍布全球四大洲十七个国家的制造基地，AVX能够提供全球供应链支持和本地化的工程服务。其电容器和元件以高可靠性和在严苛应用中的卓越性能而著称。AVX持续投入尖端研究和材料科学，以帮助客户降低总成本并提升系统性能。作为京瓷集团成员，AVX充分利用先进陶瓷和电子技术的协同效应来保持竞争优势。作为全球顶尖的被动元件供应商之一，AVX依靠创新和以客户为中心的战略占据了强有力的市场地位。

MODELS

其他卡边缘连接器 - 型号列表共 20 个型号

制造商零件编号	价格/库存	Packaging	Number of Rows	Gender	Contact Material	Card Type	Material - Insulation	Card Thickness	Contact Finish Thickness	Number of Positions	Standard Package	Contact Finish	Termination	Read Out	Pitch	Number of Positions/Bay/Row	Features	Mounting Type	Color	Other Names	Contact Plating	Housing Material	Product Category	Product Type	RoHS	Factory Pack Quantity	Termination Style	Mounting Style	rohs	EU RoHS	Mounting	Body Orientation	Termination Method	Maximum Current Rating	Pitch	Maximum Contact Resistance	Number of Contacts	Type	Number of Positions / Contacts	Card Thickness	Housing Color	Series	Current Rating	Description/Function	Tail Length	Insulation Resistance	Board Thickness	Product Length	Product Depth	Product Height	Mounting Angle	Contact Type
206325036001006 PCI Express / PCI Connectors 36P BLK, STD, 2.30mm AVX	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	36	120	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	7; 11	Board Guide, Locking Ramp	Through Hole	Black	478-2839	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

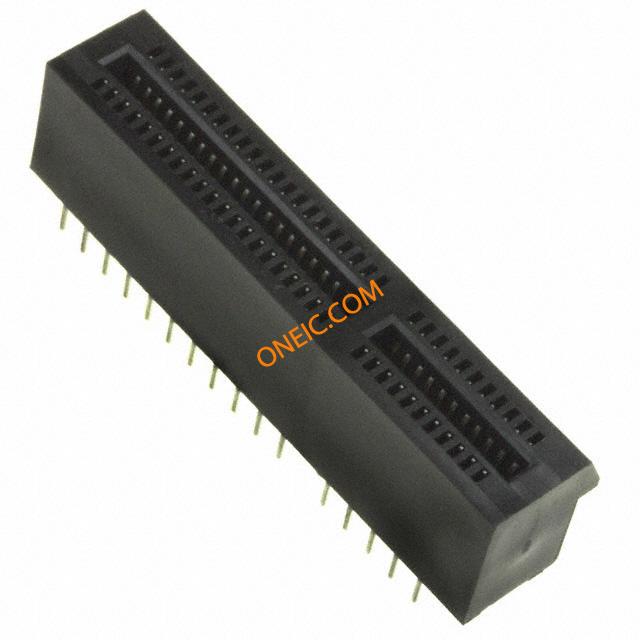

2 206325064001006 PCI Express / PCI Connectors 64P BLK, STD, 2.30mm AVX	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	64	80	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	21; 11	Board Guide, Locking Ramp	Through Hole	Black	478-2841	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
206325164002016 PCI Express / PCI Connectors 164P PCI LEAD FREE 3.0mm TAIL W/LATCH AVX	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	164	600	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	71; 11	Board Guide, Card Latch, Locking Ramp	Through Hole	Black	478-2847	-	-	-	-	-	-	-	-	RoHS Compliant Part	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
206325064002006 PCI Express / PCI Connectors 64P PCI LEAD FREE 3.0mm TAIL AVX	询价	Bulk	2	SKT	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	64	80	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	21; 11	Board Guide, Locking Ramp	Through Hole	Black	478-2842	Gold Over Nickel	Nylon	-	-	-	-	-	-	Lead free / RoHS Compliant	Compliant	Through Hole	Straight	Solder	1.1	1	30	64	Card Edge	-	1.58	Black	-	-	-	-	-	-	-	-	-	-	-
206325064002001 PCI Express / PCI Connectors CARD EDGE 64P AVX	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	64	80	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	21; 11	Board Guide, Locking Ramp	Through Hole	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
155016200810002 PCI エクスプレス / PCI コネクタ 16POS PCIEXPRESS AVX Connectors	询价	Tube	2	HDR	Copper Alloy	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Gold Over Nickel	Thermoplastic	PCI Express / PCI Connectors	PCI Express	No	56	-	-	-	Not Compliant	Through Hole	Straight	Solder	1	1.27	20	16	Shrouded Header	-	-	-	5016	-	-	-	-	-	12.7	2.67	2.82	-	-
206325098002006 Conn Card Edge SKT 98 POS 1mm Solder ST Thru-Hole AVX	询价	Bulk	2	SKT	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	98	60	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	38; 11	Board Guide, Locking Ramp	Through Hole	Black	478-2844	Gold Over Nickel	Nylon	-	-	-	-	-	-	Lead free / RoHS Compliant	Compliant	Through Hole	Straight	Solder	1.1	1	30	98	Card Edge	-	1.58	Black	-	-	-	-	-	-	-	-	-	-	-

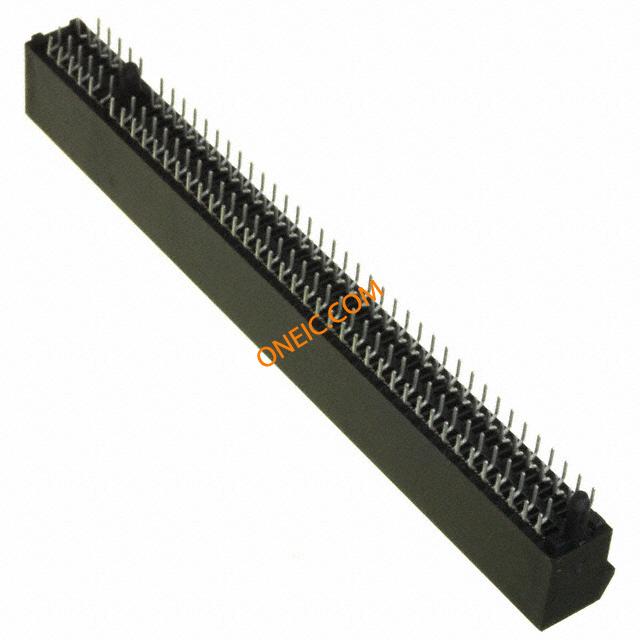

206325164001006+ Conn Card Edge SKT 164 POS 1mm Solder ST Thru-Hole AVX	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	164	2,000	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	71; 11	Board Guide, Locking Ramp	Through Hole	Black	478-2845	Gold	Nylon	PCI Express / PCI Connectors	PCI Express	RoHS Compliant	60	Solder	Through Hole	-	-	-	-	-	-	-	-	-	-	164	-	-	-	1.1 A	Card edge connectors	2.3 mm	100 MOhms	1.58 mm	-	-	-	-	-

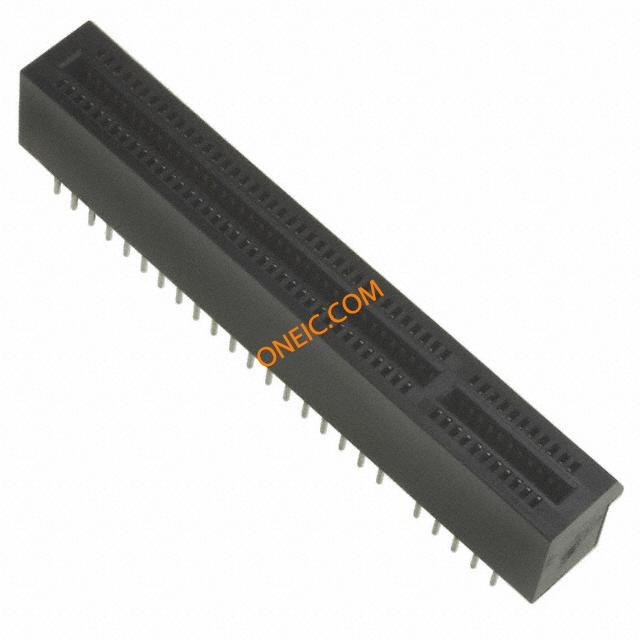

206325098001006 Conn Card Edge SKT 98 POS 1mm Solder ST Thru-Hole AVX	询价	Bulk	2	SKT	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	98	60	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	38; 11	Board Guide, Locking Ramp	Through Hole	Black	478-2843	Gold Over Nickel	Nylon	PCI Express / PCI Connectors	PCI Express	RoHS Compliant	-	Solder	Through Hole	Lead free / RoHS Compliant	Compliant	Through Hole	Straight	Solder	1.1	1	30	98	Card Edge	98	1.58	Black	6325	1.1 A	Card edge connectors	2.3 mm	100 MOhms	1.58 mm	-	-	-	Straight	-
606007062300339 CONNECTOR CARD EDGE 62POS AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	Non Specified - Dual Edge	Diallyl Phthalate (DAP), Glass Filled	0.062" (1.57mm)	10µin (0.25µm)	124	5,000	Gold	Solder Eyelet(s)	Single	0.156" (3.96mm)	-	-	-	-	478-7651	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Semi Bellows
206325036002006 CONN PCI EXPRESS 36POS 1MM BLK AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	36	120	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	7; 11	Board Guide, Locking Ramp	Through Hole	Black	478-2840	Gold	Nylon	PCI Express / PCI Connectors	PCI Express	RoHS Compliant	120	Solder	Through Hole	-	-	-	-	-	-	-	-	-	-	36	-	-	-	1.1 A	Card edge connectors	3 mm	100 MOhms	1.58 mm	-	-	-	-	-

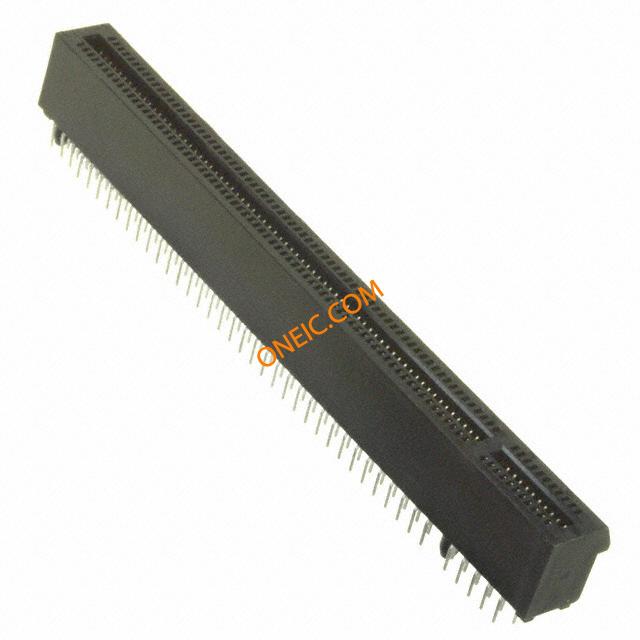

206325164002006 CONN PCI EXPRESS 164POS 1MM BLK AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	164	2,000	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	71; 11	Board Guide, Locking Ramp	Through Hole	Black	478-2846	Gold	-	PCI Express / PCI Connectors	PCI Express	RoHS Compliant	40	Solder	Through Hole	-	-	-	-	-	-	-	-	-	-	164	-	-	6325	-	-	-	-	-	-	-	-	-	-
206325036001001 CONN PCI EXPRESS 36POS 2.30MM AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	36	120	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	7; 11	Board Guide, Locking Ramp	Through Hole	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
206325064001001 CONN PCI EXPRESS 64POS 2.30MM AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	64	80	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	21; 11	Board Guide, Locking Ramp	Through Hole	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
206325098001001 CONN PCI EXPRESS 98POS 2.30MM AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	98	60	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	38; 11	Board Guide, Locking Ramp	Through Hole	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
206325098002001 CONN PCI EXPRESS 98POS 3.00MM AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	98	60	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	38; 11	Board Guide, Locking Ramp	Through Hole	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
206325164001016 CONN PCI EXPRESS 164POS 2.30MM AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	164	600	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	71; 11	Board Guide, Card Latch, Locking Ramp	Through Hole	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
206325164002001 CONN PCI EXPRESS 164POS 3.00MM AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	164	40	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	71; 11	Board Guide, Locking Ramp	Through Hole	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
206325164002011 CONN PCI EXPRESS 164POS 3.00MM AVX Corporation	询价	Bulk	2	Female	Phosphor Bronze	PCI Express™	Polyamide (PA), Nylon, Glass Filled	0.062" (1.57mm)	15µin (0.38µm)	164	40	Gold	Solder, Staggered	Dual	0.039" (1.00mm)	71; 11	Board Guide, Card Latch, Locking Ramp	Through Hole	Black	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
20-6325-036-001-006 PCI Express / PCI Connectors 36P PCI LEAD FREE 2.3mm TAIL AVX Connectors	询价	Bulk	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	Tin	-	PCI Express / PCI Connectors	PCI Express	RoHS Compliant	120	Pin	PCB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
