ASSMANN WSW components GmbH是一家著名的德国制造商，专注于互连和机电组件。公司成立于1945年，总部位于德国吕登沙伊德，拥有悠久的工程卓越传统。它是ASSMANN集团的重要子公司，致力于提供高品质的标准和定制连接器解决方案。核心产品线包括板对板和线对板连接器、D-sub连接器、排针、插座以及扁平电缆。公司还提供广泛的电缆组件，如圆形、扁平和定制电缆，以满足客户的特定需求。知名产品系列包括ASSMANN标准组件系列、大功率连接器以及全面的散热解决方案。产品广泛应用于工业自动化、电信、医疗设备和消费电子领域。ASSMANN WSW Components以其灵活的制造能力和快速的定制设计交付而享誉全球。尽管未进入全球连接器前五强，但在欧洲市场占据稳固地位，并在全球范围内拥有强大的分销合作网络。

MODELS

PC 卡插槽 - 型号列表共 45 个型号

制造商零件编号	价格/库存	Matchcode	No.of contacts	Unit Pack	Standard Leadtime	MOQ	Leadfree Defin.	Contact Material	Contact Plating	Current Rating	Housing Material	Maximum Operating Temperature	Minimum Operating Temperature	Mounting Type	Number of Contacts	Pitch	Termination Method	rohs	Housing materia	Approvals	Automotive	Contact style	Series	Mating cycles	Current rating	Shielded	Voltage Rating	Number of rows	Depth	Dimensions	Length	Row Width	Width	Contact pitch	Pin Type	CAD Drawing	Body Orientation	Gender	Height	Oper.temp.	Orientation	Standard Package	Features	Contact Finish	Number of Positions or Pins (Grid)	Contact Finish Thickness	Type	Voltage rating	Contact plating
2 AR 20 HZL-TT 20P DIP L=7.62MM WITH FRAME ASSMANN	询价	AR20HZLTT	20	23	10 weeks	23	RoHS-conform	Brass, Phosphor Bronze	Tin	3A	PBT	+105°C	-40°C	Through Hole	20	2.54mm	Solder	Compliant	SOLDER	-40 TO 105	NO	FEMALE	STRAIGHT	3.0	TINA	100	100 V ac	02	3mm	25.4 x 10.16 x 3mm	25.4mm	7.62mm	10.16mm	7.62mm	Turned	-	-	-	-	-	-	-	-	-	-	-	-	-	-
A-28-LC-TT 28P DIL SOCKET LOW COST 2.54 ASSMANN	询价	SO28DILTHTLOCO600MIL	28	17	8 weeks	17	RoHS-conform	Phosphor Bronze	Tin	1A	PBT	+85°C	-55°C	Through Hole	28	2.54mm	Solder	Compliant	SOLDER	-25 TO 85	NO	FEMALE	STRAIGHT	1.0	TINA	60	60 V ac	02	5.1mm	35.56 x 17.78 x 5.1mm	35.56mm	15.24mm	17.78mm	15.24mm	Stamped	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-
A-20-LC-TT 20P DIL SOCKET LOW COST 2.54 ASSMANN	询价	A20LCTT	20	24	7 weeks	24	RoHS-conform	Phosphor Bronze	Tin	1A	PBT	+85°C	-55°C	Through Hole	20	2.54mm	Solder	Compliant	SOLDER	-25 TO 85	NO	FEMALE	STRAIGHT	1.0	TINA	60	60 V ac	02	5.1mm	25.4 x 10.16 x 5.1mm	25.4mm	7.62mm	10.16mm	7.62mm	Stamped	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-
A-28-LC/7-T 28P DIL SOCKET LC 300 MIL ASSMANN	询价	SO28DILTHTLOCO300MIL	28	17	7 weeks	17	RoHS-conform	Phosphor Bronze	Tin	1A	PET	+105°C	-55°C	Through Hole	28	2.54mm	Solder	Compliant	SOLDER	-25 TO 85	NO	FEMALE	STRAIGHT	1.0	TINA	60	-	02	17.68mm	35.46 x 5.16 x 17.68mm	35.46mm	7.62mm	5.16mm	7.62mm	-	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-
A-06-LC/TT 06P SOCKET ASSMANN	询价	A06LCTT	06	80	18 weeks	1	RoHS-conform	Phosphor Bronze	Tin	1A	PET	+105°C	-55°C	Through Hole	6	2.54mm	Solder	Compliant	SOLDER	-25 TO 85	NO	FEMALE	STRAIGHT	1.0	-	60	-	02	10mm	7.62 x 5.16 x 10mm	7.62mm	7.62mm	5.16mm	7.62mm	-	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-
A-18-LC/TT 18P DIL SOCKET 2.54MM LOW COST ASSMANN	询价	A18LCTT	18	26	6 weeks	26	RoHS-conform	Phosphor Bronze	Tin	1A	PET	+105°C	-55°C	Through Hole	18	2.54mm	Solder	Compliant	SOLDER	-	NO	FEMALE	-	-	1.0A	-	-	02	9.96mm	22.76 x 5.16 x 9.96mm	22.76mm	7.62mm	5.16mm	7.62mm	-	3D CAD Model	-	-	-	-25 TO 85°C	STRAIGHT	-	-	-	-	-	-	-	-
A-08-LC/TT 08P DIP SO 300 MIL LOW COST ASSMANN	询价	A08LCTT	08	60	8 weeks	1	RoHS-conform	Phosphor Bronze	Tin	1A	PBT	+85°C	-55°C	Through Hole	8	2.54mm	Solder	Compliant	SOLDER	-25 TO 85	NO	FEMALE	STRAIGHT	1.0	TINA	60	60 V ac	02	5.1mm	10.16 x 10.16 x 5.1mm	10.16mm	7.62mm	10.16mm	7.62mm	Stamped	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-

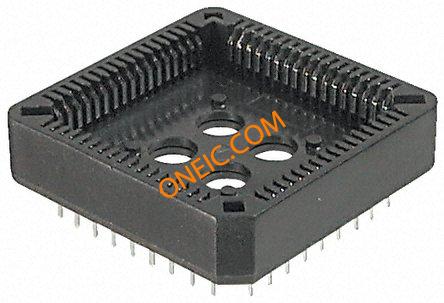

3 A-CCS-044-Z-T 44P PLCC SOCKET THT ASSMANN	询价	ACCS044ZT	44	25	8 weeks	25	RoHS-conform	Phosphor Bronze	Tin over Nickel	1A	PBT	+105°C	-40°C	Through Hole	44	1.27mm	Solder	Compliant	SOLDER	-40 TO 105	-	FEMALE	STRAIGHT	1.0	TINA	100	100 V ac	-	-	-	-	-	-	-	-	-	Straight	Female	8mm	-	-	25	Closed Frame	Tin	44 (4 x 11)	150µin (3.81µm)	Chip Carrier, PLCC	-	-
A-CCS-028-Z-SM 28P SOCKET PLCC SMD W/O PEG ASSMANN	询价	ACCS028ZSM	28	33	9 weeks	1	RoHS-conform	Phosphor Bronze	Tin over Nickel	1A	Nylon	+105°C	-40°C	Surface Mount	28	1.27mm	Solder	Compliant	SOLDER	-40 TO 105	NO	FEMALE	STRAIGHT	1.0	TINA	100	100 V ac	-	-	-	-	-	-	-	-	-	Straight	Female	4.6mm	-	-	-	-	-	-	-	-	-	-
2 A-CCS-052-Z-T 52P PLCC SOCKET THT ASSMANN	询价	SO52PLCCTHT	52	23	8 weeks	23	RoHS-conform	Phosphor Bronze	Tin over Nickel	1A	PBT	+105°C	-40°C	Through Hole	52	1.27mm	Solder	Compliant	SOLDER	-40 TO 105	NO	FEMALE	STRAIGHT	1.0	TINA	100	100 V ac	-	-	-	-	-	-	-	-	-	Straight	Female	8mm	-	-	-	-	-	-	-	-	-	-
2 AR-14-HZL-TT 14P IC-SOCKET 2.54x7.62MM ASSMANN	询价	SO14DILTHTPREC300MIL	14	33	8 weeks	33	RoHS-conform	Brass, Phosphor Bronze	Tin	3A	PBT	+105°C	-40°C	Through Hole	14	2.54mm	Solder	Compliant	SOLDER	-40 TO 105	NO	FEMALE	STRAIGHT	3.0	TINA	100	100 V ac	02	3mm	17.78 x 10.16 x 3mm	17.78mm	7.62mm	10.16mm	7.62mm	Turned	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 AR 18 HZL-TT 18P IC-SOCKET 2.54x7.62MM ASSMANN	询价	AR18HZLTT	18	26	8 weeks	26	RoHS-conform	Brass, Phosphor Bronze	Tin	3A	PBT	+105°C	-40°C	Through Hole	18	2.54mm	Solder	Compliant	SOLDER	-40 TO 105	NO	FEMALE	STRAIGHT	3.0	TINA	100	100 V ac	02	3mm	22.86 x 10.16 x 3mm	22.86mm	7.62mm	10.16mm	7.62mm	Turned	-	-	-	-	-	-	-	-	-	-	-	-	-	-
A-CCS 020-Z-SM 20P SOCKET PLCC SMD W/O PEG ASSMANN	询价	ACCS020ZSM	20	39	7 weeks	1	RoHS-conform	Phosphor Bronze	Tin over Nickel	1A	Nylon	+105°C	-40°C	Surface Mount	20	1.27mm	Solder	Compliant	SOLDER	-40 TO 105	NO	FEMALE	STRAIGHT	1.0	TINA	100	100 V ac	-	-	-	-	-	-	-	-	-	Straight	Female	4.6mm	-	-	-	-	-	-	-	-	-	-
A-16-LC-TT 16P DIL SOCKET 2.54 LOWCOST ASSMANN	询价	A16LCTT	16	30	8 weeks	30	RoHS-conform	Phosphor Bronze	Tin	1A	PBT	+85°C	-55°C	Through Hole	16	2.54mm	Solder	Compliant	SOLDER	-25 TO 85	NO	FEMALE	STRAIGHT	1.0	TINA	60	60 V ac	02	5.1mm	20.32 x 10.16 x 5.1mm	20.32mm	7.62mm	10.16mm	7.62mm	Stamped	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-
A 24-LC-TT 24P DIL SOCKET LOW COST ASSMANN	询价	SO24DILTHTLOCO254MIL	24	20	5 weeks	20	RoHS-conform	Phosphor Bronze	Tin	1A	PBT	+85°C	-55°C	Through Hole	24	2.54mm	Solder	Compliant	SOLDER	-25 TO 85	NO	FEMALE	STRAIGHT	1.0	TINA	60	60 V ac	02	5.1mm	30.48 x 17.78 x 5.1mm	30.48mm	15.24mm	17.78mm	2.54mm	Stamped	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-
A-14-LC-TT 14P DIL SOCKET LOW COST 2.54MM ASSMANN	询价	A14LCTT	14	34	7 weeks	34	RoHS-conform	Phosphor Bronze	Tin	1A	PBT	+85°C	-55°C	Through Hole	14	2.54mm	Solder	Compliant	SOLDER	-25 TO 85	NO	FEMALE	STRAIGHT	1.0	TINA	60	60 V ac	02	5.1mm	17.78 x 10.16 x 5.1mm	17.78mm	7.62mm	10.16mm	7.62mm	Stamped	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-
2 AR 28 HZL/7-TT 28P IC SOCKET MACHINED PINS ASSMANN	询价	AR28HZL7TT	28	16	6 weeks	16	RoHS-conform	Brass, Phosphor Bronze	Gold, Tin	3A	PBT	+105°C	-40°C	Through Hole	28	2.54mm	Solder	Compliant	SOLDER	-40 TO 105	NO	-	STRAIGHT	3.0	-	-	100 V ac	02	3mm	35.56 x 10.16 x 3mm	35.56mm	7.62mm	10.16mm	-	Turned	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 AR-10-HZL-TT 10P IC SOCKET MACHI. PINS 2,54 ASSMANN	询价	AR10HZLTT	10	46	6 weeks	1	RoHS-conform	Brass, Phosphor Bronze	Tin	3A	PBT	+105°C	-40°C	Through Hole	10	2.54mm	Solder	Compliant	SOLDER	-40 TO 105	NO	-	STRAIGHT	3.0	-	-	100 V ac	02	3mm	12.7 x 10.16 x 3mm	12.7mm	7.62mm	10.16mm	-	Turned	-	-	-	-	-	-	45	-	-	-	-	-	-	-
2 AR 32 HZL-TT 32P SOCKET 600 MIL SOLDER ASSMANN	询价	AR32HZLTT	32	14	9 weeks	1	RoHS-conform	Brass, Phosphor Bronze	Tin	3A	PBT	+105°C	-40°C	Through Hole	32	2.54mm	Solder	Compliant	SOLDER	-40 TO 105	NO	FEMALE	STRAIGHT	3.0	TINA	100	100 V ac	02	3mm	40.64 x 17.78 x 3mm	40.64mm	15.24mm	17.78mm	15.24mm	Turned	-	-	-	-	-	-	-	-	-	-	-	-	-	-
A 40-LC TT 40P IC SOCKET STAMPED CONTACS ASSMANN	询价	A40LCTT	40	12	7 weeks	12	RoHS-conform	Phosphor Bronze	Tin	1A	PBT	+85°C	-55°C	Through Hole	40	2.54mm	Solder	Compliant	-	UL94V-0	NO	MALE	-	-	1A	NO	60 V ac	02	5.1mm	50.8 x 17.78 x 5.1mm	50.8mm	15.24mm	17.78mm	2.54mm	Stamped	3D CAD Model	-	-	-	-25 TO 85°C	STRAIGHT	-	-	-	-	-	-	1000V	PHOSPHOR
