ASSMANN WSW components GmbH- FFC/FPC连接器

ASSMANN WSW components GmbH是一家著名的德国制造商，专注于互连和机电组件。公司成立于1945年，总部位于德国吕登沙伊德，拥有悠久的工程卓越传统。它是ASSMANN集团的重要子公司，致力于提供高品质的标准和定制连接器解决方案。核心产品线包括板对板和线对板连接器、D-sub连接器、排针、插座以及扁平电缆。公司还提供广泛的电缆组件，如圆形、扁平和定制电缆，以满足客户的特定需求。知名产品系列包括ASSMANN标准组件系列、大功率连接器以及全面的散热解决方案。产品广泛应用于工业自动化、电信、医疗设备和消费电子领域。ASSMANN WSW Components以其灵活的制造能力和快速的定制设计交付而享誉全球。尽管未进入全球连接器前五强，但在欧洲市场占据稳固地位，并在全球范围内拥有强大的分销合作网络。

FFC/FPC连接器 - 型号列表

共 44 个型号

制造商零件编号	库存	价格	最小起订量	单位包装	最大额定电流	间距	安装类型	接触镀层	触头材料	壳体材料	触点数	工作温度	RoHS	额定电压	方向	排数	连接器性别	系列	连接器类型	端接方式	端接排数	CAD图纸	汽车级	无铅定义	出线方向	触头类型	柱间距	端接样式	触点材料 - 镀层	匹配码	标准交期	接触电阻	最小供电电压	深度	高度	包装方式	安装样式	总长度	第一触头极性	类型
AWLP 16-3,2 T 16P IDC TRANSITION CONNECTOR 16w straight IDC transition connector ASSMANN WSW AWLP 系列 2行 16路 2.54mm节距公 IDC 连接器 , 电缆安装 ASSMANN	517	1: ¥4.148	120	120	3.0A	2.54mm	Straight	Nickel, Tin	Brass	NI	16	-40 TO 105°C	Compliant	250V	STRAIGHT	2	Male	AWLP	-	-	-	3D CAD Model	NO	RoHS-conform	NO	FEMALE	2.54mm	SMT	BRASS	AWL254DGG12A	7 weeks	-	-	-	-	-	-	-	-	-
AWH 20G-0202-T 20w straight IDC header ASSMANN WSW AWH 系列 2行 20路 2.54mm节距公 IDC 连接器 , 通孔 ASSMANN	95	5: ¥5.976	120	120	3A	2.54mm	Straight	Gold, Nickel	Brass	PBT	20	+105°C	Compliant	250 V ac	直	2	Male	AWH	公插	Solder	焊接	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 A-DFF 25LPIII/Z-UNC 25w IDC socket 4-40 UNC threaded inserts ASSMANN WSW A-D 系列 2行 25路 2.54mm节距母 IDC 连接器 , 电缆安装 ASSMANN	2651	1: ¥17.884	48	48	1A	2.54mm	Straight	Gold, Nickel, Tin	Brass	PBT	25	+105°C	Compliant	250 V ac	直	2	Female	A-D	母座	IDT	IDT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
A-DSF 15LPIII/Z 15w IDC low profile plug class III ASSMANN WSW A-D 系列 2行 15路 2.54mm节距公 IDC 连接器 , 电缆安装 ASSMANN	317	1: ¥12.92	72	72	1A	2.54mm	Straight	Gold, Nickel, Tin	Brass	PBT	15	+105°C	Compliant	250 V ac	直	2	Male	A-D	公插	IDT	IDC	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
A-DSF 37LPIII/Z 37w IDC low profile plug class III ASSMANN WSW A-D 系列 2行 37路 2.54mm节距公 IDC 连接器 , 电缆安装 ASSMANN	746	1: ¥25.364	32	32	1A	2.54mm	Straight	Gold, Nickel, Tin	Brass	PBT	37	+105°C	Compliant	250 V ac	直	2	Male	A-D	公插	IDT	IDC	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 A-57/36 FFR-N 36w centronics skt IDC + strain relief ASSMANN WSW A-57 系列 2行 36路 2.16mm节距母 IDC 连接器 , 电缆安装 ASSMANN	99	1: ¥49.35	20	20	1A	2.16mm	Straight	Gold, Nickel, Tin	Brass	PBT	36	+105°C	Compliant	250 V ac	直	2	Female	A-57	母座	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 A-57/36 MFR-N 36w centronics plug IDC + strain relief ASSMANN WSW A-57 系列 2行 36路 2.16mm节距公 IDC 连接器 , 电缆安装 ASSMANN	353	1: ¥45.48	40	40	1A	2.16mm	Straight	Gold, Nickel, Tin	Brass	PBT	36	+105°C	Compliant	250 V ac	直	2	Male	A-57	公插	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 A-57/50 FFR-N 50w centronics skt IDC + strain relief ASSMANN WSW A-57 系列 2行 50路 2.16mm节距母 IDC 连接器 , 电缆安装 ASSMANN	88	1: ¥52.43	20	20	1A	2.16mm	Straight	Gold, Nickel, Tin	Brass	PBT	50	+105°C	Compliant	250 V ac	直	2	Female	A-57	母座	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 A-57/50 MFR-N 50w centronics plug IDC + strain relief ASSMANN WSW A-57 系列 2行 50路 2.16mm节距公 IDC 连接器 , 电缆安装 ASSMANN	60	1: ¥70.50	30	30	1A	2.16mm	Straight	Gold, Nickel, Tin	Brass	PBT	50	+105°C	Compliant	250 V ac	直	2	Male	A-57	公插	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AFFC07-24-100-SHB-T Buy now, ships today. AFFC07-24-100-SHB-T - 24 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount, Right Angle from Assmann WSW Components. View datasheets, pricing and availability from DigiKey now! ASSMANN WSW components GmbH	10	2016: ¥5.0161	1	0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AFFC09-10-100-TVD-T Conn FFC/FPC Connector SKT 10 POS 2mm Solder ST Thru-Hole Tube ASSMANN	10	2024: ¥3.7788	2112	44	1 A	2 mm	Straight	Tin Over Nickel	Phosphor Bronze	Nylon	1	-25C to 85C	-	-	-	-	-	-	-	Solder	-	-	-	-	-	-	-	-	-	-	-	20 mohm	100VAC	2.6 mm	5.5 mm	Tube	Through Hole	13 mm	SKT	FFC/FPC Connector
AFFC10-11-100-SVS-R Buy now, ships today. AFFC10-11-100-SVS-R - 11 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount from Assmann WSW Components. View datasheets, pricing and availability from DigiKey now! ASSMANN WSW components GmbH	10	3200: ¥4.3982	1600	800	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AFFC16-16-100-SVS-T Buy now, ships today. AFFC16-16-100-SVS-T - 16 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount from Assmann WSW Components. View datasheets, pricing and availability from DigiKey now! ASSMANN WSW components GmbH	10	2025: ¥3.5367	1	0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AFFC20-31-050-SVS-T Buy now, ships today. AFFC20-31-050-SVS-T - 31 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount from Assmann WSW Components. View datasheets, pricing and availability from DigiKey now! ASSMANN WSW components GmbH	10	2002: ¥5.1732	1	0	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AFFC25-40-050-SHB-T Buy now, ships today. AFFC25-40-050-SHB-T - 40 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle from Assmann WSW Components. View datasheets, pricing and availability from DigiKey now! ASSMANN WSW components GmbH	10	2016: ¥5.2151	2024	23	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

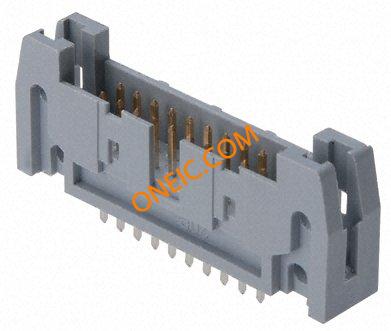

2 AWH 10G-0202-T 10w straight IDC header ASSMANN WSW AWH 系列 2行 10路 2.54mm节距公 IDC 连接器 , 通孔 ASSMANN	80	80: ¥6.1227	180	180	3A	2.54mm	Straight	Gold, Nickel	Brass	PBT	10	+105°C	Compliant	250 V ac	直	2	Male	AWH	公插	Solder	焊接	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AWH 16G-0202-T 16w straight IDC header ASSMANN WSW AWH 系列 2行 16路 2.54mm节距公 IDC 连接器 , 通孔 ASSMANN	90	5: ¥9.428	140	140	3A	2.54mm	Straight	Gold, Nickel	Brass	PBT	16	+105°C	Compliant	250 V ac	直	2	Male	AWH	公插	Solder	焊接	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AWHW 10G-0202-T 10w straight box header ASSMANN WSW AWHW 系列 2行 10路 2.54mm节距公 IDC 连接器 , 通孔 ASSMANN	13290	1: ¥3.332	260	260	3A	2.54mm	Straight	Gold, Nickel	Brass	PBT	10	+105°C	Compliant	250 V ac	直	2	Male	AWHW	公插	Solder	焊接	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AWHW 16G-0202-T 16w straight box header ASSMANN WSW AWHW 系列 2行 16路 2.54mm节距公 IDC 连接器 , 通孔 ASSMANN	995	5: ¥4.764	180	180	3A	2.54mm	Straight	Gold, Nickel	Brass	PBT	16	+105°C	Compliant	250 V ac	直	2	Male	AWHW	公插	Solder	焊接	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AWHW 20A-0202-T 20w r/a box header ASSMANN WSW AWHW 系列 2行 20路 2.54mm节距直角公 IDC 连接器 , 通孔 ASSMANN	10	1: ¥4.4778	160	160	3A	2.54mm	Right Angle	Gold, Nickel	Brass	PBT	20	+105°C	Compliant	250 V ac	直角	2	Male	AWHW	公插	Solder	焊接	3D CAD Model	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
