Alpha and Omega Semiconductor Limited- 双极型晶体管

万国半导体（Alpha and Omega Semiconductor Limited，简称AOS）是一家全球领先的功率半导体设计、开发与供应商。公司总部位于美国加利福尼亚州桑尼维尔，成立于2000年，现已成长为功率分立器件与IC领域公认的领导者。核心业务涵盖功率MOSFET、IGBT、电源管理IC、TVS保护器件等先进的功率管理解决方案。产品系列丰富，包括aMOS™高压MOSFET、AlphaMOS®中压MOSFET、低压沟槽MOSFET、IGBT、负载开关以及ESD保护器件等。这些产品广泛应用于汽车电子、计算平台（笔记本、服务器）、消费电子、工业设备、通信基础设施和电源供应等领域。AOS通过自有的晶圆加工与封装专有技术保持差异化优势，这些技术通常部署在合作伙伴的代工厂中以提升制造能力。公司在亚洲、欧洲和美洲设有设计、销售与支持中心，与全球主要OEM和ODM厂商保持紧密合作。凭借对创新和客户定制化解决方案的专注，AOS持续交付高性能、高可靠性和高性价比的功率器件。在功率半导体市场，AOS位列分立功率MOSFET顶级供应商，尤其在计算和消费类领域占据重要市场份额。公司始终致力于为客户、股东和员工创造价值，并积极投入下一代技术如氮化镓(GaN)和碳化硅(SiC)研发，以满足日益增长的能效需求。

双极型晶体管 - 型号列表

共 176 个型号

制造商零件编号	库存	价格	标准包装数量	RoHS	FET类型	FET特性	最大功率	Vgs(th)（最大）@ Id	导通电阻 Rds(on) (最大) @ Id, Vgs	栅极电荷（Qg）（最大）@ Vgs	漏源电压（Vdss）	输入电容（Ciss）（最大）@ Vds	连续漏极电流（Id）@ 25°C	包装方式	安装类型	封装形式	供应商器件封装	其他名称	最大栅源电压 Vgs	标准封装名称	欧盟RoHS	元件数量	击穿电压	最大功耗	导通电阻（最大）	宽度	总长度	包装数量	位数	外壳尺寸-插件	通道类型	印刷电路板数量	工作温度

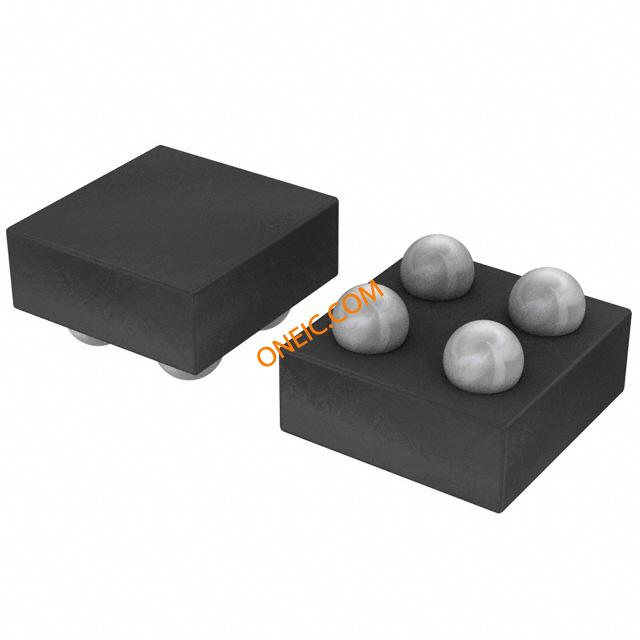

AOC2800 Trans MOSFET N-CH 30V 4-Pin WLCSP MOSF N CH DL 30V 6A 4WLCSP MOSFET 2N-CH 4WLCSP Alpha & Omega Semiconductors	10	3000: ¥1.4212	3,000	Lead free / RoHS Compliant	2 N-Channel (Dual) Common Drain	Logic Level Gate	1.3W	1.5V @ 250µA	42 mOhm @ 3A, 4.5V	9.1nC @ 4.5V	30V	1180pF @ 15V	6A	Tape & Reel (TR)	Surface Mount	4-UFBGA, WLCSP	4-WLCSP (1.57x1.57)	-	±12	BGA	Compliant	2	30	1300	42@4.5V	1.57	1.57	WLCSP	4	0.2	Enhancement	4	150
AO4838 MOSFET 2N-CH 30V 11A 8SOIC Alpha & Omega Semiconductor Inc	500	30: ¥1.884	3,000	Lead free / RoHS Compliant	2 N-Channel (Dual)	Logic Level Gate	2W	2.6V @ 250µA	9.6 mOhm @ 11A, 10V	22nC @ 10V	30V	1300pF @ 15V	11A	Tape & Reel (TR)	Surface Mount	8-SOIC (0.154", 3.90mm Width)	8-SOIC	785-1688-1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 AOTF27S60L MOSFET N-CH 600V 27A TO220F Alpha & Omega Semiconductor Inc	1523	1: ¥25.16	50	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Standard	50W	4V @ 250µA	160 mOhm @ 13.5A, 10V	26nC @ 10V	600V	1294pF @ 100V	27A (Tc)	Tube	Through Hole	TO-220-3 Full Pack	TO-220F	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AOB12N60FDL MOSFET N-CH 600V 12A TO263 Alpha & Omega Semiconductor Inc	788	1: ¥12.512	800	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Standard	278W	4V @ 250µA	650 mOhm @ 6A, 10V	50nC @ 10V	600V	2010pF @ 25V	12A (Tc)	Tape & Reel (TR)	Surface Mount	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	TO-263 (D²Pak)	785-1617-2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 AOTF2910L MOSFET N-CH 100V 22A TO220 Alpha & Omega Semiconductor Inc	10	50: ¥4.6939	1	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	2.1W	2.7V @ 250µA	24 mOhm @ 20A, 10V	15nC @ 10V	100V	1190pF @ 50V	22A (Tc)	Tube	Through Hole	TO-220-3 Full Pack	TO-220F	785-1615-5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 AOT10T60L MOSFET N-CH 600V 10A TO-220 Alpha & Omega Semiconductor Inc	10	1: ¥9.384	1,000	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Standard	208W	5V @ 250µA	700 mOhm @ 5A, 10V	35nC @ 10V	600V	1346pF @ 100V	10A (Tc)	Tube	Through Hole	TO-220-3	TO-220	785-1635-5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AOB292L MOSFET N-CH 100V 105A TO263 MOSFETS Alpha & Omega Semiconductor Inc	10	800: ¥7.20	800	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	2.1W	2.2V @ 250µA	4.1 mOhm @ 20A, 10V	126nC @ 10V	100V	6775pF @ 50V	105A (Tc)	Tape & Reel (TR)	Surface Mount	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB	TO-263 (D²Pak)	785-1618-2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 AOT292L MOSFET N-CH 100V 105A TO220F Alpha & Omega Semiconductor Inc	10	1000: ¥6.00	1,000	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	2.1W	3.4V @ 250µA	4.5 mOhm @ 20A, 10V	126nC @ 10V	100V	6775pF @ 50V	14.5A (Ta), 105A (Tc)	Tube	Through Hole	TO-220-3	TO-220	785-1636-5	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AON1605 MOSFET P-CH -20V -0.7A 3DFN MOSFET P-CH 20V 700MA 3DFN Alpha & Omega Semiconductor Inc	10	12000: ¥0.3672	3,000	Lead free / RoHS Compliant	MOSFET P-Channel, Metal Oxide	Logic Level Gate	900mW	1.1V @ 250µA	710 mOhm @ 400mA, 4.5V	750nC @ 4.5V	20V	50pF @ 10V	700mA (Ta)	Tape & Reel (TR)	Surface Mount	3-UFDFN	3-DFN1006H4 (1.0x0.6)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AON1606 MOSFET N-CH 20V 0.7A 3DFN Alpha & Omega Semiconductor Inc	10037	80: ¥0.7008	3,000	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	900mW	1V @ 250µA	275 mOhm @ 400mA, 4.5V	850nC @ 4.5V	20V	62.5pF @ 10V	700mA (Ta)	Tape & Reel (TR)	Surface Mount	3-UFDFN	3-DFN (1.0 x 0.60)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AO7417 MOSF P CH 20V 1.9A SC70-6 MOSFET P-CH 20V 1.9A SC70-6 Alpha & Omega Semiconductor Inc	10	6000: ¥0.8228	3,000	Lead free / RoHS Compliant	MOSFET P-Channel, Metal Oxide	Logic Level Gate	570mW	1V @ 250µA	80 mOhm @ 2A, 4.5V	11nC @ 4.5V	20V	745pF @ 10V	1.9A (Ta)	Tape & Reel (TR)	Surface Mount	6-TSSOP, SC-88, SOT-363	SC-70-6	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AON1610 MOSFET N-CH 20V 4A 6DFN Alpha & Omega Semiconductor Inc	10	6000: ¥0.8568	3,000	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	1.8W	1.1V @ 250µA	29 mOhm @ 4A, 4.5V	14nC @ 4.5V	20V	748pF @ 10V	4A (Ta)	Tape & Reel (TR)	Surface Mount	6-UFDFN	6-DFN (1.6x1.6)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AON7506 MOSFET N-CH 30V 12A DFN3X3EP Alpha & Omega Semiconductor Inc	4590	50: ¥1.14	5,000	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	3.1W	2.3V @ 250µA	9.8 mOhm @ 12A, 10V	12.2nC @ 10V	30V	542pF @ 15V	12A (Tc)	Tape & Reel (TR)	Surface Mount	8-PowerVDFN	8-DFN (3x3)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AOH3106 MOSFET N-CH 100V 2A SOT223 Alpha & Omega Semiconductor Inc	10	5000: ¥0.8976	2,500	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	3.1W	2V @ 250µA	360 mOhm @ 2A, 10V	10nC @ 10V	100V	185pF @ 50V	2A (Ta)	Tape & Reel (TR)	Surface Mount	TO-261-4, TO-261AA	SOT-223	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AO4566 MOSFET N-CH 30V 12A 8SOIC Alpha & Omega Semiconductor Inc	2890	80: ¥0.6576	3,000	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	2.5W	2.3V @ 250µA	11 mOhm @ 12A, 10V	12.2nC @ 10V	30V	542pF @ 15V	12A (Ta)	Tape & Reel (TR)	Surface Mount	8-SOIC (0.154", 3.90mm Width)	8-SOIC	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AON6566 MOSFET N CH 30V 29A 8DFN Alpha & Omega Semiconductor Inc	10	3000: ¥1.4212	3,000	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	6W	2.4V @ 250µA	5 mOhm @ 20A, 10V	33nC @ 10V	30V	1550pF @ 15V	32A (Tc)	Tape & Reel (TR)	Surface Mount	8-PowerVDFN	8-DFN (5x6)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

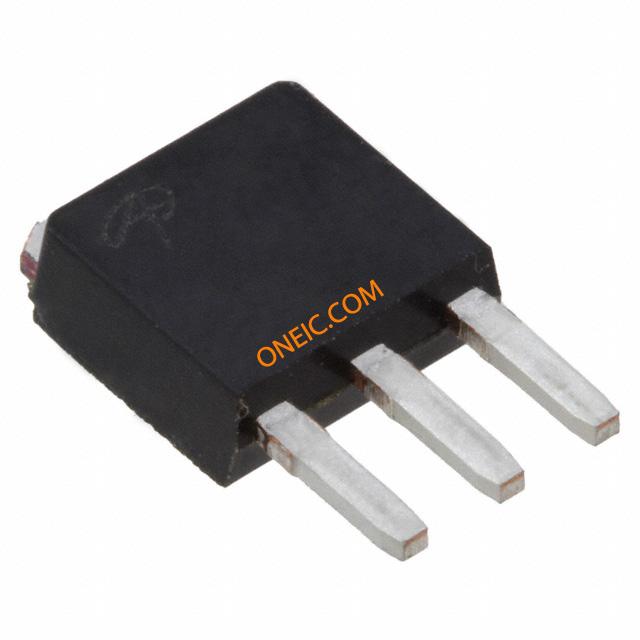

AOI514 MOSFET N-CH 30V 17A TO251A Alpha & Omega Semiconductor Inc	2814	1: ¥3.40	70	Lead free / RoHS Compliant	MOSFET N-Channel, Metal Oxide	Logic Level Gate	2.5W	2.4V @ 250µA	5.9 mOhm @ 20A, 10V	18nC @ 10V	30V	1187pF @ 15V	46A (Tc)	Tube	Through Hole	TO-251-3 Short Leads, IPak, TO-251AA	TO-251A	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AOC2421 MOSFET P-CH -8V -2.5A 4WLCSP MOSFET P-CH 8V 2.5A 4WLCSP Alpha & Omega Semiconductor Inc	10	5000: ¥1.1356	5,000	Lead free / RoHS Compliant	MOSFET P-Channel, Metal Oxide	Logic Level Gate	600mW	700mV @ 250µA	62 mOhm @ 1.5A, 2.5V	13nC @ 4.5V	8V	752pF @ 4V	2.5A (Ta)	Tape & Reel (TR)	Surface Mount	4-XFBGA, CSPBGA	4-WLCSP (0.97x0.97)	-	700mV @ 250µA	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AOC2422 MOSFET N-CH 8V 3.5A 4WLCSP Alpha & Omega Semiconductor Inc	3000	1: ¥0.37	5,000	Lead free / RoHS Compliant	MOSFET P-Channel, Metal Oxide	Logic Level Gate	600mW	800mV @ 250µA	33 mOhm @ 1.5A, 2.5V	15nC @ 4.5V	8V	870pF @ 4V	3.5A (Ta)	Tape & Reel (TR)	Surface Mount	4-XFBGA, CSPBGA	4-WLCSP (0.97x0.97)	-	800mV @ 250µA	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AOC2423 MOSFET P-CH -20V -2A 4WLCSP MOSFET P-CH 20V 2A 4WLCSP Alpha & Omega Semiconductor Inc	10	5000: ¥1.1356	5,000	Lead free / RoHS Compliant	MOSFET P-Channel, Metal Oxide	Logic Level Gate	600mW	1.2V @ 250µA	80 mOhm @ 1A, 10V	10nC @ 10V	20V	470pF @ 10V	2A (Ta)	Tape & Reel (TR)	Surface Mount	4-XFBGA, CSPBGA	4-WLCSP (0.97x0.97)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
