Anaren, Inc.- 信号变压器阵列

安伦公司（Anaren, Inc.）成立于1967年，由休·A·海尔和卡尔·W·格斯特二世在美国纽约州东锡拉丘兹创立。公司最初是为国防电子市场提供微波组件和子系统的供应商。经过数十年发展，安伦已成为标准及定制微波与射频技术的主要创新者。其核心业务领域涵盖航空航天、国防、无线基础设施和医疗应用的高频电子。安伦的产品组合包括广泛的射频和微波元件，如耦合器、功分器、巴伦、滤波器和集成组件。著名产品线包括Xinger®品牌无源器件，这些表面贴装器件性能卓越，频率可达毫米波频段。公司还设计和制造基于陶瓷的多层有机（MLO）技术，用于高密度互连和天线解决方案。安伦的定制设计能力使其能为雷达、电子战和卫星通信提供复杂的微波集成组件。全球射频/微波组件市场中，安伦以其工程专长和高可靠性解决方案而闻名。2018年，安伦被TTM Technologies收购，成为更大型航空航天和国防电子供应商的一部分。

MODELS

信号变压器阵列 - 型号列表共 263 个型号

制造商零件编号	价格/库存	Insertion Loss	Packaging	Standard Package	RoHS	Transformer Type	Mounting	Turns Ratio	Frequency	Product	Operating Temperature Range	Termination Style	Frequency Range	Package / Case	Coupling Factor	Applications	Power - Max	Coupler Type	Return Loss	rohs	Isolation	Package/Case	Other Names	Pin Count	Product Depth (mm)	Product Height (mm)	Insertion Loss (Max)	Mounting Style	Impedance Ratio	Operating Temp Range	Product Length (mm)	Tradename	Impedance	Mounting Type	Phase Difference	Impedance - Unbalanced/Balanced	Return Loss (Min)	Supplier Device Package	Series	Rad Hardened	Specifications	Size / Dimension	Package	Operating Temperature	Screening Level
1R0260-3 CASELESS 90 DEGREE HYBRID COUPLERS anaren microwave	询价	0.3dB	Tape & Reel (TR)	250	Not Applicable	-	-	-	225MHz ~ 400MHz	-	-	-	-	-	3dB	Military	250W	Standard	20.8dB	-	20dB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BD1722J50200A00 RF Transformer 1:2 1.7GHz to 2.2GHz Surface Mount anaren microwave	询价	-	-	-	-	Balun Transformer	Surface Mount	1:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
X3C09P2-30S HYBRID COUPLER 3DB 90DEGREE 800-1000MHZ anaren microwave	询价	0.1dB	Tape & Reel (TR)	2,000	RoHS Compliant	-	-	-	800MHz ~ 1GHz	Directional Couplers	- 55 C to + 95 C	SMD/SMT	800 MHz to 1000 MHz	6.35 mm x 5.08 mm	30.2dB	AMPS, CDMA, WCDMA	225W	Standard	24.9dB	Lead free / RoHS Compliant	-	2520 (6450 Metric)	1173-1107-1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	4-SMD	-	-	-	-	-	-	-
BD2130J5050A00 RF Transformer 1:1 2.1GHz to 3GHz Surface Mount anaren microwave	询价	1.2 dB	Tape and Reel	-	-	Balun Transformer	Surface Mount	1:1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	6	1.25 mm	0.7 mm	-	Surface Mount	1	-55C to 85C	2 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-

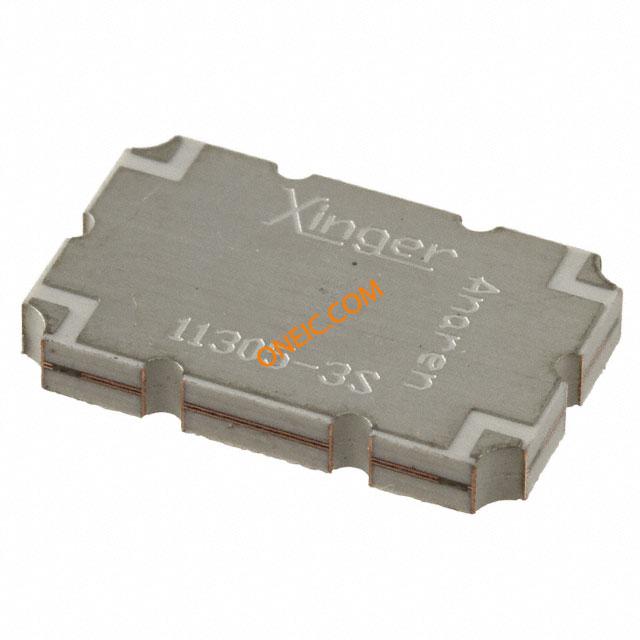

11305-3S HYBRID COUPLERS anaren microwave	询价	0.45 dB	Reel	2,000	RoHS Compliant	-	-	-	*	Directional Couplers	- 55 C to + 85 C	SMD/SMT	1 GHz to 2 GHz	14.22 mm x 8.89 mm	*	*	*	*	*	Lead free / RoHS Compliant	*	-	1173-1141-2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	-	-	-	-	-	-
10540-3 HYBRID COUPLERS3 DB, 90O anaren microwave	询价	0.5dB	Tape & Reel (TR)	250	Not Applicable	-	-	-	30MHz ~ 76MHz	-	-	-	-	-	3dB	Military	800W	Standard	20.8dB	-	20dB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BD1222J50200AHF RF Transformer 1:2 1.2GHz to 2.2GHz Surface Mount anaren microwave	询价	0.6 dB	Tape and Reel	Tape & Reel	-	Balun Transformer	Surface Mount	1:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	6	1.29 mm	0.68 mm	0.6 dB	Surface Mount	1	-55C to 85C	2.04 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-
10011-3 HYBRID COUPLERS3 DB, 90O anaren microwave	询价	0.35dB	Cut Strip	1	Not Applicable	-	-	-	62.5MHz ~ 125MHz	-	-	-	-	-	3dB	Military	100W	Standard	19dB	-	21dB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
42100 POWER DIVIDERS 2-WAY anaren microwave	询价	1.5dB	Tape & Reel (TR)	250	Not Applicable	-	-	-	2GHz ~ 18GHz	-	-	-	-	-	-	-	-	-	-	-	-	*	-	-	25.4 mm	9.4 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	No	Isolation (Min) 15dB	*	-	-	-
B0922J7575AHF RF Transformer 1:1 0.95GHz to 2.15GHz Surface Mount anaren microwave	询价	1.2 dB	Tape and Reel	-	-	Balun Transformer	Surface Mount	1:1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	6	1.29 mm	0.71 mm	1.2 dB	Surface Mount	1	-55C to 85C	2.04 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BD0810J50200AHF RF Transformer 1:2 0.8GHz to 1GHz Surface Mount anaren microwave	询价	1 dB	Tape & Reel (TR)	4,000	RoHS Compliant	Balun Transformer	Surface Mount	1:2	-	Baluns	- 55 C to + 85 C	SMD/SMT	800MHz ~ 1GHz	0805 (2012 metric)	-	-	-	-	-	Lead free / RoHS Compliant	-	0805 (2012 Metric)	1173-1057-2	6	1.29 mm	0.68 mm	1.0dB	Surface Mount	1	-55C to 85C	2.04 mm	Xinger	200 Ohms	Surface Mount	5.9°	50 / 200 Ohm	14.5dB	-	-	-	-	-	-	-	-
BD4859N50100AHF BALUN 0404 50-100OHM 4.8-5.9G HF anaren microwave	询价	0.6 dB	Tape & Reel (TR)	4,000	RoHS Compliant	Balun Transformer	Surface Mount	1:1.41	-	Baluns	- 55 C to + 85 C	SMD/SMT	4.8GHz ~ 5.9GHz	0404	-	-	-	-	-	Lead free / RoHS Compliant	-	4-SMD, No Lead	1173-1070-2	-	-	-	0.6dB	-	-	-	-	Xinger	100 Ohms	Surface Mount	3°	50 / 100 Ohm	15.0dB	-	-	-	-	-	-	-	-
1A0920-3 HYBRID COUPLER anaren microwave	询价	0.9dB	Tape & Reel (TR)	250	Not Applicable	-	-	-	100MHz ~ 500MHz	-	-	-	-	-	3dB	Military	200W	Standard	15.56dB	-	15dB	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
BD4859N50100A00 RF Transformer 1:1.41 4.8GHz to 5.9GHz Surface Mount anaren microwave	询价	-	-	-	-	Balun Transformer	Surface Mount	1:1.41	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
B0922J7575A50HF RF Transformer 1:1 0.95GHz to 2.15GHz Surface Mount anaren microwave	询价	1.1 dB	Tape & Reel (TR)	4,000	RoHS Compliant	Balun Transformer	Surface Mount	1:1	-	Baluns	- 55 C to + 85 C	SMD/SMT	950MHz ~ 2.15GHz	0805 (2012 metric)	-	-	-	-	-	Lead free / RoHS Compliant	-	0805 (2012 Metric)	1173-1054-2	6	1.29 mm	0.59 mm	1.1dB	Surface Mount	1	-55C to 85C	2.04 mm	Xinger	75 Ohms	Surface Mount	3°	75 / 75 Ohm	12dB	-	-	-	-	-	-	-	-
B0225J7575AHF RF Transformer 1:1 0.2GHz to 2.5GHz Surface Mount anaren microwave	询价	1.2 dB	Tape & Reel (TR)	4,000	RoHS Compliant	Balun Transformer	Surface Mount	1:1	-	Baluns	- 55 C to + 85 C	SMD/SMT	200MHz ~ 2.5GHz	0805 (2012 metric)	-	-	-	-	-	Lead free / RoHS Compliant	-	0805 (2012 Metric)	1173-1049-2	-	-	-	1.2dB	-	-	-	-	Xinger	75 Ohms	Surface Mount	40°	75 / 75 Ohm	14dB	-	-	-	-	-	-	-	-
BD0810J50200A00 RF Transformer 1:2 0.8GHz to 1GHz Surface Mount anaren microwave	询价	-	-	-	-	Balun Transformer	Surface Mount	1:2	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
C2327J5003AHF Hybrid Coupler 6-Pin CSMD T/R anaren microwave	询价	0.3dB	Tape & Reel (TR)	4,000	RoHS Compliant	-	-	-	2.3GHz ~ 2.7GHz	Directional Couplers	- 55 C to + 85 C	SMD/SMT	2300 MHz to 2700 MHz	0805 (2012 metric)	3dB	General Purpose	4W	Standard	18dB	Lead free / RoHS Compliant	22dB	0805 (2012 Metric)	1173-1081-2	6	-	-	-	-	-	-	-	Xinger	50 Ohms	-	-	-	-	0805	-	No	-	-	6CSMD	-55 to 85 °C	Industrial
JP503S Signal Conditioning 2.0-2.3GHz IL:.30dB VSWR:1.20 -55 to 85C Anaren	询价	0.3 dB	Reel	-	RoHS Compliant	-	-	-	-	Directional Couplers	- 55 C to + 85 C	SMD/SMT	2 GHz to 2.3 GHz	6.35 mm x 5.08 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
11302-3 Signal Conditioning 225-400MHz IL:.55dB VSWR:1.40 -55 to 85C Anaren	询价	0.55 dB	Reel	500	RoHS Compliant	-	-	-	*	Directional Couplers	- 55 C to + 85 C	SMD/SMT	225 MHz to 400 MHz	25.4 mm x 12.19 mm	*	*	*	*	*	Lead free / RoHS Compliant	*	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	*	-	-	-	-	-	-
