Analog Devices, Inc.- 温度控制器

Analog Devices, Inc.（简称ADI）是一家全球领先的半导体公司，成立于1965年，总部位于美国马萨诸塞州诺伍德市。公司专注于高性能模拟、混合信号和数字信号处理（DSP）集成电路的设计与制造。ADI连接物理与数字世界，提供涵盖检测、测量、解析、连接和电源管理的完整解决方案。其产品线极为丰富，主要包括数据转换器（模数/数模转换器）、放大器、射频IC、电源管理芯片、MEMS传感器以及Blackfin和SHARC系列DSP处理器。射频产品覆盖从高性能功能模块到全集成的ISM频段和宽带单芯片收发器，关键产品包括PLL频率合成器、TruPwr RMS功率检测器、低噪声放大器、混频器和调制解调器。ADI服务于全球超过12.5万家客户，遍及工业、汽车、通信、医疗和消费电子领域。作为业界公认的数据转换和信号处理技术领导者，公司在精密模拟市场占据显著份额。ADI在纳斯达克上市（代码ADI），是标准普尔500指数成分股，全球拥有逾2.6万名员工，以创新、业绩和卓越为文化支柱，持续引领技术发展。

温度控制器 - 型号列表

共 52 个型号

制造商零件编号	库存	价格	标准包装数量	输出类型	供电电压	安装类型	封装形式	功能	工作温度	RoHS	最小供电电压	包装方式	位数	系列	标准封装名称	欧盟RoHS	额定电压	包装数量	精度	引脚样式	供应商器件封装	感应温度	增益	外壳尺寸-插件	印刷电路板数量	安装样式	容差	温度系数	宽度	总长度	数字I/O线数	工厂包装数量	电流传输比（最小）	其他名称	输出电流	配置	接口	输出风扇	传感器类型	拓扑	输出报警	外径	分辨率	关断	传感器	最小输入电压	导体类型	引脚数	冷却的封装	包含封装	装配配置
AD22100KRZ-REEL7 Temp Sensor Analog(Voltage) 8-Pin SOIC N T/R IC TEMP SNSR VOUT SGNLCOND 8SOIC Board Mount Temperature Sensors VOUT TEMP SENSOR IC analog devices	1000	1000: ¥17.0789	Tape & Reel	Analog(Voltage)	4 to 6.5 V	Surface Mount	8SOIC N	Temp Sensor	0 C	Lead free / RoHS Compliant	6.5	Tape and Reel	8	AD22100	SOIC	Compliant	4	SOIC N	±0.5 °C	Gull-wing	8-SOIC N	0°C ~ 100°C	+ 22.5 mV / C	1.5(Max)	8	SMD/SMT	-	-	4(Max)	5(Max)	-	-	22.5 mV/°C	AD22100KRZ-REEL7CT	500 uA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMP01FS-REEL7 Temp Sensor Analog(Voltage) 8-Pin SOIC N T/R IC SENSOR TEMP/CONTROLLER 8SOIC Board Mount Temperature Sensors Lo Pwr Prog Cntlr SGL Supply 4.5-13.2V analog devices	1000	1000: ¥30.0737	Tape & Reel	Analog(Voltage)	4.5 to 13.2 V	Surface Mount	8SOIC N	Temp Sensor	- 40 C	RoHS non-compliant	13.2	Tape and Reel	8	*	SOIC	Not Compliant	4.5	SOIC N	±1 °C	Gull-wing	8-SOIC N	-40°C ~ 85°C	5 mV	-	-	-	±1°C	-40°C ~ 85°C	-	-	-	-	5 mV/K	TMP01FS-REEL7DKR	-	Local	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AD22100ARZ-R7 Temp Sensor Analog(Voltage) 8-Pin SOIC N T/R IC TEMP SNSR VOUT SGNLCOND 8SOIC Board Mount Temperature Sensors VOUT TEMP SENSOR IC analog devices	10	1: ¥102.249	Tape & Reel	Analog(Voltage)	4 to 6.5 V	Surface Mount	8SOIC N	Temp Sensor	0 C	Lead free / RoHS Compliant	6.5	Tape and Reel	8	AD22100	SOIC	Compliant	4	SOIC N	±1 °C	Gull-wing	8-SOIC N	-40°C ~ 85°C	+ 22.5 mV / C	1.5(Max)	8	SMD/SMT	±1°C	-40°C ~ 85°C	4(Max)	5(Max)	-	-	22.5 mV/°C	-	500 uA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AD22100ARZ-RL Temp Sensor Analog(Voltage) 8-Pin SOIC N T/R IC TEMP SNSR VOUT SGNLCOND 8SOIC Board Mount Temperature Sensors VOUT TEMP SENSOR IC analog devices	10	2060: ¥23.12	Tape & Reel	Analog(Voltage)	4 to 6.5 V	Surface Mount	8SOIC N	Temp Sensor	0 C	Lead free / RoHS Compliant	6.5	Tape and Reel	8	AD22100	SOIC	Compliant	4	SOIC N	±1 °C	Gull-wing	8-SOIC N	-40°C ~ 85°C	+ 22.5 mV / C	1.5(Max)	8	SMD/SMT	-	-	4(Max)	5(Max)	-	-	22.5 mV/°C	-	500 uA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ADT7408CCPZ-REEL Temp Sensor Digital Serial (I2C) 8-Pin LFCSP EP T/R IC TEMP SENSOR 12BIT ADC 8LFCSP Board Mount Temperature Sensors 2 Deg C Accurate 12-Bit Digital analog devices	20000	1: ¥10.676	Tape & Reel	Digital	3 to 3.6 V	Surface Mount	8LFCSP EP	Temp Sensor	-20°C ~ 125°C	Lead free / RoHS Compliant	3.6	Tape and Reel	8	ADT7408	LFCSP	Compliant	3	LFCSP EP	±2 °C	No Lead	8-LFCSP-VD (3x3)	-20°C ~ 125°C	-	0.84	8	SMD/SMT	-	-	3	3	2-Wire, I2C, SMBus	-	-	-	550 uA	Local	Serial (I2C)	No	Internal	ADC, Comparator, Register Bank	Yes	-	12 Bit	-	-	-	-	-	-	-	-
AD22105AR-REEL Temp Sensor Analog 8-Pin SOIC N T/R IC TEMP SENSOR/SWITCH LV 8SOIC Board Mount Temperature Sensors IC 3V TEMP SENSOR analog devices	10000	2500: ¥13.8441	Tape & Reel	Analog	2.7 to 7 V	Surface Mount	8SOIC N	Temp Sensor	- 40 C	RoHS non-compliant	7	Tape and Reel	8	AD22105	SOIC	Not Compliant	2.7	SOIC N	±0.5 °C	Gull-wing	8-SOIC	-40°C ~ 150°C	-	-	-	SMD/SMT	±0.5°C	-40°C ~ 150°C	-	-	-	-	-	AD22105AR-REELCT	120 uA	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
MAX6626PMUT Temp Sensor Digital Serial (I2C) 6-Pin SOT-23 Board Mount Temperature Sensors MAX6626PMUT Analog Devices, Inc.	-		Cut Tape	Digital	3 to 5.5 V	Surface Mount	6SOT-23	Temp Sensor	- 55 C	-	-	-	12 bit	MAX6626	-	-	-	-	±1(Max) °C	-	-	-	-	-	-	-	-	-	-	-	2-Wire, I2C, SMBus	-	-	-	-	Local	Serial (I2C)	-	-	-	-	-	12 Bit	-	-	-	-	-	-	-	-
AD590JF/883B Temp Sensor Analog 2-Pin FPAK Board Mount Temperature Sensors 2-Terminal IC Temp TRANSDUCER analog devices	24075	1: ¥360.468	Rail / Tube	Analog	4 to 30 V	Surface Mount	2FPAK	Temp Sensor	- 55 C	No	30	Bulk	2	AD590	FPAK	Not Compliant	4	FPAK	±5(Max) °C	-	-	-	+ 1 uA / K	6.1	2	-	-	-	1.27	2.36	2-Wire, I2C, SMBus	40	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMP03FS Temp Sensor Digital 8-Pin SOIC N IC SENSOR TEMP/SERIAL OC 8SOIC Board Mount Temperature Sensors SERIAL DIGITAL OUTPUT THERMOMETER analog devices	3095	1: ¥51.34	Rail / Tube	Digital	4.5 to 7 V	Surface Mount	8SOIC N	Temp Sensor	-55°C ~ 150°C	RoHS non-compliant	7	Tube	8	-	SOIC	Not Compliant	4.5	SOIC N	±3 °C	Gull-wing	8-SOIC N	-40°C ~ 100°C	-	-	-	-	±4°C(Max)	-40°C ~ 100°C	-	-	-	98	-	-	-	-	-	No	Internal	ADC (Sigma Delta), Digital Modulator	No	-	-	-	-	-	-	-	-	-	-
5962-8757101YA Temp Sensor Analog 3-Pin TO-52 Board Mount Temperature Sensors Two Terminal IC Temp Transducer analog devices	6528	1: ¥258.808	Rail / Tube	Analog	4 to 30 V	Through Hole	3TO-52	Temp Sensor	- 55 C	No	30	Bulk	3	AD590	TO-52	Not Compliant	4	TO-52	-	Through Hole	-	-	+ 1 uA / K	3.81(Max)	3	Through Hole	-	-	-	-	2-Wire, I2C, SMBus	100	-	-	-	-	-	-	-	-	-	5.84(Max)	-	-	-	-	-	-	-	-	-
5962-8757104YA Temp Sensor Analog 3-Pin TO-52 Board Mount Temperature Sensors Two Terminal IC Temp Transducer analog devices	10	1: ¥1,001.844	Rail / Tube	Analog	4 to 30 V	Through Hole	3TO-52	Temp Sensor	- 55 C	No	30	Bulk	3	AD590	TO-52	Not Compliant	4	TO-52	-	Through Hole	-	-	+ 1 uA / K	3.81(Max)	3	Through Hole	-	-	-	-	2-Wire, I2C, SMBus	100	-	-	-	-	-	-	-	-	-	5.84(Max)	-	-	-	-	-	-	-	-	-
TMP17FSZ-RL Temp Sensor Analog 8-Pin SOIC N T/R IC TRANSDUC TEMP CUR OUT 8SOIC Board Mount Temperature Sensors Crnt Output Temp Transducer 4-30V analog devices	1087	10: ¥50.2792	Tape & Reel	Analog	4 to 30 V	Surface Mount	8SOIC N	Temp Sensor	- 40 C	Lead free / RoHS Compliant	30	Tape and Reel	8	TMP17	SOIC	Compliant	4	SOIC N	±2.5(Max) °C	Gull-wing	8-SOIC N	-40°C ~ 105°C	-	-	-	-	±2.5°C	-40°C ~ 105°C	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

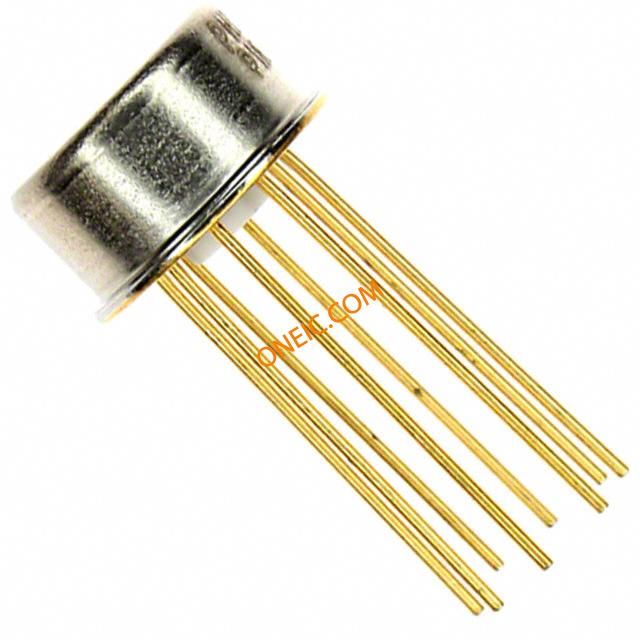

TMP01FJ Temp Sensor Analog(Voltage) 8-Pin TO-99 IC SENSOR TEMP/CONTROLLER TO99-8 Board Mount Temperature Sensors Lo Pwr Prog Cntlr SGL Supply 4.5-13.2V analog devices	936	1: ¥103.02	Rail / Tube	Analog(Voltage)	4.5 to 13.2 V	Through Hole	8TO-99	Temp Sensor	- 40 C	Contains lead / RoHS non-compliant	13.2	Tube	8	TMP01	TO-99	Not Compliant	4.5	TO-99	±1 °C	Through Hole	TO-99-8	-55°C ~ 125°C	5 mV	-	-	-	±1°C	-55°C ~ 125°C	-	-	-	100	5 mV/K	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMP17GS Temp Sensor Analog 8-Pin SOIC N IC TRANSDUC TEMP CUR OUT 8SOIC Board Mount Temperature Sensors Crnt Output Temp Transducer 4-30V analog devices	11093	1: ¥26.248	Rail / Tube	Analog	4 to 30 V	Surface Mount	8SOIC N	Temp Sensor	- 40 C	RoHS non-compliant	30	Tube	8	TMP17	SOIC	Not Compliant	4	SOIC N	±3.5(Max) °C	Gull-wing	8-SOIC N	-40°C ~ 105°C	-	-	-	-	±3.5°C	-40°C ~ 105°C	-	-	-	98	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMP17FS Temp Sensor Analog 8-Pin SOIC N IC TRANSDUC TEMP CUR OUT 8SOIC Board Mount Temperature Sensors Crnt Output Temp Transducer 4-30V analog devices	6814	1: ¥39.372	Rail / Tube	Analog	4 to 30 V	Surface Mount	8SOIC N	Temp Sensor	- 40 C	RoHS non-compliant	30	Tube	8	TMP17	SOIC	Not Compliant	4	SOIC N	±2.5(Max) °C	Gull-wing	8-SOIC N	-40°C ~ 105°C	-	-	-	-	±2.5°C	-40°C ~ 105°C	-	-	-	98	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
AD590KRZ-RL Temp Sensor Analog 8-Pin SOIC N T/R IC TEMPANSDUCER 2TERM 8SOIC Board Mount Temperature Sensors 2-Terminal IC Temp TRANSDUCER analog devices	10	1: ¥152.586	Tape & Reel	Analog	4 to 30 V	Surface Mount	8SOIC N	Temp Sensor	- 55 C	Lead free / RoHS Compliant	30	Tape and Reel	8	AD590	SOIC	Compliant	4	SOIC N	±2.5(Max) °C	Gull-wing	8-SOIC N	-55°C ~ 150°C	+ 1 uA / K	1.5(Max)	8	SMD/SMT	-	-	4(Max)	5(Max)	2-Wire, I2C, SMBus	-	-	AD590KRZ-RLCT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMP36FS-REEL Temp Sensor Analog(Voltage) Serial (2-Wire) 8-Pin SOIC N T/R IC SENSOR TEMP 2.7/5.5V 8SOIC Board Mount Temperature Sensors Low VTG Prec Vout 2.7-5.5V analog devices	10	1920: ¥6.3852	Tape & Reel	Analog(Voltage)	2.7 to 5.5 V	Surface Mount	8SOIC N	Temp Sensor	- 40 C	RoHS non-compliant	5.5	Tape and Reel	8	TMP36	SOIC	Not Compliant	2.7	SOIC N	±2 °C	Gull-wing	8-SOIC N	-40°C ~ 125°C	10 mV	-	-	-	-	-	-	-	2-Wire	-	10 mV/°C	TMP36FS-REELDKR	-	-	Serial (2-Wire)	-	-	-	-	-	-	-	-	-	-	-	-	-	-
TMP06BRTZ-500RL7 Temp Sensor Digital 5-Pin SOT-23 T/R IC PWM TEMP SNSR OPN-DRN SOT23-5 Board Mount Temperature Sensors IC +/-0.5 Deg/C Accurate PWM analog devices	400	1: ¥29.505	Tape & Reel	Digital	3 to 5.5 V	Surface Mount	5SOT-23	Temp Sensor	-40°C ~ 150°C	Lead free / RoHS Compliant	5.5	Tape and Reel	5	TMP06	SOT-23	Compliant	3	SOT-23	±1 °C	Gull-wing	SOT-23-5	-40°C ~ 150°C	-	1.15	5	SMD/SMT	±5°C(Max)	-40°C ~ 150°C	1.6	2.9	-	-	-	TMP06BRTZ-500RL7CT	-	-	-	No	Internal	ADC, Averaging Control	No	-	-	No	-	-	-	-	-	-	-
TMP01FSZ-REEL Temp Sensor Analog(Voltage) 8-Pin SOIC N T/R IC SENSOR TEMP/CONTROLLER 8SOIC Board Mount Temperature Sensors Lo Pwr Prog Cntlr SGL Supply 4.5-13.2V analog devices	2500	2500: ¥26.2881	Tape & Reel	Analog(Voltage)	4.5 to 13.2 V	Surface Mount	8SOIC N	Temp Sensor	- 40 C	Compliant	5\|9\|12	Tape and Reel	-	TMP01	-	-	-	-	±1 °C	-	8-SOIC N	-40°C ~ 85°C	5 mV	1.5(Max)	8	-	±1°C	-40°C ~ 85°C	4(Max)	5(Max)	-	-	5 mV/K	-	-	Local	-	-	-	-	-	-	-	-	5mV/K	13.2	Gull-wing	8	SOIC	SOIC N	Surface Mount
5962-8757102YA Temp Sensor Analog 3-Pin TO-52 Board Mount Temperature Sensors Two Terminal IC Temp Transducer analog devices	22982	1: ¥341.428	Rail / Tube	Analog	4 to 30 V	Through Hole	3TO-52	Temp Sensor	- 55 C	No	30	Bulk	3	AD590	TO-52	Not Compliant	4	TO-52	-	Through Hole	-	-	+ 1 uA / K	3.81(Max)	3	Through Hole	-	-	-	-	2-Wire, I2C, SMBus	100	-	-	-	-	-	-	-	-	-	5.84(Max)	-	-	-	-	-	-	-	-	-

第 1 / 3 页
