Amphenol Corporation- DIN导轨槽

安费诺公司（Amphenol Corporation）成立于1932年，总部位于美国康涅狄格州沃灵福德，是全球领先的电气、电子和光纤连接器、互连系统及电缆的设计者、制造商和营销商。公司的产品为信息技术设备、通信基础设施以及融合了语音、视频和数据通信的系统提供关键的连接基础。安费诺拥有广泛的产品组合，涵盖高可靠性连接器、射频和微波连接器、光纤互连、背板系统、电源连接器以及高速板对板解决方案。其下游市场覆盖军用与航空航天、汽车、工业、数据通信、移动设备和宽带等众多领域。安费诺以工程卓越著称，专注于严苛环境和高完整性应用，在信号完整性和微型化方面拥有核心优势。作为全球最大的互连产品制造商之一，公司在连接器行业中稳居全球前三，并且是标普500指数的成分股。安费诺年营收超过120亿美元，业务遍及60多个国家，拥有强大的设计和制造网络。公司长期坚持创新与质量，巩固了其在全球电子元器件行业的技术领先地位。

MODELS

DIN导轨槽 - 型号列表共 10 个型号

制造商零件编号	价格/库存	Product Category	RoHS	Type	Product	Number of Positions	Number of Levels	Wire Gauge or Range - mm²	Stripping Length	Standard Package	Termination Style	Wire Gauge or Range - AWG	Terminal - Width	Material - Insulation	Current - UL	Voltage - UL	Other Names	rohs	Color	Current - IEC	Voltage - IEC	Housing Color	Height (Max)	Mounting Type	Number of Contacts	Pitch	Termination Method	Number of Rows	Wire Size	Operating Voltage (Max)	Rad Hardened	Current Rating (Max)	Housing Material	Number of Contact Rows	Product Depth (mm)	Product Height (mm)
3 ATB4 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	0.5-4mm²	9mm	100	Screw	10-22 AWG	6.0mm	Polyamide (PA66), Nylon 6/6	40A	600V	APC1282	Lead free / RoHS Compliant	Gray	32A	800V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 ATBB95 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	35-95mm²	26mm	10	Bolt and Nut	4/0-8 AWG	130mm	Melamine	300A	600V	APC1290	Lead free / RoHS Compliant	-	-	-	Beige	1.929" (49.00mm)	DIN Rail	-	-	-	-	-	-	-	-	-	-	-	-
3 ATB95 Conn Feed-Thru 2 POS 25mm Screw 230A amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Feed-Thru	DIN Rail Terminal Blocks	2	1	16-95mm²	24mm	Bulk	Screw	4/0-2 AWG	25.0mm	Polyamide (PA66), Nylon 6/6	230A	600V	APC1286	Lead free / RoHS Compliant	Gray	232A	1000V	Gray	-	-	2	25 mm	Screw	1	2-(4/0) AWG	600V	No	230 A	Polyamide	1	43 mm	45 mm

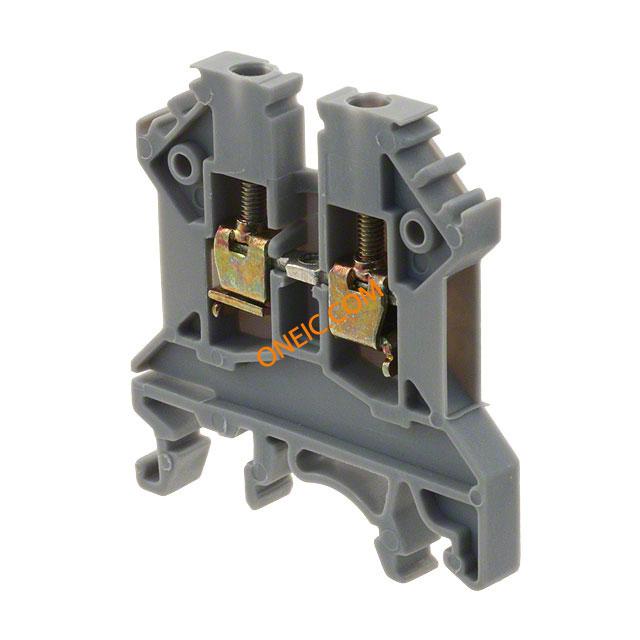

2 ATB2 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	0.5-2.5mm²	9mm	100	Screw	14-24 AWG	5.0mm	Polyamide (PA66), Nylon 6/6	20A	600V	APC1281	Lead free / RoHS Compliant	Gray	24A	800V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 ATB50 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	16-50mm²	22mm	20	Screw	2/0-6 AWG	20.5mm	Polyamide (PA66), Nylon 6/6	150A	600V	APC1285	Lead free / RoHS Compliant	Gray	150A	1000V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 ATB6 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	1.5-6mm²	12mm	100	Screw	8-22 AWG	8.0mm	Polyamide (PA66), Nylon 6/6	50A	600V	APC1283	Lead free / RoHS Compliant	Gray	41A	800V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 ATB10 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	1.5-10mm²	12mm	100	Screw	6-20 AWG	10.0mm	Polyamide (PA66), Nylon 6/6	65A	600V	APC1284	Lead free / RoHS Compliant	Gray	57A	800V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 ATBB70 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	35-70mm²	26mm	50	Bolt and Nut	2/0-8 AWG	98.0mm	Melamine	250A	600V	APC1289	Lead free / RoHS Compliant	-	-	-	Beige	1.929" (49.00mm)	DIN Rail	-	-	-	-	-	-	-	-	-	-	-	-
3 ATBB35 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	16-35mm²	20mm	50	Bolt and Nut	2-8 AWG	75.0mm	Melamine	145A	600V	APC1288	Lead free / RoHS Compliant	-	-	-	Beige	1.929" (49.00mm)	DIN Rail	-	-	-	-	-	-	-	-	-	-	-	-
3 ATBB5 DIN-RAIL TERMINAL BLOCK PRODUCT -SEE CATALOG amphenol pcd	询价	DIN Rail Terminal Blocks	RoHS Compliant	Wire to Wire	DIN Rail Terminal Blocks	2	1	0.5-16mm²	12mm	100	Bolt and Nut	4-22 AWG	17.0mm	Polyamide (PA66), Nylon 6/6	80A	600V	APC1287	Lead free / RoHS Compliant	Gray	76A	800V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
