Amphenol Corporation- 连接器和接口解决方案

安费诺公司（Amphenol Corporation）成立于1932年，总部位于美国康涅狄格州沃灵福德，是全球领先的电气、电子和光纤连接器、互连系统及电缆的设计者、制造商和营销商。公司的产品为信息技术设备、通信基础设施以及融合了语音、视频和数据通信的系统提供关键的连接基础。安费诺拥有广泛的产品组合，涵盖高可靠性连接器、射频和微波连接器、光纤互连、背板系统、电源连接器以及高速板对板解决方案。其下游市场覆盖军用与航空航天、汽车、工业、数据通信、移动设备和宽带等众多领域。安费诺以工程卓越著称，专注于严苛环境和高完整性应用，在信号完整性和微型化方面拥有核心优势。作为全球最大的互连产品制造商之一，公司在连接器行业中稳居全球前三，并且是标普500指数的成分股。安费诺年营收超过120亿美元，业务遍及60多个国家，拥有强大的设计和制造网络。公司长期坚持创新与质量，巩固了其在全球电子元器件行业的技术领先地位。

MODELS

连接器和接口解决方案 - 型号列表共 376 个型号

制造商零件编号	价格/库存	Pitch	Standard Package	RoHS	Packaging	Number of Levels	Mounting Type	Positions Per Level	Current	Terminal Block Type	Voltage	Termination	Color	Number of Positions	rohs	Product	Features	Product Category	Header Orientation	Contact Plating	Housing Material	Number of Positions / Contacts	Type	Current Rating	Number of Rows	Number of Contacts	Gender	Termination Method	Body Orientation	Housing Color	Mounting Angle	Other Names	Mounting	Flammability Rating	Termination Style	Insulation Resistance	Plug Wire Entry	Wire Gauge	Contact Material	Length	Mounting Style	Product Length	EU RoHS	Product Depth	Maximum Voltage Rating	Product Height	Pitch	Maximum Current Rating	Voltage Rating	Wire Size	Wire Gauge Max	Wire Gauge Min	Wire Orientation	Wire Gauge Range	Wire Size	Height	Factory Pack Quantity	Current Rating (Max)	Number of Contact Rows	Product Length (mm)	Product Depth (mm)	Product Height (mm)	Voltage Rating Max	Pitch (mm)	间距	系列	级别数	端接	每级针脚数	电压	装配类型	针座方向	电流	端子块类型	Series	Width
ELFH04220 Conn Shrouded Header HDR 4 POS 5.08mm Solder RA Thru-Hole amphenol pcd	询价	5.08 mm	Bulk	No	Tray	1	Through Hole	4	15A	Header, Male Pins, Shrouded (2 Side)	300V	Solder	Black	4	Lead free / RoHS Compliant	Headers	-	-	90°, Right Angle	Tin-Lead	Polybutylene Terephthalate	4	Shrouded Header	15 A	1	4	HDR	Solder	Right Angle	Black	Horizontal	-	Through Hole	UL 94 V-0	Through Hole	1000000 MOhms	-	-	Brass	0.8 in	-	20.47	Compliant	12.06	300V	8.1	5.08	15	300 V	-	-	-	-	-	-	0.319 in	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFH08220 Conn Shrouded Header HDR 8 POS 5.08mm Solder RA Thru-Hole amphenol pcd	询价	5.08 mm	Bulk	RoHS Compliant	Tray	1	Through Hole	8	15A	Header, Male Pins, Shrouded (2 Side)	300V	Solder	Black	8	Lead free / RoHS Compliant	Pluggable Terminal Blocks	-	Pluggable Terminal Blocks	90°, Right Angle	Tin-Lead	Polybutylene Terephthalate	8	Shrouded Header	15 A	1	8	HDR	Solder	Right Angle	Black	Right	-	Through Hole	-	Through Hole	-	-	-	Brass	-	Through Hole	40.79	Compliant	12.06	300V	8.1	5.08	15	300 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFT02260 Conn Terminal Block F 2 POS 10.16mm Screw ST Cable Mount 15A amphenol pcd	询价	10.16 mm	Bulk	RoHS Compliant	Tray	1	Free Hanging (In-Line)	2	15A	Plug, Female Sockets	300V	Screw	Black	2	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches (Non-Wire Side)	-	-	Tin	Polyphenylene Oxide (PPO)	2	Terminal Block	15 A	1	2	F	Screw	Straight	Black	Right Angle	-	Cable Mount	UL 94 V-0	Through Hole	100000 MOhms	270°	14-26 AWG	-	0.4 in	-	-	-	-	-	-	-	-	-	12-26 AWG	12	26	45 Deg	26-12	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELXH08500 Conn Wire to Board HDR 8 POS 3.5mm Solder ST Thru-Hole amphenol pcd	询价	3.5 mm	Bulk	RoHS Compliant	Tray	1	Through Hole	8	12A	Header, Male Pins, Shrouded (4 Side)	300V	Solder	Black	8	Lead free / RoHS Compliant	Pluggable Terminal Blocks	-	Pluggable Terminal Blocks	Vertical	Tin	Polyamide 4/6	-	Wire to Board	-	1	8	HDR	Solder	Straight	Black	-	-	-	-	-	-	-	-	Brass	-	Through Hole	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	12 A	1	28.71 mm	6.93 mm	9.14 mm	300V	3.5 mm	0.138" (3.50mm)	ELXH	1	Solder	8	300V	Through Hole	Vertical	12A	Header, Male Pins, Shrouded (4 Side)	-	-

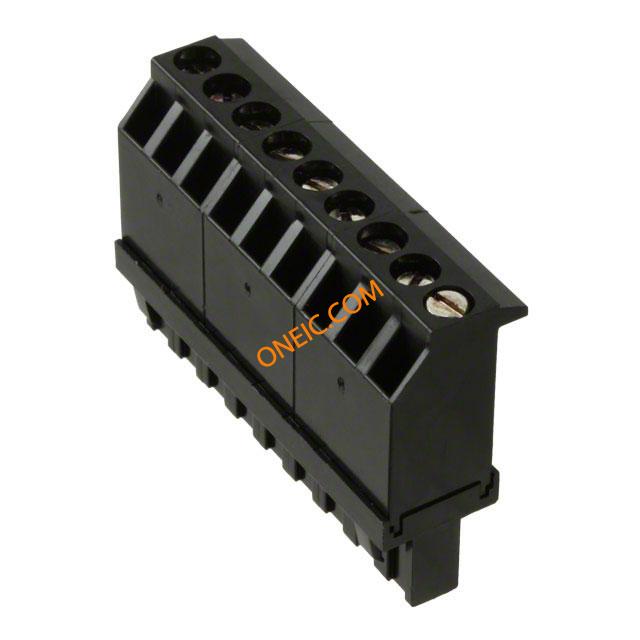

3 ELFF09230 Conn Terminal Block F 9 POS 5.08mm Screw ST Cable Mount 15A amphenol pcd	询价	5.08 mm	Bulk	RoHS Compliant	Bulk	1	Free Hanging (In-Line)	9	15A	Plug, Female Sockets	300V	Screw	Black	9	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches (Wire Side)	Pluggable Terminal Blocks	-	Tin	Polyphenylene Oxide	-	Terminal Block	-	1	9	F	Screw	Straight	Black	-	APC1181	Cable Mount	-	-	-	90°	12-26 AWG	Copper Alloy	-	-	45.72	Compliant	30.93	300V	14.37	5.08	15	-	14-26 AWG	-	-	-	-	14-26	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFB13280 MALE HEADER/BOARD-MOUNT PLUG, MODULAR amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Through Hole	13	15A	Header, Female Sockets	300V	Solder	Black	13	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches, Side Stacking (Interlocking)	Pluggable Terminal Blocks	Vertical	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ELFH12210J HEAD CLOSED ENDS EJECT EARS amphenol pcd	询价	5 mm	100	RoHS Compliant	Bulk	1	Through Hole	12	15A	Header, Male Pins, Shrouded (4 Side)	300V	Solder	Black	12	Lead free / RoHS Compliant	-	Ejectors	Pluggable Terminal Blocks	90°, Right Angle	Tin	Polybutylene Terephthalate (PBT)	12	-	15 A	-	-	-	-	-	-	-	APC1154	-	UL 94 V-0	Through Hole	100000 MOhms	-	-	-	-	Through Hole	-	-	-	-	-	-	-	300 V	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFH17210J HEAD CLOSED ENDS EJECT EARS amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Through Hole	17	15A	Header, Male Pins, Shrouded (4 Side)	300V	Solder	Black	17	Lead free / RoHS Compliant	-	Ejectors	Pluggable Terminal Blocks	90°, Right Angle	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFP10210 Conn Terminal Block F 10 POS 5.08mm Screw RA Cable Mount 15A amphenol pcd	询价	5.08 mm	Bulk	RoHS Compliant	Tray	1	Free Hanging (In-Line)	10	15A	Plug, Female Sockets	300V	Screw	Black	10	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches (Non-Wire Side)	-	-	Tin	Polyphenylene Oxide (PPO)	10	Terminal Block	15 A	1	10	F	Screw	Right Angle	Black	Right Angle	-	Cable Mount	UL 94 V-0	IDC / IDT	100000 MOhms	180°	14-26 AWG	-	2.4 in	Through Hole	-	-	-	-	-	-	-	-	14-26 AWG	12	26	45 Deg	26-12	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFT10250 Conn Terminal Block F 10 POS 10.16mm Screw ST Cable Mount 15A amphenol pcd	询价	10.16 mm	Bulk	No	Tray	1	Free Hanging (In-Line)	10	15A	Plug, Female Sockets	300V	Screw	Black	10	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches (Wire Side)	-	-	Tin	Polyphenylene Oxide	-	Terminal Block	-	1	10	F	Screw	Straight	Black	-	-	Cable Mount	-	-	-	90°	14-26 AWG	Copper Alloy	-	-	96.52	Compliant	26.16	600V	12.39	10.16	15	-	12-26 AWG	-	-	-	-	12-26	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELXP03100 RIGHT ANGLE PLUG amphenol pcd	询价	3.5 mm	25	RoHS Compliant	Tray	1	Free Hanging (In-Line)	3	12A	Plug, Female Sockets	300V	Screw	Black	3	Lead free / RoHS Compliant	Pluggable Terminal Blocks	-	-	-	-	-	3	Wire to Board	12 A	-	-	-	-	-	-	Right	-	-	-	Screw	-	180°	16-28 AWG	-	-	-	-	-	-	-	-	-	-	300 V	-	16	28	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 SCFF07210 SPRING CLAMP FRONT/FRONT amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Free Hanging (In-Line)	7	15A	Plug, Female Sockets	300V	IDC	Black	7	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches (Non-Wire Side)	Pluggable Terminal Blocks	-	-	-	-	Wire to Board	-	-	-	-	-	-	-	-	APC1240	-	-	-	-	180°	12-28 AWG	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	SCFF	-
4 ELFB02280 MALE HEADER/BOARD-MOUNT PLUG, MODULAR amphenol pcd	询价	5.08 mm	100	RoHS Compliant	Bulk	1	Through Hole	2	15A	Header, Female Sockets	300V	Solder	Black	2	Lead free / RoHS Compliant	-	Retention Latches, Side Stacking (Interlocking)	Fixed Terminal Blocks	Vertical	Tin Lead	Polyphenylene Oxide (PPO)	2	-	15 A	-	-	-	-	-	-	Vertical	APC1224	-	UL 94 V-0	-	100000 MOhms	-	-	-	0.4 in	SMD/SMT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

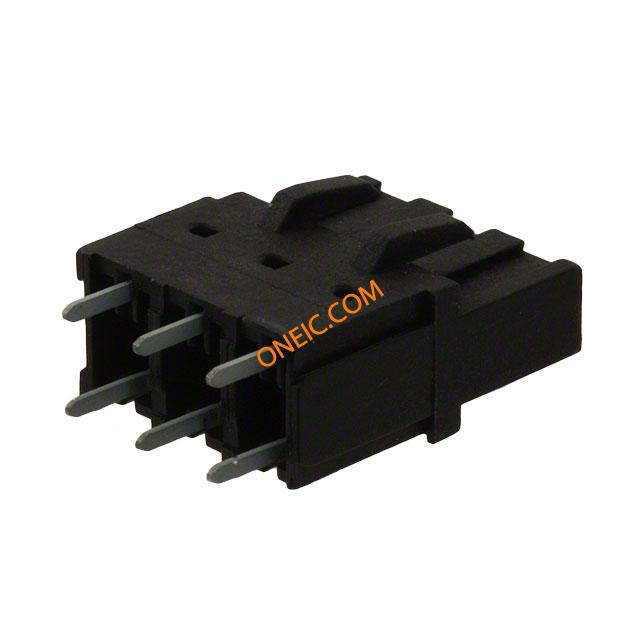

3 ELFB03280 MALE HEADER/BOARD-MOUNT PLUG, MODULAR amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Through Hole	3	15A	Header, Female Sockets	300V	Solder	Black	3	-	-	Retention Latches, Side Stacking (Interlocking)	Fixed Terminal Blocks	Vertical	Tin Lead	Polyphenylene Oxide (PPO)	3	-	15 A	-	-	-	-	-	-	Vertical	APC1225	-	UL 94 V-0	-	100000 MOhms	-	-	-	0.6 in	SMD/SMT	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ELFB05230 MALE HEADER/BOARD-MOUNT PLUG, MODULAR amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Through Hole	5	15A	Header, Female Sockets	300V	Solder	Black	5	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches, Side Stacking (Interlocking)	Pluggable Terminal Blocks	90°, Right Angle	-	-	5	-	-	-	-	-	-	-	-	-	APC1216	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ELFB08230 MALE HEADER/BOARD-MOUNT PLUG, MODULAR amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Through Hole	8	15A	Header, Female Sockets	300V	Solder	Black	8	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches, Side Stacking (Interlocking)	Pluggable Terminal Blocks	90°, Right Angle	-	-	8	-	-	-	-	-	-	-	-	-	APC1219	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	100	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
4 ELFB09230 MALE HEADER/BOARD-MOUNT PLUG, MODULAR amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Through Hole	9	15A	Header, Female Sockets	300V	Solder	Black	9	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches, Side Stacking (Interlocking)	Pluggable Terminal Blocks	90°, Right Angle	-	-	-	-	-	-	-	-	-	-	-	-	APC1220	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFB14280 MALE HEADER/BOARD-MOUNT PLUG, MODULAR amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Through Hole	14	15A	Header, Female Sockets	300V	Solder	Black	14	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches, Side Stacking (Interlocking)	Pluggable Terminal Blocks	Vertical	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFB20280 MALE HEADER/BOARD-MOUNT PLUG, MODULAR amphenol pcd	询价	0.200" (5.08mm)	100	RoHS Compliant	Bulk	1	Through Hole	20	15A	Header, Female Sockets	300V	Solder	Black	20	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches, Side Stacking (Interlocking)	Pluggable Terminal Blocks	Vertical	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
ELFF03130 Conn Terminal Block F 3 POS 5mm Screw ST Cable Mount 15A amphenol pcd	询价	5 mm	Bulk	No	Tray	1	Free Hanging (In-Line)	3	15A	Plug, Female Sockets	300V	Screw	Black	3	Lead free / RoHS Compliant	Pluggable Terminal Blocks	Retention Latches (Wire Side)	-	-	Tin-Lead	Polyphenylene Oxide	3	Terminal Block	15 A	1	3	F	Screw	Straight	Black	Straight	-	Cable Mount	UL 94 V-0	Screw	105 mOhms	90°	14-26 AWG	Copper Alloy	15 mm	-	15	Compliant	30.9	300V	14.4	5	15	300 V	14-26 AWG	26	12	Straight	26-12	14-26	14.4 mm	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	30.9 mm
