Alpha Wire Corporation- 多芯及控制电缆

阿尔法电线公司（Alpha Wire Corporation）成立于1922年，总部位于美国新泽西州伊丽莎白市，是一家高性能电线、电缆和油管产品的领先制造商。公司核心业务是为工业自动化、医疗设备、半导体设备和电信等要求严苛的行业提供确保系统可靠性的互连解决方案。Alpha Wire的产品系列包括久负盛名的XTRA•GUARD®高性能电子电缆，该系列以卓越的耐用性和恶劣环境适应性著称。FIT® Preferred热缩管是其另一旗舰产品线，广泛应用于关键电子组件的绝缘、保护和应力消除。此外，EcoGen®系列环保电线电缆在满足严格环保标准的同时不牺牲性能。公司还提供广泛的通信和控制电缆、安装线以及定制电缆解决方案。凭借一个世纪的工程专业知识，Alpha Wire以解决复杂互连挑战和交付集成的电线、电缆和油管套装而闻名。其产品通过全球分销网络服务先进科技公司，并获得了ISO 9001和UL认证。Alpha Wire持续投入研发以满足不断变化的行业需求，是电子互连市场中以质量、创新和应用特定解决方案著称的首选供应商。

多芯及控制电缆 - 型号列表

共 2,588 个型号

制造商零件编号	库存	价格	导体绞线	导体材料	护套（绝缘）材料	标准包装数量	长度	电缆类型	导线线规	护套（绝缘）直径	工作温度	线缆护套颜色	电压	护套（绝缘）厚度	屏蔽类型	RoHS	额定电压	导体数量	导体绝缘	颜色	重量	屏蔽覆盖率	屏蔽材料	外径	产品特性	额定等级	外径（标称值）	线规或范围 - AWG	绝缘材料 - 类型	用途	核心数	SVHC	海关税号	总长度	包装方式	屏蔽	类型	产品类别	位数	电缆对数	系列	标准包装规格	核心类型	连接器颜色	横截面形状	核心数/总线宽度	电阻	显示类型	直流电阻（DCR）（最大）	形状	端接方式	绝缘颜色	电缆端接方式	连接器间距	最小弯曲半径	非扩张内径	隔离类型	电压范围	铠装	接地线	导体类型	线规或范围 - mm²	每排/每行位置数	复合	产品子类型	阻抗	电缆长度	绝缘材料 - 材质	连接器类型 - 电压输入
2 2423C SL005 Multi-Conductor Cables 18AWG 3C SHIELD 100ft SPOOL SLATE 2423C SLATE 100 FT Cable; Shielded; 3; 18 AWG; 16 x 30; 0.23 in.; 0.016 in.; 0.020 in.; PVC; 150 V; 30m Alpha Wire	10	1: ¥326.16	16/30	Copper	Polyvinyl Chloride (PVC)	1	100 ft	Multi-Conductor	18	0.214" (5.43mm)	-20°C ~ 75°C	Gray	300V	0.020" (0.51mm)	Foil	RoHS Compliant	300 V	3	Polyethylene (PE)	Slate	4.200 lbs	100%	Aluminum	0.23 in	Drain Wire	-	-	-	Polyethylene (PE)	Communication, Control	-	-	-	-	Spool	Shielded	Communication and Control	Multi-Conductor Cables	-	-	-	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3 5098C SL005 Multi-Conductor Cables 24AWG 8C SHIELD 100ft SPOOL SLATE 5098C SLATE 100 FT 8 conductor screened cable,30m Alpha Wire XTRA-GUARD 1 系列 8 芯屏蔽聚氯乙烯 PVC 护套工业电缆, 0.23 mm² 截面积 300 V, -30 → +80 °C, 外径 5.56mm, 长30m Alpha Wire	39	1: ¥2,538.95	7/32	Copper, Tinned	Polyvinyl Chloride (PVC)	1	100 ft	Multi-Conductor	24	0.219" (5.56mm)	-30°C ~ 105°C	Gray	300V	0.032" (0.81mm)	Foil	RoHS Compliant	300 V	8	Poly-Vinyl Chloride (PVC)	Slate	3 lbs	100%	Aluminum	5.59 mm	Nylon Rip Cord for Ease of Jacket Stripping	-	5.56mm	32 AWG	Polyvinyl Chloride (PVC)	-	8	-	-	-	Spool	Shielded	Xtra-Guard 1	Multi-Conductor Cables	8	7 x 32	5098	-	7/32	Grey	0.23 mm	7	85.30184 Ω/km	Aluminium/PET Foil	85.30184 Ω/km	多芯	Yes	灰色	是	7/32	10 x D	32 AWG	铝/PET 箔	-	-	-	-	-	-	-	-	-	-	-	-
2 2403C SL005 Multi-Conductor Cables 22AWG 3C SHIELD 100ft SPOOL SLATE 2403C SLATE 100 FT Cable; Shielded; 3; 22 AWG; 7 x 30; 0.18 in.; 0.016 in.; 0.020 in.; PVC; degC; 30m Alpha Wire	35	1: ¥362.40	7/30	Copper	Polyethylene (PE)	1	100 ft	Multi-Conductor	22	0.178" (4.52mm)	-20°C ~ 75°C	Gray	300V	0.020" (0.51mm)	Foil	RoHS Compliant	300 V	3	Polyethylene (PE)	Slate	2.400 lbs	100%	Aluminum	0.18 in	Drain Wire	-	-	-	Polyethylene (PE)	Communication, Control	-	-	-	-	Spool	Shielded	Communication and Control	Multi-Conductor Cables	-	-	-	1	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 1299/10C SL002 Multi-Conductor Cables 22AWG 10C SHIELDED 500ft SPOOL SLATE 1299/10C SLATE 500 FT Cable; Shielded; 10; 22 AWG; 7 x 30; 0.27 in.; 0.010 in.; 0.032 in.; PVC; 75 de; 152m Alpha Wire	10	1: ¥2,944.50	7/30	Copper, Tinned	Polyvinyl Chloride (PVC)	1	500 ft	Multi-Conductor	22	0.268" (6.80mm)	-20°C ~ 80°C	Gray	300V	0.032" (0.81mm)	Foil	RoHS Compliant	300 V	10	Poly-Vinyl Chloride (PVC)	Slate	21.800 lbs	100%	Aluminum	5.84 mm	Conductor: Stranded Tinned Copper	-	-	-	Polyvinyl Chloride (PVC)	Communication, Control	-	-	-	-	Spool	Shielded	Communication and Control	Multi-Conductor Cables	-	7 x 30	1299	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2 5640B2201 NC001 Multi-Conductor Cables 22AWG 1C SHIELDED 1000 FT NO COLOR CABLE 1TRIAD 22AWG NO CLR 1000' Cable; 22 AWG; 1; 7x30; 0.013 in. (Nom.); 0.035 in.; 0.20 in.; PVC; Black PVC; 304m Alpha Wire	26	1: ¥6,115.852	7/28	Copper	Polyvinyl Chloride (PVC)	1	1000 ft	Multi-Triad	22	0.201" (5.11mm)	-20°C ~ 105°C	Black	300V	0.038" (0.97mm)	Foil	RoHS Compliant	300 V	3	Poly-Vinyl Chloride (PVC)	-	28 lbs	100%	Aluminum	5.11 mm	UL sunlight resistant	-	-	-	Polyvinyl Chloride (PVC)	-	-	-	-	-	Spool	Shielded	Instrumentation	-	-	7	5640B	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
V16014 BK199 CBL 4COND 14AWG BLK 1000=1000' Cable; 4; 14 AWG; 41 x 30; Tinned Copper; XLPE (Cross-Linked Polyethylene); 30m Industrial-Series-Cable, IndustrialSeriesV, 4 Conductor, 14 AWG, Foil Braid, 600 V, PVC Jacket, XLPE Insulation, 0.584 Jacket Diameter, 41/30 Stranding, Motors and Drives Alpha Wire	15	1: ¥3,785.254	4 CONDUCTOR	TINNED OR COATED COPPER	PVC-POLYVINYL CHLORIDE	-	-	-	-	-	-	-	-	-	SHIELDED	-	-	-	-	-	-	-	-	-	-	-	-	-	XLP-CROSS LINKED POLYETHYLENE	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	600V	NO	YES	STRANDED	14 AWG	1 WIRE	NO	VFD	-	-	-	-
1738C SL005 1738C SLATE 100 FT Cable; Shielded; 4; 22 AWG; 7 x 30; 0.21 in.; 0.016 in.; 0.020 in.; PVC; 75 deg; 30m CABLE, 22AWG, 4 CORE, SLATE, 30.5M Alpha Wire	10	1: ¥770.10	7/30	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	100' (30.5m)	Multi-Conductor	22 AWG	0.215" (5.46mm)	-20°C ~ 80°C	:Slate	300V	0.020" (0.51mm)	Braid	Compliant	:300V	4	Poly-Vinyl Chloride (PVC)	Slate	1	75%	Copper, Bare	:5.3mm	-	-	:5.3mm	:22AWG	-	Communication, Control	:4	:No SVHC (20-Jun-2013)	85444995	:100ft	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
2422C SL002 2422C SLATE 500 FT Cable; Shielded; 2; 18 AWG; 16 x 30; 0.21 in.; 0.016 in.; 0.020 in.; PVC; 150 V; 152m CABLE, 18AWG, 2 CORE, SLATE, 152.4M Alpha Wire	10	1: ¥942.24	16/30	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	500' (152.44m)	Multi-Conductor	18 AWG	0.202" (5.13mm)	-20°C ~ 75°C	:Slate	300V	0.020" (0.51mm)	Foil	Not Applicable	:300V	2	Polyethylene (PE)	Slate	1	100%	Aluminum	:5.3mm	Drain Wire	-	:5.3mm	:18AWG	-	Communication, Control	:2	:No SVHC (20-Jun-2013)	85444995	:500ft	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

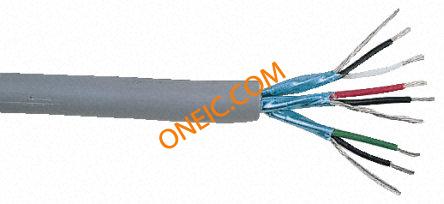

6010C SL033 CBL COMM 3PR 22AWG SLATE 328' CBL COMM 3PR 22AWG SLATE 328' Grey 3 pair overall screened cable,100m Alpha Wire	31	1: ¥1,885.0348	7/28	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	328.1' (100m)	Multi-Pair	22 AWG	0.298" (7.57mm)	-20°C ~ 75°C	-	300V	0.048" (1.22mm)	Foil	Compliant	300 V	6 (3 Pair Twisted)	Polypropylene (PP)	Slate	-	100%	Aluminum	-	Drain Wire	UL Style 2493	7.57mm	0.25 mm	-	-	-	-	-	-	-	-	-	-	3	-	-	-	7/0.25 mm	Grey	0.35 mm	7	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	55 Ω	100m	PVC	-
2 6348 SL005 CBL COMM 25COND 22AWG SLATE 100' CBL COMM 25COND 22AWG SLATE 100' Cable; Shielded; 25; 22 AWG; 7 x 30; 0.410 in.; 0.010 in.; 0.032 in.; PVC; 30m CABLE, 22AWG, 25 CORE, SLATE, 30.5M Alpha Wire 25 芯屏蔽聚氯乙烯 PVC 护套工业电缆, 0.35 mm² 截面积 300 V Alpha Wire	12	1: ¥2,092.86	7/28	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	100' (30.5m)	Multi-Conductor	22 AWG	0.390" (9.91mm)	-20°C ~ 80°C	:Slate	300V	0.032" (0.81mm)	Foil, Braid	Not Applicable	:300V	25	Poly-Vinyl Chloride (PVC)	Slate	1	100%, 65%	Aluminum; Copper, Tinned	:10.4mm	-	-	:10.4mm	:22AWG	-	-	:25	:No SVHC (20-Jun-2013)	85444995	:100ft	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
1899/3C SL002 1899/3C SLATE 500 FT Multiconductor Cable; Unshielded; 3; 16 AWG; 19 x 0.0117; 0.24 in.; 0.016 in.; 152m CABLE, 16AWG, 3 CORE, SLATE, 152.4M Alpha Wire	10	1: ¥5,718.6028	19/0.0117"	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	500' (152.44m)	Multi-Conductor	16 AWG	0.236" (5.99mm)	-20°C ~ 80°C	:Slate	300V	0.020" (0.51mm)	:Unshielded	Compliant	:300V	3	Poly-Vinyl Chloride (PVC)	Slate	1	-	-	:6.3mm	-	-	:6.3mm	:16AWG	-	Communication, Control	:3	:No SVHC (20-Jun-2013)	85444995	:500ft	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
6383 SL005 CBL COMM 18PAIR 22AWG SLATE 100' CBL COMM 18PAIR 22AWG SLATE 100' Cable; Shielded; 18; 22 AWG; 7/30; Aluminum/Polyester; 0.490 in.; 0.010 in.; 30m CABLE, 22AWG, 18 PAIR, SLATE, 30.5M Alpha Wire	10	1: ¥2,926.38	7/28	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	100' (30.5m)	Multi-Pair	22 AWG	0.500" (12.70mm)	-20°C ~ 80°C	:Slate	300V	0.032" (0.81mm)	Foil, Braid	Not Applicable	:300V	36 (18 Pair Twisted)	Poly-Vinyl Chloride (PVC)	Slate	1	100%, 65%	Aluminum; Copper, Tinned	:13.6mm	Drain Wire	UL Style 2464	:13.6mm	:22AWG	-	-	-	:No SVHC (20-Jun-2013)	85444995	:100ft	-	-	-	-	:18	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	:-
6312 SL005 CBL COMM 50COND 24AWG SLATE 100' CBL COMM 50COND 24AWG SLATE 100' Cable; Shielded; 50; 24 AWG; 7 x 32; 0.49 in.; 0.032 in.; PVC; -20 degC; 80 de; 30m CABLE, 24AWG, 50 CORE, SLATE, 30.5M Alpha Wire	10	1: ¥6,236.28	7/32	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	100' (30.5m)	Multi-Conductor	24 AWG	0.453" (11.51mm)	-20°C ~ 80°C	:Slate	300V	0.045" (1.14mm)	Foil	Not Applicable	:300V	50	Poly-Vinyl Chloride (PVC)	Slate	1	100%	Aluminum	:12.4mm	Drain Wire	UL Style 2464	:12.4mm	:24AWG	-	-	:50	:No SVHC (20-Jun-2013)	85444995	:100ft	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
934 NC001 WIRE BUS BAR 34AWG NO COLOR 1K' WIRE BUS BAR 34AWG 1000' Alpha Wire	10	1: ¥475.048	Solid	Copper, Annealed Tinned	No Jacketing - Bare Wire	1	1000' (304.8m)	Bus Bar	34 AWG	0.006" (0.15mm)	0°C ~ 150°C	None (Non-Insulated)	-	-	-	-	-	-	-	-	-	-	-	-	-	ASTM B-33	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
932 NC001 WIRE BUS BAR 32AWG NO COLOR 1K' WIRE BUS BAR 32AWG 1000' Alpha Wire	23	1: ¥501.364	Solid	Copper, Annealed Tinned	No Jacketing - Bare Wire	1	1000' (304.8m)	Bus Bar	32 AWG	0.008" (0.20mm)	0°C ~ 150°C	None (Non-Insulated)	-	-	-	-	-	-	-	-	-	-	-	-	-	ASTM B-33	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
PGM0649 GR005 HOOK-UP WIRE 6AWG GREEN 100' HOOK-UP STRND 6AWG GREEN 100' Alpha Wire	10	1: ¥954.788	49/0.0231"	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	100' (30.5m)	Hook Up	6 AWG	0.328" (8.33mm)	-20°C ~ 105°C	Green	600V	0.060" (1.52mm)	-	-	-	-	-	-	-	-	-	-	Oil Resistant	UL Style 1028	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
421816T BK001 421816T BLACK 1000 FT HOOK-UP 18AWG BLACK 1000' Alpha Wire	-		16/30	Copper, Annealed Tinned	Poly-Vinyl Chloride (PVC)	1	1000' (304.8m)	Hook Up	18 AWG	0.051" (1.30mm)	-10°C ~ 80°C	Black	300V	0.010" (0.25mm)	-	-	-	-	-	-	-	-	-	-	-	UL Style 1061	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
421816T RD001 421816T RED 1000 FT HOOK-UP 18AWG RED 1000' Alpha Wire	-		16/30	Copper, Annealed Tinned	Poly-Vinyl Chloride (PVC)	1	1000' (304.8m)	Hook Up	18 AWG	0.051" (1.30mm)	-10°C ~ 80°C	Red	300V	0.010" (0.25mm)	-	-	-	-	-	-	-	-	-	-	-	UL Style 1061	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
3240 SL005 3240 SLATE 100 FT CBL 1COND 18AWG 600V SLATE 100' Alpha Wire	10	1: ¥1,980.092	19/30	Copper, Tinned	Poly-Vinyl Chloride (PVC)	1	100' (30.5m)	Hook Up, Shielded	18 AWG	0.122" (3.10mm)	-55°C ~ 105°C	Slate	600V	0.012" (0.30mm)	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
422407T BK013 422407T BLACK 5000 FT HOOK-UP 24AWG BLACK 5000' Alpha Wire	-		7/32	Copper, Annealed Tinned	Poly-Vinyl Chloride (PVC)	1	5000' (1524m)	Hook Up	24 AWG	0.025" (0.63mm)	-10°C ~ 80°C	Black	300V	0.010" (0.25mm)	-	-	-	-	-	-	-	-	-	-	-	UL Style 1061	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-
