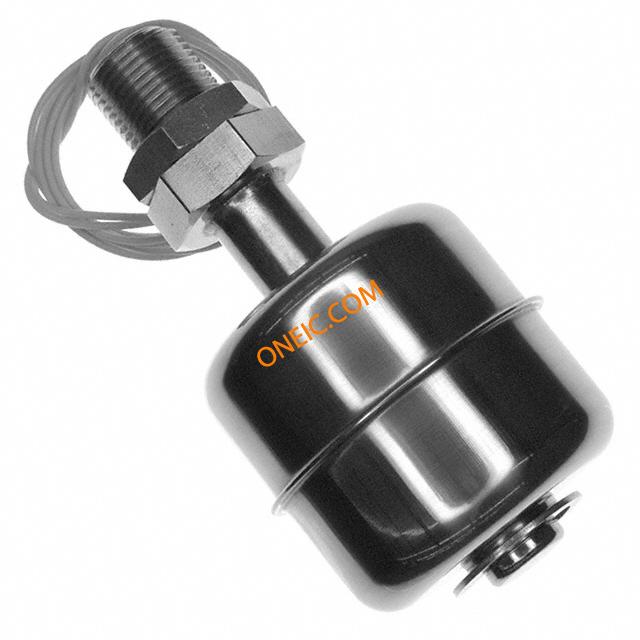

Cynergy 3
所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 材料 - 外罩和棱镜 | 316 Stainless Steel |
| 安装类型 | Male 3/8" (9.53mm) BSP |
| 额定电压 | 300VDC, 300VAC |
| 最小液体比重 | 0.80 |
| 工作温度 | -20°C ~ 200°C |
| 标准包装 | 1 |
| 输出配置 | SPST-NC/NO, 500mA |
| 类型 | Liquid |
| 阀体材质 | Stainless Steel |
| 电缆长度 | 350mm |
| 设备类型 | Float |
| 最大电流 | 0.5 A |
| 最高工作温度 | +200°C |
| 最大压力 | 10bar |
| 最低工作温度 | -10°C |
| 开关量输出 | Direct Load |
| RoHS指令 | Not Applicable |
| 输出电流 | :500mA |
| Operating Pressure Max | :10bar |
| Sensor Body Material | :Stainless Steel |
| Supply Voltage DC Min | :0V |
| Supply Voltage DC Max | :300V |
| SVHC | :No SVHC (20-Jun-2013) |
| 联系配置 | :1NC / 1NO |
| Contact Current AC Max | :0.5A |
| Contact Voltage AC Max | :300V |
| External Length / Height | :95mm |
| 浮球直径 | :50mm |
| 引线长度 | :350mm |
| 材质 | :316 Grade |
| 工作压力范围 | :0bar to 10bar |
| Operating Temperature Max | :200°C |
| Pressure Max | :10bar |
| Sensor Output1 | :SPST-NO / SPST-NC |
| 系列 | :SSF26 |
| Specific Gravity of Liquid Min | :0.65 |
| Supply Voltage Range AC | :0V to 300V |
| Supply Voltage Range DC | :0V to 300V |
| Switching Current AC Max | :0.5A |
| Switching Voltage AC / DC Max | :300VAC |
| 螺纹尺寸 | :3/8"BSP |
| Weight (kg) | 0.1086 |
| Tariff No. | 85365019 |
