Schneider Electric

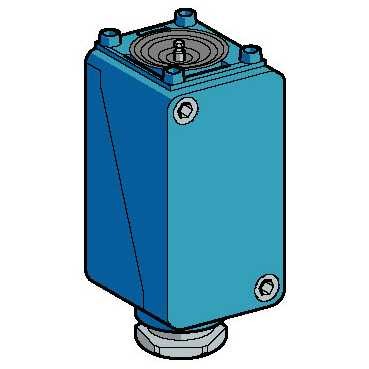

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | 3389110334722 |
| 子类别 | Not Specified |
| 交货期 | 14 Days |
| product weight | 0.38 kg |
| contacts material | Silver plated contacts |
| cable entry | 1 tapped entry for Pg 13.5 cable gland (included) |
| body type | Plug-in body |
| local display | Without |
| height | 40 mm |
| device short name | ZC2J |
| product or component type | Limit switch body |
| series name | Standard format |
| electrical durability | 5000000 cycles, DC-13 120 V, 4 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 24 V, 10 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C5000000 cycles, DC-13 48 V, 7 W, operating rate: < 60 cyc/mn, load factor: 0.5 conforming to IEC 60947-5-1 appendix C |
| width | 41 mm |
| resistance across terminals | 0.25 mOhm conforming to IEC 60255-7 category 3 |
| contacts type and composition | 2 C/O |
| contacts operation | Snap action |
| range of product | OsiSense XC |
| ambient air temperature for operation | -25...70 °C for standard environment |
| minimum actuation speed | 0.01 m/min |
| number of steps | 1 1 position |
| IP degree of protection | IP65 |
| body material | Metal |
| contact code designation | Q300, DC-13 (Ue = 250 V conforming to EN/IEC 60947-5-1 appendix AA300, AC-15 (Ue = 240 V, Ie = 3 A) , Ithe = 10 A conforming to EN/IEC 60947-5-1 appendix A |
| IK degree of protection | IK08 |
| product compatibility | XC2J |
| electrical connection | Screw-clamp terminals, clamping capacity: 1 x 0.75...2 x 1.5 mm ² |
| short circuit protection | 10 A by gG cartridge fuse |
| [Ui] rated insulation voltage | 300 V conforming to CSA 22-2 No 14 contact block500 V conforming to IEC 60947-1 contact block |
| depth | 81 mm |
| ambient air temperature for storage | -40...70 °C |
| associated head | ZC2JE01ZC2JE02ZC2JE03ZC2JE05ZC2JE09ZC2JE61ZC2JE62ZC2JE63ZC2JE64ZC2JE65ZC2JE66ZC2JE70 |
| positive opening | Without |
| number of poles | 2 |
| environmental characteristic | Standard environment |
