Schneider Electric

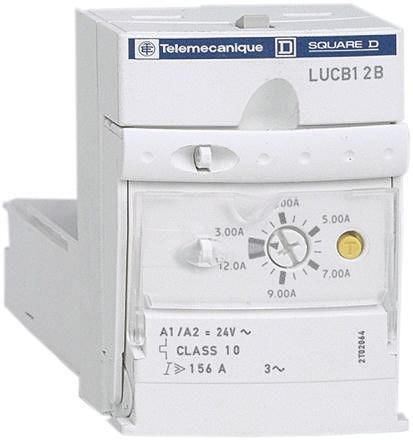

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 工业别名 | 785901270706, LUCD18BL |
| 子类别 | Solid State Relay |
| 交货期 | 14 Days |
| 组件类型 | Advanced Control Unit |
| 控制电压 | 24 V dc |
| 电流范围 | 4.5 → 18 A |
| 额定功率 | 15 kW |
| Range | TeSys U |
| RoHS指令 | Compliant |
| product certifications | ABSASEFAATEXBVCCCCSADNVGLGOSTLROS (Lloyds register of shipping)UL |
| vibration resistance | 2 gn 5...300 Hz power poles open conforming to IEC 60068-2-64 gn 5...300 Hz power poles closed conforming to IEC 60068-2-6 |
| operating time | 35 ms opening with LUB12 for control circuit35 ms opening with LUB32 for control circuit70 ms closing with LUB12 for control circuit70 ms closing with LUB32 for control circuit |
| resistance to fast transients | 2 kV class 3 serial link conforming to IEC 61000-4-44 kV class 4 all circuits except for serial link conforming to IEC 61000-4-4 |
| product weight | 0.14 kg |
| resistance to radiated fields | 10 V/m 3 conforming to IEC 61000-4-3 |
| function available | Earth fault protectionManual resetProtection against overload and short-circuitProtection against phase failure and phase imbalance |
| control circuit voltage limits | 20...27 V for DC circuit 24 V in operation |
| device short name | LUCD |
| standards | CSA C22-2 No 14 type EEN 60947-6-2IEC 60947-6-2UL 508 type E with phase barrier |
| immunity to radioelectric fields | 10 V conforming to IEC 61000-4-6 |
| resistance to electrostatic discharge | 8 kV level 3 in open air conforming to IEC 61000-4-28 kV level 4 on contact conforming to IEC 61000-4-2 |
| overload tripping class | Class 20 - frequency limit: 40...60 Hz - temperature compensation: -25...70 °C - conforming to IEC 60947-6-2Class 20 - frequency limit: 40...60 Hz - temperature compensation: -25...70 °C - conforming to UL 508 |
| product or component type | Advanced control unit |
| motor power kW | 15 kW at 690 V AC 50/60 Hz9 kW at 500 V AC 50/60 Hz7.5 kW at 400...440 V AC 50/60 Hz |
| typical current consumption | 130 mA at 24 V DC I maximum while closing with LUB12220 mA at 24 V DC I maximum while closing with LUB3260 mA at 24 V DC I rms sealed with LUB1280 mA at 24 V DC I rms sealed with LUB32 |
| mounting mode | Plug-in |
| heat dissipation | 3 W for control circuit with LUB32 |
| safe separation of circuit | 400 V SELV between the control and auxiliary circuits conforming to IEC 60947-1400 V SELV between the control or auxiliary circuit and the main circuit conforming to IEC 60947-1 |
| protective treatment | TH conforming to IEC 60068 |
| operating altitude | 2000 m |
| ambient air temperature for operation | -25...60 °C with LUCM-25...70 °C with LUCA, LUCB, LUCC, LUCD |
| mounting location | Front side |
| utilisation category | AC-41AC-43AC-44 |
| shock resistance | 10 gn power poles open conforming to IEC 60068-2-2715 gn power poles closed conforming to IEC 60068-2-27 |
| load type | 3-phase motor - cooling: self-cooled |
| IP degree of protection | IP20 front panel and wired terminals conforming to IEC 60947-1IP20 other faces conforming to IEC 60947-1IP40 front panel outside connection zone conforming to IEC 60947-1 |
| control circuit voltage | 24 V DC |
| fire resistance | 650 °C conforming to IEC 60695-2-12960 °C parts supporting live components conforming to IEC 60695-2-12 |
| product compatibility | ASILUFC5ASILUFC51LUFC00LUFDA01LUFDA10LUFDH11LUFN..LUFV2LUFW10LULC031LULC033LULC07LULC08LULC09LULC15 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947-6-2 |
| immunity to microbreaks | 3 ms |
| product specific application | Basic protection and advanced functions, communication |
| [Ui] rated insulation voltage | 600 V conforming to CSA 22-2 No 14600 V conforming to UL 508690 V conforming to IEC 60947-1 |
| ambient air temperature for storage | -40...85 °C |
| range of product | TeSys U |
| tripping threshold | 14.2 x Ir +/- 20 % |
| immunity to voltage dips | 70 % 500 ms conforming to IEC 61000-4-11 |
| thermal protection adjustment range | 4.5...18 A |
| 电流范围 | 4.5 → 18 A |
| 系列 | U-Line |
| 额定功率 | 15 kW |
| 控制电压 | 24 V 直流 |
| 元件类型 | 高级控制装置 |
| 范围 | TeSys |
