weidmuller

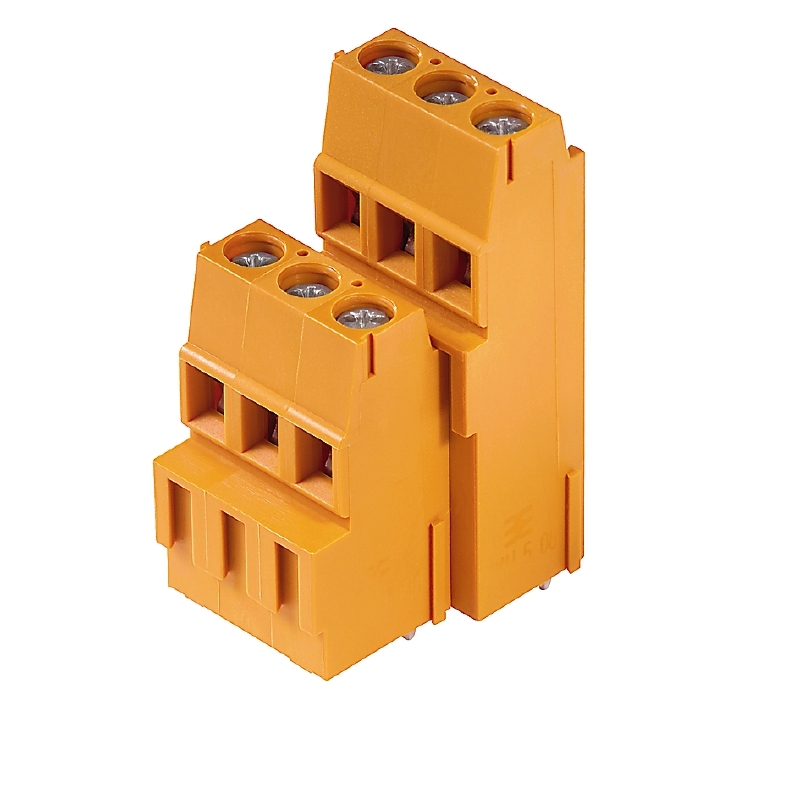

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Terminal Block |
| 触点数 | 48 |
| 电路数 | 24 |
| 间距 | 5.08 mm |
| 端接方式 | Solder |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 行数 | 2 |
| 外壳颜色 | Orange |
| 线径规格 | 14-24 AWG |
| 标准包装 | Bulk |
| 封装 | Bulk |
| 楼层数 | 2 |
| 安装类型 | Through Hole |
| 啮合定位 | Horizontal with Board |
| 触点材料 - 镀层 | Copper Alloy - Tin Plated |
| 线规 | 14-24 AWG |
| 每一级的位置 | 24 |
| 外壳材料 | Thermoplastic, Wemid |
| 电流 | 15A |
| 颜色 | Orange |
| 工作温度 | -50°C ~ 120°C |
| 螺纹 | M2.5 |
| 电压 | 300V |
| 导线端子 | Screw - Clamping Yoke, Tension Sleeve |
| 转矩 - 螺钉 | 0.4-0.5 Nm (3.5-4.4 Lb-In) |
| 其他名称 | LM2H 5.08/90/48 OR |
| 产品特点 | Interlocking (Side) |
| RoHS指令 | Lead free / RoHS Compliant |
| Solder eyelet hole diameter (D) | 1.3 mm |
| Net weight | 97 g |
| Wire connection cross section AWG, max | AWG 14 |
| Rated voltage (Use group B) | 300 V |
| Pitch in inches (P) | 0.2 inch |
| Rated impulse voltage for surge voltage class/ pollution degree III/2 | 4 kV |
| Wire connection method | Clamping yoke connection |
| Layer structure of solder connection | 1-3 µm Ni / 4-6 µm Sn matt |
| EDA Layout Library (Mentor Graphics Expedition, Mentor Graphics Pads, Altium Designer) | Select your download |
| w plastic collar ferrule, DIN 46228 pt 4, max | 1.5 mm² |
| Rated voltage (use group B) | 300 V |
| Volume resistance | 1.20 mΩ |
| Conductor outlet direction | 90° |
| Solid, max* H05(07) V-U | 2.5 mm² |
| Insulating material | Wemid (PA) |
| Rated voltage (use group D) | 300 V |
| Product data | IEC: 630 V / 17.5 A / 0.2 - 2.5 mm²UL: 300 V / 15 A / AWG 24 - AWG 14 |
| Tightening torque, min | 0.4 Nm |
| Tightening torque, max | 0.5 Nm |
| Rated impulse voltage for surge voltage class/ contamination degree III/3 | 4 kV |
| Insulation resistance | ≥ 108 Ω |
| Clamping range, rated connection, max | 2.5 mm² |
| Wire connection cross section AWG, min | AWG 24 |
| Product family | OMNIMATE Signal - series LM |
| CAD Library (P-CAD Format - ASCII) | LM2H.zip |
| UL 94 flammability rating | V-0 |
| Screwdriver blade | 0.6 x 3.5 |
| Rated current, min* no* of poles (Ta = 40°C) | 17.5 A |
| Short-time withstand current resistance | 3 x 1s with 120 A |
| 版本 | PCB terminal, 5.08 mm, No. of poles: 48, 90°, Solder pin length (l): 3.5 mm, tinned, Orange, Clamping yoke connection, Clamping range, rated connection, max.: 2.5 mm², Box |
| L1 in inches | 4.4 inch |
| Flexible, min* H05(07) V-K | 0.2 mm² |
| Rated current, min* no* of poles (Ta = 20°C) | 17.5 A |
| Rated current, max* no* of poles (Ta = 40°C) | 14.2 A |
| Insulating material group | I |
| Temperature range, installation, max | 120 °C |
| w* wire end ferrule, DIN 46228 pt 1, min | 0.25 mm² |
| eClass 8*1 | 27-44-04-01 |
| eClass 9*0 | 27-44-04-01 |
| Mounting onto the PCB | THT solder connection |
| Storage temperature, min | -25 °C |
| tested acc* to standard | IEC 60664-1, IEC 61984 |
| Rated current (use group D) | 10 A |
| Storage temperature, max | 55 °C |
| Fitted by customer | Yes |
| Clamping screw | M 2.5 |
| ROHS | Conform |
| ETIM 3*0 | EC001284 |
| Operating temperature, max | 120 °C |
| Plug gauge acc* to EN 60999 a x b; Ø | 2.4 mm x 1.5 mm; 1.9mm |
| Certificate No* (cURus) | E60693 |
| GTIN (EAN) | 4032248116522 |
| Max* relative humidity during storage | 80 % |
| CTI | ≥ 600 |
| Touch-safe protection acc* to DIN VDE 0470 | IP 20 |
| UNSPSC | 30-21-18-01 |
| Pitch in mm (P) | 5.08 mm |
| Contact surface | tinned |
| ETIM 5*0 | EC002643 |
| Rated voltage for surge voltage class / pollution degree III/3 | 250 V |
| IPC conformity | The products are developed, manufactured and delivered according to the internationally recognised IPC-A-610 standard, category "permissible". More extensive demands on the products can be evaluated on request. |
| L1 in mm | 111.76 mm |
| eClass 7*1 | 27-44-04-01 |
| Screwdriver blade standard | DIN 5264 |
| Rated voltage for surge voltage class / pollution degree II/2 | 630 V |
| Touch-safe protection acc* to DIN VDE 57 106 | Safe from finger touch |
| Temperature range, installation, min | -25 °C |
| Solder pin dimensions | 0.95 x 0.8 mm |
| Rated current (use group B) | 15 A |
| Stripping length | 6 mm |
| 涂层 | 1-3 μm Ni, 4-6 μm SN |
| Solid, min* H05(07) V-U | 0.2 mm² |
| w plastic collar ferrule, DIN 46228 pt 4, min | 0.25 mm² |
| Rated voltage for surge voltage class / pollution degree III/2 | 320 V |
| eClass 6*2 | 27-26-11-01 |
| Wire cross-section, AWG, min | AWG 24 |
| Certificate No* (CSA) | 200039-1815154 |
| Colour chart (similar) | RAL 2000 |
| No* of poles | 48 |
| CAD Library (P-CAD Format - Standard) | LM2H.zip |
| Wire cross-section, AWG, max | AWG 14 |
| Number of solder pins per pole | 1 |
| Engineering data | EPLAN |
| 行数 | 2 |
| Tinning type | matt |
| Contact material | Cu-Leg |
| Clamping range, rated connection, min | 0.2 mm² |
| Solder eyelet hole diameter tolerance (D) | + 0,1 mm |
| Flexible, max* H05(07) V-K | 2.5 mm² |
| ETIM 4*0 | EC002643 |
| 注 | Rated current related to rated cross-section & min. No. of poles. Wire end ferrule without plastic collar to DIN 46228/1 Wire end ferrule with plastic collar to DIN 46228/4 P on drawing = pitch Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards. |
| Max* adjacent poles per row | 48 |
| Rated current, max* no* of poles (Ta = 20°C) | 16 A |
| Solder pin length (l) | 3.5 mm |
| Rated impulse voltage for surge voltage class/ pollution degree II/2 | 4 kV |
| w wire end ferrule, DIN 46228 pt 1, max | 1.5 mm² |
| Reference to approval values | Specifications are maximum values, details - see approval certificate. |
| 颜色 | Orange |
| ETIM 6*0 | EC002643 |
| Operating temperature, min | -50 °C |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
