weidmuller

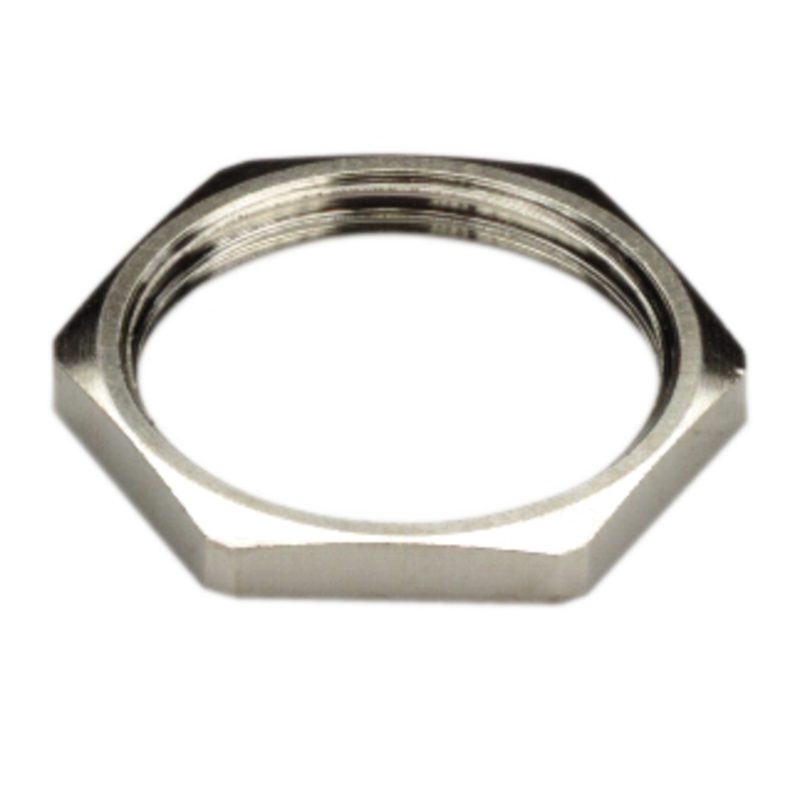

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Lock Nut |
| 家庭 | 1737020000 |
| 标准包装 | Bulk |
| 螺纹尺寸 | M32 |
| 电镀 | Nickel |
| 材质 | Brass |
| 厚度 | 0.157" (4.00mm) |
| 封装 | 20 per Pkg |
| 宽度 | 1.417" (36.00mm) |
| RoHS指令 | Lead free / RoHS Compliant |
| Pitch of thread | 1.5 mm |
| External thread | M 32 |
| ETIM 3*0 | EC000940 |
| Engineering data | EPLAN |
| Net weight | 2.12 g |
| 版本 | Accessories, Locknut, M 32, 4 mm, Brass, nickel-plated |
| AF size 1 | 36 mm |
| Internal thread | M 32 |
| GTIN (EAN) | 4008190956493 |
| Descriptive text ordering data | Further versions on request |
| UNSPSC | 30-21-18-01 |
| Cable gland | metric |
| eClass 5*1 | 23-11-07-01 |
| eClass 8*1 | 27-14-91-09 |
| ETIM 4*0 | EC000441 |
| ETIM 5*0 | EC000441 |
| eClass 9*0 | 27-14-44-32 |
| eClass 9*1 | 27-14-44-24 |
| eClass 7*1 | 27-14-91-09 |
| ETIM 6*0 | EC000940 |
| OD | 41.58 mm |
| Length of thread | 4 mm |
| eClass 6*2 | 27-14-91-09 |
| ROHS | Conform |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
