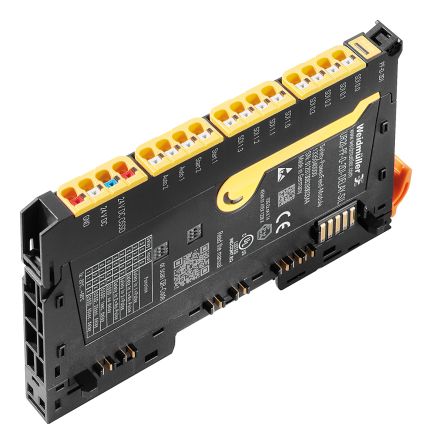

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| Air humidity (transport) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Pollution severity | 2 |
| Air pressure (storage) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| Air pressure (operation) | ≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2 |
| Safety category | SIL 3 |
| Wire cross-section, solid, max | 1.5 mm² |
| Air humidity (operation) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| GTIN (EAN) | 4050118138191 |
| Wire connection cross section, finely stranded, max | 1.5 mm² |
| Proportion of safety-related outages (SFF) | 98 % |
| Safety manual | ZIP/UR20_Manual_Safety_u-remote.zip |
| eClass 9*0 | 27-24-26-10 |
| eClass 7*1 | 27-24-26-10 |
| Field bus protocol | CANopen, DeviceNet, EtherCAT, EtherNet/IP, Modbus/TCP, PROFINET IRT, PROFIBUS DP-V1 |
| Module type | Safe power-feed module |
| Current consumption from IIN (power segment of the field bus coupler), typ* [mA] | 8 mA |
| Height (inches) | 4.724 inch |
| Operating temperature | -20 °C ... +60 °C |
| 电源电压 | 24 V DC +20%/ -15%, via the system bus |
| 接口 | u-remote system bus |
| eClass 8*1 | 27-24-26-10 |
| ETIM 4*0 | EC001605 |
| ETIM 5*0 | EC001605 |
| 测试电压 | 500 V |
| Feed current for IOUT (output current path) [mA], max | 8,050 mA |
| Engineering data | EPLAN, SISTEMA |
| Depth (inches) | 2.992 inch |
| eClass 9*1 | 27-24-26-02 |
| Wire cross-section, finely stranded, min* (AWG) | AWG 26 |
| 冲击 | 25 g over 6 ms, half sine wave, 1000 shocks per axis and direction as per IEC 60068-2-27 |
| Manual | UR20_Manual_u-remote_EN_DE |
| Air pressure (transport) | 1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2 |
| 深度 | 76 mm |
| Air humidity (storage) | 10% to 95%, non-condensing as per DIN EN 61131-2 |
| Storage temperature | -40 °C ... +85 °C |
| Wire connection cross-section, finely stranded, min | 0.14 mm² |
| Declaration of Conformity | Declaration_of_Conformity |
| Wire cross-section, solid, min | 0.14 mm² |
| Wire cross-section, finely stranded, max* (AWG) | AWG 16 |
| UL 94 flammability rating | V-0 |
| 类型 | UR20-PF-O-2DI-DELAY-SIL |
| Width (inches) | 0.453 inch |
| MTTF | 100 Years |
| 重量 | 85 g |
| 宽度 | 11.5 mm |
| ETIM 6*0 | EC001605 |
| Net weight | 85 g |
| Mounting dimension - height | 128 mm |
| 身高 | 120 mm |
| 版本 | Remote I/O module, IP20, Safety, SIL power supply |
| eClass 6*2 | 27-24-26-10 |
| Wire cross-section, solid, max* (AWG) | AWG 16 |
| Surge voltage category | II |
| Descriptive text accessories | 1 roll = 1000 label = 1 Qty.1 sheet = 60 label = 1 Qty. |
| Wire cross-section, solid, min* (AWG) | AWG 26 |
| Type of connection | PUSH IN |
| Vibration-proof | 5 Hz ≤ f ≤ 8.4 Hz: 3.5 mm amplitude as per IEC 60068-2-6, 8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6 |
| ROHS | Conform |
| Galvanic isolation | Yes, between field and system bus |
| 到主机的连接 | 背板 |
| 输入电流 | 8mA |
| 电源电压 | 24 V 直流 |
| 最高工作温度 | +60°C |
| 安装类型 | DIN 导轨 |
| 最低工作温度 | -20°C |
| 宽度 | 11.5mm |
| 尺寸 | 120 x 11.5 x 76 mm |
| 应用 | 通信 |
| 深度 | 76mm |
| 长度 | 120mm |
| 模块类型 | 安全模块 |
