Bulgin

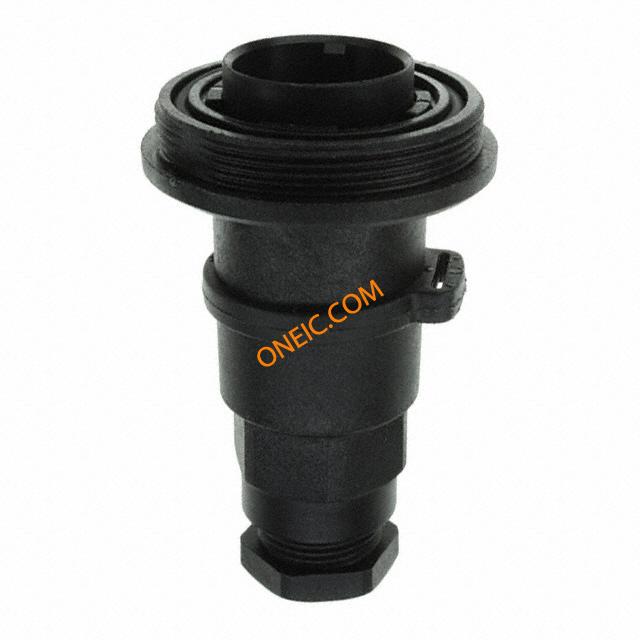

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 封装 | Bulk |
| 防护等级 | IP68/69K - Dust Tight, Waterproof |
| 定位 | Keyed |
| 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle for Male Contacts |
| 外壳材料，表面处理 | Polyamide, Glass Filled |
| 注 | Contacts Not Provided |
| 紧固型 | Threaded |
| 标准包装 | 25 |
| 触点类型 | Crimp and Solder Cup |
| 位置数 | 25 |
| 身体上的取向 | Straight |
| 联系人性别 | Male |
| 触点材料 | Copper Alloy |
| 触点电镀 | Gold over Nickel |
| 额定电流 | 1A |
| 最高工作温度 | +70°C |
| 最低工作温度 | -20°C |
| 触点数 | 25 |
| 系列 | Buccaneer |
| 端接方式 | Crimp, Solder |
| 额定电压 | 50 V ac/dc |
| RoHS指令 | Non Compliant |
| 工厂包装数量 | 25 |
| 产品种类 | Standard Circular Connector |
| 端接类型 | Crimp / Solder |
| 安装风格 | Free Hanging |
| 位置/触点数 | 25 |
| 外壳类型 | Plug |
| 产品类型 | Connectors |
| RoHS | RoHS Compliant |
| Connector Body Material | :Glass Filled Nylon (Polyamide) |
| 性别 | :Plug |
| Connector Mounting | :Cable |
| Connector Shell Size | :- |
| 插入安排 | :- |
| No. of Positions | :25 |
| SVHC | :No SVHC (19-Dec-2012) |
| Cable Diameter Max | :8.1mm |
| 颜色 | :Black |
| 接触电阻最大 | :5mohm |

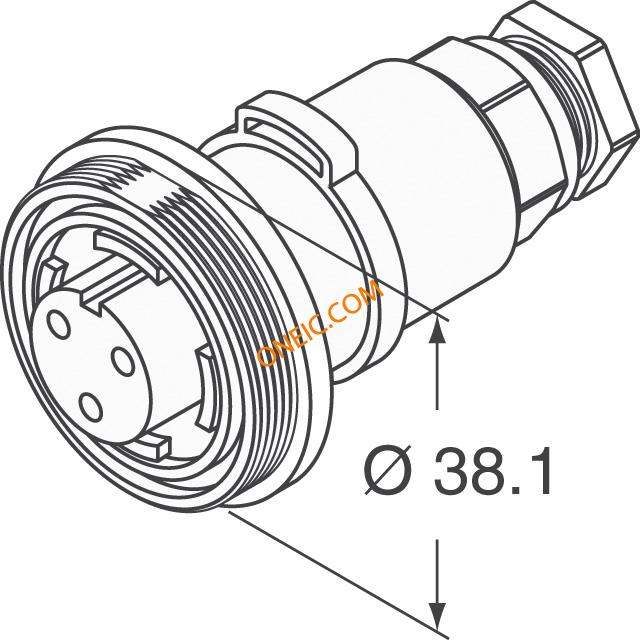

| External Diameter | :38.1mm |
| External Length / Height | :67.4mm |
| 可燃性等级 | :UL94V-0 |
| IP / NEMA Rating | :IP68 |
| 绝缘电阻 | :100Mohm |
| Operating Temperature Max | :70°C |
| Operating Temperature Min | :-20°C |
| Voltage Rating V AC | :50V |
| Voltage Rating V DC | :50V |
| 工作电压 | :50V |
| Weight (kg) | 0.018 |
| Tariff No. | 85369010 |
| AgencyApprovals | ULRecognized/CSA/VDE |
| Angle | Straight |
| ContactPlating | Gold |
| ContactType | Pin |
| Current,Rating | 1A |
| Diameter,Cable | 7-9mm |
| FlammabilityRating | UL94-HB |
| HousingType | Plastic |
| IPRating | IP68 |
| Material,Dielectric | Polyamide |
| Material,Housing | GlassFilledPolyamide |
| NumberofContacts | 25 |
| PrimaryType | Sealed |
| 端子 | Crimp/Solder |
| 类型 | CablePlug |
| Voltage,Rating | 50VAC/VDC |
| Wire,AWG | 24-26 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
