Bulgin

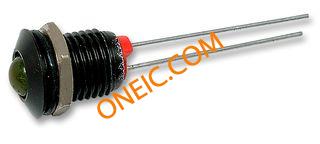

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | LED Panel Mount Indicators |
| RoHS | RoHS Compliant |
| LED尺寸 | 5 mm |
| 照明颜色 | Yellow |
| 正向电流 | 20 mA |
| 正向电压 | 2.1 V |
| 安装风格 | Panel |
| 封装 | Bulk |
| 发光强度 | 20 mcd |
| 工厂包装数量 | 50 |
| 电压 - 正向（Vf ）典型值 | 2.1V |
| 连接方式 | Through Hole |
| 面板开孔尺寸 | 8mm (Round) |
| 透镜样式/尺寸 | Round with Domed Top, 5mm |
| 颜色 | Yellow |
| Millicandela等级 | 20mcd |
| 标准包装 | 1 |
| 电流 - DC正向（If ） | 20mA |
| 类型 | LED |
| 产品特点 | IP66, Aluminum Bezel |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品 | LED Panel Mount Indicators |
| 透镜形状 | Dome |
| Mounting Hole Dia | :8mm |
| 指示灯颜色 | :Yellow |
| Forward Current If | :30mA |
| SVHC | :No SVHC (19-Dec-2012) |
| Bezel Diameter | :10.3mm |
| Bulb Size | :5mm |
| Current If Luminous Intensity | :20mA |
| External Diameter | :10.3mm |
| External Length / Height | :14.2mm |
| 安装孔直径 | :8mm |
| Forward Current If Max | :30mA |
| Forward Voltage VF Max | :2.1V |
| IP / NEMA Rating | :IP66 |
| LED / Lamp Size | :5mm |
| Luminous Intensity Typ | :6mcd |
| 安装类型 | :Panel |
| Operating Temperature Max | :100°C |
| Operating Temperature Min | :-40°C |
| 工作温度范围 | :-40°C to +100°C |
| PIV Max | :5V |
| Panel Thickness Max | :5.6mm |
| Peak Forward Current | :35mA |
| 螺纹尺寸 | :.312 x 32 T.P.I. |
| Voltage Vf Typ | :2.1V |
| Weight (kg) | 0.002 |
| Tariff No. | 85414010 |
