Neutrik

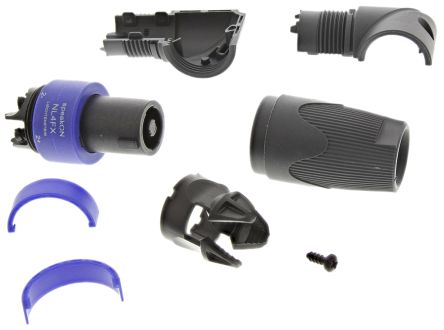

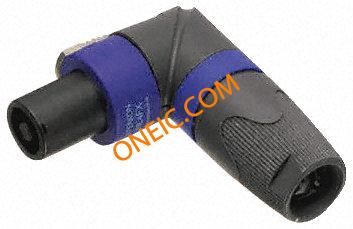

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Right Angle |
| 触点材料 | Brass |
| 触点电镀 | Silver |
| 额定电流 | 40A |
| 性别 | Female |
| 外壳材料 | PBT |
| 最高工作温度 | +80°C |
| 最低工作温度 | -30°C |
| 安装类型 | Cable Mount |
| 触点数 | 4 |
| 端接方式 | Screw Down, Solder |
| 额定电压 | 250 V |
| 工厂包装数量 | 10 |
| 产品种类 | Loudspeaker Connectors |
| 定位 | Right Angle |
| 颜色 | Black |
| 端接类型 | Screw |
| 单位重量 | 2 oz |
| 标准 | Speakon, HPC |
| 安装风格 | Cable |
| 位置/触点数 | 4 |
| 系列 | NL4FRX |
| RoHS | RoHS Compliant |
| No. of Contacts | :4 |
| Connector Colour | :Grey |
| 接触端子 | :Screw |
| Connector Mounting | :Cable |
| Connector Body Material | :Plastic |
| SVHC | :No SVHC (20-Jun-2013) |
| 颜色 | :Grey |
| Connector Mounting Orientation | :Cable |
| 接触电阻 | :2mohm |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :1Gohm |
| No. of Mating Cycles | :5000 |
| Operating Temperature Max | :+80°C |
| Operating Temperature Min | :-30°C |
| Weight (kg) | 0.06 |
| Tariff No. | 85369010 |
| AgencyApprovals | UL,CSA |
| Angle | RightAngle |
| Brand/Series | Speakon |
| CableSize | 0.24to0.55in. |
| ContactPlating | Silver |
| CurrentRating | 40A |
| Current,Rating | 40A(Continuous),50A(Audiosignal) |
| FlammabilityRating | UL94HB |
| Flammability,Housing | UL94V-0,UL94HB |
| InsulationType | Uninsulated |
| Material,Body | PBTP |
| Material,Contact | Brass |
| Material,Housing | PBTP20%GR |
| MountingType | Cable |
| NumberofContacts | 4 |
| NumberofPoles | 4 |
| PrimaryType | Speaker |
| Resistance,Insulation | >1Gigaohms |
| TemperatureRange | -30to+80°C |
| 端子 | Screw/Solder |
| 类型 | Jack |
| Voltage,Rating | 250V |
| RoHS指令 | RoHS Compliant Part |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
