Vishay/Spectrol

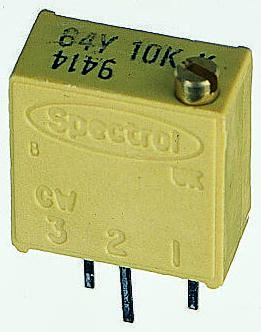

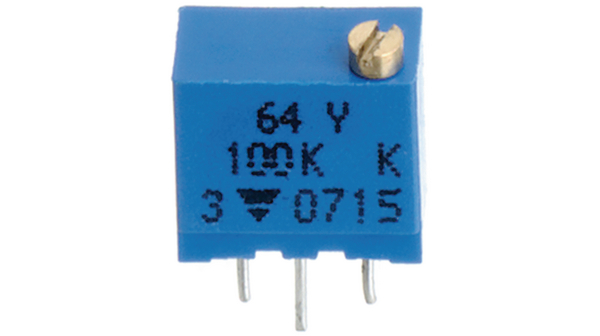

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 产品种类 | Trimmer Resistors - Through Hole |
| RoHS | RoHS Compliant By Exemption |
| 产品 | Trimmer Resistors - Multi Turn |
| 产品类型 | Multi-Turn |
| 圈数 | 25 |
| 电阻 | 100 Ohms |
| 额定功率 | 500 mW (1/2 W) |
| 容差 | 10 % |
| 调整 | Top Crossed |
| 元素类型 | Cermet |
| 安装 | PCB Mount |
| 工作温度范围 | - 55 C to + 125 C |
| 封装 | Bulk |
| 工厂包装数量 | 200 |
| 电阻值 | 100 |
| 欧盟RoHS指令 | Compliant |
| 产品厚度 | 5 |
| 技术 | Cermet |
| 温度系数 | ±100 |
| 端接类型 | Pin |
| 产品长度 | 9.7 |
| 产品高度 | 11.1 |
| 额定功率 | 0.5 (1/2) |
| 类型 | Trimmer |
| 轴直径 | 2.2 |
| 圈数 | 21(Elec)|23(Mech) |
| 单位包 | 200 |
| 最小起订量 | 200 |
| 深度 | 5mm |
| 外形尺寸 | 9.7 x 5 x 11.1mm |
| 身高 | 11.1mm |
| 长度 | 9.7mm |
| 最高工作温度 | +155°C |
| 最大阻力 | 100Ω |
| 最低工作温度 | -55°C |
| 安装类型 | Through Hole |
| 轴直径 | 2.2 mm |
| 温度系数 | ±100ppm/°C |
| RoHS指令 | Compliant |
| Track Resistance | :100ohm |
| No. of Turns | :21 |
| 电阻公差 | :± 10% |
| Potentiometer Mounting | :Through Hole |
| 调节型 | :Top |
| Approval Category | :MIL-R-22097 |
| Contact Resistance Variation + | :2% |
| End Resistance | :1ohm |
| External Length / Height | :9.91mm |
| Full Power Rating Temperature | :70°C |
| Lead Cross-section Depth | :0.51mm |
| Lead Cross-section Width | :0.25mm |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Proof Voltage | :1000V |
| Resistor Element Material | :Cermet |
| Resistor Mounting | :Through Hole |
| Resistor Terminals | :Radial Leaded |
| 系列 | :64Y |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| 终端类型 | :PCB Terminals |
| Tolerance + | :10% |
| Tolerance - | :10% |
| Track Taper | :Linear |
| 额定电压 | :300V |
| Voltage Rating V DC | :300V |
| Weight (kg) | 0.008 |
| Tariff No. | 85334010 |
| Temperature coefficient | 100ppm/°C |
| Potentiometer standard | 3/8" |
| 功率 | 500mW |
| Potentiometer type | mounting |
| Multiplicity | 1 |
| 扭矩 | 1,5Ncm |
| Track material | cermet |
| Potentiometer kind | multiturn |
| Gross weight | 1 g |
| Operating temperature | -55...155°C |
| Number of mechanical turns | 23 ±5 |
| Characteristics | linear |
| 密封 | IP67 |
| Collective package [pcs] | 200 |
| spg | 200 |
