Vishay / Sfernice

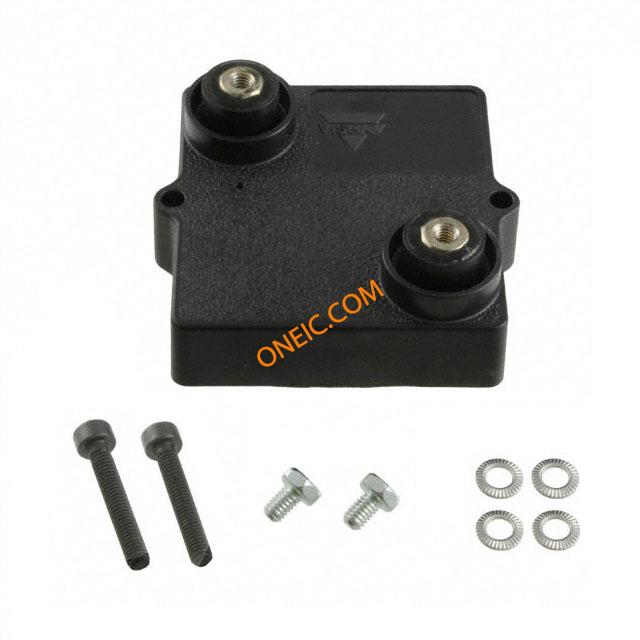

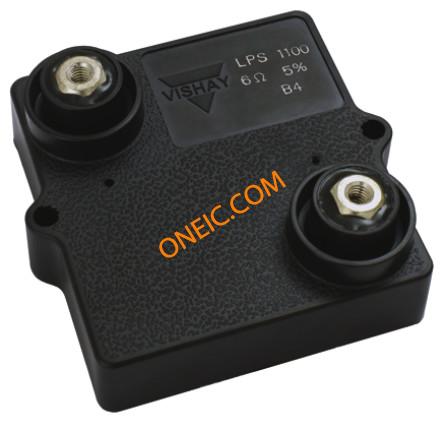

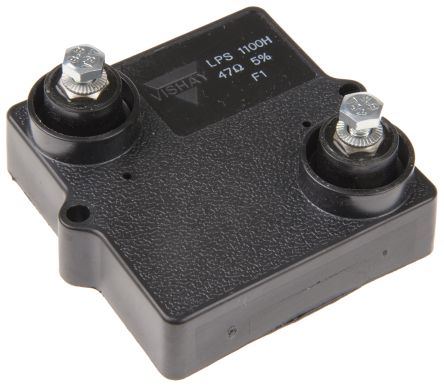

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant By Exemption |
| 电阻 | 47 Ohms |
| 额定功率 | 1.1 kW |
| 容差 | 5 % |
| 额定电压 | 5 kV |
| 系列 | LPS |
| 温度系数 | 150 PPM / C |
| 工作温度范围 | - 55 C to + 200 C |
| 外形尺寸 | 57 mm W x 60 mm L x 25.2 mm H |
| 封装 | Bulk |
| 表壳厚度 | 25.2 mm |
| 表壳长度 | 60 mm |
| 表壳宽度 | 57 mm |
| 绝缘强度 | 12 kV |
| 类型 | Non-Inductive Thick Film Power Resistor for Mounting onto a Heatsink |
| 寿命 | New At Mouser |
| 单位包 | 15 |
| 最小起订量 | 15 |
| 电阻（欧姆） | 47 |
| 产品特点 | Non-Inductive |
| 引线类型 | M4 Threaded |
| 安装特点 | Flanges |
| 身高 | 1.000" (25.40mm) |
| 尺寸/尺寸 | 2.362" L x 2.244" W (60.00mm x 57.00mm) |
| 功率（瓦特） | 1100W |
| 标准包装 | 15 |
| 成分 | Thick Film |
| 其他名称 | LPS-47.0D |
| 封装/外壳 | Box |
| RoHS指令 | Lead free / RoHS Compliant |
| 技术 | Thick Film |
| 端接类型 | Screw |
| 产品范围 | :VISHAY - LPS 1100 Series |
| 电阻公差 | :± 5% |
| Resistor Terminals | :Screw |
| Resistor Element Material | :Thick Film |
| Operating Temperature Max | :200°C |
| Operating Temperature Min | :-55°C |
| Resistor Case Style | :Heat Sinkable Planar |
| Resistor Mounting | :Panel |
| Weight (kg) | 0.088 |
| Tariff No. | 85332100 |
| Material,Element | ThickFilm |
| PackageType | Planar |
| Power,Rating | 1100W |
| Temperature,Operating,Maximum | 120°C |
| Temperature,Operating,Minimum | –55°C |
| 端子 | SMT |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
