vishay / dale

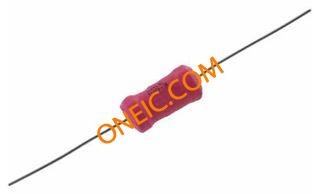

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | High Current Filter |
| 电感 | 100 mH |
| 容差 | 15 % |
| 产品长度 | 22.86 mm |
| 最大直流电流 | 70 mA |
| 引线类型 | Axial |
| 芯材 | Ferrite |
| 最大直流电阻 | 76 Ohm |
| 工作温度 | -55 to 125 °C |
| 标准包装 | Bulk |
| 单位包 | 190 |
| 最小起订量 | 190 |
| 封装 | Bulk |
| 额定电流 | 70mA |
| 直流电阻（DCR ） | 76 Ohm Max |
| 材料 - 芯 | Ferrite |
| 屏蔽 | Unshielded |
| 供应商设备封装 | Axial |
| 尺寸/尺寸 | 0.460" Dia x 0.900" L (11.68mm x 22.86mm) |
| 安装类型 | Through Hole |
| 频率 - 测试 | 1kHz |
| 电流 - 饱和 | 60mA |
| 其他名称 | 541-1454 |
| 封装/外壳 | Axial |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品范围 | :VISHAY - IHD Series |
| Inductance Tolerance | :± 15% |
| DC Current Rating | :70mA |
| DC Resistance Max | :76ohm |
| Case Dimensions | :11.68mm x 22.86mm |
| Inductor Case Style | :Axial Leaded |
| 电感类型 | :High Frequency |
| No. of Pins | :2 |
| Weight (kg) | 0.005 |
| Tariff No. | 85045095 |
| Current,Rating | 0.07A |
| Diameter,Lead | 0.032" |
| Length,Lead | 1.13" |
| Resistance,DC | 76Ohms |
| Temperature,Operating,Maximum | +125°C |
| Temperature,Operating,Minimum | -55°C |
| 端子 | PCB,Axial |
