HARWIN

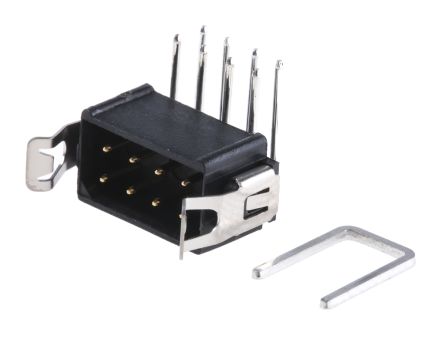

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 身体上的取向 | Right Angle |
| 触点材料 | Phosphor Bronze |
| 额定电流 | 3A |
| 触点数 | 8 |
| 行数 | 2 |
| 间距 | 2mm |
| 系列 | M80 |
| 端接方式 | Solder |
| 类型 | Board to Board |
| 额定电压 | 120 V ac/dc |
| 工厂包装数量 | 21 |
| 安装方式 | Right |
| 产品种类 | Headers & Wire Housings |
| 触点电镀 | Gold |
| 外壳材料 | Thermoplastic |
| 端接类型 | Through Hole |
| 联系人性别 | Pin (Male) |
| 位置/触点数 | 8 |
| 商品名 | DATAMATE |
| 产品类型 | Plugs - PCB |
| RoHS | RoHS Compliant |
| 节距 | :2mm |
| No. of Rows | :2 |
| No. of Contacts | :8 |
| 性别 | :Plug |
| 接触端子 | :Solder |
| SVHC | :No SVHC (20-Jun-2013) |
| 颜色 | :Black |
| 接触电阻 | :25mohm |
| 可燃性等级 | :UL94V-0 |
| 绝缘电阻 | :100Mohm |
| 引线间距 | :2mm |
| 材质 | :Polyamide 46 |
| No. of Mating Cycles | :500 |
| Operating Temperature Max | :125°C |
| Operating Temperature Min | :-55°C |
| Row Pitch | :2mm |
| 工作电压 | :120V |
| Weight (kg) | 0.0008 |
| Tariff No. | 85366990 |
