Mean Well

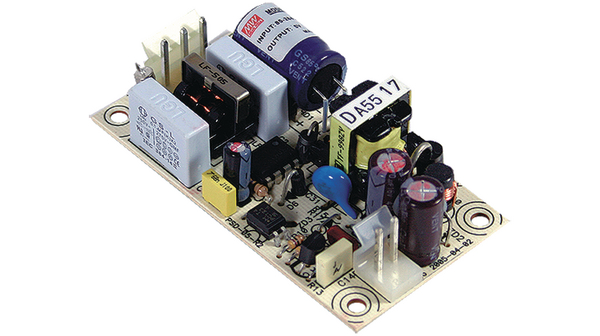

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 输出数 | 1 |
| 产品 | Switching Supplies |
| 产品种类 | Linear and Switching Power Supplies |
| 外形尺寸 | 75 mm L x 40 mm W |
| 工厂包装数量 | 120 |
| 额定输出功率 | 5 W |
| 输出电压通道1 | 5 VDC |
| 身高 | 20 mm |
| 安装风格 | Chassis |
| 宽度 | 40 mm |
| 长度 | 75 mm |
| 输入电压 | 85 VAC to 264 VAC, 120 VDC to 370 VDC |
| RoHS | RoHS Compliant |
| 开放式/封闭式 | Open Frame |
| 输出电流通道1 | 1 A |
| Number of outputs | 1 |
| Body dimensions | 75 x 40 x 20mm |
| 输出电流 | 1A |
| 功率 | 5W |
| Power supply construction | open |
| Multiplicity | 1 |
| Electrical connection | plug with 3,96mm pitch, plug with 5,08mm pitch |
| 重量 | 50g |
| Gross weight | 0.04 kg |
| Power supply/converter features | rated parameters obtained at full load |
| Operating temperature | -10...60°C |
| 输出电压 | 5V DC |
| 电源电压 | 120...370V DC, 85...264V AC |
| 安装 | for building in |
| Pwr sup unit type | pulse |
| 保护功能 | overload, overheating, voltage growth, short-circuit |
| Collective package [pcs] | 2 |
| spg | 2 |
| Max Power | 5 Wattswith airflow |
| Output(s) | 5.0V @ 1.00A |
| 系列 | MEAN WELLPS-05 |
| Vout Range | 5 ~ 48 |
| 效率 | 70.00% |
| Dimensions (Inches) | 2.95 x 1.57 x 0.79" |
| # of Outputs | 1 |
| In Stock | 127 |
| Convection | 5 Wattsconvection cooled |
| Dimensions L x W x H | 75 x 40 x 20 mm |
| Output voltage 1 | 5 VDC |
| DC input voltage | 120...370 VDC |
| Input frequency | 47...63 Hz |
| Output current 1 | 1 A |
| AC input voltage | 85...264 VAC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
