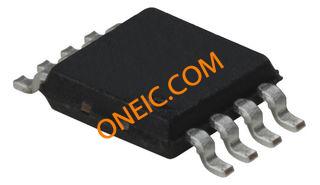

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 包装 | 8uMAX |
| 分辨率 | 12 Bit |
| 采样速率 | 94.4 ksps |
| ADC的数量 | 1 |
| 模拟量输入数 | 4|2 |
| 建筑 | SAR |
| 数字接口类型 | Serial (2-Wire, I2C) |
| 输入类型 | Voltage |
| 极性输入电压 | Unipolar|Bipolar |
| 标准包装 | Rail / Tube |
| 标准包装 | Bulk |
| 位数 | 12 |
| 安装类型 | Surface Mount |
| 数据接口 | I²C, Serial |
| 采样率（每秒） | 94.4k |
| 供应商设备封装 | 8-uMAX |
| 电压电源 | Single Supply |
| 封装 | Tube |
| 工作温度 | -40°C ~ 85°C |
| 输入数目和类型 | 4 Single-Ended, Unipolar; 4 Single-Ended, Bipolar; 2 Differential, Unipolar; 2 Differential, Bipolar |
| 转换器数量 | 1 |
| 封装/外壳 | 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) |
| RoHS指令 | Lead free / RoHS Compliant |
| 外形尺寸 | 3.05 x 3.05 x 0.95mm |
| 身高 | 0.95mm |
| 输入信号类型 | Differential |
| 积分非线性误差 | ±1LSB |
| 长度 | 3.05mm |
| 最高工作温度 | +85 °C |
| 最低工作温度 | -40 °C |
| 包装类型 | μSOP |
| 引脚数 | 8 |
| 电源类型 | Single |
| 典型的单电源电压 | 4.5 → 5.5 V |
| 宽度 | 3.05mm |
| 工作电源电压 | 2.7 V to 3.6 V |
| 转换速率 | 94.4 KSPs |
| 工厂包装数量 | 2500 |
| 最大功率耗散 | 470.6 mW |
| 系列 | MAX1237 |
| 安装风格 | SMD/SMT |
| 通道数 | 4 Channel/2 Channel |
| 接口类型 | I2C |
| 封装/外壳 | uMAX-8 |
| 参考电压 | Internal 2.048 V |
| 信噪比 | Yes |
| RoHS | RoHS Compliant |
| 分辨率（位） | :12bit |
| Supply Voltage Type | :Single |
| Supply Voltage Min | :2.7V |
| Supply Voltage Max | :3.6V |
| 电源电流 | :900µA |
| Digital IC Case Style | :µMAX |
| No. of Pins | :8 |
| Input Channel Type | :Single Ended |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :85°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| Base Number | :1237 |
| IC Case Style | :µMAX |
| No. of Channels | :4 |
| 工作温度范围 | :-40°C to +85°C |
| Supply Voltage Range | :2.7V to 3.6V |
| Supply Voltage Range - Analogue | :2.7V to 3.6V |
| 端接类型 | :SMD |
| Weight (kg) | 0.0002 |
| Tariff No. | 85423190 |
