STMicroelectronics

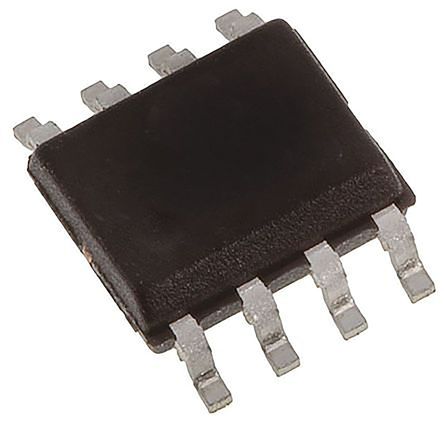

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 制造商类型 | Low Power Amplifier |
| Typical Single Supply Voltage | 3|5 |
| 安装 | Surface Mount |
| 轨至轨 | Rail to Rail Output |
| 包装宽度 | 4(Max) |
| PCB | 8 |
| 筛选等级 | Extended |
| 类型 | General Purpose Amplifier |
| 最大输入偏置电流 | 0.06@5V |
| 欧盟RoHS指令 | Compliant |
| Typical Gain Bandwidth Product | 1.3 |
| Typical Voltage Gain | 110 |
| 电源类型 | Single |
| 每个芯片的通道数 | 2 |
| 输出类型 | Rail to Rail |
| 最低CMRR | 72 |
| 最低工作温度 | -40 |
| 供应商封装形式 | SO N |
| 标准包装名称 | SOIC |
| 最高工作温度 | 125 |
| 最大单电源电压 | 5.5 |
| 关机支持 | No |
| 包装长度 | 5(Max) |
| 引脚数 | 8 |
| Maximum Input Offset Current | 0.03@5V |
| 最大输入失调电压 | 0.8@5V |
| 最小单电源电压 | 2.5 |
| 包装高度 | 1.65(Max) |
| 封装 | Tape and Reel |
| Typical Slew Rate | 0.7@5V |
| 铅形状 | Gull-wing |
| 单位包 | 2500 |
| 最小起订量 | 2500 |
| 电流 - 输出/通道 | 70mA |
| 放大器类型 | General Purpose |
| 安装类型 | Surface Mount |
| 标准包装 | 2,500 |
| 供应商设备封装 | 8-SO |
| 增益带宽积 | 1.3MHz |
| 工作温度 | -40°C ~ 125°C |
| 电流 - 电源 | 130µA |
| Voltage - Supply, Single/Dual (±) | 2.5 V ~ 5.5 V |
| 封装/外壳 | 8-SOIC (0.154", 3.90mm Width) |
| 压摆率 | 0.7 V/µs |
| 电流 - 输入偏压 | 27nA |
| 电压 - 输入偏移 | 800µV |
| 电路数 | 2 |
| 其他名称 | 497-12393-2 |
| RoHS指令 | Lead free / RoHS Compliant |
| Op Amp Type | :General Purpose |
| No. of Amplifiers | :2 |
| Supply Voltage Range | :2.5V to 5.5V |
| Amplifier Case Style | :SOIC |
| No. of Pins | :8 |
| 带宽 | :1.3MHz |
| Operating Temperature Min | :-40°C |
| Operating Temperature Max | :125°C |
| MSL | :MSL 1 - Unlimited |
| SVHC | :No SVHC (20-Jun-2013) |
| 工作温度范围 | :-40°C to +125°C |
| Weight (kg) | 0.0001 |
| Tariff No. | 85423300 |
