Amphenol Tuchel

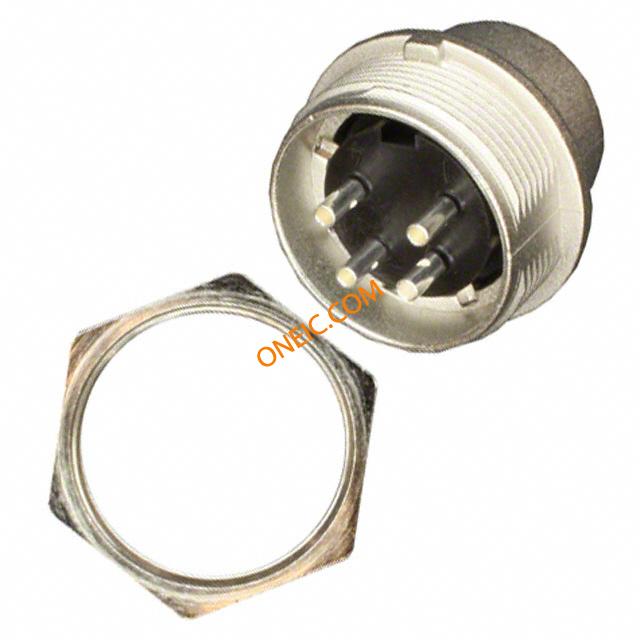

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 防护等级 | IP40 |
| 定位 | Keyed |
| 电压 - 额定 | 300V |
| 安装类型 | Panel Mount, Bulkhead - Rear Side Nut |
| 端子 | Solder Cup |
| 外壳尺寸 - 插件 | DIN (210 Degree) |
| 连接器类型 | Receptacle, Male Pins |
| 外壳材料，表面处理 | Die Cast, Nickel Plated |
| 触点表面涂层 | Silver |
| 封装 | Bulk |
| 工作温度 | -40°C ~ 100°C |
| 紧固型 | Threaded |
| 标准包装 | 50 |
| 额定电流 | 5A |
| 位置数 | 4 |
| 产品特点 | Shielded |
| 工厂包装数量 | 50 |
| 产品种类 | Circular DIN Connectors |
| 家庭 | C091A |
| 额定电压 | 300 V |
| 线规 | 20 AWG |
| RoHS | RoHS Compliant |
| 端接类型 | Solder |
| 联系人性别 | Pin (Male) |
| 标准 | DIN |
| 外壳类型 | Receptacle |
| 产品类型 | Connectors |
| 触点电镀 | Silver |
| 零件号别名 | 009 3302 34B8928 T U |
| 触点数 | 4 |
| 外壳电镀 | Nickel |
| 机构认证 | UL Recognized/IEC |
| Angle | Straight |
| Brand/Series | C091-A Series |
| 触点类型 | Pin |
| Current, Rating | 5 A |
| Finish, Housing | Nickel |
| 可燃性等级 | UL94-V0 |
| 性别 | Male |
| 房屋类型 | Metal |
| IP等级 | IP 40 |
| Material, Dielectric | Thermoplastic |
| Material, Housing | Die Cast |
| 交配型 | Threaded |
| Mount Method | Front |
| Primary Type | DIN |
| 特殊功能 | EMI Shielding, Screw Locking |
| 应力消除 | Internal |
| 类型 | Panel Socket |
| Voltage, Rating | 250 V |
| Wire, AWG | 20-26 |
| RoHS指令 | RoHS Compliant Part |
