TE Connectivity

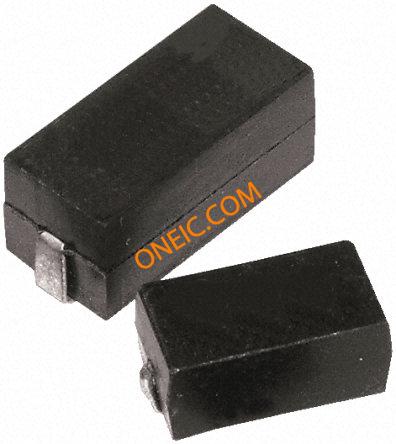

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 案例代码 - 在 | 4122 |
| 案例代码 - 毫米 | 10555 |
| 系列 | SM |
| 外形尺寸 | 5.5 mm W x 10.5 mm L x 5 mm H |
| 封装/外壳 | 4122 (10555 metric) |
| 零件号别名 | 1-1879022-5 |
| 机箱样式 | Moulded |
| 深度 | 5.5mm |
| 身高 | 5mm |
| 长度 | 12mm |
| 最大温度系数 | +100ppm/°C |
| 最低温度系数 | -100ppm/°C |
| 额定功率 | 3W |
| 电阻 | 1.2kΩ |
| 技术 | Metal Film |
| 温度系数 | ±100ppm/°C |
| 容差 | ±5% |
| RoHS指令 | Compliant |
| 表壳长度 | 10.5 mm |
| 表壳厚度 | 5 mm |
| 表壳宽度 | 5.5 mm |
| 标准包装 | 1,000 |
| 产品范围 | :TE CONNECTIVITY - SMF Series |
| 电阻公差 | :± 5% |
| Resistor Case Style | :SMD |
| Resistor Element Material | :Metal Film |
| 额定电压 | :300V |
| 封装 | :Cut Tape |
| MSL | :- |
| 外部深度 | :5mm |
| External Length / Height | :10.5mm |
| 外宽 | :5.5mm |
| No. of Pins | :2 |
| Operating Temperature Max | :200°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +200°C |
| Resistor Mounting | :SMD |
| Temperature Coeff. + | :100ppm/°C |
| Temperature Coeff. - | :100ppm/°C |
| Tolerance + | :5% |
| Tolerance - | :5% |
| Voltage Rating V DC | :300V |
| Weight (kg) | 0.01 |
| Tariff No. | 85331000 |
| Brand/Series | SMSeries |
| Material,Element | MetalFilm |
| Power,Rating | 3W |
| 端子 | SMT |
| TycoPartNumber | 1-1879022-5 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
