TE Connectivity

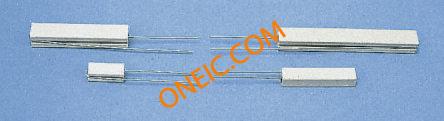

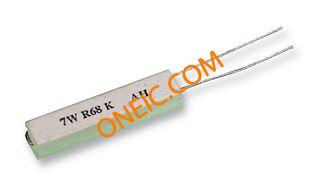

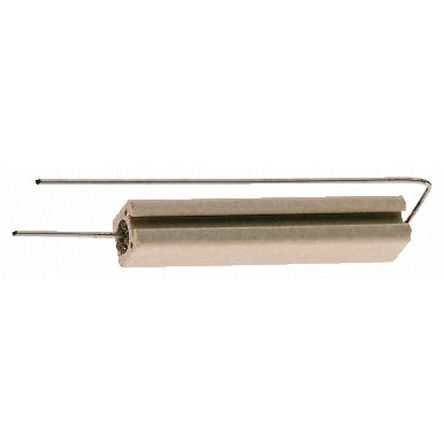

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 端接类型 | Axial |
| 零件号别名 | 4-1623732-2 |
| 机箱样式 | Ceramic |
| 深度 | 7mm |
| 外形尺寸 | 38 x 7 x 8mm |
| 身高 | 8mm |
| 长度 | 38mm |
| 最高工作温度 | +350°C |
| 最大温度系数 | +200ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | -200ppm/°C |
| 额定功率 | 7W |
| 电阻 | 560Ω |
| 技术 | Wire Wound |
| 温度系数 | ±200ppm/°C |
| 容差 | ±5% |
| RoHS指令 | Compliant |
| 产品范围 | :TE CONNECTIVITY - SBC Series |
| 电阻公差 | :± 5% |
| Resistor Case Style | :Radial Leaded |
| Resistor Element Material | :Wirewound |
| 额定电压 | :62.6V |
| 外部深度 | :8mm |
| External Length / Height | :38mm |
| 外宽 | :7mm |
| Full Power Rating Temperature | :70°C |
| 引线直径 | :0.8mm |
| Operating Temperature Max | :250°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +250°C |
| Resistor Mounting | :Through Hole |
| 系列 | :SBCHE6 |
| Temperature Coeff. + | :200ppm/°C |
| Temperature Coeff. - | :200ppm/°C |
| Tolerance + | :5% |
| Tolerance - | :5% |
| Weight (kg) | 0.05 |
| Tariff No. | 85332100 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
