te connectivity / p&b

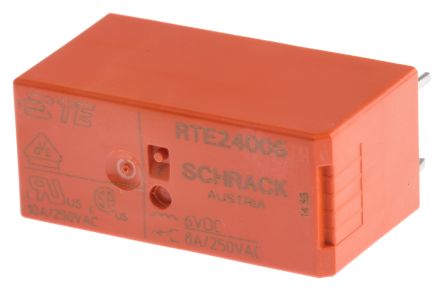

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Power Relay |
| 触点形式 | DPDT |
| 最大额定电流 | 15 A |
| 直流线圈电压 | 6 V |
| 安装 | Through Hole |
| 线圈电流 | 66.67 mA |
| 线圈电阻 | 90 Ohm |
| 触点材料 | Silver Nickel 90/10 |
| 最大交流电压额定值 | 400 V |
| 工作温度 | -40 to 85 °C |
| 标准包装 | Rail / Tube |
| 产品种类 | General Purpose Relays |
| RoHS | RoHS Compliant |
| 触点形式 | 2 Form C (DPDT-BM) |
| 线圈电压 | 6 V |
| 安装风格 | PCB |
| 线圈类型 | Monostable |
| 接触端子 | PCB |
| 身高 | 15.7 mm |
| 长度 | 29 mm |
| 功耗 | 400 mW |
| 系列 | RT2 |
| 工厂包装数量 | 20 |
| 宽度 | 12.7 mm |
| 零件号别名 | 1393243-2 |
| 工业别名 | 1393243-2, RTE24006 |
| 子类别 | Electromechanical Relay |
| 封装 | Tube | Box |
| 交货期 | 101 Days |
| 应用 | Power |
| 联系配置 | DPDT |
| 深度 | 12.7mm |
| 最高工作温度 | +85°C |
| 最大开关电源AC | 2 kVA |
| 最低工作温度 | -40°C |
| 安装类型 | PCB |
| 终端类型 | Through Hole |
| RoHS指令 | Compliant |
| 切换电压 | 400 VAC |
| 触点额定电流 | 8 A |
| 产品范围 | :TE - Power PCB Relay RT2 Series |
| Contact Current | :8A |
| Contact Voltage VAC | :277V |
| Contact Voltage VDC | :30V |
| Relay Mounting | :Through Hole |
| Approval Bodies | :BEAB, VDE |
| Approval Category | :UL Recognised |
| Coil Operating Lower Percent Limit | :70% |
| Coil Operating Upper Percent Limit | :175% |
| Coil Voltage VDC Nom | :6V |
| Contact Current AC Max | :8A |
| Contact Current DC Max | :10A |
| Contact Current Max | :8A |
| Contact Voltage AC Max | :250V |
| Contact Voltage AC Nom | :277V |
| Contact Voltage DC Max | :30V |
| Contact Voltage DC Nom | :30V |
| DC Coil Power | :400mW |
| Dielectric Voltage Coil to Contact | :5kV |
| Dielectric Voltage Contact to Contact | :1kV |
| 外部深度 | :15.7mm |
| 外部高度 | :29mm |
| External Length / Height | :29mm |
| 外宽 | :12.7mm |
| 引线间距 | :5.0mm |
| Must Actuate Voltage | :4.2V |
| Must Release Voltage | :0.6V |
| No. of Poles | :2 |
| Nom Operating Power | :400mW |
| Operating Time | :7ms |
| Weight (kg) | 0.013 |
| Tariff No. | 85364900 |
| Brand/Series | RTSeries |
| ContactForm | DPDT |
| CurrentRating | 8A |
| 功能 | GeneralPurpose |
| MountingType | PCB |
| NumberofPins | 6 |
| RelayType | ElectroMechanical |
| 标准 | cULus,CSA,VDE,RoHS |
| 端子 | Solder |
| Voltage,Control | 5VDC |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
