TE Connectivity

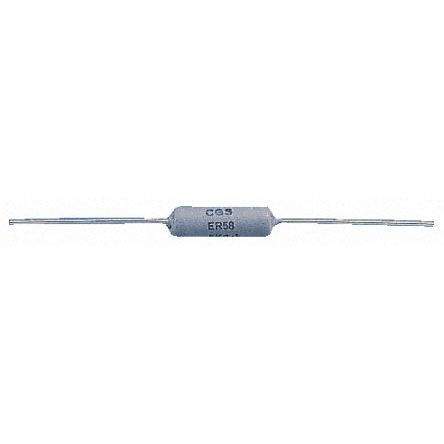

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| RoHS | RoHS Compliant |
| 封装 | Ammo |
| 零件号别名 | 5-1623750-1 |
| 机箱样式 | Conformal |
| 直径 | 8mm |
| 外形尺寸 | 8 Dia. x 22.2mm |
| 长度 | 22.2mm |
| 最高工作温度 | +200°C |
| 最大温度系数 | +200ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | -200ppm/°C |
| 额定功率 | 7W |
| 电阻 | 680mΩ |
| 技术 | Wire Wound |
| 温度系数 | ±200ppm/°C |
| 端接类型 | Axial |
| 容差 | ±5% |
| RoHS指令 | Compliant |
| 产品范围 | :TE CONNECTIVITY - ER Series |
| 电阻公差 | :± 5% |
| Resistor Case Style | :Axial Leaded |
| Resistor Element Material | :Wirewound |
| 额定电压 | :200V |
| 主体直径 | :8mm |
| 机身长度 | :22.2mm |
| 引线直径 | :0.8mm |
| 引线长度 | :38mm |
| No. of Pins | :2 |
| Operating Temperature Max | :200°C |
| Operating Temperature Min | :-55°C |
| 工作温度范围 | :-55°C to +200°C |
| Resistor Mounting | :Through Hole |
| 系列 | :ER |
| Weight (kg) | 0.003 |
| Tariff No. | 85332100 |
| Brand/Series | ERSeries |
| Material,Element | Wirewound |
| PackageType | SiliconeCoat |
| Power,Rating | 6W |
| 端子 | Axial |
| TycoPartNumber | 5-1623750-1 |
