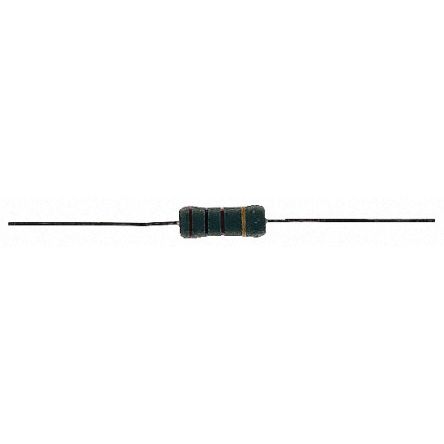

图片仅供参考,产品以实物为准
| 规格书 |
 3D PDF 4-1773460-6_RESISTIVE_SOLUTIONS_RAIL 1309350_PASSIVE_COMPONENT Flame Proof Power Metal Oxide Film Resistors - Type ROX Series - Tyco Electronics Passives 8-1773459-4_POWER_FILTERING_AND_RESISTIVE_SOLUTIONS_FOR_ELEVATORS_AND_ESCALATORS |
| メーカ | TE Connectivity |
| RoHS | RoHS 認証 |
| 抵抗 | 1.8 kOhms |
| 公差 | 5 % |
| 電力定格 | 3 W |
| 定格電圧 | 350 V |
| 温度係数 | 350 PPM / C |
| 末端様式 | Axial |
| 動作温度範囲 | - 55 C to + 235 C |
| 寸法 | 5.5 mm Dia. x 16 mm L |
| 製品 | Power Resistors Metal Oxide |
| 別の部品番号 | 2-1625892-4 |
| 机箱样式 | Conformal |
| 直径 | 5.5mm |
| 外形尺寸 | 5.5 Dia. x 15mm |
| 长度 | 15mm |
| 最高工作温度 | +235°C |
| 最大温度系数 | +300ppm/°C |
| 最低工作温度 | -55°C |
| 最低温度系数 | -300ppm/°C |
| 额定功率 | 3W |
| 电阻 | 1.8kΩ |
| 技术 | Metal Oxide |
| 温度系数 | ±300ppm/°C |
| 端接类型 | Axial |
| 容差 | ±5% |
| RoHS指令 | Compliant |
| 表壳直径 | 5.5 mm |
| 产品 | Power Resistors Metal Oxide |
| 额定电压 | 350 V |
| 工作温度范围 | - 55 C to + 235 C |
| 表壳长度 | 16 mm |
| 零件号别名 | 2-1625892-4 |
| 产品范围 | :TE CONNECTIVITY - ROX Series |
| 电阻公差 | :± 5% |
| Resistor Case Style | :Axial Leaded |
| Resistor Element Material | :Metal Oxide |
| External Length / Height | :5.5mm |
| 外宽 | :16mm |
| 引线直径 | :0.7mm |
| 引线长度 | :28mm |
| No. of Pins | :2 |
| Operating Temperature Max | :235°C |
| Operating Temperature Min | :-55°C |
| Overload Voltage | :600V |
| Resistor Mounting | :Through Hole |
| 系列 | :ROX |
| Weight (kg) | 0.0014 |
| Tariff No. | 85332100 |
| associated | 1399075-M |
