te connectivity / amp

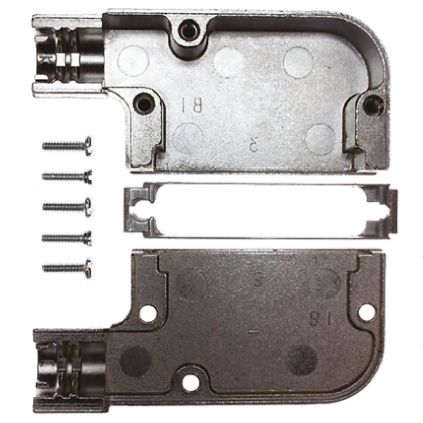

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Backshell/Cable Clamp Kit |
| 家庭 | 5745653 |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Backshells |
| RoHS | RoHS Compliant |
| 电缆入口数 | 1 |
| 电缆进入角度 | 90 deg |
| 电缆直径 | 10.92 mm |
| 位置数 | 25 |
| 外壳尺寸 | 3 |
| 外壳电镀 | Bright Nickel over Copper |
| 封装 | Bulk |
| 外壳材质 | Zinc Die Cast |
| 工厂包装数量 | 1 |
| 评论 | Each kits is comprised of a two-piece shield with three pan head screws and a s |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 滑动锁材质 | Stainless steel |
| 电缆夹材料 | Die Cast |
| 垫圈 | Without |
| 屏蔽 | Yes |
| 包装方式 | Individual Kit |
| 螺纹尺寸 | 4-40 |
| Cable Exit Angle | 90° |
| 滑动锁 | With |
| 屏蔽镀层 | Bright Nickel over Copper |
| 电缆夹类型 | Two-Piece RFI/EMI Shield |
| 产品类型 | Backshell/Cable Clamp |
| RoHSELV符合记录 | Always was RoHS compliant |
| Cable Insulation Diameter (mm in) | 10.92 [0.430] |
| 卖备选方案 | 745653-3 |
| 子类别 | Backshells |
| 交货期 | 28 Days |
| 电镀 | Nickel over Copper |
| 电缆类型 | Round |
| 屏蔽 | Shielded |
| 产品特点 | Assembly Kit, Slide Latch |
| 颜色 | Silver |
| 材质 | Metal, Zinc Alloy |
| 附件类型 | Two Piece Backshell |
| 硬件 | Assembly Hardware |
| 线缆出口 | 90° |
| RoHS指令 | Lead free / RoHS Compliant |
| 身体上的取向 | Right Angle |
| 外壳材料 | Die Cast Zinc Alloy |
| 工作温度范围 | -55C to 105C |
| 产品长度（mm ） | 58.7 mm |
| 产品厚度（毫米） | 32.63 mm |
| 产品高度（mm ） | 32.8 mm |
| 系列 | :AMPLIMITE |
| D Sub Shell Size | :DB |
| Connector Body Material | :Zinc Alloy |
| Cable Diameter Max | :10.92mm |
| 颜色 | :Nickel |
| Connector Shell Size | :3 |
| 螺丝材质 | :Steel |
| 螺丝电镀 | :Zinc |
| Weight (kg) | 0.096 |
| Tariff No. | 85369010 |
| Brand/Series | AMP |
| CableExitAngle | 90Deg |
| Cable,Diameter | 0.430In. |
| Material,Backshell | Die-CastMetal |
| ShellSize | 25Positions |
| SpecialFeatures | EMI/RFIShield |
