te connectivity / amp

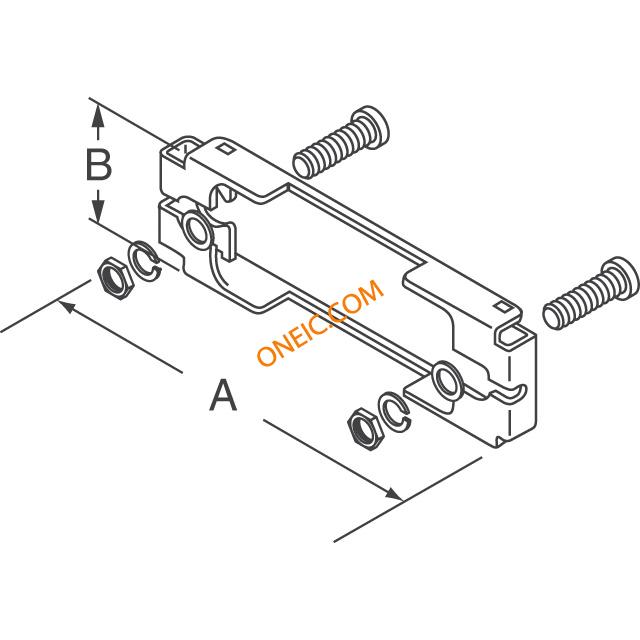

所示图像仅为示意图。请从产品数据表中获得准确的规格。
| Type | Description |
|---|---|
| 类型 | Latch |
| 家庭 | 5745578 |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Tools & Hardware |
| RoHS | RoHS Compliant |
| 封装 | Bulk |
| 工厂包装数量 | 1 |
| 评论 | Slide latches can be used on connectors without cable clamp or with cable clamp |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| 螺丝电镀 | Zinc |
| GovernmentIndustry资格 | No |
| 包装方式 | Individual Kit |
| 闩锁材质 | Stainless Steel |
| 闩锁型 | Slide Latch |
| 螺丝材质 | Steel |
| 外壳尺寸 | 5 |
| 产品类型 | Latch |
| RoHSELV符合记录 | Always was RoHS compliant |
| 螺丝表面处理 | Yellow Chromate |
| 螺纹尺寸 | 4-40 |
| 产品特点 | 4-40, Hardware Included |
| 附件类型 | Slide Latch |
| 其他名称 | A33702 |
| 配用/相关产品 | D-Sub Connectors Series AMPLIMITE |
| 位置数 | 50 |
| RoHS指令 | Lead free / RoHS Compliant |
| 套件类型 | D-sub Slide Latch Kit |
| 触点数 | 50 |
| 删除 | Compliant |
| 产品长度（mm ） | 71.62 mm |
| 产品高度（mm ） | 13.89 mm |
| 封装方法 | 个别套件 |
| 附件类型 | 滑块锁闩 |
| 螺纹尺寸 | 4-40 |
| 适用于 | 带电缆夹具护套的连接器 |
| 封装数量 | 1 |
| Screw Plating Material | Zinc |
| 产品类型 | 附件 |
| RESOURCE TYPE | LINK |
|---|---|
| Datasheets |
|
