图片仅供参考,产品以实物为准
| 规格书 |

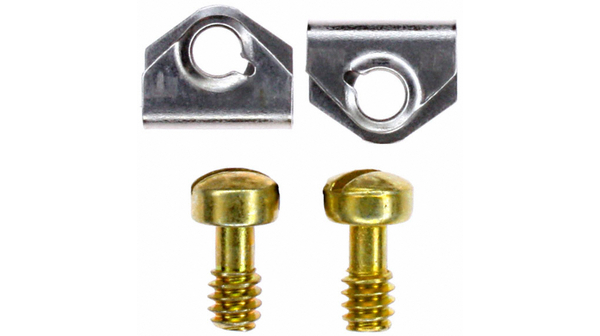

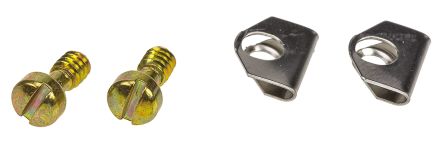

 5205980 KIT, SCREW RETAINER 3D PDF AMPLIMITE Subminiature D Connectors - Cable Connectors MD_5205980-1_12202013627_dmtec Female Screwlock Kits and Male Screw Retainer Kits |
| 文档 |
5205980-1 Statement of Compliance RoHS 2 Statement |
| Rohs | Lead free / RoHS Compliant |
| RoHS信息 | 5205980-1 Statement of Compliance |
| 标准包装 | 1 |
| 附件类型 | Jackscrew, Slotted |
| 特点 | Clip |
| Length - Threaded Portion Below Head | 0.220 (5.60mm) |
| Thread 大小 | 4-40 |
| 类型 | Kit |
| 家庭 | 5205980 |
| 标准包装 | Bulk |
| 产品种类 | D-Sub Tools & Hardware |
| RoHS | RoHS Compliant |
| 产品 | Hardware |
| 性别 | Male |
| 螺丝材质 | Carbon Steel |
| 螺丝电镀 | Zinc |
| 工厂包装数量 | 1 |
| 螺纹尺寸 | 4-40 UNC |
| 封装 | Individual |
| 产品厚度 | 6.35 |
| 产品长度 | 7.1 |
| 欧盟RoHS指令 | Compliant |
| 评论 | All parts are packaged unassembled.; Male screw retainers mate with female scre |
| RoHSELV合规性 | RoHS compliant, ELV compliant |
| Lead Free Solder Processes | Not relevant for lead free process |
| GovernmentIndustry资格 | No |
| 螺杆长度（毫米） | 5.60 [0.220] |
| 包装方式 | Individual |
| 适用于 | Metal Shell Connectors (HDE and HDP) |
| 固定夹材质 | Stainless Steel |
| 产品类型 | Male Screw Retainers |
| RoHSELV符合记录 | Always was RoHS compliant |
| 螺丝表面处理 | Yellow Chromate |
| 长度 - 以下的螺纹部分头 | 0.220" (5.59mm) |
| 产品特点 | Clip |
| 附件类型 | Jackscrew, Slotted |
| 配用/相关产品 | D-Sub Connectors Series AMPLIMITE HDE, HDP |
| RoHS指令 | Lead free / RoHS Compliant |
| 产品长度（mm ） | 7.1 mm |
| 产品厚度（毫米） | 6.35 mm |
| 系列 | :AMPLIMITE |
| 螺丝长度 | :5.6mm |
| Thread Size - Metric | :- |
| Thread Size - Imperial | :4-40 UNC |
| 主体镀层 | :Zinc |
| External Length / Height | :5.59mm |
| Weight (kg) | 0.0002 |
| Tariff No. | 85369010 |
| associated | 1857211-1 1857211-2 1857211-3 |
