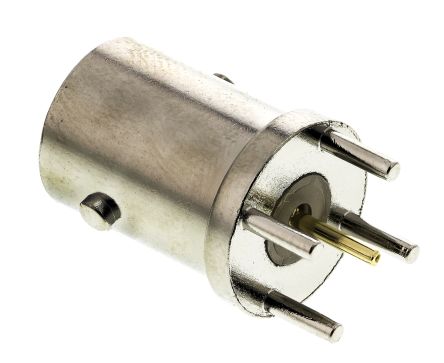

图片仅供参考,产品以实物为准
| 规格书 |
 1634503 BNC STRAIGHT LOW PROFILE PCB SOCKET 3D PDF |
| 文档 |
5-1634503-3 Statement of Compliance RoHS 2 Statement |
| Rohs | Lead free / RoHS Compliant |
| RoHS信息 | 5-1634503-3 Statement of Compliance |
| Connector 风格 | BNC |
| Connector 型 | Jack, Female Sockets |
| 接触终止 | Solder |
| 阻抗 | 75 Ohm |
| 安装类型 | Through Hole |
| Fastening 型 | Bayonet Lock |
| 电缆集团 | - |
| 频率 - 最大 | 2GHz |
| 特点 | - |
| 颜色 | - |
| 包装材料 | Bulk |
| 类型 | ZDC/BNC |
| 性别 | RCP |
| 阻抗 | 75 Ohm |
| 工作频率 | 0 to 2 GHz |
| 端接方式 | Solder |
| 安装 | Through Hole |
| 身体上的取向 | Straight |
| 触点材料 | Phosphor Bronze |
| 触点电镀 | Gold |
| 家庭 | 1634503 |
| 要终止 | PCB |
| 标准包装 | Bulk |
| 中心触点电镀 | Gold |
| 阀体材质 | Zinc Alloy |
| 安装类型 | Through Hole |
| 额定电压 | 500V |
| 接触端子 | Solder |
| 屏蔽端接 | Solder |
| 中心触点材料 | Phosphor Bronze |
| 连接器类型 | Jack, Female Socket |
| 封装 | Bulk |
| 频率 - 最大 | 2GHz |
| 连接器类型 | BNC |
| 外壳颜色 | Silver |
| 机身表面处理 | Nickel |
| 工作温度 | -55°C ~ 85°C |
| 绝缘材料 | Polymethylpentene (PMP) |
| 紧固型 | Bayonet Lock |
| RoHS指令 | Lead free / RoHS Compliant |
| 工厂包装数量 | 100 |
| 产品 | PCB Receptacles |
| 产品种类 | RF Connectors / Coaxial Connectors |
| 定位 | Straight |
| 工作温度范围 | - 55 C to + 85 C |
| 端接类型 | Solder |
| 最大频率 | 4 GHz |
| RF系列 | BNC |
| 体风格 | Straight |
| RoHS | RoHS Compliant By Exemption |
| 工作温度范围 | -55C to 85C |
| 弧度硬化 | No |
| 端子 | Solder |
| 安装风格 | Through Hole |
| 绝缘材料 | Polymethylpentene |
| 主体镀层 | Nickel |
| 产品长度（mm ） | 13.7 mm |
| 产品厚度（毫米） | 11 mm |
| 产品直径（mm ） | 11 mm |
| Coaxial Termination | :Solder |
| Coaxial Cable Types | :- |
| Frequency Max | :4GHz |
| Connector Mounting | :PCB |
| 同轴电缆类型 | :75R |
| Connector Mounting Orientation | :PC Board |
| 接触电阻 | :1.5mohm |
| 绝缘电阻 | :5000Mohm |
| No. of Mating Cycles | :50 |
| Operating Frequency Max | :4GHz |
| Operating Temperature Max | :+85°C |
| Operating Temperature Min | :-55°C |
| 插头主体材料 | :Zinc |
| 系列 | :- |
| 耐压 | :1500V |
| 工作电压 | :500V |
| Weight (kg) | 0.01 |
| Tariff No. | 85369010 |
| Angle | Straight |
| ContactPlating | Gold |
| Finish,Housing | Nickel |
| Material,Dielectric | Polymethylpentene |
| MountingType | PCBMount |
| 极性 | Normal |
| PrimaryType | BNC |
| 尺寸 | Standard |
| SpecialFeatures | HoldDownPosts |
| associated | 1-1478031-0 1-1478032-0 1-1634624-0 1-1634622-0 1-1634508-0 1-1478033-0 More> |
